Schneider ATV61HD75N4 Energy-Saving VSD for Altivar 61 Automation

Schneider ATV61HD75N4 Energy-Saving VSD for Altivar 61 Automation

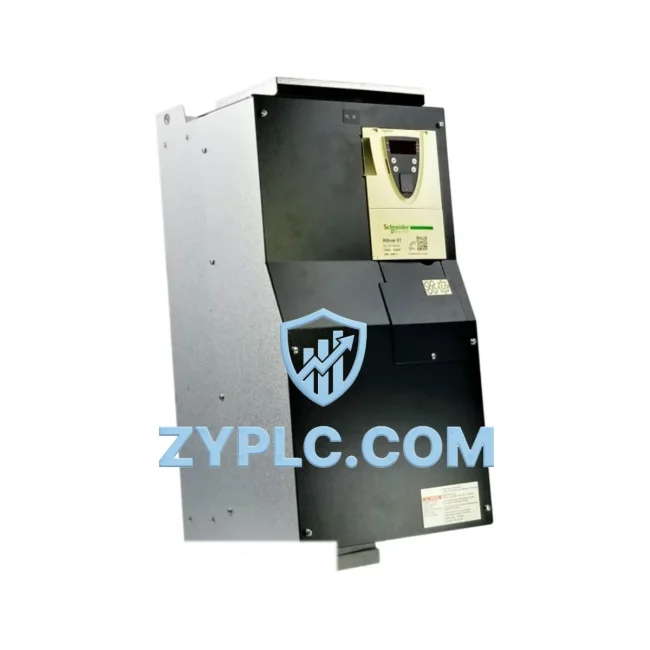

The Schneider Electric ATV61HD75N4 is a high-performance variable speed drive (VSD) from the Altivar 61 series, rated at 75kW / 400V three-phase. Engineered for demanding industrial environments, this drive delivers precise motor speed regulation that directly translates into measurable energy savings across pumping, fan, compressor, and conveyor applications. By eliminating the energy waste associated with throttling valves, dampers, and direct-on-line motor starts, the ATV61HD75N4 enables factories to reduce electrical consumption by 20–50% on variable-torque loads — without compromising throughput or production line rhythm.

Sourced from verified supply channels, every ATV61HD75N4 unit offered by ZYPLC undergoes pre-shipment functional testing and ships with a 12-month warranty, ensuring operational confidence from day one of installation.

Efficiency Performance Table

Energy-Aware Automation Architecture

The ATV61HD75N4 is most effective when deployed as part of a coordinated automation architecture where energy data flows continuously between field devices and control systems. In a typical Schneider Electric ecosystem, the drive communicates via Modbus RTU or Profibus DP with a Modicon M340 or Modicon M580 PLC, which acts as the central logic controller for sequencing motor start/stop cycles, adjusting speed references based on process demand, and logging runtime hours for predictive maintenance scheduling.

On the power monitoring side, the PowerLogic PM5000 series power meter can be installed upstream of the drive panel to capture real-time kWh consumption, power factor, and harmonic distortion data. This data feeds into EcoStruxure Power Monitoring Expert software, giving energy managers a clear picture of where losses occur and how the ATV61HD75N4 is contributing to overall site efficiency targets. When paired with the ATV61 Braking Resistor Kit or a regenerative braking unit, the drive can even return braking energy to the bus during deceleration cycles — a critical feature in high-inertia applications such as centrifuges or large conveyor systems.

At the field level, Schneider TeSys D-series contactors and GV2 motor circuit breakers provide upstream protection and safe isolation for the drive output circuit. The Altivar 61 Keypad Remote Display (VW3A1101) allows operators to monitor drive status, adjust parameters, and view fault history directly at the panel door without connecting a laptop — reducing diagnostic time during shift changes. For multi-drive installations, the ATV61 Multipoint Network Card (VW3A3310) enables simultaneous supervision of multiple drives from a single Modicon controller or SCADA node, streamlining energy reporting across production zones.

Where precise positioning or high-dynamic torque response is required alongside the ATV61HD75N4 — for example, in mixed drive architectures — the Lexium 32 servo drive and LXM32 servo motor combination handles axes that demand encoder feedback and sub-millisecond cycle times, while the ATV61 manages the bulk energy-intensive loads. This division of labor between servo and VSD platforms is a proven strategy for optimizing both energy consumption and production line cycle time simultaneously.

I/O expansion is handled through the Modicon STB distributed I/O modules or TM3 expansion modules connected to the M340/M580 controller, enabling the PLC to read process sensors — pressure transducers, flow meters, temperature probes — and dynamically adjust the ATV61HD75N4 speed reference in closed-loop control. This closed-loop approach is the foundation of demand-based motor control: the drive runs only as fast as the process requires, eliminating the constant-speed energy waste that characterizes legacy fixed-speed installations.

Power Optimization in Real Production Lines

In water and wastewater treatment facilities, the ATV61HD75N4 is commonly applied to centrifugal pump drives where flow demand varies throughout the day. By replacing a fixed-speed pump motor with a VSD-controlled equivalent, plant operators typically achieve 30–45% reductions in pump energy consumption within the first year of operation. The drive’s built-in PID controller allows direct connection of a 4–20mA pressure transmitter signal, enabling fully autonomous pressure regulation without requiring PLC intervention for routine speed adjustments.

In HVAC and building automation contexts, the ATV61HD75N4 controls supply and return air fans in air handling units (AHUs). Variable air volume (VAV) systems driven by the Altivar 61 respond to duct pressure sensors and occupancy schedules, reducing fan speed during off-peak hours and eliminating the energy penalty of inlet vane dampers. Facilities that have migrated from damper-controlled fans to VSD-controlled fans report energy savings of 40–60% on fan circuits alone.

On manufacturing production lines, the drive’s flying restart function and catch-on-the-fly capability allow it to reconnect to a spinning motor without a full stop-and-restart sequence — reducing mechanical stress on couplings and gearboxes while maintaining line throughput. The ATV61’s built-in energy meter function logs cumulative kWh consumption directly in the drive memory, providing a low-cost energy sub-metering solution for individual machine cells without requiring additional power meters.

Predictive maintenance is supported through the drive’s thermal model, which continuously estimates motor winding temperature based on current draw and ambient conditions. When the thermal model predicts an overtemperature condition, the drive reduces speed or triggers an alarm before a fault trip occurs — preventing unplanned downtime and protecting motor insulation life. Combined with runtime hour counters and fault log history accessible via the Altivar 61 communication port, maintenance teams can schedule bearing replacements, coupling inspections, and filter changes based on actual operating data rather than fixed calendar intervals.

ZYPLC maintains ready stock of the ATV61HD75N4 and related Altivar 61 accessories to support urgent replacement requirements. All units are tested for output voltage balance, insulation resistance, and control board functionality prior to shipment. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units.

Energy Optimization FAQ

Q1: How much energy can the ATV61HD75N4 save compared to a direct-on-line motor starter?
A: On variable-torque loads such as pumps and fans, the ATV61HD75N4 typically reduces energy consumption by 20–50% depending on the load profile and duty cycle. The savings are greatest when the process demand varies significantly throughout the operating day, as the drive reduces motor speed — and therefore power draw — in proportion to actual demand. Fixed-speed motors running at full speed against throttled valves or dampers waste energy continuously; the Altivar 61 eliminates this waste at the source.

Q2: Is the ATV61HD75N4 compatible with existing Schneider Electric PLC and SCADA systems?
A: Yes. The ATV61HD75N4 supports Modbus RTU natively and accepts optional communication cards for Profibus DP, CANopen, DeviceNet, and Ethernet/IP. It integrates directly with Modicon M340, M580, and Premium PLC platforms using standard function blocks available in Unity Pro / EcoStruxure Control Expert. For SCADA integration, the drive’s register map is fully documented and compatible with Wonderware, Ignition, and EcoStruxure Operator Terminal Expert HMI platforms.

Q3: Can the ATV61HD75N4 replace an older Altivar 58 or Altivar 66 drive without rewiring?
A: In most cases, yes. The Altivar 61 series was designed with backward compatibility in mind for common terminal configurations. However, ZYPLC recommends verifying the motor cable cross-section, input fuse ratings, and control wiring assignments against the ATV61HD75N4 installation manual before replacement. Our technical team can assist with migration checklists and parameter transfer guidance to minimize commissioning time.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
A: Every ATV61HD75N4 unit shipped by ZYPLC is tested for DC bus voltage, output phase balance, control board communication, and keypad display functionality before dispatch. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides advance replacement support to minimize production downtime. Warranty terms begin from the date of shipment and are documented with each unit’s test record.
