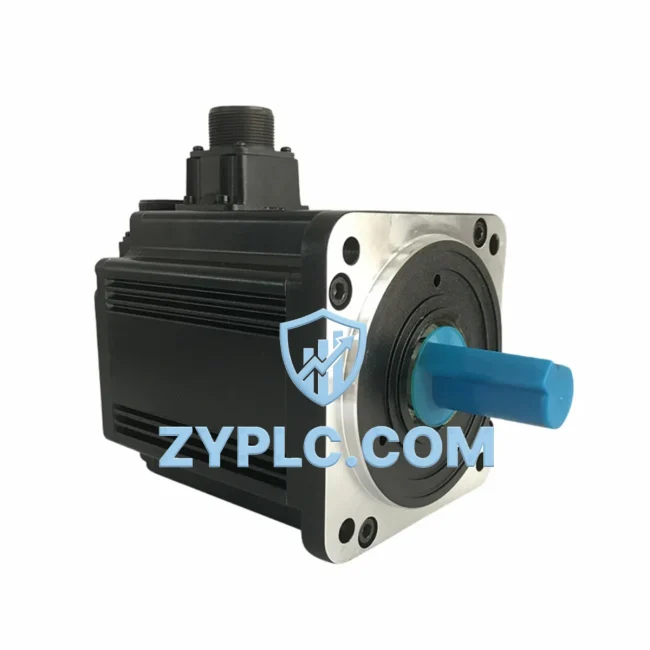

Schneider BCH1304N32A1C System-Ready Servo Motor for Lexium Architecture

Schneider BCH1304N32A1C System-Ready Servo Motor for Lexium Architecture: Precision Motion at the Core of Your Control System

In modern industrial automation, the servo motor is not simply a rotating actuator — it is the precision execution layer that translates control commands into deterministic mechanical output. The Schneider Electric BCH1304N32A1C servo motor is engineered to operate as a fully integrated component within the Lexium servo drive architecture, delivering high-torque, low-inertia performance across demanding manufacturing, packaging, material handling, and process control environments. When deployed alongside compatible Schneider Electric control and drive components, the BCH1304N32A1C becomes a cornerstone of a coherent, scalable, and maintainable automation system.

Architecture Specification Table

Coordinated Control System Design

The BCH1304N32A1C is designed to function within a layered Schneider Electric control architecture, where each component plays a defined role in the signal and power chain. At the control layer, a Modicon M241 (TM241CE24T) or Modicon M262 logic controller issues motion commands via EtherNet/IP or CANopen to the Lexium LXM32A servo drive, which in turn regulates current, velocity, and position feedback from the BCH1304N32A1C motor’s encoder. This closed-loop architecture ensures sub-millisecond response times and repeatable positioning accuracy across multi-axis systems.

Power integrity is maintained through a BMXCPS3500 power supply module within the Modicon X80 rack, which provides stable 24 VDC logic power to the I/O layer. Discrete I/O signals — such as servo-ready, fault output, and hardware limit switches — are routed through BMXDDI1602 digital input modules and BMXDDO1602 digital output modules, ensuring that the PLC maintains full visibility of the servo system’s operational state at all times.

For operator interaction and real-time monitoring, a Magelis HMIGTO4310 touchscreen HMI provides graphical display of axis position, speed feedback, torque utilization, and alarm history. Operators can initiate homing sequences, jog axes, and acknowledge faults directly from the panel, reducing reliance on engineering workstations during commissioning and routine maintenance.

In multi-axis configurations — such as gantry systems, rotary indexers, or coordinated pick-and-place machines — the BCH1304N32A1C can be paired with additional LXM32M multi-axis drive modules sharing a common DC bus, reducing energy consumption through regenerative braking and simplifying cabinet wiring. Terminal blocks from the Schneider Electric NSYTRV series provide organized, labeled connection points for motor power, brake, and encoder cables, supporting both initial installation and long-term field maintenance.

Where fieldbus integration is required, a BMXNOE0110 Ethernet communication module bridges the Modicon backplane to plant-level SCADA systems, enabling real-time data exchange with supervisory platforms such as Wonderware, Ignition, or Schneider Electric’s own EcoStruxure Operator Advisor. This connectivity ensures that servo performance data — including following error, thermal status, and cycle counts — is available for predictive maintenance analysis without additional hardware.

Application in Layered Automation Systems

The BCH1304N32A1C servo motor finds application across a broad range of industrial sectors where precise, repeatable motion is a system requirement rather than an option.

In packaging and labeling lines, the motor drives registration rollers, label applicators, and film tensioning systems where positional accuracy directly affects product quality and line throughput. Synchronized with upstream vision systems and downstream conveyors via the Modicon M241 controller, the BCH1304N32A1C maintains phase alignment across multiple axes at speeds exceeding 200 products per minute.

In semiconductor and electronics manufacturing, the motor’s low cogging torque and high encoder resolution support precision dispensing, PCB handling, and wafer transport applications where micron-level repeatability is required. The IP65 body rating protects against airborne particulates common in cleanroom-adjacent environments.

In power generation and water treatment facilities, the BCH1304N32A1C is deployed in valve actuator systems and pump control applications where the servo drive’s torque control mode provides smooth, cavitation-free flow regulation. Integration with the plant DCS via Modbus TCP allows centralized monitoring of actuator position and motor health from the control room.

In metallurgical and mining operations, the motor’s robust construction and thermal class F insulation allow sustained operation in high-ambient-temperature environments, supporting conveyor positioning, crusher feed control, and automated sampling systems. Redundant feedback via dual-encoder configurations — supported by compatible LXM32 drive firmware — provides fault-tolerant operation in safety-critical applications.

Architecture Engineering FAQ

Q1: Is the BCH1304N32A1C compatible with existing Lexium 32 drive installations?
Yes. The BCH1304N32A1C is designed for direct compatibility with the Lexium LXM32A and LXM32M servo drive families. Motor parameters — including encoder type, pole count, and thermal model — are pre-configured in the drive’s motor database, enabling plug-and-play commissioning via SoMachine or EcoStruxure Machine Expert software. No manual parameter entry is required for standard configurations.

Q2: What communication protocols does this servo system support, and how does it integrate with SCADA?
The BCH1304N32A1C communicates with the control layer through the Lexium LXM32 drive, which supports CANopen DS402, Modbus TCP, EtherNet/IP, and PROFIBUS DP depending on the drive variant. SCADA integration is achieved via the Modicon PLC’s Ethernet module (e.g., BMXNOE0110), which exposes servo status registers — position, speed, torque, fault codes — as standard OPC-UA or Modbus TCP data points accessible to any supervisory platform.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed?
Every BCH1304N32A1C unit supplied by ZYPLC is covered by a 12-Month Warranty from the date of shipment. Pre-shipment testing includes insulation resistance verification, encoder signal integrity check, no-load rotation test, and visual inspection of connectors, shaft, and housing. Units that do not meet Schneider Electric’s original performance specifications are not shipped. In the event of a warranty claim, ZYPLC provides technical support, replacement coordination, and documentation to minimize system downtime.
