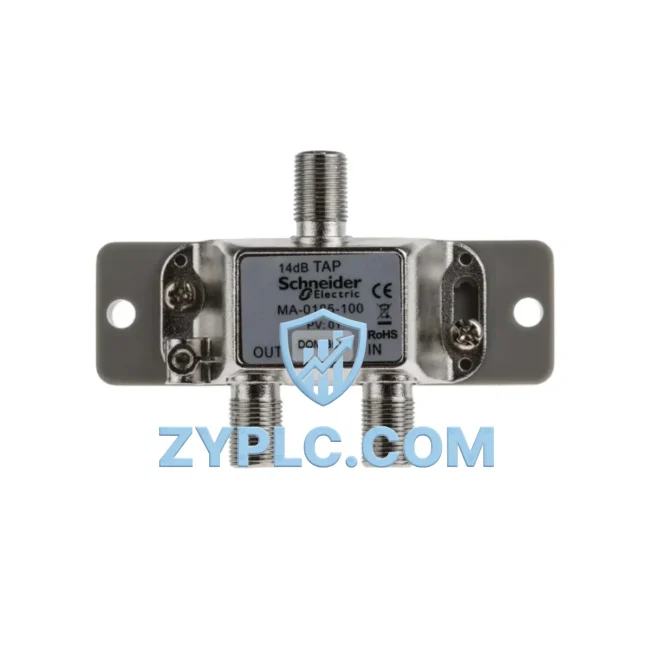

Schneider Electric MA-0185-100 System-Ready Line Tap for Modicon Architecture

Schneider Electric MA-0185-100 System-Ready Line Tap for Modicon Architecture

The Schneider Electric MA-0185-100 is a coaxial cable line tap engineered for seamless integration within the Modicon distributed control architecture. As a critical physical-layer component in the Modbus Plus (MB+) peer-to-peer network, the MA-0185-100 enables reliable node connections across the control bus, ensuring deterministic communication between PLCs, remote I/O drops, and supervisory systems. In large-scale industrial deployments — from petrochemical processing plants to power distribution substations — the integrity of the coaxial network backbone directly determines system uptime, signal fidelity, and the overall reliability of the automation platform. The MA-0185-100 is designed to meet these demands with precision-engineered impedance matching and robust mechanical construction suited for harsh industrial environments.

Within a complete Modicon control system, the MA-0185-100 does not operate in isolation. It forms part of a layered architecture that begins at the controller level with processors such as the Modicon 984 series or the Quantum 140CPU65150 CPU module, which serve as the network master nodes on the Modbus Plus segment. The line tap connects these controllers to remote I/O adapters — including the Modicon AS-BDAP-215 and AS-B885-001 I/O drop adapters — allowing field-level signals from discrete and analog modules to be transmitted back to the control layer with minimal latency. This physical connectivity is the foundation upon which the entire control hierarchy depends.

System architects integrating the MA-0185-100 into new or expanded installations benefit from its compatibility with the full range of Modicon Modbus Plus network accessories, including the SA-85 PC adapter card for engineering workstation connectivity, the BP-85 bridge/repeater for extending network segments beyond the standard 450-meter limit, and the 990NAD23000 Modbus Plus network adapter for Quantum platform integration. Together, these components form a cohesive communication infrastructure that supports both star and daisy-chain topologies, providing the flexibility required in complex multi-drop control environments.

At the power and backplane layer, the MA-0185-100 supports architectures built around Modicon Quantum rack systems, including the 140XBP01600 16-slot backplane and the 140CPS11100 power supply module. Proper grounding and shielding of the coaxial cable network — facilitated by correct installation of the MA-0185-100 tap — is essential for maintaining signal integrity in environments with high electromagnetic interference, such as variable frequency drive (VFD) panels, transformer rooms, and motor control centers. The tap’s design accounts for these real-world installation challenges, providing a mechanically secure and electrically stable connection point.

For human-machine interface (HMI) integration, the Modbus Plus network supported by the MA-0185-100 connects seamlessly to Magelis XBTGT series HMI terminals and SCADA systems via Modbus Plus or gateway bridges, enabling operators to monitor and control process variables in real time. This end-to-end connectivity — from field sensor through I/O module, across the Modbus Plus network via the MA-0185-100 tap, up to the CPU and HMI — represents the complete signal flow that defines a well-engineered Modicon control system. Maintaining the physical integrity of each tap point is therefore not merely a hardware concern but a system-level engineering priority.

From a maintenance and lifecycle management perspective, the MA-0185-100 offers significant advantages. Its standardized coaxial connector interface simplifies replacement during scheduled maintenance windows, reducing mean time to repair (MTTR) and minimizing production downtime. Stocking spare MA-0185-100 units as part of a preventive maintenance inventory strategy is strongly recommended for facilities operating continuous processes where unplanned network outages carry high operational costs. All units supplied by ZYPLC are covered by a 12-Month Warranty, providing assurance of component quality and supporting long-term asset management programs.

The concept of Contextual Integration is central to the value proposition of the MA-0185-100. Rather than treating the line tap as a standalone commodity component, system engineers should evaluate it within the context of the complete Modbus Plus network design — considering node count, cable segment lengths, termination resistor placement, and the specific I/O and CPU modules in use. ZYPLC’s technical team provides pre-sales architecture consultation to ensure that every MA-0185-100 deployment is optimized for the specific control system topology, whether it is a greenfield installation or a brownfield expansion of an existing Modicon platform.

Architecture Specification Table

Coordinated Control System Design

A robust Modicon-based control system integrating the MA-0185-100 line tap typically encompasses multiple coordinated layers. At the controller layer, the Modicon Quantum 140CPU65150 or 140CPU43412A CPU modules serve as Modbus Plus master nodes, managing token rotation and coordinating data exchange across all connected devices. The MA-0185-100 provides the physical tap point that connects these CPUs to the network trunk cable, ensuring low-impedance, noise-resistant signal coupling.

At the I/O layer, remote drop adapters such as the Modicon AS-BDAP-215 and AS-B885-001 connect discrete and analog I/O modules to the Modbus Plus network through their own MA-0185-100 tap connections. This distributed I/O architecture allows field devices — sensors, actuators, transmitters — to be located hundreds of meters from the main control panel while maintaining deterministic communication with the CPU. The 140XBP01600 Quantum backplane and 140CPS11100 power supply module provide the structural and electrical foundation for these remote I/O racks.

Network extension and redundancy are addressed through the Modicon BP-85 bridge/repeater, which regenerates the Modbus Plus signal and allows the network to span multiple segments, each connected via MA-0185-100 taps. For engineering workstation connectivity, the SA-85 ISA adapter or 990NAD23000 Modbus Plus network adapter provides the PC-level interface for programming, diagnostics, and real-time monitoring using Concept or Unity Pro software. At the HMI layer, Magelis XBTGT5330 or similar operator panels connect to the Modbus Plus network, delivering real-time process visualization to plant operators. This complete, multi-layer architecture — unified by the MA-0185-100 at every physical node connection — exemplifies the system-level thinking that defines reliable industrial automation design.

Application in Layered Automation Systems

The MA-0185-100 finds application across a broad spectrum of industrial sectors where Modicon Modbus Plus networks remain the backbone of proven, long-lifecycle control systems.

In power generation and distribution facilities, Modbus Plus networks connect protection relays, transformer monitoring units, and switchgear control panels. The MA-0185-100 ensures that each node on the network maintains a stable, low-noise connection, which is critical in environments with high electromagnetic interference from high-voltage switching equipment. Utilities operating aging Modicon 984 or Quantum-based SCADA systems rely on the continued availability of MA-0185-100 taps for network maintenance and expansion.

In petrochemical and refinery applications, distributed control systems based on Modicon Quantum PLCs manage complex process loops involving temperature, pressure, flow, and level control. The Modbus Plus network, maintained through properly installed MA-0185-100 taps, provides the real-time communication backbone for these safety-critical processes. Network integrity is paramount, and the use of genuine Schneider Electric components — sourced through authorized distributors like ZYPLC — ensures compliance with process safety management (PSM) requirements.

In water and wastewater treatment plants, Modicon-based control systems manage pump stations, filtration processes, and chemical dosing systems across geographically distributed sites. The MA-0185-100 enables reliable multi-drop network connections across these distributed architectures, supporting both local control and centralized SCADA monitoring. The component’s industrial-grade construction ensures reliable operation in the humid, chemically aggressive environments typical of water treatment facilities.

In mining and metallurgical operations, where conveyor systems, crushers, mills, and smelting furnaces are controlled by Modicon PLCs, the MA-0185-100 supports the high-availability network architectures required for continuous production processes. Planned maintenance programs that include spare MA-0185-100 inventory reduce the risk of extended downtime caused by network component failures in remote or difficult-to-access installations.

Architecture Engineering FAQ

Q1: Is the MA-0185-100 compatible with both Modicon 984 and Quantum platform architectures?
Yes. The MA-0185-100 is a Modbus Plus network-layer component and is compatible with all Modicon platforms that support the Modbus Plus protocol, including the Modicon 984 series, the Modicon Quantum series, and the Modicon Momentum series. It connects to the standard RG-6 coaxial trunk cable used in all Modbus Plus installations, making it interoperable across generations of Modicon hardware. When integrating legacy 984-series systems with newer Quantum CPUs on the same Modbus Plus segment, the MA-0185-100 provides a consistent physical interface that supports mixed-platform architectures.

Q2: How many MA-0185-100 taps can be installed on a single Modbus Plus network segment, and what are the implications for system expansion?
A single Modbus Plus segment supports up to 32 node addresses, and each node connection requires one MA-0185-100 tap. For systems requiring more than 32 nodes, the BP-85 bridge/repeater can be used to extend the network across multiple segments, each supporting up to 32 additional nodes. When planning system expansions, it is important to account for the cumulative signal attenuation introduced by each tap and to ensure that cable segment lengths remain within the 450-meter specification. ZYPLC’s technical team can assist with network topology planning to ensure that expansion projects maintain full compliance with Modbus Plus network specifications.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance programs for MA-0185-100 installations?
All MA-0185-100 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and premature failure under normal operating conditions. This warranty supports facilities that require documented component quality assurance as part of their maintenance management systems. For long-term maintenance programs, ZYPLC recommends establishing a minimum spare parts inventory of MA-0185-100 taps proportional to the number of network nodes in the installation. ZYPLC maintains consistent stock availability and offers technical support for installation, commissioning, and troubleshooting of Modbus Plus network components. Contact our team at +86 19859288691 or plc.sales@zyplc.com to discuss your specific maintenance and supply requirements.
