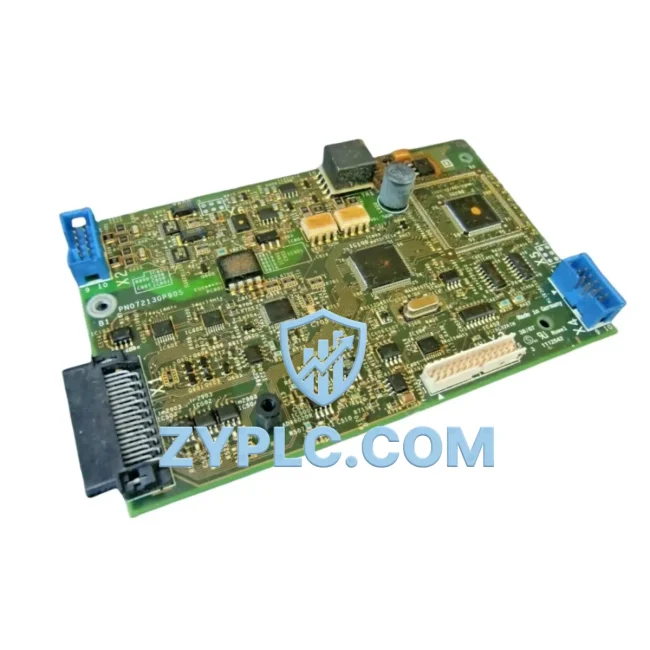

Schneider Electric PN072130P905 System-Ready Drive Control Board for Altivar ATV Architecture

Schneider Electric PN072130P905 System-Ready Drive Control Board for Altivar ATV Architecture

The Schneider Electric PN072130P905 is a precision-engineered drive control board designed for seamless integration within the Altivar ATV variable speed drive platform. In modern industrial automation, a drive control board is not a standalone component — it is the intelligence layer that bridges the control system’s command signals with the physical execution of motor-driven processes. Understanding the PN072130P905 within the full context of a layered automation architecture reveals its true value: it is the component that ensures signal fidelity, command responsiveness, and long-term operational stability across the entire drive system.

Within a complete control system hierarchy, the PN072130P905 occupies a critical position at the execution layer. Commands originate from a Modicon M340 or Modicon M580 programmable logic controller at the control layer, travel through a Modicon BMXNOE0110 Ethernet communication module or a CANopen gateway at the network layer, and arrive at the Altivar ATV drive unit where the PN072130P905 interprets and executes those commands with precision. This signal flow — from PLC to network to drive control board to motor — defines the operational backbone of any process-critical automation system.

The PN072130P905 is engineered to maintain system consistency even under demanding industrial conditions. Its role in the drive’s internal architecture ensures that speed references, torque commands, and fault diagnostics are processed accurately, reducing the risk of unplanned downtime. When paired with a Altivar ATV61 or ATV71 drive chassis, the control board enables full exploitation of the drive’s advanced motor control algorithms, including sensorless flux vector control and closed-loop feedback management. This level of integration is essential for applications where motor performance directly impacts product quality or process safety.

From a system redundancy perspective, the PN072130P905 supports rapid board-level replacement strategies. In facilities where continuous operation is mandatory — such as water treatment plants, petrochemical refineries, or steel rolling mills — maintaining a verified spare of the PN072130P905 eliminates the risk of extended downtime caused by drive control failures. The board’s modular design within the Altivar platform means that replacement can be completed by a qualified technician without requiring full drive reconfiguration, preserving parameter sets stored in the drive’s memory or in an external Modicon SoMove configuration tool.

At the I/O layer, the PN072130P905 interfaces with analog and digital signal conditioning circuits that connect to field instruments, sensors, and actuators. This integration ensures that process variables — such as flow rates, pressure readings, and temperature signals — are accurately translated into motor speed adjustments. The board’s compatibility with the Altivar ATV communication architecture also supports integration with Profibus DP, Modbus RTU, and CANopen fieldbus protocols, enabling the drive to participate in multi-vendor automation environments without protocol conversion overhead.

For engineering teams responsible for long-term maintenance planning, the PN072130P905 offers a clear advantage: it is a documented, catalogued component within Schneider Electric’s global spare parts ecosystem. This means that procurement, incoming inspection, and installation procedures are standardized, reducing the administrative burden on maintenance departments. Combined with a 12-Month Warranty covering manufacturing defects and functional performance, the PN072130P905 represents a low-risk, high-reliability choice for both new installations and retrofit projects.

In packaging lines, the PN072130P905 enables precise conveyor speed synchronization across multiple Altivar drives, ensuring that product handling sequences remain consistent regardless of load variations. In mining and mineral processing applications, the board supports the high-torque, low-speed motor control requirements of crushers, conveyors, and hoists. In HVAC and building automation systems, it enables energy-efficient fan and pump control through integration with building management systems via BACnet or Modbus TCP gateways.

Architecture Specification Table

Coordinated Control System Design

The PN072130P905 achieves its full potential when deployed within a coordinated Schneider Electric control architecture. At the control layer, a Modicon M580 CPU (BMEP582040) provides the primary process logic, issuing speed and torque references to the Altivar ATV71 drive via a Modicon BMXNOE0110 Ethernet/IP communication module. The PN072130P905, seated within the ATV71 drive chassis, receives these commands and translates them into precise motor control outputs.

Power distribution to the drive system is managed through a Schneider Electric Phaseo ABL8 power supply unit, ensuring stable 24VDC auxiliary power to the control board and associated I/O circuits. At the I/O layer, Modicon STB distributed I/O modules collect field signals from proximity sensors, encoders, and pressure transmitters, feeding real-time process data back to the M580 CPU for closed-loop control adjustments.

Network integrity is maintained through a Modicon ConneXium managed Ethernet switch, which segments drive communication traffic from HMI and SCADA traffic, preventing network congestion from affecting drive response times. At the human-machine interface layer, a Magelis GTO advanced panel provides operators with real-time drive status, fault history, and parameter adjustment capabilities, all communicating with the M580 CPU via Ethernet/IP.

For applications requiring output isolation and signal conditioning, Schneider Electric Zelio RSB relay modules provide the interface between the drive’s digital outputs and field actuators such as contactors, solenoid valves, and alarm annunciators. This complete architecture — from M580 CPU through BMXNOE0110 network module, Phaseo power supply, STB I/O, ConneXium switch, Magelis HMI, and Zelio relay modules — demonstrates how the PN072130P905 functions as the execution-layer anchor of a fully integrated Schneider Electric automation system.

Application in Layered Automation Systems

In manufacturing and assembly lines, the PN072130P905 enables precise multi-axis speed coordination across Altivar ATV drives controlling conveyor belts, rotary indexers, and servo-assisted positioning systems. Its compatibility with CANopen master controllers allows tight synchronization between drive axes without requiring dedicated motion controllers.

In power generation and electrical utilities, the board supports the control of auxiliary motor systems including cooling fans, lubrication pumps, and fuel feed conveyors. Its robust signal processing ensures reliable operation in environments with high electromagnetic interference from switchgear and transformer installations.

In petrochemical and oil & gas processing, the PN072130P905 is deployed in pump and compressor drive systems where precise flow control is critical to process safety. Its integration with Profibus DP networks allows the drive to participate in safety-instrumented system architectures, receiving emergency stop commands from SIL-rated safety PLCs.

In water and wastewater treatment, the board enables energy-efficient variable-speed control of submersible pumps, aeration blowers, and sludge conveyors. Integration with SCADA systems via Modbus TCP allows remote monitoring and parameter adjustment without requiring on-site technician intervention.

In mining and metallurgy, the PN072130P905 supports the high-inertia load management requirements of ball mills, crushers, and ore conveyors, where controlled acceleration and deceleration profiles are essential to protecting mechanical drive trains and extending equipment service life.

Architecture Engineering FAQ

Q1: Is the PN072130P905 compatible with both the Altivar ATV61 and ATV71 drive platforms, and can it be installed without full drive reconfiguration?
The PN072130P905 is designed for the Altivar ATV drive platform and is compatible with ATV61 and ATV71 series drives. Board-level replacement preserves drive parameters stored in the drive’s internal memory or in an external Schneider Electric SoMove configuration file, allowing installation to be completed without full reconfiguration. It is recommended to verify firmware compatibility between the replacement board and the existing drive chassis before installation.

Q2: What communication protocols does the PN072130P905 support, and how does it integrate into multi-vendor automation architectures?
The PN072130P905 supports the communication capabilities of the Altivar ATV drive platform, including Modbus RTU, CANopen, and Profibus DP (subject to installed communication option cards). This enables integration into multi-vendor automation environments alongside Siemens SIMATIC, Rockwell Allen-Bradley, or ABB control systems via standard fieldbus gateways, without requiring proprietary protocol conversion hardware.

Q3: What does the 12-Month Warranty cover, and what is the recommended spare parts strategy for critical process applications?
The 12-Month Warranty covers manufacturing defects and verified functional performance of the PN072130P905 under normal industrial operating conditions. For critical process applications — including continuous production lines, water treatment facilities, and power generation auxiliaries — it is recommended to maintain at least one verified spare PN072130P905 board on-site. This strategy, combined with documented installation and parameter backup procedures, minimizes mean time to repair (MTTR) and supports compliance with planned maintenance schedules.
