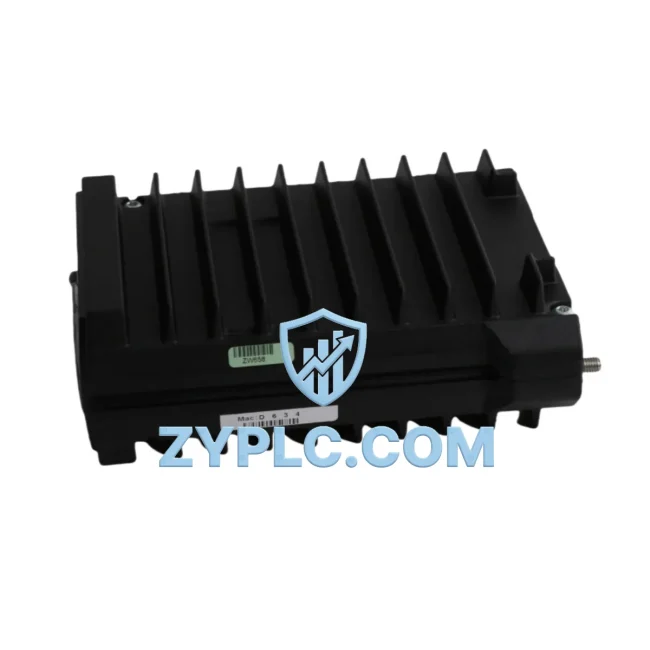

Schneider Electric RH924YA FCP280 System-Ready DCS Processor for Foxboro I/A

Schneider Electric RH924YA FCP280 System-Ready DCS Processor for Foxboro I/A Architecture

The Schneider Electric RH924YA FCP280 Field Control Processor is a high-performance DCS control processor engineered for seamless integration within the Foxboro I/A Series distributed control system architecture. Designed to serve as the computational backbone of field-level process control, the FCP280 coordinates signal acquisition, logic execution, and real-time communication across multiple system layers — from I/O subsystems and field instruments to supervisory HMI platforms and plant-wide data historians.

In modern industrial automation, the control processor is not a standalone device — it is the architectural anchor that determines system responsiveness, redundancy capability, and long-term maintainability. The RH924YA FCP280 fulfills this role by providing deterministic scan cycle execution, robust fieldbus communication, and native compatibility with the broader Foxboro I/A Series ecosystem. Whether deployed in a greenfield process plant or integrated into an existing DCS expansion, this processor ensures that control logic, I/O mapping, and network communication remain synchronized across all system layers.

At ZYPLC, every RH924YA FCP280 unit is sourced from verified supply channels, subjected to functional testing prior to shipment, and backed by a 12-Month Warranty — giving engineering teams and procurement managers the confidence to specify this processor for both critical production environments and long-term maintenance stock.

Architecture Specification Table

Coordinated Control System Design

The RH924YA FCP280 is designed to operate within a layered control architecture where each component plays a defined role in maintaining system integrity. At the control layer, the FCP280 works in conjunction with the Foxboro CP60 and CP270 control processors to distribute processing load across large-scale DCS configurations, ensuring that no single processor becomes a bottleneck in high-density I/O environments.

Below the control layer, the FCP280 interfaces directly with FBM (Field Bus Module) I/O modules — including analog input modules such as the FBM201 and FBM202, and digital output modules such as the FBM237 — to acquire field signals from transmitters, valves, and actuators. These FBMs are mounted on the Foxboro I/A Series baseplate assemblies, which provide the physical and electrical backbone for I/O expansion within the control cabinet.

For network communication, the FCP280 connects to the Nodebus network, which links field control stations to the Foxboro AW70 Application Workstation and the IA Series historian. This communication path ensures that real-time process data flows continuously from the field level to the supervisory layer, where operators interact with the system through Foxboro IACC or third-party HMI platforms. In facilities where FOUNDATION Fieldbus H1 instruments are deployed — such as Emerson 3051 pressure transmitters or Fisher DVC6200 digital valve controllers — the FCP280 manages fieldbus segment scheduling and device communication directly, eliminating the need for separate fieldbus interface hardware.

At the power layer, the FCP280 relies on the Foxboro FPS power supply modules to deliver regulated 24 VDC to the processor and associated I/O baseplate. In redundant configurations, dual FPS units are deployed to eliminate single points of failure at the power layer, complementing the redundant FCP pair at the control layer. This dual-redundancy architecture — covering both processing and power — is a standard design pattern in high-availability process industries such as oil and gas, petrochemical refining, and power generation.

For engineering and commissioning teams, the FCP280 integrates with the Foxboro Control Software (FCS) development environment, where control strategies are built using function block programming and downloaded directly to the processor. This tight integration between the development tool and the runtime processor reduces commissioning time and simplifies long-term maintenance, as control logic modifications can be made online without interrupting production.

Application in Layered Automation Systems

The RH924YA FCP280 is deployed across a wide range of process industries where distributed control, high I/O density, and long-term system stability are essential requirements.

In petrochemical and refining plants, the FCP280 manages continuous process loops — including temperature, pressure, flow, and level control — across multiple process units. Its support for redundant processor configurations ensures that control remains uninterrupted even during planned maintenance or unexpected hardware events. Refineries operating Foxboro I/A Series systems often maintain FCP280 units as critical spare inventory to minimize mean time to repair (MTTR) during unplanned outages.

In power generation facilities — including thermal, combined-cycle, and hydroelectric plants — the FCP280 coordinates boiler control, turbine auxiliary systems, and balance-of-plant automation. Its deterministic scan cycle and fieldbus communication capability make it suitable for applications where control response time directly affects plant efficiency and grid stability.

In water and wastewater treatment plants, the FCP280 manages pump sequencing, chemical dosing, filtration control, and effluent monitoring. Its ability to handle both analog and digital I/O through the FBM module family allows a single FCP280 to control diverse process equipment within a single treatment stage.

In mining and metallurgical operations, the FCP280 is used in ore processing, flotation control, and smelting automation, where harsh environmental conditions and continuous operation demand a processor with proven reliability and straightforward field replacement procedures.

Across all these applications, the FCP280’s compatibility with the Foxboro I/A Series architecture means that engineering teams can leverage existing system infrastructure — including cabinets, baseplates, power supplies, and communication networks — when replacing or expanding processor capacity, significantly reducing both capital expenditure and installation downtime.

Architecture Engineering FAQ

Q1: Is the RH924YA FCP280 compatible with existing Foxboro I/A Series DCS installations?
Yes. The RH924YA FCP280 is a native Foxboro I/A Series component and is fully compatible with existing I/A Series control cabinets, FBM I/O baseplates, Nodebus networks, and FCS software environments. It can be installed as a direct replacement for existing FCP280 units or deployed as an expansion processor in growing DCS configurations without requiring changes to the surrounding system architecture.

Q2: Does the FCP280 support redundant processor configurations, and what is required for implementation?
Yes. The FCP280 supports redundant pair configurations, where two processors operate in a primary/secondary relationship. In the event of a primary processor failure, the secondary assumes control with minimal process disruption. Implementing redundancy requires a matched pair of FCP280 units, compatible redundancy cables, and appropriate configuration within the Foxboro Control Software. ZYPLC can supply matched FCP280 pairs for redundant deployments upon request.

Q3: What warranty and testing standards apply to the RH924YA FCP280 supplied by ZYPLC?
Every RH924YA FCP280 supplied by ZYPLC is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification testing to confirm processor initialization, communication interface integrity, and I/O coordination capability. Units are packaged in anti-static protective materials and shipped with full traceability documentation. For procurement teams requiring additional testing certification or factory acceptance test (FAT) support, ZYPLC’s technical team can be contacted directly to discuss project-specific requirements.
