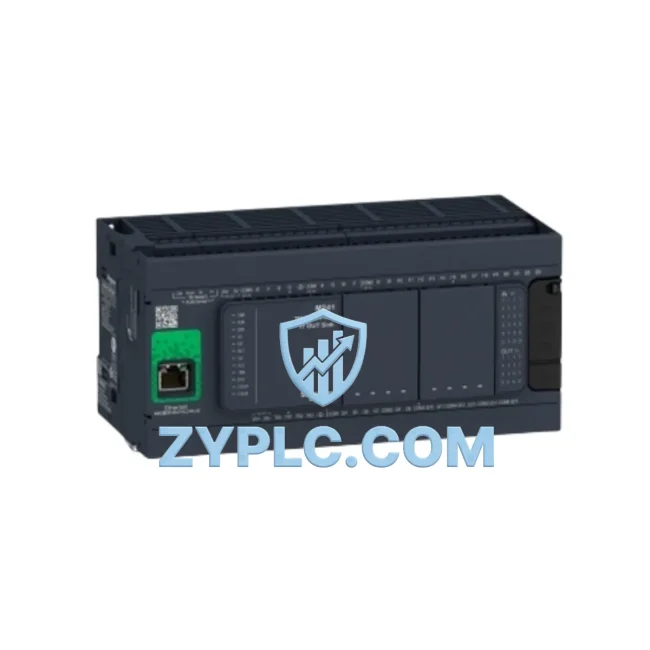

Schneider TM241CE40R Energy-Saving PLC for Modicon M241

Schneider TM241CE40R Energy-Saving PLC for Modicon M241 Automation

The Schneider Electric TM241CE40R is a high-performance programmable logic controller from the Modicon M241 series, engineered to deliver measurable energy savings across demanding industrial automation environments. With 40 I/O points, onboard Ethernet connectivity, and support for multiple fieldbus protocols, the TM241CE40R serves as the central intelligence layer in energy-aware production architectures — enabling factories to reduce idle consumption, tighten control loop response, and maximize equipment utilization without sacrificing throughput.

Unlike conventional PLCs that treat energy as a secondary concern, the TM241CE40R is designed from the ground up to support efficiency-first automation strategies. Its fast scan cycle and deterministic execution allow it to respond to real-time load fluctuations, coordinate variable-speed drives, and enforce energy budgets across multiple production zones simultaneously.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully optimized production cell, the TM241CE40R acts as the master controller coordinating a layered ecosystem of energy-sensitive components. On the drive side, it communicates directly with Schneider Electric Altivar ATV320 variable frequency drives via Modbus RTU or CANopen, enabling precise motor speed regulation that eliminates the energy waste associated with fixed-speed operation. When paired with the Altivar ATV630 for heavier motor loads, the TM241CE40R can implement ramp-up and ramp-down profiles that reduce inrush current and mechanical stress simultaneously.

For servo-driven axes — such as those found in packaging, cutting, or press-fit applications — the TM241CE40R integrates with Lexium 32 servo drives through the SoMachine Motion environment, allowing synchronized multi-axis control that minimizes dwell time and reduces energy consumed per production cycle. The controller’s high-speed counter inputs also support direct feedback from encoder-equipped motors, enabling closed-loop efficiency monitoring without additional hardware.

On the sensing and monitoring side, the TM241CE40R connects to PowerLogic PM5000 series power meters via Modbus TCP/IP, pulling real-time kWh, power factor, and harmonic distortion data into the control logic. This allows the PLC to make active decisions — such as staggering motor starts to avoid peak demand charges or shedding non-critical loads during high-tariff periods. Complementing this, Schneider Electric iEM3000 series energy meters can be deployed at sub-panel level to provide granular consumption data per machine zone.

Distributed I/O expansion is handled through TM3 expansion modules — including analog input modules such as the TM3AI8 for 4–20 mA sensor signals — which feed temperature, pressure, and flow data back to the TM241CE40R for process optimization. For remote I/O in larger plant layouts, the controller supports Advantys STB distributed I/O islands over Ethernet, reducing wiring costs and enabling zone-level energy isolation.

At the operator interface level, the TM241CE40R pairs naturally with Magelis HMIGTO touchscreen HMIs, providing operators with live energy dashboards, alarm management, and production KPI visualization. This visibility layer is critical for identifying inefficiency patterns — such as machines left running during breaks or drives operating outside their optimal load range.

Power Optimization in Real Production Lines

In a typical discrete manufacturing environment, uncoordinated motor starts, oversized fixed-speed drives, and poor load scheduling can account for 20–35% of avoidable energy waste. The TM241CE40R addresses this at the control layer. By implementing time-of-use scheduling logic directly in the PLC program, production managers can configure the controller to shift energy-intensive operations — such as compressor cycling or conveyor acceleration — to off-peak tariff windows, reducing electricity costs without changing physical infrastructure.

The controller’s relay outputs support direct control of soft starters and contactors, enabling staged motor start sequences that flatten the current demand curve. Combined with analog output modules from the TM3 range, the TM241CE40R can send 0–10 V or 4–20 mA setpoint signals to HVAC drives, pump controllers, and cooling systems, ensuring these auxiliary loads track actual production demand rather than running at fixed capacity.

Predictive maintenance integration is another key efficiency lever. By monitoring vibration sensor outputs through analog I/O and tracking motor run-hours via internal counters, the TM241CE40R can trigger maintenance alerts before failures occur — preventing unplanned downtime that disrupts production rhythm and wastes energy through restart cycles and scrap generation. When connected to a SCADA system via Modbus TCP/IP or OPC-UA gateway, historical energy and runtime data can be trended to identify degradation patterns across the entire line.

Every unit of the TM241CE40R supplied by ZYPLC undergoes full functional testing prior to shipment, including I/O verification, communication port validation, and power-on cycle testing. This ensures that the controller performs to specification from day one, eliminating commissioning delays that cost both time and energy. All units are covered by a 12-month warranty, with stock maintained for immediate dispatch to minimize production downtime.

Energy Optimization FAQ

Q1: How does the TM241CE40R contribute to measurable energy savings on the production line?
The TM241CE40R enables energy savings through coordinated variable-speed drive control, time-of-use load scheduling, and real-time power monitoring integration. By eliminating fixed-speed motor operation and staggering high-current starts, factories typically see a 15–30% reduction in motor-related energy consumption depending on the application profile.

Q2: Is the TM241CE40R compatible with existing Schneider Electric drive and HMI systems?
Yes. The TM241CE40R is fully compatible with the Altivar drive family (ATV320, ATV630), Lexium servo drives, Magelis HMI panels, and PowerLogic energy meters through native Modbus RTU/TCP, CANopen, and Ethernet protocols. It is programmed using EcoStruxure Machine Expert (formerly SoMachine), ensuring seamless integration into existing Schneider automation architectures.

Q3: Can the TM241CE40R replace an older Modicon M238 or M251 controller without major rewiring?
In most cases, yes. The M241 series shares the same DIN rail form factor and TM3 expansion ecosystem as the M238 and M251. I/O wiring is typically reusable, and EcoStruxure Machine Expert supports migration tools to assist with program conversion. ZYPLC can advise on specific replacement scenarios based on your existing configuration.

Q4: What does the 12-month warranty cover, and how is the testing process conducted?
Every TM241CE40R unit shipped by ZYPLC is tested for full I/O functionality, communication port integrity, and power supply stability before dispatch. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. Replacement or repair is handled directly — contact our team at [email protected] or +86 19859288691 for warranty claims and technical support.
