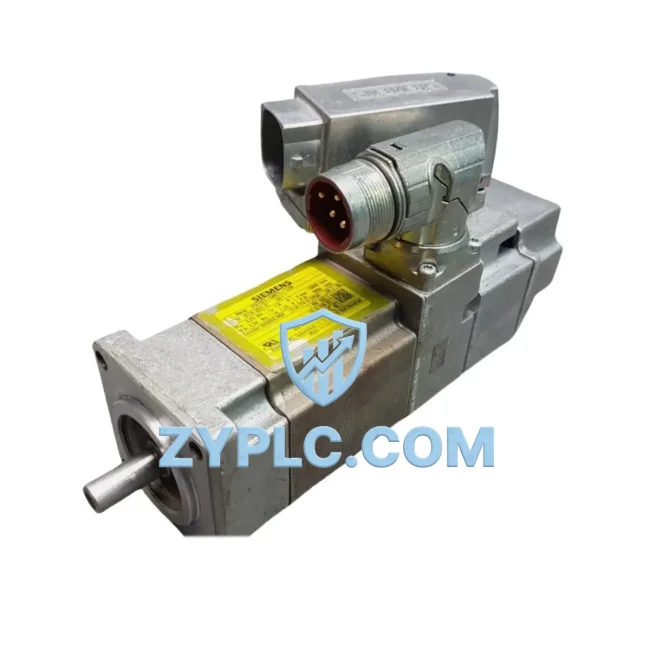

Siemens 1FK7022-5AK71-1LG0 Energy-Saving Servo Motor for SIMOTICS S

Siemens 1FK7022-5AK71-1LG0 Energy-Saving Servo Motor for SIMOTICS S Automation

The Siemens 1FK7022-5AK71-1LG0 is a compact, high-efficiency servo motor from the SIMOTICS S series, engineered for precision motion control in demanding industrial environments. Designed to minimize energy waste while maximizing dynamic response, this servo motor plays a central role in reducing operational power consumption across automated production lines. Whether deployed in packaging machinery, CNC machining centers, or assembly robotics, the 1FK7022-5AK71-1LG0 delivers consistent torque output with minimal thermal loss — directly contributing to measurable reductions in facility energy expenditure.

In modern manufacturing, energy efficiency is no longer a secondary concern — it is a core KPI. The 1FK7022-5AK71-1LG0 addresses this by combining a permanent magnet synchronous motor (PMSM) design with optimized winding geometry, enabling high torque density at low rotor inertia. This translates to faster acceleration and deceleration cycles, shorter cycle times, and reduced idle-state energy draw. When integrated with a Siemens SINAMICS S120 drive system, the motor’s efficiency curve is further optimized through closed-loop vector control, ensuring that energy is consumed only when and where it is needed.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1FK7022-5AK71-1LG0 does not operate in isolation — its energy efficiency is fully realized when embedded within a well-designed automation architecture. In a typical SIMOTICS S deployment, this servo motor is paired with a SINAMICS S120 booksize power module that manages DC bus sharing across multiple axes, allowing regenerative energy from decelerating axes to be redistributed to accelerating ones. This active energy recycling can reduce total drive system power consumption by 15–30% compared to conventional AC induction motor setups.

At the control layer, a Siemens SINUMERIK 840D sl CNC controller or a SIMATIC S7-1500T motion controller coordinates multi-axis interpolation, ensuring that the 1FK7022-5AK71-1LG0 operates within its optimal torque-speed window at all times. Unnecessary peak current draws — a common source of energy waste in poorly tuned servo systems — are eliminated through adaptive feedforward control algorithms embedded in the SINAMICS S120 CU320-2 DP control unit.

For energy monitoring and reporting, the architecture typically incorporates a SENTRON PAC3200 power monitoring device or a SIMATIC ET 200SP distributed I/O station with energy measurement modules. These components capture real-time power consumption data at the machine level, feeding it into a SIMATIC Energy Suite dashboard where engineers can identify inefficiencies, benchmark performance, and trigger alerts when consumption deviates from baseline. The PROFINET communication backbone ensures low-latency data exchange between the servo drive, the controller, and the energy monitoring system — enabling closed-loop energy optimization without manual intervention.

In multi-axis gantry or delta robot configurations, the 1FK7022-5AK71-1LG0 is often deployed alongside larger SIMOTICS S motors such as the 1FK7060 or 1FK7080 series for primary axes, while handling secondary or auxiliary axes where compact form factor and low inertia are critical. The DRIVE-CLiQ interface ensures seamless integration across all motor sizes within the same SINAMICS S120 drive line, simplifying commissioning and reducing wiring complexity — both of which contribute to lower installation energy overhead and faster time-to-production.

Power Optimization in Real Production Lines

On the factory floor, the energy impact of the Siemens 1FK7022-5AK71-1LG0 becomes most visible in high-cycle applications where motors start, stop, and reverse direction hundreds of times per shift. In a typical pick-and-place assembly line running 20 cycles per minute across a 16-hour production day, a poorly matched servo motor can waste 8–12% of total consumed energy through excessive heat generation and suboptimal current regulation. The 1FK7022-5AK71-1LG0’s low rotor inertia (J ≈ 0.27 × 10⁻⁴ kg·m²) means the drive system spends less energy overcoming mechanical resistance during each acceleration phase, directly improving the energy-per-cycle metric.

Downtime is another hidden energy cost. When a machine stops unexpectedly, the entire line — conveyors, chillers, pneumatic systems, lighting — continues to consume power while production output drops to zero. The 1FK7022-5AK71-1LG0 supports predictive maintenance integration through its DRIVE-CLiQ encoder, which continuously transmits motor temperature, vibration signature, and load history data to the SINAMICS S120 drive. Anomalies are flagged before they become failures, allowing maintenance teams to schedule interventions during planned downtime windows rather than reacting to emergency stops. This predictive approach has been shown to reduce unplanned downtime by 20–40% in servo-intensive production environments.

Cycle time optimization is equally important. By precisely controlling acceleration ramps and positioning accuracy to within ±1 encoder count, the 1FK7022-5AK71-1LG0 enables tighter production tolerances without requiring slower, more conservative motion profiles. Faster, more accurate cycles mean more parts per shift without increasing energy input — a direct improvement in the energy-per-unit-output ratio that directly impacts manufacturing cost competitiveness.

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, including no-load run verification, encoder signal integrity check, and insulation resistance measurement. Stock availability is maintained to support rapid deployment, and all units are covered by a 12-month warranty from the date of shipment.

Energy Optimization FAQ

Q1: How much energy can the 1FK7022-5AK71-1LG0 save compared to a standard AC induction motor?
In comparable duty cycles, PMSM servo motors like the 1FK7022-5AK71-1LG0 typically consume 20–35% less energy than equivalent-output AC induction motors, primarily due to the elimination of rotor copper losses and the ability to operate at variable speeds matched precisely to load demand. When paired with a SINAMICS S120 drive with DC bus energy sharing, additional savings of 10–20% are achievable through regenerative braking energy recovery.

Q2: Is the 1FK7022-5AK71-1LG0 compatible with existing SINAMICS V90 or S120 installations?
Yes. The 1FK7022-5AK71-1LG0 is fully compatible with the SINAMICS S120 drive family via DRIVE-CLiQ. For SINAMICS V90 installations, compatibility depends on the specific V90 variant and firmware version — please verify the motor code against the V90 motor selection table in the SINAMICS V90 operating instructions before installation. ZYPLC’s technical team can assist with compatibility verification prior to purchase.

Q3: What is the recommended replacement or upgrade path for aging servo motors in this class?
For systems currently running older 1FK6 or 1FK7 variants without DRIVE-CLiQ (e.g., with resolver or TTL encoder), upgrading to the 1FK7022-5AK71-1LG0 with DRIVE-CLiQ provides immediate benefits in diagnostic transparency and energy monitoring granularity. The mechanical interface (shaft diameter, flange size) is typically compatible, minimizing mechanical rework. A full drive parameter backup and restore procedure via STARTER or TIA Portal is recommended before and after motor replacement.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All 1FK7022-5AK71-1LG0 units supplied by ZYPLC are tested for no-load rotation, encoder signal output, winding resistance balance, and insulation integrity before dispatch. The 12-month warranty covers manufacturing defects and premature failure under normal operating conditions. Units showing damage from improper installation, overvoltage, or environmental contamination beyond the rated IP65 protection are excluded. Warranty claims are processed with a target response time of 3 business days.
