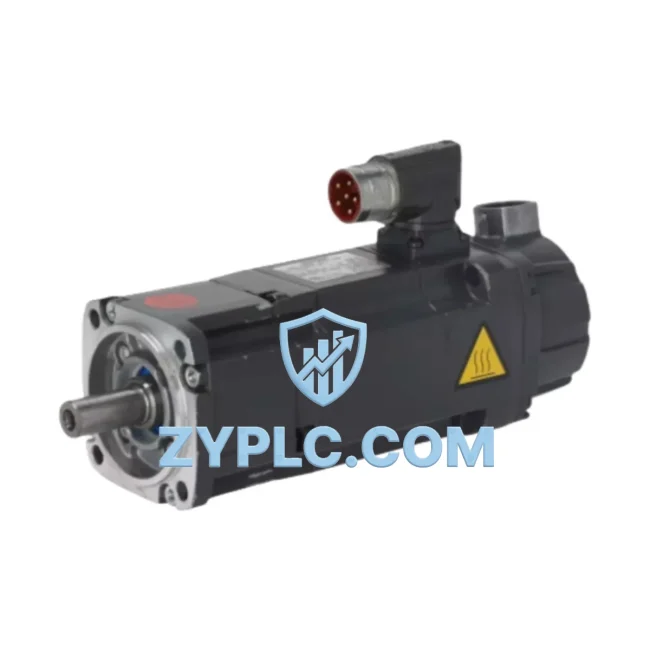

Siemens 1FK7032-2AK71-1CH0 System-Ready Servo Motor for SIMOTICS S Architecture

Siemens 1FK7032-2AK71-1CH0 System-Ready Servo Motor for SIMOTICS S Control Architecture

The Siemens 1FK7032-2AK71-1CH0 is a compact, high-precision synchronous servo motor from the SIMOTICS S series, engineered to operate as an integral component within layered industrial automation architectures. Rather than functioning as a standalone drive element, this motor is designed to be embedded within a coordinated control system where the SINAMICS S120 drive platform, SIMATIC S7-1500 PLC, and PROFINET communication backbone work in concert to deliver deterministic motion control, real-time feedback, and scalable system expansion. Its role within the control hierarchy spans the execution layer, receiving velocity and torque commands from the motion controller while returning encoder feedback to the drive unit for closed-loop regulation.

In modern automation architectures, servo motors are not selected in isolation. The 1FK7032-2AK71-1CH0 is specified alongside its upstream and downstream system partners to ensure signal integrity, thermal compatibility, cable routing compliance, and firmware alignment. Engineers integrating this motor into a SIMOTICS S system will typically pair it with a SINAMICS S120 booksize power module, a SINAMICS S120 Control Unit CU320-2 PN, and a DRIVE-CLiQ hub module DMC20 or DME20 for distributed topology. The motor’s DRIVE-CLiQ interface enables automatic parameter identification, electronic nameplate reading, and real-time diagnostics without manual encoder configuration, significantly reducing commissioning time and eliminating wiring errors common in legacy resolver-based systems.

System architects specifying the 1FK7032-2AK71-1CH0 for multi-axis applications will find it fully compatible with the SINAMICS S120 double motor module, allowing two axes to share a common DC link and reducing cabinet footprint. The motor’s compact frame size makes it suitable for integration into machine tool spindle auxiliaries, packaging line servo axes, and conveyor positioning systems where panel space is constrained. When combined with a SIMATIC S7-1500T motion controller and the TIA Portal V17 or later engineering environment, the motor supports advanced motion functions including cam synchronization, electronic gearing, and path interpolation across multiple coordinated axes.

From a power layer perspective, the 1FK7032-2AK71-1CH0 operates within the SINAMICS S120 infeed and regenerative feedback architecture. A SINAMICS S120 Active Line Module (ALM) provides regulated DC bus voltage to the motor module, while the Smart Line Module (SLM) variant offers a cost-optimized alternative for applications without regenerative requirements. Proper sizing of the line module, motor module, and braking resistor — where applicable — is essential to ensure the servo system operates within thermal and electrical limits during rapid acceleration and deceleration cycles typical of pick-and-place or press-feed applications.

At the network layer, the motor’s integration into a PROFINET IRT (Isochronous Real-Time) network ensures cycle-synchronous communication between the SIMATIC S7-1500 controller and the SINAMICS S120 drive, with jitter values below 1 µs. This level of determinism is critical in multi-axis coordinated motion where positional synchronization between axes must be maintained across the full production cycle. The PROFINET topology is typically structured using SCALANCE X managed switches to support ring redundancy and media redundancy protocol (MRP), ensuring network availability even during single cable fault events.

For human-machine interface integration, the 1FK7032-2AK71-1CH0 system is typically monitored and operated via a SIMATIC HMI Comfort Panel or a PC-based WinCC Runtime Advanced station. Drive status, motor temperature, encoder position, and fault diagnostics are surfaced through the HMI using standard SINAMICS S120 function blocks available in the TIA Portal library. Operators can initiate homing sequences, monitor axis position in real time, and acknowledge drive faults without requiring access to the drive cabinet, improving operational safety and reducing mean time to repair.

Long-term maintenance planning for systems incorporating the 1FK7032-2AK71-1CH0 benefits from Siemens’ SIMOTICS S spare parts availability commitment and the motor’s sealed bearing design, which reduces scheduled maintenance intervals compared to open-frame alternatives. The motor’s IP65 protection rating ensures resistance to coolant splash and dust ingress in machine tool environments, while the optional holding brake variant supports vertical axis applications where load retention during power-off is required. All units supplied through ZYPLC are covered by a 12-Month Warranty, with pre-shipment functional testing and documentation of key electrical parameters including winding resistance, insulation resistance, and encoder signal integrity.

Architecture Specification Table

Coordinated Control System Design

A complete SIMOTICS S servo system built around the 1FK7032-2AK71-1CH0 integrates multiple coordinated components across the control, drive, power, and network layers. At the drive layer, the SINAMICS S120 Single Motor Module 3A provides the axis-specific power electronics, while the SINAMICS S120 Active Line Module 16kW supplies regulated DC bus voltage to the shared DC link. The SINAMICS S120 Control Unit CU320-2 PN manages up to six axes simultaneously, communicating with the SIMATIC S7-1500T motion controller over PROFINET IRT at 4ms cycle times.

Encoder feedback from the 1FK7032-2AK71-1CH0 is transmitted via the DRIVE-CLiQ hub module DMC20, which consolidates DRIVE-CLiQ signals from multiple motors and encoder systems onto a single cable run back to the CU320-2 PN, simplifying cabinet wiring and reducing the risk of signal degradation in long cable runs. For applications requiring distributed I/O, a SIMATIC ET 200SP remote I/O station connected via PROFINET provides digital and analog I/O expansion at the machine level, with the SIMATIC S7-1500 CPU 1516-3 PN/DP managing process coordination across the full system.

Power distribution within the control cabinet is managed through SITOP PSU8600 modular power supply units, which provide 24VDC auxiliary power to the control unit, I/O modules, and HMI panels. Network infrastructure relies on SCALANCE X208 managed switches to implement PROFINET ring topology with MRP failover, ensuring communication continuity during maintenance activities. The complete system architecture — from the SIMATIC S7-1500T controller through the SINAMICS S120 drive platform to the 1FK7032-2AK71-1CH0 motor — represents a fully validated Siemens motion control solution with documented interoperability and shared TIA Portal engineering workflow.

Application in Layered Automation Systems

The 1FK7032-2AK71-1CH0 is deployed across a wide range of industrial sectors where compact servo performance and system-level integration are prioritized over standalone motor specifications.

In packaging machinery, this motor drives format adjustment axes, film tension control, and rotary knife synchronization on horizontal flow wrappers and vertical form-fill-seal machines. Its 6000 rpm rated speed and DRIVE-CLiQ absolute encoder enable rapid format changeover with electronic gearing to the main line shaft, eliminating mechanical gearboxes and reducing changeover time from hours to minutes.

In machine tool applications, the motor serves as a feed axis drive on CNC milling centers and grinding machines, where its smooth shaft configuration and IP65 sealing provide compatibility with coolant-rich environments. The SINAMICS S120 drive’s integrated safety functions — STO, SS1, SLS — allow the axis to participate in the machine’s safety architecture without external safety relays.

In power generation and energy infrastructure, the motor is used in valve actuator test rigs and turbine auxiliary positioning systems, where its deterministic PROFINET IRT communication ensures synchronized operation with process control systems running on SIMATIC S7-1500 platforms.

In water treatment and process industries, the 1FK7032-2AK71-1CH0 drives dosing pump actuators and filter press positioning systems, where its sealed construction and low maintenance requirements reduce lifecycle costs in remote or unmanned installations. The 12-Month Warranty and ZYPLC’s verified supply chain ensure replacement units are available with short lead times, minimizing production downtime in critical infrastructure applications.

Architecture Engineering FAQ

Q1: Is the 1FK7032-2AK71-1CH0 compatible with existing SINAMICS S120 installations using older CU310-2 control units?
Yes. The 1FK7032-2AK71-1CH0 is compatible with the SINAMICS S120 CU310-2 PN and CU310-2 DP control units, provided the firmware version supports the motor’s DRIVE-CLiQ electronic nameplate. Siemens recommends firmware version 4.7 SP10 or later for full DRIVE-CLiQ absolute encoder support. Parameter migration from an existing motor dataset can be performed using the TIA Portal drive commissioning wizard, which reads the motor’s electronic nameplate automatically and pre-populates the motor data set, reducing manual configuration risk.

Q2: Can this motor be integrated into a redundant drive architecture for high-availability applications?
The 1FK7032-2AK71-1CH0 itself is a single-axis motor and does not incorporate internal redundancy. However, system-level redundancy can be achieved by configuring a hot-standby axis using a second motor and motor module on the same DC link, with the SIMATIC S7-1500T motion controller managing axis switchover via the PROFIdrive telegram 105 or 110. For applications requiring continuous operation during drive module failure, the SINAMICS S120 chassis format with redundant line modules and shared DC bus architecture provides the highest level of drive system availability.

Q3: What does the 12-Month Warranty cover, and what documentation is provided with each unit?
All 1FK7032-2AK71-1CH0 units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects, encoder signal integrity, winding insulation, and mechanical shaft runout within Siemens’ published tolerance specifications. Each unit is shipped with a pre-shipment test report documenting winding resistance (per phase), insulation resistance (500VDC megger test), and DRIVE-CLiQ communication verification. Units are packaged in anti-static foam with original or equivalent protective end caps. For warranty claims, ZYPLC provides direct technical support and replacement coordination, with typical replacement lead times of 3–7 business days for in-stock units.
