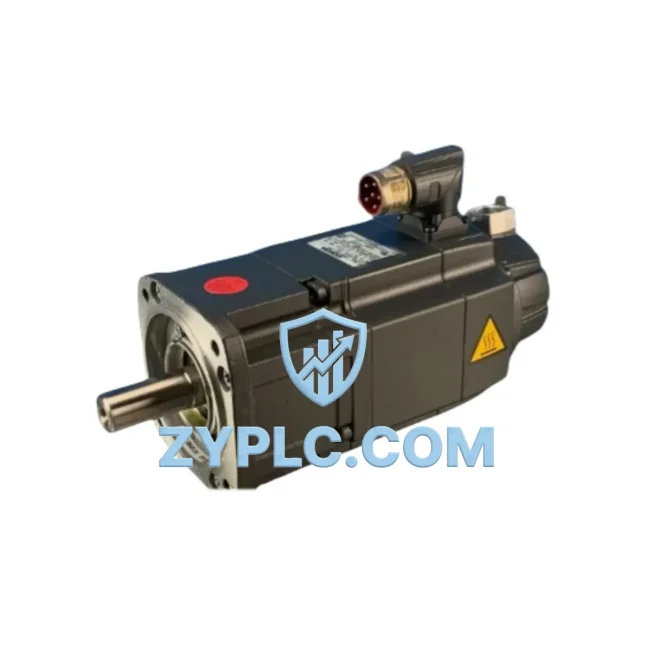

Siemens 1FK7042-2AK71-1CH0 Energy-Saving Servo Motor for 1FK7

Siemens 1FK7042-2AK71-1CH0 Energy-Saving Servo Motor for 1FK7 Automation

The Siemens 1FK7042-2AK71-1CH0 is a compact, permanently excited synchronous servo motor from the renowned 1FK7 series, engineered to deliver precision motion control with measurable energy efficiency gains across demanding industrial production environments. Designed for seamless integration with Siemens SINAMICS S120 drive systems and SINUMERIK / SIMATIC control platforms, this motor module enables factories to reduce idle energy consumption, tighten production cycle times, and extend equipment service intervals — all without sacrificing dynamic response or positioning accuracy.

In modern manufacturing, energy waste is rarely caused by a single component failure. It accumulates through inefficient motor sizing, poor drive tuning, unmonitored standby losses, and mismatched control feedback loops. The 1FK7042-2AK71-1CH0 addresses these root causes by combining a high-pole-count rotor design with low-inertia characteristics, allowing the SINAMICS S120 booksize drive to execute rapid acceleration and deceleration cycles with minimal reactive power draw. When paired with a SINAMICS S120 Control Unit CU320-2 DP, the system can implement energy recovery during braking phases, feeding regenerated power back into the DC link and reducing net consumption across multi-axis machine tools and assembly lines.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1FK7042-2AK71-1CH0 does not operate in isolation — its energy efficiency is fully realized when integrated into a well-architected drive and control topology. In a typical multi-axis CNC or robotic cell, the motor connects to a SINAMICS S120 Single Motor Module 6SL3120-1TE21-0AA3 via a DRIVE-CLiQ cable, which carries both encoder feedback and motor temperature data on a single digital interface. This eliminates the analog resolver wiring that historically introduced signal noise and calibration drift, reducing both commissioning time and long-term maintenance overhead.

At the control layer, a SIMATIC S7-1500T Motion Controller manages trajectory planning and interpolation across multiple 1FK7 axes simultaneously. The S7-1500T’s integrated motion technology objects (MTO) allow engineers to define energy-optimized velocity profiles — smoothing acceleration ramps to reduce peak current demand and lower thermal stress on both the motor and the SINAMICS S120 Line Module 6SL3130-6AE21-0AB1 that supplies the common DC bus.

For facilities implementing energy monitoring at the machine level, the SENTRON PAC3220 power monitoring device can be installed upstream of the drive cabinet to log real-time active power, reactive power, and harmonic distortion data. This data feeds into SIMATIC Energy Suite running on a SIMATIC IPC477E industrial PC, enabling plant engineers to correlate motor load profiles with production output and identify energy waste during non-productive machine states such as tool changes or pallet transfers.

Communication between the drive system and the plant-level SCADA or MES is handled via PROFINET IO, with the SINAMICS S120 CU320-2 PN Control Unit acting as a PROFINET device. This allows the SIMATIC S7-1500 CPU 1516-3 PN/DP to read drive status words, actual torque values, and energy counters in real time — providing the data foundation for predictive maintenance algorithms and OEE dashboards. For legacy installations still running PROFIBUS DP, the CU320-2 DP variant maintains full compatibility without requiring a gateway.

On the operator interface side, a SIMATIC HMI TP1200 Comfort Panel provides machine operators with real-time visibility into axis load, drive temperature, and cumulative energy consumption per production batch. Configurable alarm thresholds alert operators before thermal derating occurs, preventing unplanned downtime and the associated energy waste of restarting cold production lines.

Power Optimization in Real Production Lines

In high-throughput packaging and assembly applications, the 1FK7042-2AK71-1CH0 contributes to cycle time optimization through its low-inertia rotor design. A lower rotor inertia-to-load inertia ratio means the SINAMICS S120 drive can apply higher dynamic stiffness gains without exciting mechanical resonances, enabling faster settling times at each positioning target. In a 10-station rotary indexing machine running 24/7, reducing the settling time per station by even 50 milliseconds translates to a measurable increase in annual throughput — and because the motor reaches its target position faster, it spends less time drawing holding current against mechanical load.

Predictive maintenance integration is another key energy lever. The DRIVE-CLiQ interface continuously reports motor winding temperature and bearing vibration signatures to the SINAMICS S120 drive. When these values trend toward alarm thresholds, the SIMATIC S7-1500T can schedule a maintenance window during a planned production break rather than waiting for an unplanned failure. Avoiding emergency shutdowns eliminates the energy-intensive cold-start sequences that follow unplanned downtime — a frequently overlooked source of excess energy consumption in discrete manufacturing.

For facilities managing spare parts inventory, the 1FK7042-2AK71-1CH0 is stocked and available for immediate shipment. Each unit undergoes functional testing prior to dispatch, verifying encoder communication, winding insulation resistance, and no-load current draw against factory specifications. This pre-shipment testing protocol ensures that replacement motors integrate into existing SINAMICS S120 drive systems without requiring extended commissioning time — minimizing production interruption and the associated energy cost of running at reduced capacity during motor changeover.

Energy Optimization FAQ

Q1: How much energy can the 1FK7042-2AK71-1CH0 save compared to an induction motor of equivalent output?
A: Permanently excited synchronous motors like the 1FK7 series eliminate rotor copper losses inherent to induction motor designs. In variable-speed applications with frequent acceleration/deceleration cycles, the efficiency advantage typically ranges from 5% to 15% depending on duty cycle and load profile. When the SINAMICS S120 drive’s energy recovery function is active, additional savings are achieved by returning braking energy to the DC bus rather than dissipating it as heat in braking resistors.

Q2: Is the 1FK7042-2AK71-1CH0 compatible with existing SINAMICS S120 installations?
A: Yes. The 1FK7042-2AK71-1CH0 uses the standard DRIVE-CLiQ encoder interface and is fully compatible with SINAMICS S120 booksize and chassis Motor Modules. The drive automatically reads motor nameplate data from the encoder memory (electronic nameplate), eliminating manual parameter entry and reducing commissioning errors. Existing power and signal cabling for other 1FK7 variants of the same frame size can typically be reused.

Q3: What is the recommended replacement procedure for a failed servo motor on a live production line?
A: The recommended procedure is to use the SINAMICS S120 drive’s motor data identification routine after mechanical installation to verify that the replacement motor’s electrical parameters match the stored drive configuration. Because the 1FK7042-2AK71-1CH0 carries its parameters in the DRIVE-CLiQ encoder, this process is largely automated. Each unit shipped by ZYPLC has been pre-tested for encoder communication and winding integrity, reducing on-site verification time to under 30 minutes in most cases.

Q4: What does the 12-month warranty cover, and what is the return process?
A: The 12-month warranty covers manufacturing defects, encoder communication failures, and winding insulation faults under normal operating conditions as defined by Siemens technical specifications. Units that fail within the warranty period are eligible for replacement or repair. To initiate a warranty claim, contact ZYPLC with the unit serial number, fault description, and drive diagnostic log. Our technical team will assess the fault and coordinate return logistics. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or operation outside rated parameters.
