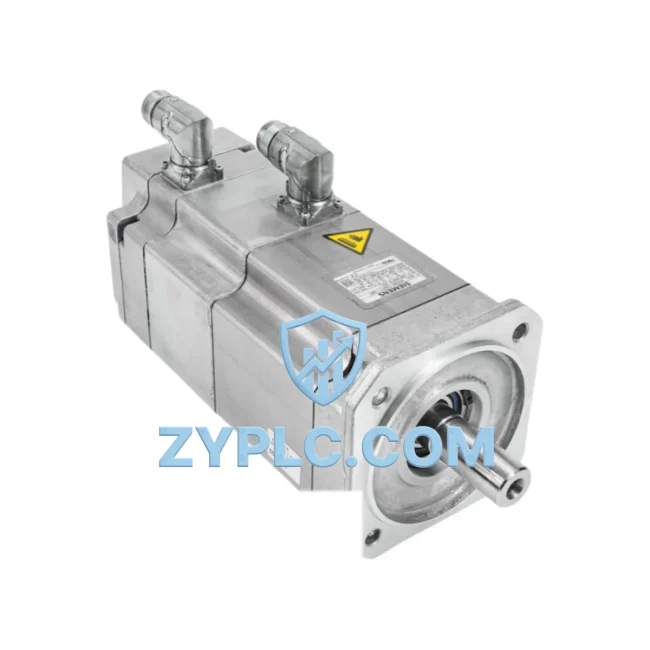

The Siemens 1FK7063-5AF71-1SH0 is a compact, high-dynamic synchronous servo motor from the SIMOTICS S 1FK7 series, purpose-engineered for seamless integration within SINAMICS S120 multi-axis drive architectures. In modern industrial automation, a servo motor is never a standalone component — it is the mechanical execution layer of a precisely coordinated control hierarchy. This product is designed to operate as a fully contextual element within that hierarchy, delivering consistent torque response, encoder feedback accuracy, and thermal stability across demanding production environments.

Understanding the role of the 1FK7063-5AF71-1SH0 requires examining the full system stack in which it operates. From the controller layer down through the drive, feedback, and mechanical execution layers, every component must be selected, configured, and maintained as part of a unified architecture. This motor is rated for integration with the SINAMICS S120 booksize and chassis drive units, and its performance characteristics are optimized for coordinated multi-axis motion profiles typical of packaging lines, machine tools, printing systems, and material handling conveyors.

Architecture Specification Table

Coordinated Control System Design

The 1FK7063-5AF71-1SH0 achieves its full performance potential only when integrated within a properly configured SINAMICS S120 drive system. At the controller layer, a SIMATIC S7-1500 CPU — such as the CPU 1516-3 PN/DP or CPU 1518F-4 PN/DP for safety-integrated applications — issues motion commands via PROFINET IRT to the SINAMICS S120 Control Unit CU320-2 PN. The CU320-2 PN manages axis coordination, interpolation, and drive-level safety functions across all connected axes.

The motor connects to a SINAMICS S120 Motor Module (booksize format, e.g., 6SL3120-1TE21-0AA3) via a power cable and to the CU320-2 PN via a DRIVE-CLiQ cable, which carries encoder data, motor identification, and thermal monitoring signals on a single standardized interface. This eliminates the need for separate encoder cables and simplifies commissioning through automatic motor data recognition in STARTER or TIA Portal Drive software.

On the power supply side, the SINAMICS S120 Line Module — either an Active Line Module (ALM) such as the 6SL3130-7TE21-6AA3 for regenerative energy recovery, or a Basic Line Module (BLM) for standard applications — feeds the DC link bus shared by all Motor Modules in the drive line-up. This shared DC bus architecture enables kinetic energy exchange between braking and accelerating axes, improving overall energy efficiency and reducing peak demand on the supply infrastructure.

For multi-axis systems requiring axis expansion, the SINAMICS CX32-2 Controller Extension allows additional Motor Modules to be connected to a single CU320-2 PN, scaling the architecture without adding a new control unit. Terminal modules such as the TM31 or TM54F provide additional digital and analog I/O at the drive level, supporting local interlocking, speed feedback, and safety-related signals. The SMC30 Sensor Module Cabinet-Mounted can be used where encoder signals must be evaluated externally from the motor connector.

At the human-machine interface layer, a SIMATIC HMI Comfort Panel (e.g., TP1200 Comfort) connected via PROFINET provides operators with real-time axis status, alarm management, and parameter visualization. The integration of the 1FK7063-5AF71-1SH0 within this architecture ensures that every layer — from PLC logic to mechanical output — operates with synchronized timing, consistent data exchange, and predictable dynamic response.

Application in Layered Automation Systems

The 1FK7063-5AF71-1SH0 is deployed across a wide range of industrial sectors where precise motion control and system-level reliability are non-negotiable requirements.

In packaging and converting lines, this motor drives registration rollers, cut-off mechanisms, and film tension control axes where synchronization accuracy directly affects product quality and waste rates. Its high dynamic response and low cogging torque make it suitable for continuous-motion cam profiles and electronic gearing applications managed by the SINAMICS S120 technology functions.

In machine tool applications — including CNC milling centers, grinding machines, and turning centers — the 1FK7063-5AF71-1SH0 serves as a feed axis or auxiliary spindle motor, where position repeatability and thermal stability under continuous duty cycles are critical. The motor’s IP64 protection rating and Class F insulation support operation in environments with coolant mist and elevated ambient temperatures.

In power generation and energy infrastructure applications, including valve actuator control and turbine auxiliary systems, the motor’s absolute encoder feedback ensures safe position retention after power interruption, supporting restart-without-homing sequences that reduce downtime in critical process environments.

In petrochemical and water treatment facilities, where process continuity is paramount, the 1FK7063-5AF71-1SH0 supports redundant drive architectures when paired with SINAMICS S120 configurations that include redundant power supply modules and safety-integrated Motor Modules. This enables hot-standby or warm-standby configurations that maintain process availability during scheduled maintenance or unplanned component replacement.

In metallurgical and mining applications, the motor’s robust mechanical construction and compatibility with forced-ventilation Motor Modules allows operation in high-load, high-cycle environments typical of rolling mill auxiliary drives, conveyor positioning systems, and ore processing equipment.

Architecture Engineering FAQ

Q1: Is the 1FK7063-5AF71-1SH0 compatible with existing SINAMICS S120 booksize drive line-ups, and what cabling is required for integration?

Yes. The 1FK7063-5AF71-1SH0 is fully compatible with SINAMICS S120 booksize Motor Modules. Connection requires a Siemens power cable matched to the motor’s connector size (MOTION-CONNECT 500 or 800 series recommended for dynamic applications) and a DRIVE-CLiQ cable from the motor’s encoder interface to the Motor Module or CU320-2 PN. The DRIVE-CLiQ interface enables automatic motor identification (DRIVE-CLiQ nameplate), eliminating manual parameter entry during commissioning in TIA Portal or STARTER.

Q2: Can this motor be used in a safety-integrated architecture with STO, SS1, or SLS functions?

Yes, when paired with a SINAMICS S120 Motor Module that supports Safety Integrated functions (e.g., 6SL3120-1TE21-0AA3 with Safety license), the 1FK7063-5AF71-1SH0 supports Safe Torque Off (STO), Safe Stop 1 (SS1), and Safely-Limited Speed (SLS) via the drive’s onboard safety logic. Safety function activation is managed through the CU320-2 PN in conjunction with a SIMATIC S7-1500F CPU or a TM54F terminal module, without requiring an external safety relay in most configurations.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance for this motor?

The 12-Month Warranty covers manufacturing defects, encoder failures, winding insulation faults, and bearing defects under normal operating conditions as specified in the Siemens product documentation. ZYPLC maintains stock of the 1FK7063-5AF71-1SH0 and compatible SINAMICS S120 components to support rapid replacement in the event of a warranty claim or unplanned failure. Our technical team provides pre-sales architecture consultation and post-sales commissioning support to ensure the motor is correctly integrated within your control system, minimizing the risk of application-related failures that fall outside warranty scope.
