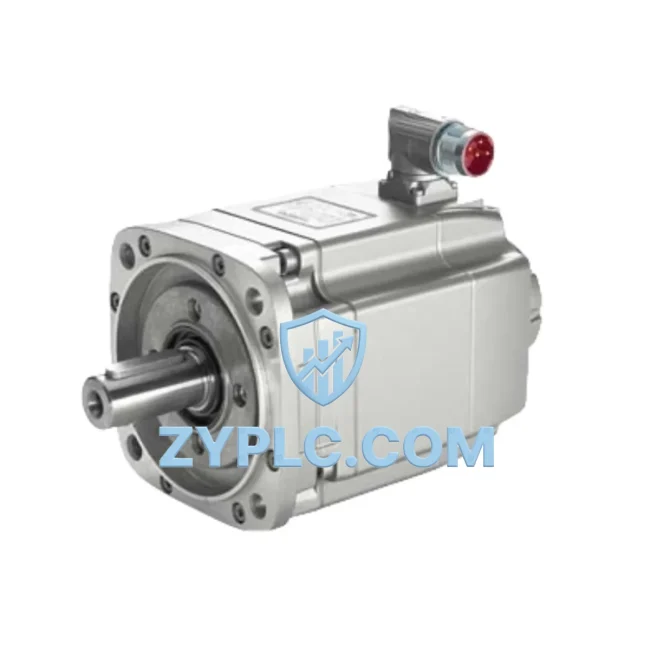

Siemens 1FK7101-2AF71-1RB0 System-Ready Servo Motor for S120 Architecture

Siemens 1FK7101-2AF71-1RB0 System-Ready Servo Motor for S120 Architecture

The Siemens 1FK7101-2AF71-1RB0 is a high-performance permanent-magnet synchronous servo motor from the 1FK7 series, purpose-engineered for seamless Contextual Integration within SINAMICS S120 drive system architectures. In modern industrial automation, a servo motor is never a standalone component — it is a precision node within a layered control hierarchy that spans the controller level, drive level, I/O level, communication backbone, and field device layer. The 1FK7101-2AF71-1RB0 is designed from the ground up to fulfill this role with exceptional torque density, encoder fidelity, and thermal stability across demanding duty cycles.

Within a complete S120-based motion control system, this motor interfaces directly with the SINAMICS S120 Booksize or Chassis power unit and its associated Motor Module, forming the core of a closed-loop servo axis. The drive receives velocity and torque setpoints from a SIMATIC S7-1500 or S7-300 CPU via PROFINET or PROFIBUS-DP, while the 1FK7101-2AF71-1RB0’s integrated encoder feeds real-time position data back through the DRIVE-CLiQ interface — Siemens’ proprietary digital communication link that eliminates manual encoder parameterization and dramatically reduces commissioning time. This bidirectional signal flow is the foundation of precise, repeatable motion in applications ranging from packaging lines to CNC machining centers.

System architects specifying this motor benefit from its native compatibility with the S120 Control Unit (CU320-2 PN or CU310-2 PN), which orchestrates multi-axis coordination across a shared DC bus. The shared DC bus topology, enabled by the S120 Active Line Module and Smart Line Module, allows regenerative energy from decelerating axes to be redistributed to accelerating axes — reducing net energy consumption and heat dissipation in the control cabinet. The 1FK7101-2AF71-1RB0 participates fully in this energy-sharing architecture, making it a responsible choice for sustainability-conscious plant designs.

At the I/O and safety layer, the motor can be integrated with SIMATIC ET 200SP distributed I/O modules for local signal acquisition, and with the Safety Integrated functions embedded in the S120 drive — including Safe Torque Off (STO) and Safe Stop 1 (SS1) — without requiring external safety relays. This reduces panel wiring complexity, shrinks cabinet footprint, and accelerates TÜV-compliant safety validation. For applications requiring redundant control paths, the 1FK7101-2AF71-1RB0 can be deployed within an S120 redundancy architecture supported by the SIMATIC S7-1500H high-availability CPU, ensuring zero unplanned downtime in critical process environments.

From a maintenance and lifecycle perspective, the DRIVE-CLiQ encoder interface stores motor identification data (nameplate, calibration coefficients, operating hours) directly on the motor, enabling plug-and-replace servicing without re-parameterization. Maintenance teams can swap a failed 1FK7101-2AF71-1RB0 and restore full axis functionality within minutes, supported by SINAMICS Startdrive commissioning software running on a standard engineering workstation. This dramatically reduces mean time to repair (MTTR) and supports predictive maintenance strategies when combined with SIMATIC Energy Manager or MindSphere analytics platforms.

Every 1FK7101-2AF71-1RB0 supplied by ZYPLC is covered by a 12-Month Warranty, fully tested under load prior to shipment, and supported by global logistics infrastructure for fast delivery to manufacturing facilities, system integrators, and OEM production lines worldwide.

Architecture Specification Table

Coordinated Control System Design

The 1FK7101-2AF71-1RB0 achieves its full performance potential when specified as part of a coordinated S120 drive train. A typical multi-axis system begins with the SINAMICS S120 Active Line Module (ALM), which conditions incoming AC supply into a regulated DC bus voltage shared across all Motor Modules in the cabinet. Each S120 Booksize Motor Module — such as the 6SL3120-1TE28-5AA3 — then drives an individual 1FK7 servo axis, with the 1FK7101-2AF71-1RB0 representing the high-torque end of the compact frame range.

The SINAMICS S120 Control Unit CU320-2 PN acts as the drive intelligence hub, managing up to six axes simultaneously over PROFINET IRT, synchronizing motion profiles with microsecond precision. At the controller level, a SIMATIC S7-1500T CPU (technology CPU variant) executes cam profiles, electronic gearing, and synchronized motion sequences via the Motion Control library in TIA Portal. Setpoints flow from the S7-1500T to the CU320-2 PN via PROFINET, and from there to each Motor Module and its connected 1FK7 motor through DRIVE-CLiQ.

For distributed I/O, SIMATIC ET 200SP stations mounted on DIN rail adjacent to the drive cabinet handle digital and analog field signals — limit switches, proximity sensors, pressure transmitters — and communicate upstream via PROFINET. The SINAMICS S120 Sensor Module Cabinet-Mounted (SMC30) provides an alternative encoder evaluation path for legacy motors or external encoders not equipped with DRIVE-CLiQ. Cabinet power distribution relies on SITOP PSU8600 modular power supplies for 24 VDC control voltage, with redundancy modules ensuring uninterrupted logic supply during mains fluctuations.

At the human-machine interface layer, a SIMATIC HMI TP1500 Comfort Panel provides operators with real-time axis status, torque trending, and alarm management, connected via PROFINET to the S7-1500T. For remote diagnostics, the SINEMA Remote Connect gateway enables secure VPN access to the drive system from any engineering workstation, supporting remote Startdrive sessions without physical site presence — a critical capability for geographically distributed plant portfolios.

Application in Layered Automation Systems

Packaging and Converting Lines: In high-speed packaging machinery, the 1FK7101-2AF71-1RB0 drives registration rollers, cut-off axes, and infeed conveyors where torque ripple and position repeatability directly affect product quality. Its compact 101 frame fits within space-constrained machine frames while delivering the torque reserve needed for rapid acceleration profiles.

Power Generation and Utilities: In turbine auxiliary systems and valve actuator drives within power plants, the motor’s IP64 protection and wide operating temperature range support reliable operation in environments with airborne particulates and humidity. The Safety Integrated STO function satisfies IEC 62061 SIL 2 requirements for emergency stop circuits without external contactors.

Petrochemical and Process Industries: Pump and compressor trim drives in petrochemical facilities benefit from the motor’s smooth torque delivery and the S120 system’s ability to implement closed-loop pressure or flow control via analog feedback from field transmitters processed through ET 200SP I/O modules.

Water and Wastewater Treatment: Dosing pump drives and filter press actuators in water treatment plants operate continuously across variable load profiles. The 1FK7101-2AF71-1RB0’s thermal management and DRIVE-CLiQ-based condition monitoring support predictive maintenance scheduling, reducing unplanned outages in critical infrastructure.

Metals and Mining: In rolling mill auxiliary drives and conveyor positioning systems, the motor’s high overload capacity and robust encoder interface maintain positioning accuracy under shock loads and vibration, while the shared DC bus architecture recovers braking energy from heavy loads — reducing energy costs in high-cycle applications.

Architecture Engineering FAQ

Q1: Is the 1FK7101-2AF71-1RB0 compatible with existing SINAMICS S120 Booksize infrastructure, and does it require a new Motor Module?
The 1FK7101-2AF71-1RB0 is fully compatible with the SINAMICS S120 Booksize Motor Module family. The required Motor Module current rating depends on the application’s peak torque demand and duty cycle — typically a 6SL3120-series double-axis or single-axis module in the 18–36 A range. Because the motor uses DRIVE-CLiQ, the Control Unit automatically identifies the motor’s electronic nameplate upon first connection, eliminating manual parameter entry and reducing commissioning risk. No firmware upgrade is required for S120 systems running firmware V4.7 or later.

Q2: How does the -1RB0 shaft seal designation affect installation in dusty or humid environments, and what maintenance intervals apply?
The -1RB0 suffix designates a radial shaft seal ring on the drive-end bearing, elevating the shaft seal protection to IP64 — suitable for environments with dust ingress and water splashing from any direction. In standard industrial environments (IEC 60721-3-3 Class 3C2), the shaft seal is rated for a minimum of 20,000 operating hours before inspection is recommended. In applications with continuous shaft rotation at maximum speed and elevated ambient temperature, ZYPLC recommends a 12,000-hour inspection interval. All units supplied under the 12-Month Warranty are inspected for seal integrity prior to shipment.

Q3: What is the recommended spare parts strategy for a multi-axis S120 system using 1FK7101-2AF71-1RB0 motors, and how does the 12-Month Warranty support long-term maintenance planning?
For systems with three or more 1FK7101-2AF71-1RB0 axes, ZYPLC recommends maintaining one cold-standby motor per five installed axes, stored in original packaging in a climate-controlled environment. The DRIVE-CLiQ electronic nameplate enables a replacement motor to be recognized and parameterized automatically by the CU320-2 PN within seconds of connection, minimizing MTTR. The 12-Month Warranty covers manufacturing defects, encoder failure, and winding insulation breakdown under normal operating conditions, and is supported by ZYPLC’s global logistics network for rapid replacement dispatch. Extended warranty and service agreements are available upon request.
