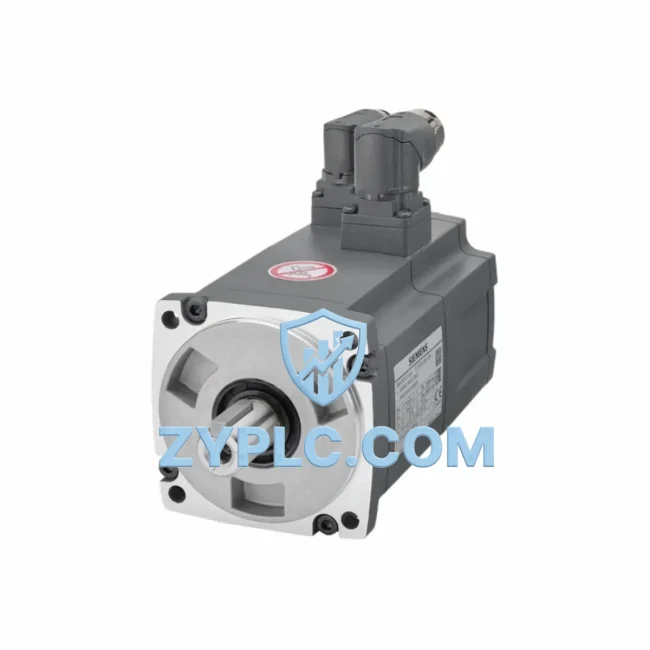

Siemens 1FL6044-1AF61-2AA1 System-Ready Servo Drive for SIMOTICS S-1FL6 Architecture

Siemens 1FL6044-1AF61-2AA1: Industrial Data Link and Smart Factory Motion Control

In modern industrial automation, the servo drive axis is no longer an isolated mechanical actuator — it is a fully networked node within a layered data architecture. The Siemens 1FL6044-1AF61-2AA1, part of the SIMOTICS S-1FL6 servo motor family, is engineered to serve as a precision motion execution unit that integrates seamlessly into PROFINET-based control topologies, enabling real-time data exchange between field devices, drive controllers, PLC platforms, and supervisory systems. Whether deployed in high-speed packaging lines, CNC machining centers, semiconductor handling equipment, or precision assembly stations, this servo motor delivers the dynamic response, network transparency, and long-term reliability that smart factory environments demand.

The 1FL6044-1AF61-2AA1 is rated for a shaft height class of 44mm, operates at a nominal speed of 1000 rpm with natural convection cooling, and is equipped with an incremental encoder for closed-loop position and velocity feedback. Its compact frame and standardized mechanical interface make it compatible with a wide range of gearboxes, couplings, and machine tool spindle assemblies. The motor is designed to operate in conjunction with the SINAMICS S120 drive system, forming a tightly coupled motion control pair that communicates over the DRIVE-CLiQ interface — Siemens’ proprietary high-speed digital link that transmits encoder data, motor identification parameters, and thermal status in real time without additional wiring overhead.

Network Communication Table

Connected Automation Data Flow

The intelligence of the Siemens 1FL6044-1AF61-2AA1 is fully realized when it is embedded within a complete automation data chain. At the field level, the motor’s incremental encoder feeds real-time position and velocity data back to the SINAMICS S120 drive module via the DRIVE-CLiQ cable. The S120 drive unit — typically a SINAMICS S120 Booksize Power Module PM340 or a Motor Module 6SL3120 series — processes this feedback at microsecond cycle times, executing torque and speed regulation loops that are invisible to the upper control layers but critical to motion precision.

At the control layer, the SIMATIC S7-1500 PLC (such as the CPU 1516-3 PN/DP) communicates with the SINAMICS S120 Control Unit (CU320-2 PN) over PROFINET IRT, issuing motion commands via the PROFIdrive profile. This standardized drive profile ensures that the servo axis can be parameterized, monitored, and diagnosed directly from the TIA Portal engineering environment without proprietary middleware. The S7-1500 also coordinates multi-axis synchronization, cam profiles, and electronic gearing functions through the Motion Control technology objects built into the CPU firmware.

For operator interaction, a SIMATIC HMI KTP700 Basic or TP1200 Comfort Panel connected to the same PROFINET ring provides real-time visualization of axis position, drive fault codes, motor temperature, and production cycle counts. Operators can initiate homing sequences, jog commands, and parameter resets directly from the panel without requiring engineering laptop access. At the network infrastructure level, a SCALANCE X208 industrial Ethernet switch provides the managed switching backbone that connects the S7-1500, CU320-2 PN, HMI panel, and any additional PROFINET devices — such as ET 200SP remote I/O stations — into a coherent, diagnostics-capable network segment.

For plants requiring SCADA integration, an OPC UA server running on the S7-1500 or a dedicated SIMATIC S7-1500 Software Controller publishes drive status variables — including actual speed, torque setpoint, fault word, and energy consumption — to the supervisory layer. This enables historians, MES platforms, and cloud analytics tools to consume live drive data without polling the PLC directly, reducing network load and improving data consistency. In applications where legacy fieldbus devices such as PROFIBUS DP sensors or ET 200M I/O modules must coexist with the PROFINET architecture, a SIMATIC PN/DP coupler or IE/PB Link PN IO gateway bridges the two network domains transparently.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible device layers. Older plants often operate with a mix of PROFIBUS, Modbus RTU, DeviceNet, and proprietary serial protocols — each forming a data silo that prevents unified monitoring and coordinated control. The Siemens 1FL6044-1AF61-2AA1, when integrated into a SINAMICS S120 + S7-1500 architecture, directly addresses this fragmentation by anchoring the motion layer within a fully PROFINET-native topology that supports transparent data routing to SCADA and MES systems.

For sites undergoing digital transformation, the DRIVE-CLiQ interface eliminates the need for separate encoder signal converters and motor identification procedures. Motor nameplate data — including rated current, pole pairs, encoder resolution, and thermal model parameters — is stored in the motor’s electronic nameplate and automatically read by the SINAMICS drive during commissioning. This reduces startup time, eliminates manual parameter entry errors, and ensures that replacement motors are configured identically to the original unit, supporting predictive maintenance workflows and spare parts standardization.

In multi-axis applications such as robotic welding cells, gantry systems, or multi-spindle machining centers, the 1FL6044-1AF61-2AA1 can be operated as one axis within a synchronized axis group managed by the S7-1500 Motion Control CPU. The PROFINET IRT isochronous mode ensures that all axes receive their setpoint updates within the same 250μs or 500μs cycle, eliminating inter-axis timing jitter that would otherwise cause contour errors in coordinated motion paths. This level of network determinism is essential for applications where positional accuracy is measured in micrometers and cycle time deviations directly impact product quality.

From a maintenance and supply chain perspective, the 1FL6044-1AF61-2AA1 is a stocked, tested unit available with a 12-Month Warranty, ensuring that replacement procurement does not become a production bottleneck. Each unit undergoes pre-shipment functional verification, and full traceability documentation is available upon request for quality-critical industries such as pharmaceutical manufacturing, semiconductor fabrication, and aerospace component machining.

Industrial Connectivity FAQ

Q1: Does the 1FL6044-1AF61-2AA1 support direct PROFINET connection, or does it require a drive unit?
The 1FL6044-1AF61-2AA1 is a servo motor and does not have an independent PROFINET port. It connects to the SINAMICS S120 drive system via the DRIVE-CLiQ interface. The SINAMICS S120 Control Unit (e.g., CU320-2 PN) provides the PROFINET IRT/RT interface that integrates the motor into the automation network. This architecture ensures that all motor parameters, encoder data, and fault diagnostics are accessible from the TIA Portal and SCADA systems without additional gateways.

Q2: Is this servo motor compatible with S7-300 and S7-400 PLC platforms, or only S7-1500?
The 1FL6044-1AF61-2AA1 is primarily designed for use with the SINAMICS S120 drive system, which is compatible with S7-1500, S7-300 (via FM357-2 or PROFIBUS DP), and SINUMERIK 840D sl CNC controllers. For S7-300 applications using PROFIBUS DP, the SINAMICS S120 CU320-2 DP variant should be selected. For new installations, the S7-1500 + CU320-2 PN combination over PROFINET IRT is recommended for maximum diagnostic capability and isochronous motion performance.

Q3: What does the 12-Month Warranty cover, and how is it supported for international customers?
The 12-Month Warranty covers manufacturing defects, encoder failures, winding insulation faults, and bearing failures under normal operating conditions. For international customers, warranty claims are processed through ZYPLC’s logistics network, with replacement units dispatched upon fault confirmation. Customers are required to provide installation records and fault documentation. Remote diagnostic support via TIA Portal online monitoring or SINAMICS Startdrive trace files is available to accelerate fault analysis and minimize downtime during the warranty resolution process.

Q4: Can the motor be replaced in the field without re-commissioning the SINAMICS S120 drive?
Yes. Because the 1FL6044-1AF61-2AA1 stores its electronic nameplate data in the DRIVE-CLiQ interface chip, the SINAMICS S120 drive automatically reads and applies all motor parameters upon connection of the replacement unit. No manual parameter re-entry is required, provided the replacement motor is the same SKU. The drive will perform an automatic motor identification routine on the first enable command, verifying that the electrical parameters match the stored nameplate data. This plug-and-play replacement capability significantly reduces mean time to repair (MTTR) in production environments.
