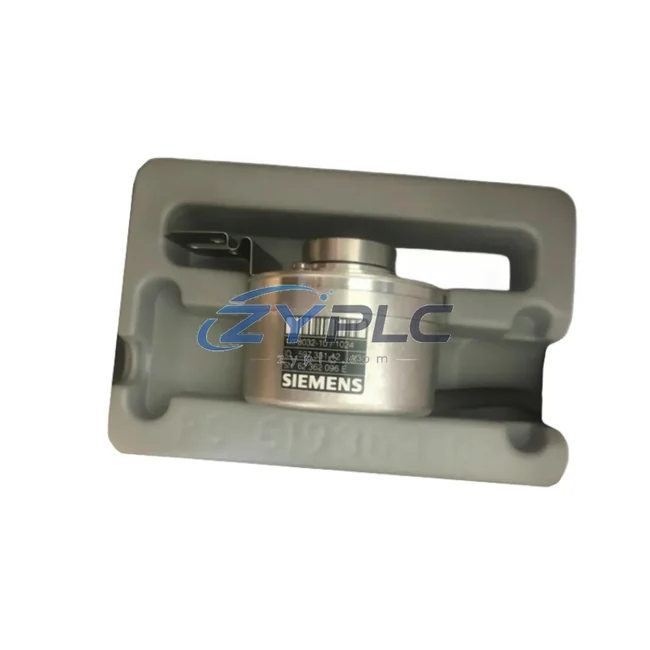

Siemens 1XP8032-10 Incremental Encoder SIMOTICS

Siemens 1XP8032-10 SIMOTICS Incremental Encoder: Industrial Data Link for Smart Factory Connectivity

The Siemens 1XP8032-10 is a high-precision incremental encoder from the SIMOTICS series, engineered to serve as a critical feedback node in industrial automation networks. Delivering reliable HTL/TTL pulse output, this encoder bridges the gap between rotating mechanical systems and digital control architectures — enabling real-time position, speed, and direction data to flow seamlessly across PLC controllers, variable frequency drives, SCADA platforms, and HMI systems. In smart factory environments where data integrity and low-latency signal transmission are non-negotiable, the 1XP8032-10 stands as a foundational component in the industrial data chain.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the Siemens 1XP8032-10 encoder is mounted directly on a motor shaft or conveyor drive, where it continuously generates incremental pulse signals representing angular position and rotational speed. These signals are fed in real time into a Siemens SINAMICS G120 or S120 variable frequency drive, which uses the encoder feedback to execute closed-loop vector control — ensuring precise torque and speed regulation even under dynamic load conditions.

From the drive level, process data is transmitted upstream via PROFINET IO to a Siemens SIMATIC S7-1500 PLC, where the motion logic is coordinated with broader production sequences. The S7-1500, acting as the central automation controller, communicates with remote I/O stations — such as Siemens ET 200SP distributed I/O modules — deployed across the production floor to collect additional sensor signals, including proximity switches, temperature transmitters, and pressure transducers.

At the supervisory level, a Siemens SIMATIC HMI TP1200 Comfort Panel provides operators with a real-time visualization of encoder-derived speed curves, position counters, and fault states. This HMI is integrated into the Siemens WinCC SCADA system, which aggregates data from multiple encoder-equipped drives and presents unified dashboards for production monitoring, alarm management, and historical trend analysis.

For facilities operating mixed-protocol environments — where legacy PROFIBUS-DP devices coexist with modern PROFINET infrastructure — a Siemens IE/PB Link PN IO gateway bridges the two networks, ensuring that encoder data from older drive systems remains accessible to the PROFINET backbone without requiring hardware replacement. Similarly, in applications involving Siemens SINUMERIK 840D CNC controllers, the 1XP8032-10 provides the axis position feedback essential for multi-axis interpolation and precision machining operations.

Edge connectivity is achieved through Siemens SCALANCE X industrial Ethernet switches, which provide managed network segmentation, VLAN support, and redundant ring topology (MRP) to ensure that encoder signal data reaches the SCADA and MES layers without packet loss or latency spikes — even in electromagnetically noisy factory environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols and isolated control islands. The Siemens 1XP8032-10 encoder, when integrated within a well-architected SIMOTICS-based automation network, directly addresses several of these pain points.

Protocol Fragmentation: Many production sites operate a mix of HTL encoder signals on legacy drives alongside PROFINET-connected modern controllers. By pairing the 1XP8032-10 with appropriate encoder evaluation modules or gateway cards within SINAMICS drives, the raw pulse data is digitized and encapsulated into standard industrial Ethernet frames — eliminating the signal isolation that would otherwise prevent legacy encoder data from reaching SCADA or MES systems.

Data Silos and Production Transparency: Without reliable encoder feedback integrated into the supervisory network, speed deviations, positioning errors, and mechanical wear go undetected until they cause unplanned downtime. The 1XP8032-10’s high-resolution pulse output, when continuously streamed to WinCC SCADA, enables production line transparency — operators can monitor OEE metrics, detect early signs of mechanical degradation, and trigger predictive maintenance workflows before failures occur.

Remote Monitoring and Diagnostics: In multi-site manufacturing operations, remote diagnostics are essential. The encoder data path — from 1XP8032-10 through SINAMICS drive to SIMATIC S7 PLC and then to WinCC — can be extended to cloud-based platforms via Siemens MindSphere IoT connectivity, enabling remote engineers to access real-time drive performance data, encoder pulse counts, and fault logs without being physically present on the factory floor.

System Scalability: As production capacity grows, additional encoder-equipped drive axes can be added to the PROFINET network with minimal reconfiguration. The modular architecture of the SIMOTICS encoder family, combined with the plug-and-play integration of SINAMICS drives and SIMATIC controllers, ensures that the automation network scales linearly with production demands.

All units are subject to pre-shipment functional testing, verifying pulse output integrity, channel symmetry, and connector reliability before dispatch. Stock is available for shipment arranged after confirmation with full export documentation compliance.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1XP8032-10 encoder signal in a PROFINET-connected drive system?
The 1XP8032-10 generates hardware-level HTL/TTL pulse signals with nanosecond-range response times. When integrated into a SINAMICS drive with PROFINET communication, the encoder data is cyclically transmitted to the SIMATIC PLC at configurable update rates as low as 1 ms, making it suitable for high-speed motion control and synchronization applications.

Q2: Is the Siemens 1XP8032-10 compatible with third-party PLCs and SCADA systems?
Yes. The HTL/TTL output of the 1XP8032-10 is a universal incremental encoder standard supported by virtually all industrial drive and controller manufacturers. When used with protocol gateway modules, the encoder data can be integrated into Modbus TCP, EtherNet/IP, or OPC-UA based SCADA architectures, enabling cross-platform interoperability in heterogeneous automation environments.

Q3: How does the 1XP8032-10 maintain network stability in high-EMI industrial environments?
The SIMOTICS encoder series is designed with shielded cable compatibility and differential signal output (RS-422 equivalent for TTL mode), which provides strong common-mode noise rejection. When installed with properly grounded shielded cables and routed away from high-voltage power conductors, the 1XP8032-10 maintains signal integrity across cable runs of up to 100 meters in typical industrial EMI conditions.

Q4: What warranty and testing standards apply to the Siemens 1XP8032-10?
Every unit supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each encoder undergoes pre-dispatch functional verification including pulse output testing on all channels (A, B, Z), connector integrity checks, and visual inspection. Full traceability documentation and export compliance certificates are provided with each shipment.
