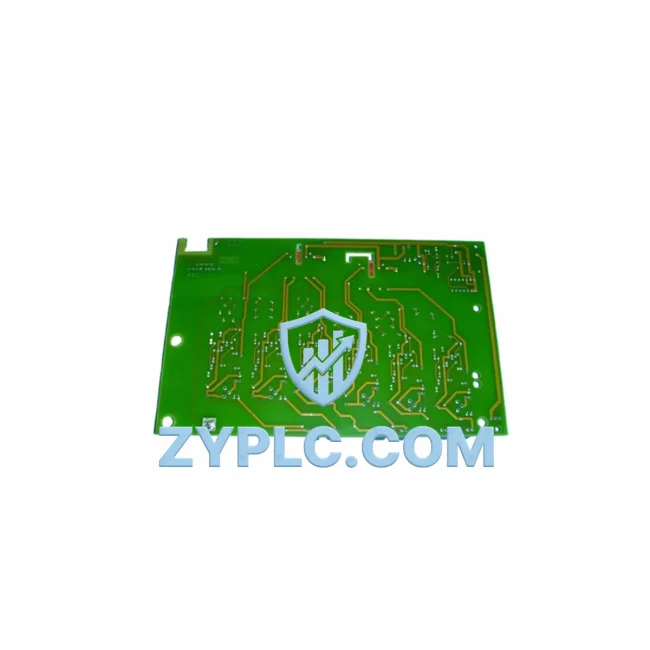

The Siemens 476478.0056.01 is a precision-engineered inverter/converter board designed for the SIMOVERT series of AC variable-speed drives. In modern industrial environments where energy costs and equipment uptime directly impact profitability, this board plays a central role in maintaining high-efficiency motor control, reducing reactive power losses, and enabling predictive maintenance strategies across demanding production lines.

Sourced directly from verified supply channels and fully tested prior to shipment, the 476478.0056.01 is available with a 12-month warranty, ensuring procurement confidence for maintenance engineers and automation system integrators alike.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 476478.0056.01 inverter board does not operate in isolation — its true value emerges when integrated into a well-designed energy-aware automation architecture. In a typical SIMOVERT-based drive system, this board interfaces directly with the IGBT power module stack and the control electronics to regulate PWM switching frequency, DC bus voltage, and current feedback loops. When paired with a Siemens SINAMICS S120 control unit such as the CU320-2 DP, the system gains access to advanced vector control algorithms that dramatically reduce motor slip losses and improve torque linearity at partial loads.

On the PLC side, a Siemens SIMATIC S7-1500 CPU — for example the CPU 1515-2 PN — provides the supervisory logic that coordinates drive enable signals, speed references, and fault acknowledgment routines. The S7-1500’s integrated PROFINET interface ensures deterministic communication with the drive system, eliminating the latency that can cause energy-wasting speed oscillations in closed-loop control. For installations still running PROFIBUS-DP backbones, the Siemens CP 342-5 communications processor bridges legacy field devices to the modern control layer without requiring full system replacement.

Energy monitoring is handled upstream by devices such as the Siemens PAC3200 power monitoring unit, which captures real-time kWh consumption, power factor, and harmonic distortion data at the panel level. This data feeds back into the SCADA or MES layer, allowing engineers to correlate drive operating points with actual energy draw — a critical capability for ISO 50001 energy management compliance. At the I/O level, Siemens ET 200SP distributed I/O modules collect temperature, vibration, and current signals from motor-mounted sensors, feeding the predictive maintenance algorithms running on the S7-1500.

For operator interaction, a Siemens SIMATIC HMI KTP700 Basic panel provides a clear visualization of drive status, energy consumption trends, and alarm histories. Operators can adjust speed setpoints and monitor efficiency KPIs without accessing the engineering workstation, reducing response time to process deviations. The 24 VDC control power for the entire panel — including the 476478.0056.01 board’s logic circuits — is typically supplied by a Siemens SITOP PSU100S power supply unit, which itself features active power factor correction to minimize upstream energy waste.

All components in this architecture are available through ZYPLC’s verified inventory, with stock confirmation and lead time transparency provided at the time of inquiry.

Power Optimization in Real Production Lines

In real-world production environments, the 476478.0056.01 inverter board contributes to energy optimization across several dimensions. First, by enabling precise variable-speed control of AC induction motors, it eliminates the energy waste inherent in throttle-valve or damper-based flow control on pump and fan applications. A motor running at 80% of full speed through a SIMOVERT drive consumes approximately 51% of the energy it would draw at full speed — a saving that compounds significantly across multi-motor production lines running two or three shifts per day.

Second, the board’s role in maintaining stable DC bus voltage during regenerative braking events allows kinetic energy from decelerating loads — such as centrifuges, winding machines, or vertical conveyors — to be returned to the bus and consumed by other drives on the same DC link, rather than dissipated as heat through braking resistors. This shared DC bus topology, common in SIMOVERT MASTERDRIVES installations, can reduce overall system energy consumption by 10–20% in applications with mixed motoring and regenerating axes.

Third, the 476478.0056.01 supports faster fault recovery. When a drive trips due to overcurrent, overvoltage, or thermal overload, the inverter board’s onboard diagnostics generate structured fault codes that maintenance teams can decode using the SIMOVERT parameter set or the STARTER commissioning tool. Faster root-cause identification means shorter unplanned downtime, which directly improves Overall Equipment Effectiveness (OEE) and reduces the energy penalty of cold-start ramp-up cycles after extended stops.

Finally, for facilities implementing predictive maintenance programs, the board’s analog and digital feedback signals — when logged via the ET 200SP I/O layer and analyzed in the S7-1500’s technology objects — provide early warning of bearing wear, winding insulation degradation, and cooling fan failure. Addressing these issues during planned maintenance windows, rather than after catastrophic failure, eliminates the energy and production losses associated with emergency repairs and unscheduled line stoppages.

Energy Optimization FAQ

Q1: How much energy can I realistically save by replacing a failed inverter board with the Siemens 476478.0056.01?
A: The energy saving depends on the application, but restoring a properly functioning SIMOVERT drive to service — versus running a motor at fixed speed with a bypass contactor — typically reduces motor energy consumption by 20–40% on variable torque loads such as pumps and fans. The 476478.0056.01 restores the drive’s ability to apply variable-speed control, which is the primary mechanism for energy reduction.

Q2: Is the 476478.0056.01 compatible with my existing SIMOVERT MASTERDRIVES installation?
A: Yes. The 476478.0056.01 is designed for the SIMOVERT series and is compatible with the MASTERDRIVES VC and MC drive families within the applicable power range. We recommend confirming your drive’s exact catalog number and firmware version before ordering. Our technical team can assist with compatibility verification at no charge.

Q3: What does the 12-month warranty cover, and what is the replacement process?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If the board fails within the warranty period, ZYPLC will arrange a replacement unit after fault verification. All boards undergo functional testing prior to shipment, including power-on checks and output signal verification, to minimize the risk of DOA (dead-on-arrival) incidents.

Q4: Can this board be used as a direct drop-in replacement, or does it require reconfiguration?
A: In most cases, the 476478.0056.01 is a direct drop-in replacement for the same part number in a SIMOVERT drive. No parameter reconfiguration is required at the board level. However, if the drive’s parameter set was stored only in the failed board’s memory (in older firmware versions), re-parameterization via the STARTER tool or the drive’s operator panel may be necessary. We recommend backing up drive parameters to the S7 PLC or a PC before any board replacement.
