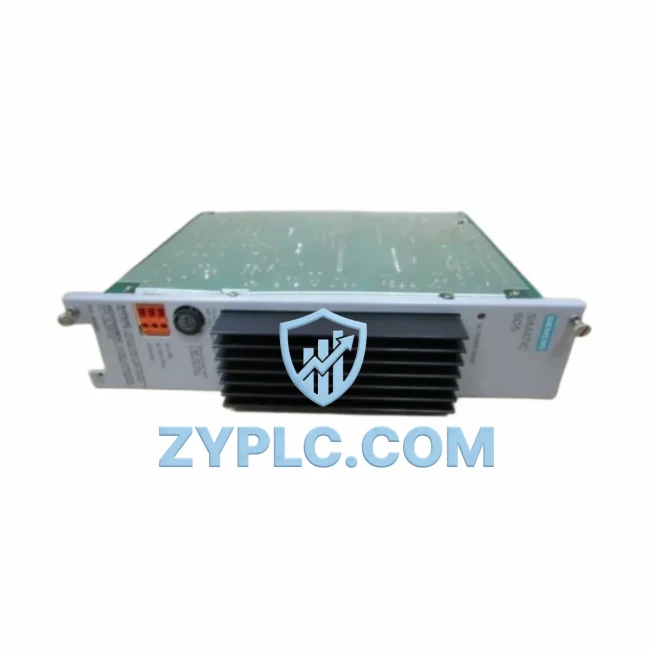

Siemens 505-6660B System-Ready Power Supply for TI505 Architecture

Siemens 505-6660B System-Ready Power Supply for TI505 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Siemens 505-6660B is a dedicated power supply module engineered for the SIMATIC TI505 programmable controller platform. Within a layered industrial automation architecture, the power supply is not a peripheral component — it is the foundational layer upon which every other subsystem depends. The 505-6660B delivers regulated DC power to the TI505 backplane, ensuring that CPU modules, I/O expansion racks, communication processors, and field interface modules all operate within their specified voltage and current tolerances. In high-availability process environments, the integrity of the power layer directly determines the reliability of the entire control hierarchy.

The TI505 system architecture is structured across multiple functional layers: the control layer (CPU), the I/O layer (digital and analog modules), the network layer (communication processors and gateways), the power layer (power supply modules), the HMI layer (operator panels and SCADA interfaces), and the execution layer (drives, actuators, and relay outputs). The 505-6660B occupies the power layer and provides the stable electrical foundation that allows all other layers to perform their designated roles without interruption. When integrated into a fully configured TI505 rack alongside modules such as the 505-6108 CPU, 505-4408 analog input module, 505-4216 digital output module, and 505-6851 communication processor, the 505-6660B ensures that each module receives clean, regulated power free from transient spikes or voltage sag — conditions that can cause spurious faults, data corruption, or unplanned shutdowns in sensitive process control applications.

Architecture Specification Table

Coordinated Control System Design

A complete TI505 control system is assembled from a coordinated set of modules, each fulfilling a specific architectural role. The 505-6660B power supply supports the full rack ecosystem, which typically includes the 505-6108 or 505-6110 CPU module as the central processing unit responsible for executing ladder logic and managing I/O scan cycles. Alongside the CPU, 505-4408 analog input modules and 505-4216 digital output modules handle field signal acquisition and command output respectively. For systems requiring remote I/O expansion, the 505-6851 remote I/O communication processor extends the control network across distributed rack locations, maintaining synchronised data exchange with the master CPU.

At the network layer, 505-6860 Ethernet communication modules or TIWAY network processors enable integration with SCADA systems, historian servers, and plant-level MES platforms. The 505-4116 digital input module captures discrete field signals from limit switches, proximity sensors, and pushbutton stations, while 505-4504 analog output modules drive proportional control valves and variable-speed drives. Terminal block assemblies and marshalling panels connect field wiring to the rack I/O modules, and 505-series backplane extender cables allow multi-rack configurations where a single CPU governs multiple I/O expansion racks — all powered by dedicated 505-6660B units at each rack location.

In redundant architecture designs, dual power supplies are deployed in parallel or in hot-standby configurations to eliminate the power layer as a single point of failure. The 505-6660B supports this redundancy strategy, allowing engineering teams to design systems that meet IEC 61511 safety integrity requirements for process industries. This approach is particularly relevant in applications where unplanned downtime carries significant financial or safety consequences.

Application in Layered Automation Systems

The Siemens 505-6660B finds application across a broad range of industrial sectors where the TI505 platform has been deployed as the primary control architecture. In power generation and electrical utilities, TI505 systems manage turbine control, switchgear sequencing, and load dispatch — environments where power supply stability is non-negotiable. In petrochemical and refinery operations, the 505-6660B supports continuous process control loops governing reactor temperature, pressure regulation, and flow metering, where any power interruption can trigger emergency shutdown sequences and costly production losses.

In water and wastewater treatment facilities, TI505 controllers manage pump sequencing, chemical dosing, and filtration cycles across geographically distributed pump stations — each remote rack requiring a reliable local power supply. Mining and mineral processing operations use TI505 systems for conveyor control, crusher sequencing, and flotation cell management, where the harsh electrical environment demands robust power conditioning. In automotive and discrete manufacturing assembly lines, the TI505 platform coordinates robotic welding stations, transfer lines, and quality inspection systems, with the 505-6660B ensuring that high-cycle-rate I/O modules receive uninterrupted power throughout multi-shift production schedules.

Packaging and material handling systems benefit from the TI505’s deterministic scan cycle, supported by the stable power delivery of the 505-6660B, enabling precise timing coordination between servo drives, vision systems, and reject mechanisms. In all these applications, the availability of tested, warranted replacement power supply modules is critical to maintaining system uptime and supporting long-term maintenance strategies for installed TI505 fleets.

Architecture Engineering FAQ

Q1: Is the 505-6660B compatible with all TI505 rack configurations, including multi-rack and remote I/O expansions?
The 505-6660B is designed for the SIMATIC TI505 rack platform and provides power to all modules installed in the local rack, including CPU, I/O, and communication processor modules. For multi-rack systems, each expansion rack requires its own dedicated power supply. Remote I/O racks connected via 505-6851 or similar communication processors also require independent power supply modules at each rack location. Compatibility should be verified against the specific rack model and total module power budget before installation.

Q2: Can the 505-6660B be used in a redundant power configuration, and what are the engineering requirements?
Yes. Redundant power supply configurations are supported in TI505 architecture by installing two power supply modules in a load-sharing or hot-standby arrangement, depending on the rack and backplane design. This eliminates the power layer as a single point of failure and is recommended for SIL-rated or high-availability applications. Engineering teams should consult the TI505 system hardware manual for backplane current ratings and redundancy wiring guidelines. All units supplied by ZYPLC are tested and covered by a 12-Month Warranty, supporting commissioning confidence in redundant designs.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance for TI505 systems?
The 12-Month Warranty covers functional defects identified under normal operating conditions consistent with the module’s published specifications. ZYPLC maintains stock of tested TI505 components — including power supplies, CPU modules, I/O cards, and communication processors — to support both emergency replacement and planned maintenance programmes. For engineering teams managing legacy TI505 installations, ZYPLC provides pre-sales technical consultation to confirm architectural compatibility and post-sales support to assist with installation and commissioning. Contact our team at [email protected] or +86 19859288691 for availability and lead time confirmation.
