Siemens 505-7003 Energy-Saving Counter Module SIMATIC 505

Siemens 505-7003 Energy-Saving Counter Module SIMATIC 505: Precision Energy Control and Production Line Optimization

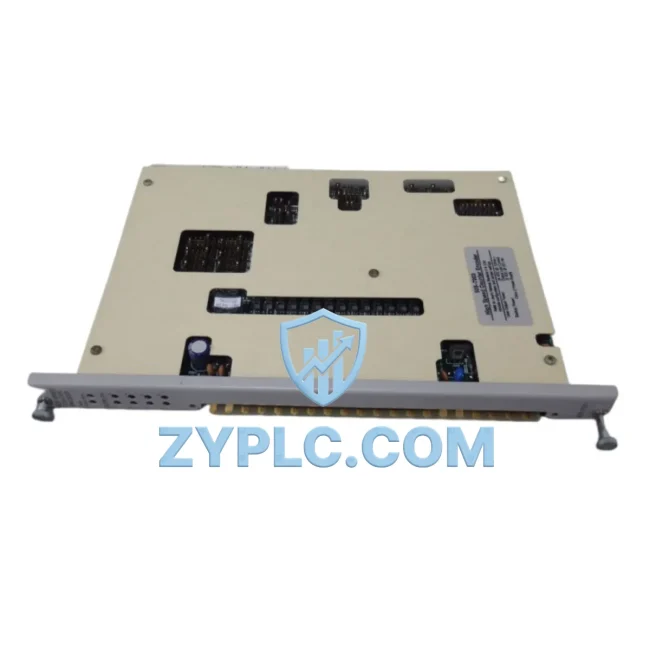

The Siemens 505-7003 is a high-speed counter module engineered for the SIMATIC 505 programmable logic controller platform, delivering precise pulse counting, real-time energy data acquisition, and seamless integration into industrial automation architectures. In modern manufacturing environments where energy efficiency directly impacts operating costs and carbon footprint, the 505-7003 serves as a critical data-collection node — capturing high-frequency encoder signals, flow meter pulses, and motor shaft rotation data that feed directly into energy management and drive optimization loops.

Designed for demanding industrial environments, the 505-7003 supports high-speed counting at rates that allow production engineers to correlate machine cycle times with actual energy draw, enabling data-driven decisions on motor load scheduling, variable frequency drive (VFD) setpoint tuning, and predictive maintenance intervals. When paired with a Siemens SIMATIC 505 CPU — such as the TI545 or TI565 series processors — the module delivers deterministic scan-cycle performance that is essential for closed-loop energy control strategies.

Efficiency Performance Table

Energy-Aware Automation Architecture

Achieving meaningful energy savings on a production line requires more than installing efficient motors — it demands a tightly integrated control architecture where every layer, from field-level sensing to supervisory data analysis, communicates with precision. The Siemens 505-7003 counter module occupies a foundational role in this architecture by providing the raw pulse data that drives energy-aware decision-making across the entire system.

At the field level, the 505-7003 interfaces directly with incremental encoders mounted on conveyor drives, pump shafts, and compressor units. These encoder signals are counted and timestamped by the module, then passed to the SIMATIC 505 CPU for processing. The CPU can then compare actual shaft speed against the commanded setpoint issued to a Siemens MICROMASTER 440 or SINAMICS G120 variable frequency drive, identifying slip, overload conditions, or inefficient operating points that waste energy without contributing to throughput.

On the I/O side, the 505-7003 works alongside SIMATIC 505 digital input modules (such as the 505-4332) and analog output modules to form a complete sensing and actuation layer. Analog outputs translate the CPU’s energy optimization calculations into 4–20 mA signals that adjust VFD speed references in real time, trimming motor energy consumption during low-demand production windows without halting the line.

For servo-driven axes — common in packaging, press, and assembly applications — the counter module’s high-speed counting capability supports position verification loops that complement Siemens SIMODRIVE or SINUMERIK servo drive feedback channels. Accurate position data reduces the need for mechanical over-travel and braking energy, contributing to measurable cycle-energy reductions.

At the supervisory level, data collected by the 505-7003 is aggregated through the SIMATIC 505 communication infrastructure — including TIWAY or Ethernet TCP/IP network interfaces — and delivered to an HMI panel or SCADA system. Operators can visualize real-time energy consumption per machine zone, set energy-per-unit-output KPIs, and trigger alerts when consumption deviates from baseline. This closes the energy management loop from field sensor to operator decision.

Power quality monitoring modules within the SIMATIC 505 rack, such as dedicated power measurement I/O cards, can be synchronized with the 505-7003’s count data to correlate electrical demand spikes with specific machine events — enabling engineers to reschedule high-inertia starts, stagger motor acceleration ramps, and reduce peak demand charges on the utility bill.

Power Optimization in Real Production Lines

In a typical discrete manufacturing plant running three shifts, unmonitored motor systems account for 60–70% of total electrical consumption. Much of this energy is wasted through inefficient speed control, unnecessary idling, and reactive maintenance cycles that force machines to run at conservative — and energy-inefficient — setpoints to avoid unexpected failures.

The Siemens 505-7003 counter module directly addresses these inefficiencies. By providing the SIMATIC 505 CPU with accurate, high-resolution pulse data from drive shafts and process meters, the module enables the controller to implement demand-responsive speed control: automatically reducing conveyor belt speed during buffer-full conditions, ramping pump drives to match actual flow demand rather than running at fixed speed, and coordinating multi-axis motion to eliminate simultaneous peak-current events.

In bottling and filling lines, for example, the 505-7003 counts product pulses from a flow meter and feeds this data to the PLC, which adjusts the fill pump’s VFD setpoint in real time. The result is a tighter fill tolerance, less product waste, and a pump motor that operates closer to its efficiency curve — reducing energy consumption per unit filled by a measurable margin compared to fixed-speed operation.

For predictive maintenance, the counter module’s accumulated count data serves as a proxy for mechanical wear. By tracking total shaft revolutions on a gearbox or bearing assembly, maintenance teams can schedule lubrication and replacement intervals based on actual usage rather than calendar time. This eliminates both premature replacements (which waste parts and labor) and run-to-failure events (which cause unplanned downtime and energy-intensive restart sequences). The 12-month warranty on the 505-7003 provides additional assurance during the initial deployment and commissioning phase, reducing financial risk while the energy optimization strategy is validated.

Downtime reduction is itself an energy optimization strategy. Every unplanned stop followed by a cold restart consumes a disproportionate amount of energy — motors draw 5–7× rated current during acceleration, compressed air systems surge to refill lines, and heating zones must recover from thermal loss. By enabling predictive maintenance and stable closed-loop control, the 505-7003 helps keep lines running smoothly, reducing the frequency and energy cost of restart events.

Energy Optimization FAQ

Q1: How does the Siemens 505-7003 contribute to measurable energy savings on a production line?
The 505-7003 provides the SIMATIC 505 PLC with high-speed, high-resolution pulse data from encoders, flow meters, and other field devices. This data enables the controller to implement demand-responsive drive control — adjusting VFD setpoints in real time to match actual process load rather than running motors at fixed speed. The result is reduced motor energy consumption during partial-load conditions, which typically represent the majority of operating hours in most production environments.

Q2: Is the 505-7003 compatible with modern variable frequency drives and servo systems?
Yes. The 505-7003 integrates within the SIMATIC 505 rack and communicates with the CPU, which can issue analog or digital control signals to drives including the Siemens MICROMASTER 440, SINAMICS G120, and SIMODRIVE series. The module’s high-speed counting capability also supports position feedback verification for servo-driven axes, complementing drive-level encoder feedback for enhanced motion accuracy and energy efficiency.

Q3: What is the recommended replacement or upgrade path if the 505-7003 is being phased out of an existing SIMATIC 505 system?
For facilities migrating from SIMATIC 505 to a newer Siemens platform, the functional equivalent in the S7-300 or S7-400 family would be a high-speed counter FM module (such as the FM 350-1 or FM 350-2). However, for sites committed to maintaining SIMATIC 505 infrastructure — particularly where the cost and risk of a full PLC migration outweigh the benefits — sourcing a tested, warranted 505-7003 replacement unit is the most cost-effective path. All units supplied by ZYPLC undergo outgoing functional testing before shipment.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every Siemens 505-7003 unit supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes a functional outgoing test to verify counting accuracy, I/O response, and communication integrity within the SIMATIC 505 architecture. This process ensures that the module performs to specification from day one of installation, minimizing commissioning risk and protecting your energy optimization investment.
