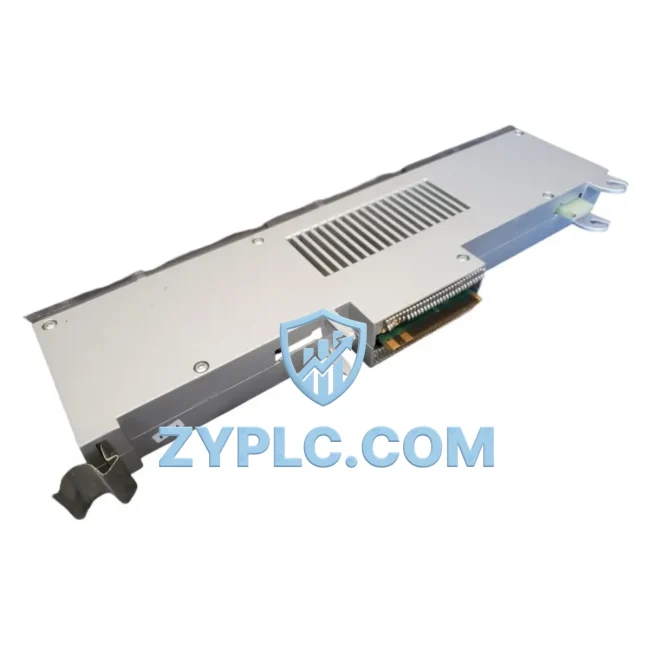

Siemens 562-001 System-Ready Digital I/O Module for SIMATIC S5 Architecture

Siemens 562-001 System-Ready Digital I/O Module for SIMATIC S5 Architecture

The Siemens SIMATIC S5 562-001 Digital I/O Module is a purpose-built signal interface component designed to operate within the layered control architecture of the SIMATIC S5 programmable controller platform. Rather than functioning as a standalone device, the 562-001 is engineered to serve as a critical node within a coordinated automation system — bridging the control layer, I/O layer, and field device layer with consistent signal integrity and deterministic response. In distributed manufacturing environments, power generation facilities, petrochemical plants, and water treatment systems, the reliability of every I/O module directly determines the stability of the entire control loop. The 562-001 fulfills this role with the precision and durability that Siemens SIMATIC S5 architecture demands.

Within a complete S5 control system, the 562-001 occupies the I/O layer, receiving digital signals from field sensors, limit switches, proximity detectors, and actuator feedback circuits, then transmitting processed status data upward to the CPU module for logic execution. This signal flow is fundamental to maintaining real-time awareness of process conditions across the control hierarchy. The module’s compatibility with the S5 backplane bus ensures that data exchange between the I/O layer and the central processing unit remains synchronized, reducing latency and eliminating signal ambiguity that could compromise process safety or production continuity.

Architecture Specification Table

Coordinated Control System Design

The 562-001 achieves its full operational value when deployed within a coordinated SIMATIC S5 system architecture. At the control layer, the Siemens S5-115U CPU 941 or CPU 944 serves as the central processing unit, executing the ladder logic or statement list programs that govern process behavior. The 562-001 feeds real-time digital status data directly into the CPU’s input image table, enabling the processor to make deterministic control decisions within each scan cycle.

Power integrity across the rack is maintained by the Siemens S5 PS 951 Power Supply Module, which provides regulated 24 V DC and 5 V DC rails to all installed modules including the 562-001. Stable power delivery is non-negotiable in industrial environments where voltage fluctuations can cause spurious I/O transitions or module resets that interrupt production sequences.

For systems requiring expanded I/O capacity beyond a single rack, the Siemens S5 IM 306 Interface Module and IM 314 Interface Module enable multi-rack expansion, allowing the 562-001 to be installed in expansion racks while maintaining full communication with the central CPU. This modular expansion capability is essential in large-scale process control applications where hundreds of discrete I/O points must be managed within a unified control architecture.

Communication between the S5 system and supervisory SCADA platforms or distributed control networks is handled by Siemens CP 5431 Communication Processor modules, which support PROFIBUS-DP protocol and enable the S5 rack — including the 562-001’s I/O data — to participate in plant-wide network communication. For legacy integration scenarios, the CP 5412 A2 provides additional PROFIBUS master functionality.

At the human-machine interface layer, Siemens OP 17 or TP 27 operator panels connect to the S5 system via MPI or PROFIBUS, providing operators with real-time visibility into the digital I/O states managed by modules like the 562-001. This HMI integration closes the loop between field-level signal acquisition and operator decision-making.

Terminal modules and marshalling components, such as Siemens S5 front connector assemblies and compatible Phoenix Contact or Weidmüller terminal blocks, provide the physical wiring interface between the 562-001’s I/O channels and field cable runs. Proper terminal organization reduces commissioning time and simplifies fault isolation during maintenance cycles.

In redundant architecture designs, dual-CPU configurations using Siemens S5-115H or S5-135U high-availability systems allow the 562-001 to operate within hot-standby control schemes, ensuring that a single CPU failure does not interrupt I/O scanning or process control continuity.

Application in Layered Automation Systems

The 562-001 is deployed across a wide range of industrial sectors where the SIMATIC S5 platform remains the established control standard. In manufacturing and assembly lines, the module manages discrete signals from conveyor position sensors, pneumatic cylinder end-stops, and machine safety interlocks, enabling the CPU to sequence production operations with precise timing. In power generation and electrical substation applications, the 562-001 monitors breaker status, relay feedback, and protection relay trip signals, providing the control system with accurate real-time awareness of switchgear states.

In petrochemical and refinery environments, the module interfaces with solenoid valve position feedback, motor run/stop status signals, and emergency shutdown system inputs, where signal reliability directly affects process safety. Water and wastewater treatment facilities use the 562-001 to monitor pump run status, valve open/close confirmation, and level switch inputs across distributed pump stations, with the S5 CPU coordinating treatment sequences based on the aggregated I/O data.

In mining and metallurgical operations, the module handles high-cycle discrete signals from conveyor belt alignment switches, crusher overload contacts, and ventilation fan status relays. Packaging and bottling lines rely on the 562-001 for high-speed discrete I/O scanning, where the module’s deterministic response time ensures that product counting, reject gate control, and line synchronization signals are processed without delay.

Across all these applications, the 562-001’s compatibility with the existing S5 rack infrastructure means that system upgrades, I/O expansions, and module replacements can be executed without redesigning the control cabinet or reprogramming the CPU — a critical advantage for facilities managing long-term operational continuity with established SIMATIC S5 installations.

Architecture Engineering FAQ

Q1: Is the 562-001 compatible with both S5-115U and S5-135U rack systems, and does it require any configuration changes when installed in an expansion rack?
The 562-001 is designed for use within the SIMATIC S5 backplane bus architecture and is compatible with S5-115U, S5-135U, and S5-155U rack systems. When installed in an expansion rack connected via IM 306/IM 314 interface modules, no additional hardware configuration is required on the 562-001 itself — the CPU automatically addresses the module based on its slot position within the rack. Address assignment is managed through the S5 programming software (STEP 5), where the I/O address range is defined during system configuration.

Q2: How does the 562-001 support long-term maintenance and spare parts management in aging S5 installations?
The 562-001 is available as a tested, verified replacement module with a 12-Month Warranty, making it a reliable spare parts solution for facilities maintaining SIMATIC S5 systems beyond the original product lifecycle. Its plug-in installation on the S5 backplane allows hot-swap replacement during planned maintenance windows without requiring rack rewiring. Maintaining a stock of verified 562-001 modules reduces unplanned downtime risk and supports the long-term operational continuity of S5-based control systems in critical infrastructure applications.

Q3: What does the 12-Month Warranty cover, and how does Contextual Integration apply to existing S5 system architectures?
The 12-Month Warranty covers manufacturing defects and functional failures under normal industrial operating conditions, providing assurance that the module will perform to specification throughout the warranty period. Contextual Integration means the 562-001 is supplied pre-verified for compatibility with the SIMATIC S5 backplane bus and standard S5 rack configurations, allowing it to be installed directly into an existing system architecture without requiring firmware updates, hardware modifications, or compatibility testing. This reduces commissioning time and ensures that the module integrates seamlessly into the established control system environment from the moment of installation.

—
