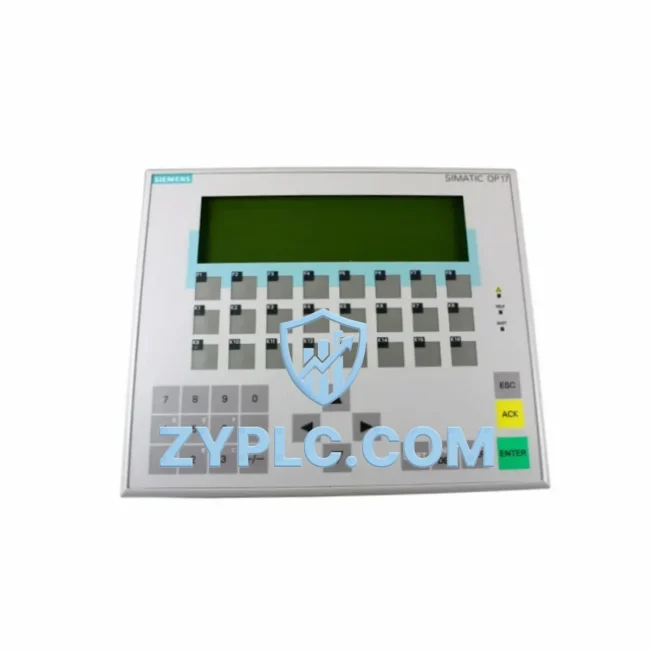

Siemens 6AV3617-5BB00-0AB0 Energy-Saving HMI for SIMATIC OP17

Siemens 6AV3617-5BB00-0AB0 Energy-Saving HMI for SIMATIC OP17 Automation

The Siemens 6AV3617-5BB00-0AB0 is a SIMATIC OP17 operator panel engineered for precision human-machine interaction in energy-conscious industrial environments. Designed to integrate seamlessly with Siemens S7 and S5 PLC platforms, this HMI panel serves as the critical interface layer between operators and energy-intensive drive systems — enabling real-time visibility into power consumption, motor load states, and process cycle efficiency. In modern manufacturing, where energy costs represent a significant share of operational expenditure, deploying a reliable and responsive HMI like the 6AV3617-5BB00-0AB0 is a foundational step toward measurable energy reduction and production line optimization.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6AV3617-5BB00-0AB0 operates at the heart of an energy-aware control architecture. When paired with a Siemens SIMATIC S7-300 CPU — such as the CPU 314C-2 DP — the OP17 panel provides operators with direct access to process variables, setpoints, and alarm states without requiring a PC workstation, dramatically reducing auxiliary power loads on the control network. Through its MPI and PROFIBUS-DP interface, the panel communicates with distributed I/O modules such as the ET 200S or ET 200M, enabling granular monitoring of field-level energy consumers including solenoid valves, contactors, and sensor arrays.

In drive-intensive applications, the OP17 panel is frequently deployed alongside Siemens SINAMICS G120 variable frequency drives. Operators can use the HMI to monitor drive output frequency, motor current draw, and torque setpoints in real time — allowing on-the-fly adjustments that prevent motors from running at full load during low-demand production windows. This capability alone can reduce motor energy consumption by 20–40% in conveyor, pump, and fan applications. The SINAMICS G120 communicates via PROFIBUS-DP, and the 6AV3617-5BB00-0AB0 serves as the local visualization node for drive status and fault diagnostics.

For power quality monitoring, the OP17 panel integrates effectively with Siemens SENTRON PAC3200 power monitoring devices. By displaying real-time kW, kVAr, and power factor data sourced from the PAC3200 via the PROFIBUS network, the panel enables energy managers to identify inefficient load profiles and schedule corrective actions without leaving the production floor. This closed-loop visibility between the HMI, the power meter, and the drive system forms the backbone of an energy-efficient automation cell.

The panel also supports integration with Siemens LOGO! 8 logic modules in smaller sub-panel applications, where the OP17 acts as the primary display for compressed air pressure monitoring, cooling circuit temperature, and auxiliary motor run-time counters — all key contributors to hidden energy waste in manufacturing facilities. Additionally, when used in conjunction with a Siemens S7-1200 PLC via a protocol gateway, the 6AV3617-5BB00-0AB0 can surface energy KPIs from legacy S5 lines that have been partially modernized, bridging old and new automation generations without full system replacement.

Communication reliability is further enhanced when the OP17 is deployed within a PROFIBUS segment managed by a Siemens CP 342-5 communications processor, ensuring deterministic data exchange between the HMI, the PLC, and field devices even under high network load conditions typical of multi-axis servo systems using SIMODRIVE 611 drive modules.

Power Optimization in Real Production Lines

In real-world production environments, unplanned downtime and inefficient energy use are closely linked. The Siemens 6AV3617-5BB00-0AB0 addresses both by giving line operators immediate, actionable feedback on equipment status. When a motor-driven conveyor section enters an idle state, the OP17 panel can display a configurable alarm or status message prompting the operator to activate an energy-saving mode on the associated SINAMICS drive — reducing motor speed to a minimum holding frequency and cutting energy draw by up to 60% during non-productive intervals.

In injection molding and press applications, the panel’s ability to display cycle time counters and production rate data allows supervisors to identify bottlenecks that force upstream equipment to run continuously at full power while waiting for downstream processes to clear. By visualizing these production rhythm mismatches directly on the shop floor, the 6AV3617-5BB00-0AB0 enables targeted interventions — such as adjusting conveyor indexing speed or resequencing robot arm movements — that smooth line throughput and eliminate the energy penalty of stop-start motor cycling.

Predictive maintenance is another dimension where the OP17 panel delivers energy savings. By displaying motor run-hour counters and fault frequency logs, maintenance teams can schedule bearing replacements and belt tension checks before mechanical degradation causes motors to draw excess current. A motor operating with worn bearings can consume 5–15% more energy than a properly maintained unit; the 6AV3617-5BB00-0AB0 makes this invisible waste visible and actionable.

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, including display verification, communication port integrity checks, and power-on self-test validation. Stock is maintained in our warehouse to support rapid deployment for both planned upgrades and emergency replacement scenarios. All units are covered by a 12-month warranty, ensuring your production line investment is protected from day one.

Energy Optimization FAQ

Q1: How does the 6AV3617-5BB00-0AB0 contribute to energy savings on the production line?
The OP17 panel provides real-time visualization of process variables, drive states, and power consumption data sourced from connected devices such as SINAMICS drives and SENTRON power meters. This visibility enables operators to make immediate adjustments — reducing motor speeds during idle periods, identifying overcurrent conditions, and optimizing cycle timing — all of which directly reduce energy consumption without requiring changes to the underlying PLC program.

Q2: Is the 6AV3617-5BB00-0AB0 compatible with modern Siemens S7-1200 and S7-1500 systems?
The OP17 panel natively supports MPI and PROFIBUS-DP protocols, which are standard on S7-300 and S7-400 platforms. For S7-1200 and S7-1500 systems, integration is achievable via a PROFIBUS-DP communication module or protocol gateway. Many facilities use the 6AV3617-5BB00-0AB0 as a cost-effective local HMI on legacy lines while newer lines run SIMATIC HMI Comfort Panels — both can coexist within the same PROFIBUS network segment.

Q3: Can this panel replace a faulty OP17 unit without reprogramming?
Yes. The 6AV3617-5BB00-0AB0 is a direct form-fit-function replacement for existing SIMATIC OP17 installations. The panel project file stored on the connected PLC or a backup memory card can be reloaded to the replacement unit using SIMATIC ProTool or WinCC flexible, restoring full functionality without modifying the PLC program. This minimizes downtime and eliminates the energy and productivity cost of extended line stoppages.

Q4: What does the 12-month warranty cover, and how is the unit tested before shipment?
Every 6AV3617-5BB00-0AB0 supplied by ZYPLC is tested for display functionality, keypad response, communication port integrity, and power supply stability before dispatch. The 12-month warranty covers hardware defects and functional failures under normal industrial operating conditions. In the event of a warranty claim, ZYPLC provides rapid replacement support to minimize production impact. Contact our team at [email protected] or +86 19859288691 for warranty service inquiries.
