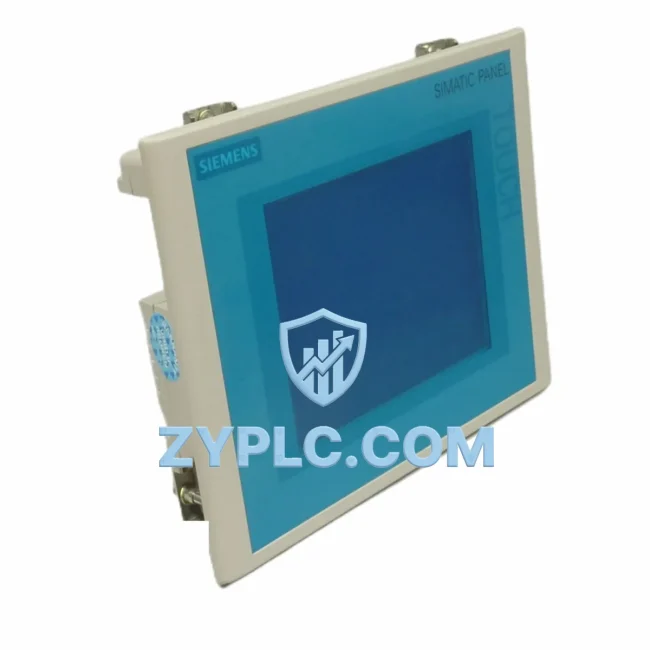

Siemens 6AV6642-0AA11-0AX1 Energy-Saving HMI Panel SIMATIC

Siemens 6AV6642-0AA11-0AX1 Energy-Saving HMI Panel SIMATIC: Precision Efficiency Control for Industrial Production Lines

The Siemens 6AV6642-0AA11-0AX1, commercially designated as the SIMATIC TP177A, is a 5.7-inch TFT touch panel engineered for demanding industrial automation environments where energy efficiency, process visibility, and control precision are non-negotiable. Designed to integrate seamlessly within Siemens’ SIMATIC S7 control architecture, this HMI panel serves as the critical human-machine interface layer that bridges operator commands with real-time machine feedback — enabling factories to reduce unnecessary energy consumption, minimize unplanned downtime, and optimize production line throughput.

Unlike generic display terminals, the 6AV6642-0AA11-0AX1 is purpose-built for energy-aware automation. Its low-power TFT display, efficient backlight management, and optimized communication stack collectively reduce parasitic power draw at the operator station level — a factor often overlooked in plant-wide energy audits. When deployed across multiple workstations in a facility, the cumulative energy savings from replacing legacy CRT-based or inefficient panel PCs with TP177A units can be substantial.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a well-designed energy-aware automation system, the 6AV6642-0AA11-0AX1 does not operate in isolation. It functions as the visualization and command node within a broader SIMATIC ecosystem. Consider a typical motor-driven conveyor or pump station: the SIMATIC S7-300 CPU (e.g., CPU 314C-2 DP) executes the control logic, while the TP177A provides operators with real-time feedback on motor load, cycle counts, and alarm states — enabling immediate corrective action before energy waste escalates into equipment failure.

For variable-speed drive applications, the TP177A integrates naturally with Siemens SINAMICS G120 or MICROMASTER 440 variable frequency drives via PROFIBUS DP. Operators can monitor drive output frequency, motor current draw, and energy consumption trends directly from the panel, adjusting setpoints to match actual production demand rather than running motors at fixed full-load — a primary source of industrial energy waste. The panel’s MPI port also supports direct connection to S7-200 PLCs such as the CPU 226, making it equally effective in smaller, distributed control nodes.

Power quality monitoring is another dimension where the TP177A adds value. When paired with Siemens SENTRON PAC3200 power monitoring devices or 7KM PAC series energy meters connected via Modbus or PROFIBUS, operators gain visibility into real-time kWh consumption, power factor, and harmonic distortion — data that feeds directly into energy optimization decisions. The TP177A’s WinCC flexible runtime environment supports trend displays and alarm logging, allowing maintenance teams to correlate energy spikes with specific machine events.

On the I/O side, the panel communicates with distributed I/O modules such as the ET 200S or ET 200M, which aggregate field-level signals from sensors, actuators, and safety relays. This distributed architecture reduces wiring complexity and associated energy losses in signal transmission. For safety-critical applications, integration with SIMATIC Safety Integrated functions — accessible through the same PROFIBUS network — ensures that energy-saving operational modes do not compromise personnel protection.

In facilities running Siemens TIA Portal-based projects, the 6AV6642-0AA11-0AX1 can be configured and updated using WinCC flexible 2008, maintaining compatibility with legacy project libraries while supporting modern energy dashboards. The panel’s compact form factor and standard panel-cut dimensions also simplify retrofitting into existing control cabinets, avoiding the cost and downtime of full panel replacements.

Power Optimization in Real Production Lines

The practical energy impact of deploying the Siemens 6AV6642-0AA11-0AX1 becomes most evident in continuous-process industries — food and beverage, water treatment, textile manufacturing, and automotive assembly — where production lines run 16 to 24 hours per day and even marginal efficiency gains translate into significant annual energy cost reductions.

In a bottling plant, for example, the TP177A mounted at each filling station gives line operators immediate visibility into conveyor belt speed, fill valve cycle times, and motor amperage. When a motor begins drawing above-normal current — an early indicator of bearing wear or mechanical resistance — the panel’s alarm system triggers before the fault escalates into an unplanned shutdown. Predictive maintenance enabled by real-time HMI monitoring reduces both energy waste from degraded equipment and the production losses associated with emergency repairs.

In pump stations and HVAC systems, the TP177A’s integration with SINAMICS drives allows operators to implement demand-based speed control. Rather than running pumps at constant full speed, operators can set flow-demand curves directly from the panel, reducing motor energy consumption by 20–50% during off-peak periods — consistent with the affinity laws governing centrifugal pump efficiency.

The panel also supports production line rhythm (takt time) optimization. By displaying real-time cycle data alongside energy consumption metrics, production managers can identify bottlenecks where machines idle at full power between cycles. Adjusting idle-state parameters — such as reducing conveyor speed during buffer accumulation — directly reduces energy consumption without impacting throughput targets.

Every unit of the 6AV6642-0AA11-0AX1 supplied by ZYPLC undergoes full functional testing prior to shipment, including display verification, communication port testing, and power-on self-diagnostics. Stock availability is maintained to support urgent replacement requirements, and all units are covered by a 12-month warranty from the date of delivery.

Energy Optimization FAQ

Q1: How does the 6AV6642-0AA11-0AX1 contribute to measurable energy savings on the production floor?
The TP177A enables real-time visibility into motor load, drive frequency, and process variables that directly influence energy consumption. By giving operators actionable data at the point of control, it supports demand-based adjustments — such as reducing conveyor speed during low-throughput periods or triggering alerts when equipment draws abnormal current. When integrated with SINAMICS drives and SENTRON power meters, the panel becomes the operator interface for a complete energy monitoring and control loop.

Q2: Is the 6AV6642-0AA11-0AX1 compatible with my existing SIMATIC S7 system?
Yes. The TP177A supports MPI and PROFIBUS DP communication protocols, making it directly compatible with SIMATIC S7-200, S7-300, and S7-400 PLCs. It is configured using WinCC flexible 2008 and integrates with TIA Portal projects via legacy import. For S7-1200 or S7-1500 systems, protocol bridging via a CP communication module may be required — our technical team can advise on the appropriate configuration.

Q3: Can this panel replace an older or damaged HMI in an existing control cabinet?
The 6AV6642-0AA11-0AX1 uses a standard panel-cut format compatible with most existing cabinet cutouts designed for the TP177A series. Replacement projects typically require re-flashing the WinCC flexible project file to the new unit — a process that can be completed without modifying the PLC program. ZYPLC recommends verifying the firmware version and communication settings before installation to ensure seamless switchover.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All 6AV6642-0AA11-0AX1 units supplied by ZYPLC are tested prior to dispatch, including power-on verification, touchscreen calibration, display uniformity check, and communication port functionality. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that develop faults within the warranty period are eligible for replacement or repair. Contact our team at [email protected] or +86 19859288691 for warranty claims and technical support.
