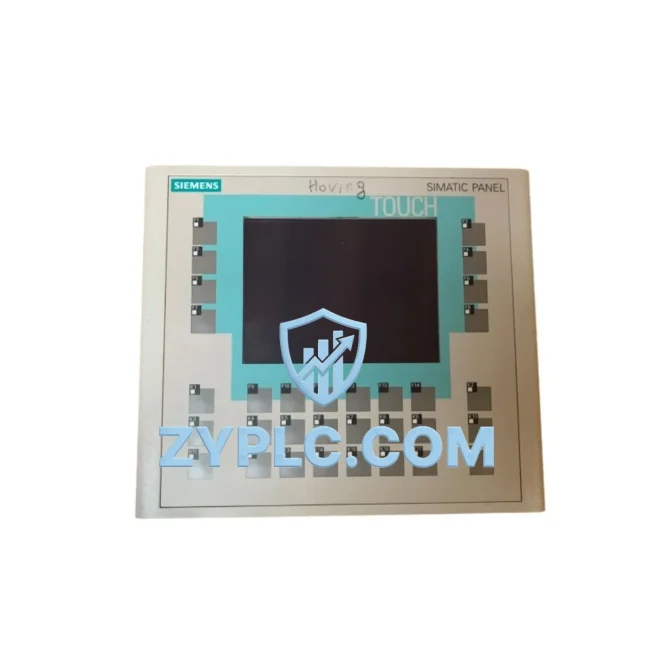

Siemens 6AV6642-0DA01-1AX1 System-Ready HMI Panel for SIMATIC S7 Architecture

Siemens 6AV6642-0DA01-1AX1 System-Ready HMI Panel for SIMATIC S7 Control Architecture

The Siemens 6AV6642-0DA01-1AX1, commercially designated as the SIMATIC HMI OP77B, is a purpose-engineered operator panel designed to function as the human-machine interface layer within fully integrated SIMATIC S7 control system architectures. Rather than operating as a standalone display device, the OP77B is conceived as a coordinated component within a multi-layer automation hierarchy — one that bridges the gap between field-level I/O, programmable logic controllers, and plant-level supervisory systems. Its role in the architecture is to provide operators with real-time process visibility, alarm acknowledgment, and parameter adjustment capabilities, all while maintaining seamless Contextual Integration with the underlying control logic running on SIMATIC S7-300 or S7-400 CPUs.

In modern industrial automation, the effectiveness of a control system is not determined by any single component but by the coherence of the entire architecture. The 6AV6642-0DA01-1AX1 is engineered with this principle at its core. It supports MPI (Multi-Point Interface) and PROFIBUS DP communication protocols, enabling direct and reliable connectivity to S7-300 and S7-400 PLCs without the need for intermediate gateways or protocol converters. This native protocol compatibility ensures that the HMI layer remains tightly coupled to the control layer, reducing latency in alarm response and improving the accuracy of real-time data visualization across the system.

Architecture Specification Table

Coordinated Control System Design

The 6AV6642-0DA01-1AX1 achieves its full operational value when deployed within a coordinated SIMATIC control architecture. At the control layer, it interfaces directly with CPUs such as the SIMATIC S7-300 CPU 315-2 DP or the S7-400 CPU 414-3 PN/DP, reading process variables and writing setpoints in real time via the MPI bus. This direct CPU-to-HMI communication path eliminates the need for OPC servers or additional middleware in smaller to mid-scale installations, simplifying both commissioning and long-term maintenance.

At the power supply layer, the OP77B operates on 24 V DC, making it fully compatible with standard SIMATIC rack-mounted power supply modules such as the PS 307 5A or PS 307 10A, which also power the S7-300 CPU and I/O modules on the same DIN rail assembly. This shared power architecture reduces panel wiring complexity and supports a unified power distribution strategy across the control cabinet.

On the I/O layer, the OP77B works in conjunction with digital and analog I/O modules — including SM 321 digital input modules, SM 322 digital output modules, and SM 331/SM 332 analog I/O modules — by displaying their process values and alarm states directly on the operator interface. Operators can monitor field signals, acknowledge fault conditions, and initiate manual overrides without leaving the panel, significantly reducing response time during process disturbances.

For systems requiring distributed I/O, the OP77B’s PROFIBUS DP interface allows it to coexist on the same fieldbus network as ET 200S or ET 200M distributed I/O stations, enabling a consistent operator view across both centralized and distributed field devices. In larger architectures, the OP77B can be deployed as a local operator station at a sub-panel or field junction box, while a higher-level SIMATIC TP1200 Comfort Panel or MP377 Multi Panel serves as the primary SCADA-level HMI at the main control room — creating a layered HMI hierarchy that matches the physical layout of the plant.

In redundant control architectures, the OP77B can be configured to communicate with a standby CPU, ensuring that operator visibility is maintained even during a CPU switchover event. When paired with SIMATIC S7-400H redundant CPUs, the HMI layer remains continuously operational, supporting uninterrupted process monitoring in high-availability applications such as power generation, chemical processing, and water treatment.

Communication stability is further enhanced by the OP77B’s support for PROFIBUS DP at baud rates up to 12 Mbit/s, ensuring that even in electrically noisy industrial environments — such as those found in metal processing, mining, or heavy manufacturing — the HMI-to-PLC data exchange remains reliable and deterministic. The panel’s IP65-rated front face also ensures that it can be mounted in control cabinets exposed to dust, coolant mist, or wash-down conditions without compromising display or keypad functionality.

Application in Layered Automation Systems

The 6AV6642-0DA01-1AX1 is deployed across a wide range of industrial sectors where SIMATIC S7 control platforms are the standard. In manufacturing and assembly lines, the OP77B serves as the local operator interface at individual machine stations, allowing line operators to monitor cycle counts, adjust speed setpoints, and acknowledge fault alarms without interrupting production flow. Its compact form factor and panel-mount design make it ideal for integration into machine-mounted control enclosures where space is limited.

In power distribution and electrical substation applications, the OP77B provides operators with real-time visibility into protection relay status, breaker positions, and load measurements — all sourced from the S7-300 or S7-400 PLC managing the substation automation logic. Its monochrome display and tactile keypad are well-suited to environments where glare, vibration, and temperature extremes are common.

Within water and wastewater treatment facilities, the OP77B is frequently installed at pump stations, chemical dosing skids, and filtration units as a local operator terminal. Operators use it to start and stop pumps, view flow rates and tank levels, and respond to high-level or low-level alarms — all without requiring access to the central SCADA workstation. This decentralized operator access model improves response times and reduces the operational burden on central control room staff.

In oil, gas, and petrochemical process plants, the OP77B supports local control panel integration within hazardous area enclosures (when appropriately housed), providing process operators with direct access to PLC-managed control loops for pressure, temperature, and flow regulation. Its compatibility with PROFIBUS DP also allows it to interface with field instruments and valve positioners connected to the same fieldbus segment.

For mining and metallurgical applications, the OP77B’s robust construction and wide operating temperature range make it suitable for deployment in crusher control panels, conveyor drive stations, and smelting process control cabinets. Its ability to display multi-line text messages and process values in real time supports the demanding operational requirements of continuous process environments where downtime is costly and operator response must be immediate.

Architecture Engineering FAQ

Q1: Is the 6AV6642-0DA01-1AX1 compatible with both S7-300 and S7-400 architectures, and does it require any additional communication modules?
The OP77B (6AV6642-0DA01-1AX1) is natively compatible with both SIMATIC S7-300 and S7-400 CPUs via MPI or PROFIBUS DP, using the integrated RS-485 port on the panel. No additional communication modules or protocol converters are required for direct CPU connection. Configuration is performed using SIMATIC WinCC flexible Compact or Standard software, and the panel can be commissioned directly from a PC via the MPI interface. For S7-200 connectivity, an additional PC/PPI adapter may be required depending on the firmware version.

Q2: How does the OP77B integrate into a multi-panel HMI architecture, and can it coexist with higher-level SCADA or Comfort Panel systems on the same PROFIBUS network?
Yes. The 6AV6642-0DA01-1AX1 can coexist on the same PROFIBUS DP network as higher-level HMI devices such as the SIMATIC MP377 or TP1200 Comfort Panel, as well as ET 200 distributed I/O stations. Each device is assigned a unique PROFIBUS node address, and the network master (typically the S7-300/400 CPU) manages communication scheduling. This architecture supports a layered HMI strategy where the OP77B handles local operator interaction at the machine level while the Comfort Panel or SCADA system provides plant-wide supervision — all sharing the same underlying control data from the PLC.

Q3: What does the 12-Month Warranty cover for the 6AV6642-0DA01-1AX1, and what support is available for long-term maintenance and spare parts supply?
All 6AV6642-0DA01-1AX1 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. The warranty covers the display assembly, keypad interface, communication ports, and power input circuitry. ZYPLC maintains dedicated inventory of OP77B units and compatible SIMATIC HMI components to support long-term maintenance programs, planned shutdowns, and emergency replacement requirements. For spare parts inquiries, system compatibility verification, or warranty claims, contact ZYPLC directly at +86 19859288691 or [email protected].
