Siemens 6AV6647-0AK11-3AX0 System-Ready HMI Panel for SIMATIC Architecture

Siemens 6AV6647-0AK11-3AX0 System-Ready HMI Panel for SIMATIC Control Architecture

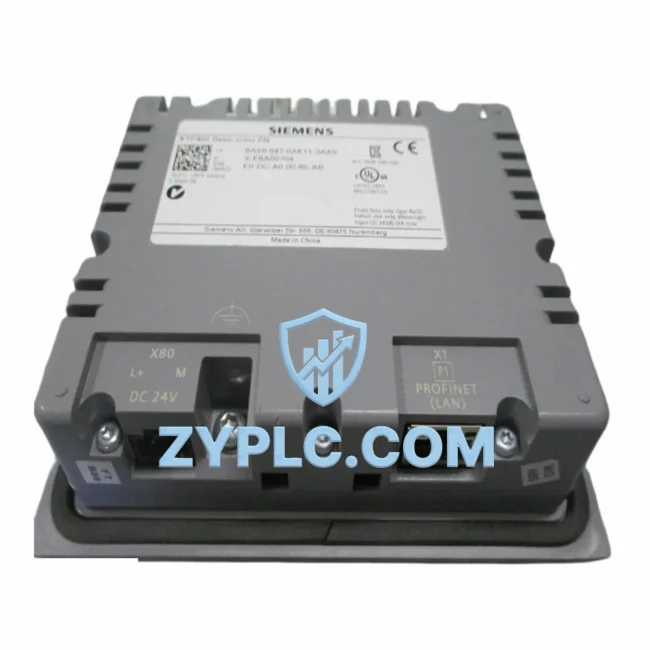

The Siemens 6AV6647-0AK11-3AX0 KTP600 Basic Panel is a purpose-engineered human-machine interface designed to operate as a fully integrated visualization node within SIMATIC-based industrial control architectures. Rather than functioning as a standalone display unit, this panel is conceived as a coordinated layer within a multi-tier automation system — bridging the operator interface layer with the control layer, I/O layer, communication network, and field device layer in a coherent, scalable design.

In modern industrial automation, the HMI is not merely a screen — it is the convergence point of process data, alarm management, diagnostic feedback, and operator command. The 6AV6647-0AK11-3AX0 fulfills this role with precision, offering a 6-inch TFT color display with touch and key input, PROFINET connectivity, and native integration with the SIMATIC S7-1200 and S7-300 controller families. Its compact form factor and DIN-rail-compatible panel cutout dimensions make it suitable for both new installations and retrofit projects across a wide range of control cabinet configurations.

Every unit supplied by ZYPLC is backed by a 12-Month Warranty and verified for Contextual Integration within SIMATIC system environments, ensuring that engineers can deploy this panel with confidence in both greenfield and brownfield automation projects.

Architecture Specification Table

Coordinated Control System Design

The 6AV6647-0AK11-3AX0 is engineered to function as a cohesive element within a layered SIMATIC control architecture, where each component — from the controller rack to the field device — contributes to system-wide coherence, redundancy, and maintainability.

At the control layer, this HMI panel connects via PROFINET to a SIMATIC S7-1200 CPU 1214C DC/DC/DC (6ES7214-1AG40-0XB0), which serves as the primary logic controller managing process sequences, interlocks, and data acquisition. The panel retrieves real-time process variables, setpoints, and alarm states from the CPU’s data blocks, presenting them to the operator in a structured, intuitive interface that reduces cognitive load and accelerates decision-making during process upsets.

On the power supply layer, the system relies on a SITOP PSU100S 24V/5A (6EP1333-2BA20) to deliver stable 24 V DC to both the HMI panel and the controller rack. Stable, regulated power is a prerequisite for reliable HMI-to-controller communication, particularly in environments with variable load conditions or frequent motor starts that introduce voltage transients onto the DC bus.

The distributed I/O layer typically incorporates SIMATIC ET 200SP modules — including digital input modules such as the 6ES7131-6BF01-0BA0 and analog output modules such as the 6ES7135-6GB00-0BA1 — connected to the controller via PROFINET. The 6AV6647-0AK11-3AX0 can display the live status of these remote I/O nodes, enabling operators to monitor field signals without requiring physical access to the control cabinet or junction boxes.

For installations requiring communication gateway functionality — such as bridging legacy PROFIBUS DP field devices with a PROFINET backbone — the SIMATIC PN/DP Coupler (6GK1415-2AA10) integrates seamlessly into the same network segment as the HMI panel, ensuring that older instrumentation remains visible within the panel’s process visualization screens without requiring hardware replacement.

In redundant or safety-critical architectures, the HMI panel is frequently paired with a SIMATIC S7-300 CPU 315-2 PN/DP (6ES7315-2EH14-0AB0) as the primary controller. The panel can be configured to switch data sources automatically in the event of a controller fault, supporting system availability in continuous process environments such as chemical dosing, water treatment, or power distribution substations where unplanned downtime carries significant operational and safety consequences.

At the switchgear and protection layer, SIRIUS 3RV motor protection circuit breakers and 3RT contactors are commonly installed in the same control cabinet, with their operational states reflected on the HMI’s alarm and status screens. This integration allows maintenance engineers to correlate HMI alarm events with physical switchgear states, reducing mean time to repair (MTTR) and improving root-cause analysis efficiency.

For motion coordination applications, the HMI panel can be configured to display drive parameters from SINAMICS G120 frequency inverters — including the PM240-2 Power Module — via the S7 controller’s drive parameter proxy. This enables operators to monitor speed references, output frequency, and fault codes from a single visualization interface, eliminating the need for separate drive keypads at each motor control center.

Application in Layered Automation Systems

The 6AV6647-0AK11-3AX0 finds application across a broad spectrum of industrial sectors where compact, reliable HMI visualization is required at the machine or process cell level.

In manufacturing and assembly lines, this panel is deployed at individual workstations to display production counts, cycle times, and quality check results. Its function key inputs allow operators to acknowledge alarms or trigger manual sequences without navigating complex touchscreen menus — a critical advantage in high-throughput environments where operator response time directly impacts Overall Equipment Effectiveness (OEE).

In water and wastewater treatment facilities, the panel provides local visualization of pump status, flow rates, tank levels, and chemical dosing sequences. Its IP65 front protection rating ensures reliable operation in humid, washdown-prone environments, while PROFINET connectivity allows it to remain synchronized with the central SCADA system via the S7 controller.

In power distribution and electrical substation applications, the HMI is used to display breaker status, load measurements, and protection relay states. The panel’s capacity to handle up to 500 alarm messages and display trend curves makes it suitable for monitoring electrical parameters over time, supporting both preventive maintenance and incident investigation workflows.

In petrochemical and oil & gas process plants, the 6AV6647-0AK11-3AX0 is installed in local control panels adjacent to process equipment — heat exchangers, separators, compressor skids — providing operators with immediate access to process variables without requiring a trip to the central control room.

In mining and metallurgical applications, the panel is used to control conveyor systems, crusher sequences, and ore processing stages. Its compatibility with SIMATIC S7-300 and S7-400 controllers — which remain widely deployed in heavy industry — ensures that the 6AV6647-0AK11-3AX0 can be integrated into existing control architectures without requiring a full system migration or reengineering of the control philosophy.

Architecture Engineering FAQ

Q1: Is the 6AV6647-0AK11-3AX0 compatible with TIA Portal, and can it communicate with both S7-1200 and S7-300 controllers?
A: Yes. The 6AV6647-0AK11-3AX0 is fully supported in TIA Portal V11 and later, as well as WinCC flexible 2008 SP3. It can be configured to communicate with SIMATIC S7-1200 via PROFINET and with S7-300 via MPI or PROFIBUS DP. In multi-controller architectures, the controller aggregates data from distributed I/O nodes across the network, making the full system state visible through a single HMI interface — supporting Contextual Integration across the entire control hierarchy.

Q2: What are the installation and commissioning requirements for integrating this panel into an existing SIMATIC control cabinet?
A: The panel requires a standard cutout of 192 × 137 mm and is secured with mounting clamps from the rear. Power supply must be 24 V DC within 20.4–28.8 V, typically sourced from a SITOP DIN-rail power supply already present in the cabinet. Commissioning involves loading the HMI project via USB or Ethernet, configuring the controller IP address or MPI node address, and verifying tag communication using the panel’s built-in diagnostics. No additional hardware adapters are required for PROFINET-based S7-1200 connections.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance and spare parts availability?
A: The 12-Month Warranty provided by ZYPLC covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement or repair support with documented traceability. For long-term maintenance planning, ZYPLC maintains stock of the 6AV6647-0AK11-3AX0 and related SIMATIC HMI components, enabling rapid spare parts fulfillment to minimize unplanned downtime. Engineers are encouraged to contact ZYPLC directly to discuss multi-unit procurement, system-level spare parts kits, and extended support arrangements.
