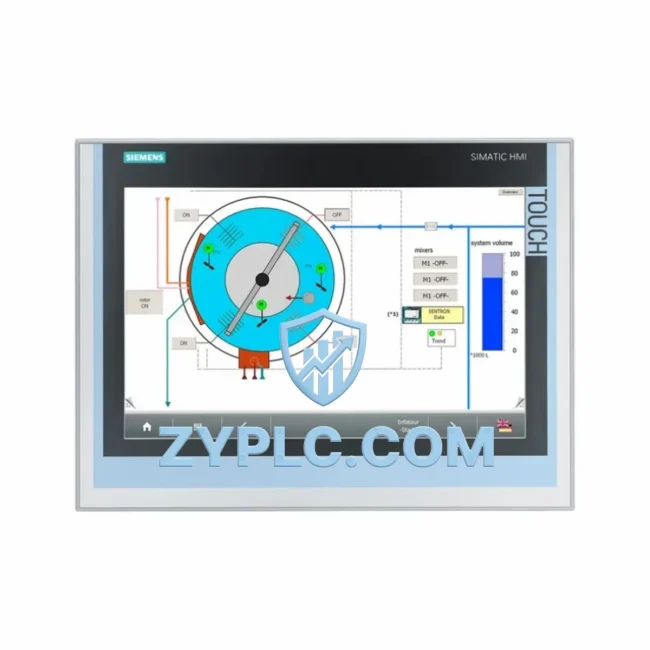

Siemens 6AV7240-7LC07-0HA3 Energy-Saving HMI for SIMATIC

Siemens 6AV7240-7LC07-0HA3 Energy-Saving HMI Panel for SIMATIC Automation

The Siemens 6AV7240-7LC07-0HA3 is a high-performance SIMATIC Panel PC engineered for energy-conscious industrial environments where every watt of consumed power must translate into measurable production output. Designed to serve as the central visualization and control node on modern manufacturing lines, this HMI operator panel integrates seamlessly into Siemens’ broader SIMATIC automation ecosystem, enabling plant engineers to monitor energy flows, optimize drive parameters, and reduce idle-state power consumption across connected equipment.

In energy-intensive production facilities — from automotive body shops to food processing lines and chemical batch plants — the 6AV7240-7LC07-0HA3 acts as the operator’s window into real-time energy data. When paired with a SIMATIC S7-1500 PLC or a distributed ET 200SP I/O station, the panel can display live power consumption metrics sourced directly from SENTRON PAC3200 power monitoring devices installed at the MCC level. This closed-loop visibility allows shift supervisors to identify energy spikes caused by unoptimized motor start sequences or inefficient conveyor scheduling, and to act on that data immediately from the panel interface.

Motor drive efficiency is one of the most impactful levers in industrial energy management. The 6AV7240-7LC07-0HA3 is routinely deployed alongside SINAMICS G120 and SINAMICS S120 variable frequency drives, where it provides the operator interface for adjusting speed setpoints, monitoring drive efficiency curves, and triggering energy-saving sleep modes during low-demand production windows. By enabling fine-grained control over drive ramp-up profiles and deceleration ramps, the panel directly contributes to reducing reactive power demand and peak current draw — both of which affect energy billing in industrial tariff structures.

Line throughput optimization — often called takt time reduction — is another domain where this panel delivers measurable value. Integrated with a SIMATIC WinCC Runtime Advanced visualization layer, the 6AV7240-7LC07-0HA3 can display OEE dashboards, cycle time trend charts, and bottleneck alerts in real time. When a servo axis controlled by a SIMOTION D445 motion controller falls behind its target position profile, the panel can alert the operator and log the event for root-cause analysis, preventing cascading delays that force downstream equipment to run in energy-wasteful catch-up modes.

Predictive maintenance workflows benefit significantly from the panel’s ability to interface with SIMATIC Maintenance Station and condition monitoring modules. Vibration data from IO-Link-enabled smart sensors mounted on motor bearings can be routed through a SIMATIC ET 200SP IM 155-6 PN interface module and visualized on the 6AV7240-7LC07-0HA3 screen. Early detection of bearing wear or coupling misalignment prevents unplanned downtime — which is not only a production loss but also an energy efficiency problem, since emergency restarts and thermal cycling of motors consume significantly more energy than planned, controlled shutdowns.

Communication architecture plays a critical role in energy-aware automation. The 6AV7240-7LC07-0HA3 supports PROFINET as its primary industrial Ethernet protocol, enabling deterministic data exchange with SIMATIC controllers, SINAMICS drives, and third-party field devices. In plants where legacy PROFIBUS DP networks are still in operation, a DP/PN coupler can bridge the two worlds, ensuring that older SIMOREG DC Master drives or legacy frequency converters remain visible within the energy monitoring topology managed through this panel.

From a supply chain and procurement standpoint, the 6AV7240-7LC07-0HA3 is maintained in verified stock at ZYPLC, with each unit undergoing outgoing inspection and functional testing prior to shipment. All units are covered by a 12-Month Warranty, providing procurement teams and maintenance engineers with the confidence needed for both planned capital projects and urgent replacement scenarios. Fast global shipping ensures minimal lead time impact on production schedules.

Efficiency Performance Table

Energy-Aware Automation Architecture

A complete energy-optimized automation cell built around the 6AV7240-7LC07-0HA3 typically includes several coordinated layers of hardware and software. At the controller level, a SIMATIC S7-1500 CPU 1516-3 PN/DP serves as the central logic engine, executing energy management function blocks that calculate specific energy consumption per produced unit and adjust drive setpoints accordingly. The panel communicates with this controller over PROFINET at cyclic update rates fast enough to reflect real-time process changes on the operator screen without perceptible lag.

At the drive layer, SINAMICS G120C compact drives handle pump and fan applications where variable torque loads offer the greatest energy savings potential. The panel’s WinCC Runtime interface displays the drive’s actual output frequency, motor current, and calculated efficiency in real time, allowing operators to verify that energy-saving functions such as automatic speed reduction during partial-load conditions are active and performing as expected. For servo-intensive applications such as pick-and-place robots or CNC axes, SINAMICS S120 multi-axis drive systems provide the coordinated motion control, with energy recovery from braking operations fed back into the DC bus and shared across axes — a feature that the 6AV7240-7LC07-0HA3 can visualize through custom WinCC screens.

Power quality and energy metering are handled by SENTRON PAC measuring devices connected to the PROFINET network. The panel aggregates consumption data from multiple PAC units across different production zones, enabling a plant-wide energy dashboard that highlights the highest-consuming assets and tracks energy KPIs shift by shift. This data can also be forwarded to a SIMATIC S7-1500 OPC UA server for integration with MES or ERP systems, closing the loop between shop floor energy consumption and enterprise-level reporting.

At the I/O level, SIMATIC ET 200SP distributed I/O stations collect signals from field instruments — including temperature sensors, pressure transmitters, and flow meters — that are essential for calculating process efficiency ratios. The 6AV7240-7LC07-0HA3 displays these process values alongside energy consumption data, giving operators a complete picture of how process conditions affect energy use. A SCALANCE X208 industrial Ethernet switch provides the network infrastructure that ties all these components together in a resilient, managed topology.

Power Optimization in Real Production Lines

In a typical automotive stamping line, the 6AV7240-7LC07-0HA3 is mounted at the line control station where it displays the energy consumption of each press drive, the hydraulic power unit, and the conveyor system simultaneously. During scheduled breaks, the panel’s automated shutdown sequences — triggered by the SIMATIC S7-1500 PLC — ramp down SINAMICS drives to standby mode, cutting motor energy consumption by up to 60% during non-production periods. The panel logs these events and calculates the cumulative energy saved per shift, providing data that maintenance and energy managers can use to justify further optimization investments.

In food and beverage processing, where hygiene-driven frequent washdown cycles create irregular production rhythms, the panel helps operators manage the energy cost of thermal processes. By displaying real-time data from temperature control loops managed by SIMATIC S7-300 controllers, the 6AV7240-7LC07-0HA3 enables operators to fine-tune heating and cooling setpoints, reducing the energy consumed by electric heaters and refrigeration compressors without compromising product quality or food safety standards.

Unplanned downtime is one of the most significant hidden energy costs in manufacturing. Every emergency restart of a large motor or hydraulic system involves a high-current inrush event that stresses both the electrical infrastructure and the driven equipment. By providing early warning of developing faults through its integration with condition monitoring systems, the 6AV7240-7LC07-0HA3 helps maintenance teams schedule interventions during planned downtime windows — eliminating the energy penalty of uncontrolled restarts and reducing the wear-related energy losses that accompany degraded mechanical components.

Energy Optimization FAQ

Q: How does the 6AV7240-7LC07-0HA3 contribute to measurable energy savings on the production line?
A: The panel provides real-time visualization of energy consumption data sourced from SENTRON PAC power meters and SINAMICS drive efficiency parameters. By giving operators immediate visibility into energy KPIs, it enables timely adjustments to drive setpoints, shutdown sequences, and process parameters that collectively reduce energy waste during both production and idle periods.

Q: Is the 6AV7240-7LC07-0HA3 compatible with existing SIMATIC S7-300/400 installations?
A: Yes. The panel supports PROFINET and PROFIBUS communication protocols and is compatible with WinCC flexible and WinCC Runtime Advanced, making it suitable for integration into both legacy S7-300/400 environments and modern S7-1500 installations. A DP/PN coupler can be used where PROFIBUS-only controllers are present.

Q: What is the recommended replacement or upgrade path for older SIMATIC Panel PC models?
A: The 6AV7240-7LC07-0HA3 is a direct form-factor replacement for earlier SIMATIC Panel PC 240 series units. Configuration migration is supported through SIMATIC ProSave and WinCC project export tools, minimizing engineering effort during panel replacement projects.

Q: What testing and warranty coverage is provided with this unit?
A: Every 6AV7240-7LC07-0HA3 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify hardware integrity and basic operational readiness. All units are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and component failures under normal operating conditions. Our technical team is available to support installation and commissioning queries throughout the warranty period.
