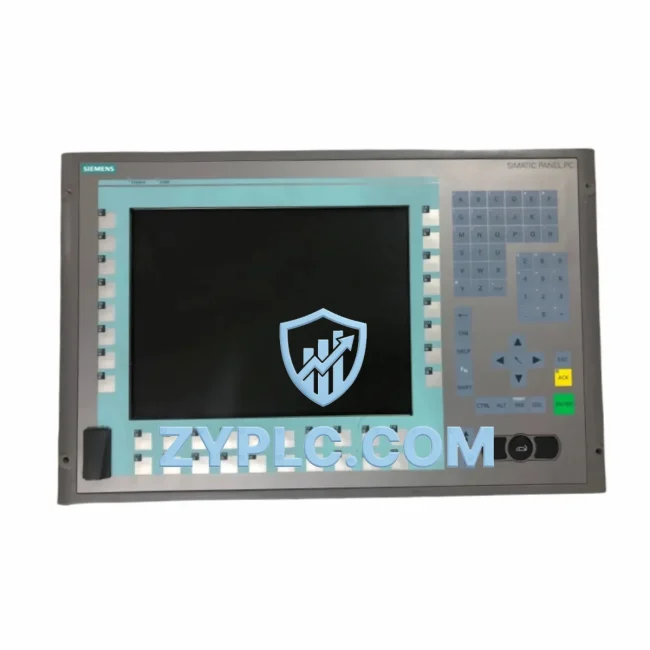

Siemens 6AV7811-0BB00-0AA0 System-Ready HMI for SIMATIC Architecture

Siemens 6AV7811-0BB00-0AA0 System-Ready HMI Panel for SIMATIC Control Architecture

In modern industrial automation, the human-machine interface layer is not a standalone component — it is the convergence point of every control tier beneath it. The Siemens 6AV7811-0BB00-0AA0 Panel PC 677 is engineered precisely for this role: a high-performance, system-ready HMI controller that integrates seamlessly into SIMATIC-based control architectures across manufacturing, energy, petrochemical, water treatment, mining, metallurgy, packaging lines, and process industries. Rather than functioning as an isolated display terminal, the 6AV7811-0BB00-0AA0 operates as a coordinated node within a layered automation hierarchy — communicating upward to SCADA and MES platforms, laterally with SIMATIC S7-300 and S7-400 PLCs, and downward to field-level I/O modules, drives, and instrumentation.

The Panel PC 677 platform is built on an industrial-grade x86 processor architecture, offering the computational headroom required to run WinCC Runtime, WinCC flexible, or third-party SCADA software simultaneously with real-time communication tasks. Its fanless or actively cooled variants are designed for panel-mount installation in control cabinets, operator stations, and field enclosures where vibration resistance, wide operating temperature tolerance, and IP65 front-panel protection are non-negotiable. The 6AV7811-0BB00-0AA0 variant specifically targets applications demanding a compact yet capable HMI footprint within a SIMATIC system architecture, delivering Contextual Integration across all automation layers without requiring additional gateway hardware.

From a system architecture perspective, the 6AV7811-0BB00-0AA0 sits at the HMI layer, bridging the control layer — where SIMATIC S7-400 CPUs such as the 6ES7414-3XM05-0AB0 or 6ES7416-3XS07-0AB0 execute deterministic control logic — and the operator interaction layer. It communicates via PROFINET IO or Industrial Ethernet, enabling high-speed, low-latency data exchange with the controller. In redundant architectures, it can be paired with a secondary HMI node or connected to a SIMATIC S7-400H redundant CPU pair, ensuring that operator visibility is maintained even during controller switchover events. This level of system coherence is what distinguishes a properly architected SIMATIC installation from a collection of loosely connected devices.

At the I/O layer, the Panel PC 677 coordinates with distributed I/O systems such as SIMATIC ET 200M or ET 200S remote I/O stations connected via PROFIBUS DP or PROFINET. Signal data from analog input modules like the SM 331 or digital output modules like the SM 322 flows through the PLC and is visualized in real time on the 6AV7811-0BB00-0AA0 display. This Contextual Integration of field signals into the HMI layer eliminates the need for separate signal conditioning hardware and reduces wiring complexity in the control cabinet, directly improving long-term maintenance efficiency and reducing mean time to repair during fault conditions.

The network layer of a SIMATIC architecture typically includes managed Industrial Ethernet switches such as the SCALANCE X208 or X308-2, which segment HMI traffic from controller-to-controller communication and from field device networks. The 6AV7811-0BB00-0AA0 connects to this managed network infrastructure, benefiting from VLAN segmentation, ring redundancy (MRP), and Quality of Service (QoS) prioritization that ensures HMI polling cycles are not disrupted by bulk data transfers or historian uploads. At the power layer, the Panel PC 677 operates on 24 VDC supplied by SITOP PSU series power supplies — such as the SITOP PSU100S or SITOP modular — which provide regulated, filtered DC power with diagnostic output signaling. In critical applications, a SITOP UPS module can be integrated to provide ride-through power during brief supply interruptions, protecting the HMI operating system and active WinCC projects from ungraceful shutdowns.

Architecture Specification Table

Coordinated Control System Design

The 6AV7811-0BB00-0AA0 achieves its full architectural value when deployed as part of a coordinated SIMATIC system rather than as a standalone terminal. In a typical S7-400-based process control system, the Panel PC 677 connects via Industrial Ethernet to a SIMATIC S7-400 CPU — such as the 6ES7414-3XM05-0AB0 — which manages the deterministic execution of ladder logic, function block diagrams, and structured text programs. The CPU communicates with distributed I/O via PROFIBUS DP, connecting to ET 200M remote I/O racks populated with SM 321 digital input modules and SM 331 analog input modules that gather process signals from field transmitters, limit switches, and thermocouples.

Within the same control cabinet, a SITOP PSU100S 24 VDC power supply provides stable power to both the PLC rack and the Panel PC 677, while a SCALANCE X208 managed switch handles network segmentation between the HMI subnet and the controller backbone. For applications requiring high availability, a SIMATIC S7-400H redundant CPU pair — comprising two 6ES7414-4HM14-0AB0 CPUs in a hot-standby configuration — can be paired with the 6AV7811-0BB00-0AA0, which continues to display live process data without interruption during a CPU switchover. This redundancy architecture is essential in continuous process industries where unplanned downtime carries significant financial and safety consequences.

In drive-intensive applications such as conveyor systems or pump stations, the Panel PC 677 provides the operator interface for SINAMICS G120 variable frequency drives, displaying motor current, speed feedback, and fault codes in real time. Terminal modules such as the SIMATIC S7-300 SM 322 digital output module can be used to issue start/stop commands to relay-controlled loads, with the HMI providing the operator confirmation step in the interlock sequence. CP 343-1 Ethernet communication processors can extend S7-300 systems onto the same Industrial Ethernet backbone as the Panel PC 677, enabling mixed-generation SIMATIC architectures to share a unified HMI layer. This layered approach — from field device through I/O module, PLC CPU, network switch, and HMI — creates a coherent, maintainable, and auditable control system architecture backed by a 12-Month Warranty on every unit supplied by ZYPLC.

Application in Layered Automation Systems

The Siemens 6AV7811-0BB00-0AA0 Panel PC 677 is deployed across a wide range of industrial sectors where operator interface reliability and system integration depth are critical success factors.

In manufacturing and assembly lines, the Panel PC 677 serves as the primary operator station for production cell controllers, displaying real-time cycle counts, alarm histories, and recipe parameters. Its WinCC Runtime environment supports multi-language interfaces, enabling global production facilities to standardize on a single HMI platform across multiple sites. The Contextual Integration capability allows production supervisors to drill from a high-level plant overview directly into individual machine diagnostics without switching systems.

In power generation and electrical substations, the 6AV7811-0BB00-0AA0 integrates with SIMATIC S7-400 controllers managing transformer protection, busbar switching sequences, and load shedding logic. Its dual Ethernet ports allow simultaneous connection to the plant SCADA network and the local control network, maintaining data historian connectivity without compromising control network isolation.

In petrochemical and refinery applications, the Panel PC 677 operates in climate-controlled control rooms where it visualizes continuous process variables — temperature, pressure, flow, and level — sourced from HART-enabled field instruments connected through SM 331 analog input modules. The HMI’s alarm management capabilities, combined with WinCC’s trending and reporting functions, support process safety management (PSM) compliance requirements.

In water and wastewater treatment facilities, the 6AV7811-0BB00-0AA0 provides operators with a unified view of pump station status, chemical dosing sequences, and filtration cycle progress. Its IP65 front panel rating allows installation in humid environments without additional enclosure protection, reducing installation costs and simplifying long-term maintenance schedules.

In mining, metallurgy, and mineral processing, the Panel PC 677 withstands the vibration and dust conditions typical of crusher control rooms and conveyor drive stations, providing reliable operator access to SIMATIC-controlled process equipment throughout extended production campaigns. In packaging and filling lines, the HMI coordinates recipe management, format changeover sequences, and production reporting within high-speed, multi-axis machine architectures.

Architecture Engineering FAQ

Q1: Is the Siemens 6AV7811-0BB00-0AA0 compatible with SIMATIC S7-300 and S7-400 controllers, and what communication configuration is required?
Yes. The 6AV7811-0BB00-0AA0 Panel PC 677 communicates natively with SIMATIC S7-300 and S7-400 PLCs via Industrial Ethernet using the S7 communication protocol or OPC. In WinCC or WinCC flexible, you configure a SIMATIC S7 Ethernet channel driver, specifying the CPU’s IP address and rack/slot parameters. For PROFINET IO integration, the Panel PC connects to the same managed switch as the CPU, and PROFINET device configuration is handled within STEP 7 or TIA Portal. No additional communication processor is required for standard Ethernet-based HMI connectivity, making system commissioning straightforward and reducing engineering hours.

Q2: Can the 6AV7811-0BB00-0AA0 be used in a redundant architecture, and how does it behave during a PLC CPU switchover?
The Panel PC 677 supports connection to SIMATIC S7-400H redundant CPU systems. During a CPU switchover event, the WinCC Runtime on the 6AV7811-0BB00-0AA0 maintains its connection to the active CPU through the redundant Ethernet paths managed by the S7-400H system. Operators typically experience a brief communication interruption of less than one second during switchover, after which all process values, alarm states, and trend data resume normally. This behavior makes the Panel PC 677 suitable for high-availability process control applications where continuous operator visibility is a safety and compliance requirement.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance of the 6AV7811-0BB00-0AA0?
ZYPLC provides a 12-Month Warranty on the Siemens 6AV7811-0BB00-0AA0 covering hardware defects, functional failures, and component integrity under normal industrial operating conditions. During the warranty period, defective units are repaired or replaced at no additional cost. For long-term maintenance, ZYPLC maintains inventory of Panel PC 677 series units and compatible spare components — including SITOP power supplies, SCALANCE switches, and S7-400 CPU modules — supporting customers through planned maintenance cycles, emergency replacements, and system expansion projects. Our engineering team can assist with WinCC project migration, hardware configuration verification, and system integration validation. Contact us at [email protected] or +86 19859288691 for technical support and spare parts availability.
