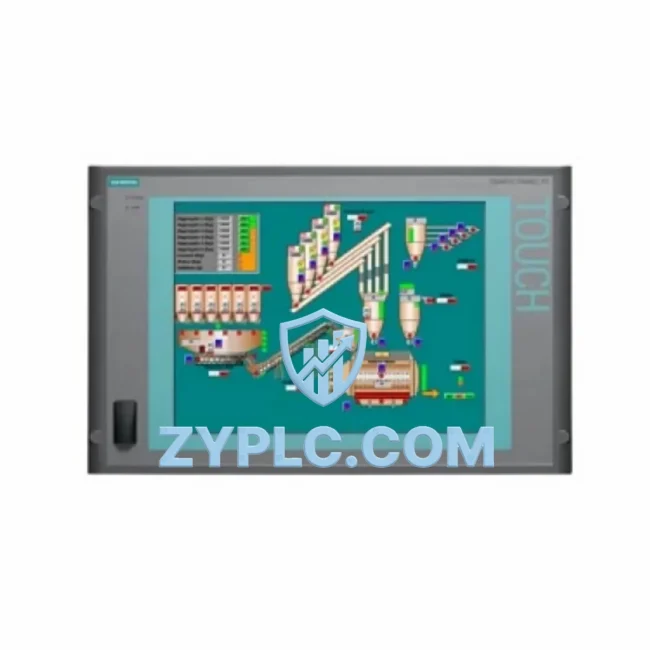

The Siemens 6BK1200-0JD00-0AA0 is a high-performance SIMATIC HMI touch screen panel engineered to serve as the central energy-control interface in modern industrial automation environments. Designed for seamless integration into Siemens SIMATIC S7 control architectures, this panel enables plant operators to monitor real-time energy consumption, visualize drive performance data, and execute precision control commands — all from a single, intuitive touchscreen interface. In production environments where every kilowatt-hour counts, the 6BK1200-0JD00-0AA0 delivers the visibility and responsiveness needed to eliminate energy waste, reduce unplanned downtime, and optimize overall equipment effectiveness (OEE).

Whether deployed in discrete manufacturing, process automation, or hybrid production lines, this SIMATIC HMI panel acts as the operational nerve center that connects energy data from field devices to actionable insights for line supervisors and maintenance engineers. Its role extends far beyond simple visualization — it is a critical component in the feedback loop that drives continuous energy optimization across the entire production system.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully optimized SIMATIC automation architecture, the 6BK1200-0JD00-0AA0 HMI panel functions as the primary operator interface layer, receiving and displaying data from a broad ecosystem of energy-critical field devices. At the control layer, it works in close coordination with the Siemens SIMATIC S7-1500 CPU (e.g., 6ES7515-2AM02-0AB0), which executes the energy management logic and communicates process variables to the HMI in real time via PROFINET. For smaller machine cells or standalone equipment, the S7-1200 series — such as the 6ES7214-1AG40-0XB0 — provides a compact yet capable control backbone that pairs efficiently with this panel.

On the drive side, the 6BK1200-0JD00-0AA0 integrates seamlessly with Siemens SINAMICS G120 variable frequency drives, including the 6SL3210-1KE21-3AF1 power module, which regulates motor speed and torque to match actual load demand rather than running at fixed speed. This dynamic speed control is one of the most impactful energy-saving measures available in industrial motor systems, and the HMI panel provides the operator interface to configure drive parameters, monitor energy consumption per drive axis, and trigger speed adjustments based on production rhythm changes. The SINAMICS G120 control unit 6SL3244-0BB12-1FA0 further enables closed-loop energy feedback, which the HMI visualizes as real-time efficiency curves.

For servo-driven axes — common in packaging, assembly, and precision machining lines — the panel interfaces with SINAMICS S120 servo drive systems, allowing operators to monitor axis utilization rates and identify axes running at inefficient operating points. Paired with the SIMATIC ET 200SP distributed I/O system (e.g., 6ES7155-6AU01-0BN0), the HMI aggregates field-level signals from sensors, actuators, and energy meters distributed across the production floor, consolidating them into a unified energy dashboard.

Power quality and energy metering data from Siemens SENTRON PAC3200 power monitoring devices can be integrated into the HMI display via PROFIBUS or Modbus, giving operators a direct view of active power, reactive power, and power factor at the panel level. This integration eliminates the need for separate energy monitoring terminals and reduces the cognitive load on operators managing multiple systems simultaneously. The SIMATIC WinCC visualization software running on higher-level SCADA systems can also exchange data with the 6BK1200-0JD00-0AA0 to synchronize production KPIs with energy consumption trends across shifts.

Communication integrity is maintained through the SCALANCE X series industrial Ethernet switches, which ensure low-latency, deterministic data exchange between the HMI, PLCs, and drive systems — a prerequisite for accurate real-time energy monitoring in high-speed production environments.

Power Optimization in Real Production Lines

The practical energy-saving impact of the Siemens 6BK1200-0JD00-0AA0 becomes most evident when examined in the context of real production line challenges. In a typical automotive parts manufacturing facility, for example, motor-driven conveyor systems, robotic welding cells, and pneumatic press stations each consume energy at variable rates depending on production volume and cycle time. Without a centralized HMI interface capable of displaying real-time energy data, operators have no visibility into which stations are consuming disproportionate energy relative to their output contribution.

With the 6BK1200-0JD00-0AA0 deployed as the line HMI, operators can configure energy consumption thresholds for each production zone. When a drive or motor exceeds its baseline energy consumption — often an early indicator of mechanical wear, misalignment, or lubrication failure — the HMI triggers a configurable alarm that prompts maintenance intervention before the issue escalates into an unplanned shutdown. This predictive maintenance capability directly reduces both energy waste and maintenance costs, as corrective action is taken at the optimal point in the equipment’s degradation curve rather than after a catastrophic failure.

Line takt optimization is another area where this HMI panel delivers measurable value. By displaying cycle time data alongside energy consumption per cycle, the panel enables process engineers to identify takt imbalances — stations that are either bottlenecking the line or running faster than necessary, consuming excess energy without contributing to throughput. Adjusting drive speeds and conveyor rates through the HMI to match the true production takt can reduce energy consumption by 10–25% in motor-intensive lines without any reduction in output.

During planned maintenance windows, the 6BK1200-0JD00-0AA0 supports structured shutdown sequences that safely de-energize drives and I/O modules in the correct order, preventing voltage spikes and protecting sensitive components. All units supplied by ZYPLC undergo full functional testing and burn-in verification prior to shipment, ensuring that the panel arrives ready for immediate commissioning. Each unit is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Energy Optimization FAQ

Q1: How does the 6BK1200-0JD00-0AA0 contribute to measurable energy savings on the production line?
The panel provides real-time visualization of energy consumption data from connected drives, motors, and power monitoring devices. By giving operators immediate visibility into energy KPIs — including per-station power draw, drive efficiency ratings, and cumulative shift consumption — it enables data-driven decisions that reduce idle energy waste, optimize motor speeds to match actual load, and trigger timely maintenance actions that prevent energy-intensive equipment degradation.

Q2: Is the 6BK1200-0JD00-0AA0 compatible with existing Siemens S7-300 and S7-400 control systems?
Yes. The panel supports MPI and PROFIBUS DP communication protocols in addition to PROFINET, making it backward-compatible with legacy SIMATIC S7-300 and S7-400 installations. This allows facilities to upgrade their operator interface and gain modern energy monitoring capabilities without replacing their existing PLC infrastructure — a cost-effective path to improved energy visibility.

Q3: What is the recommended replacement or upgrade path for aging SIMATIC HMI panels?
For facilities currently operating older OP or TP series panels, the 6BK1200-0JD00-0AA0 represents a direct upgrade path that preserves existing PROFIBUS and MPI wiring while adding PROFINET capability for future-proofing. Migration of existing WinCC Flexible projects to the new panel is supported through Siemens’ standard migration tools, minimizing engineering effort and commissioning time.

Q4: What testing and warranty coverage does ZYPLC provide for this unit?
Every 6BK1200-0JD00-0AA0 unit supplied by ZYPLC undergoes pre-shipment functional testing, including power-on verification, touchscreen calibration check, and communication interface validation. Units are shipped with full documentation and are covered by a 12-month warranty against manufacturing defects and operational failures. In the event of a warranty claim, ZYPLC provides rapid replacement support to minimize production downtime. Contact our team at +86 19859288691 or [email protected] for technical pre-sales consultation and stock availability confirmation.
