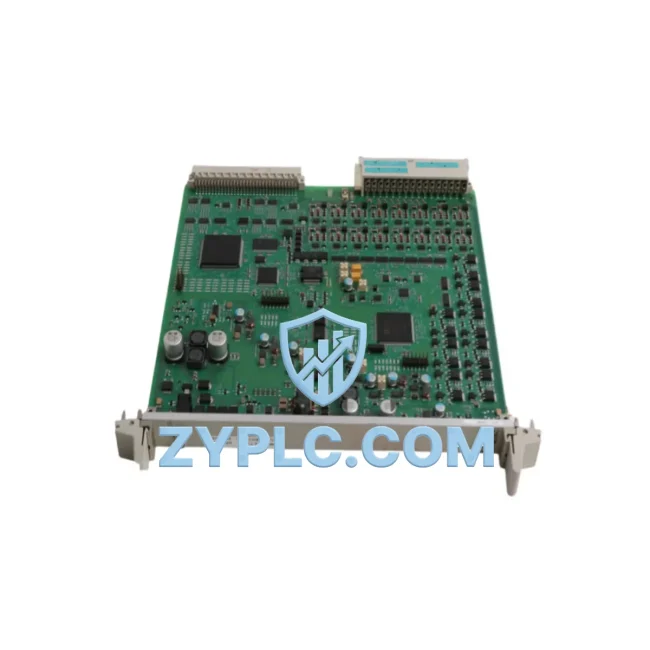

Siemens 6DP1230-8JJ Energy-Saving PLC Input Module SIMATIC TDC

Siemens 6DP1230-8JJ Energy-Saving PLC Input Module SIMATIC TDC: Precision Efficiency Control for Industrial Automation

The Siemens 6DP1230-8JJ is a high-performance digital input module designed for the SIMATIC TDC (Technology and Drive Control) platform — Siemens’ dedicated closed-loop control system engineered for demanding drive and motion applications. In modern manufacturing environments where energy costs and equipment utilization directly impact profitability, the 6DP1230-8JJ plays a critical role in capturing real-time process signals, enabling the control system to respond with precision and eliminate wasteful operating cycles.

Unlike general-purpose I/O modules, the 6DP1230-8JJ is purpose-built for high-speed signal acquisition in drive-intensive environments. It interfaces directly with the SIMATIC TDC CPU modules — such as the 6DP1612-8AA and 6DP1614-8AA — to deliver deterministic input processing that supports tight control loops for motor drives, rolling mills, winding systems, and press lines. By ensuring that every input signal is captured and processed without latency, the module prevents the kind of control lag that leads to energy spikes, mechanical stress, and unplanned downtime.

In a typical energy-optimized production line, the 6DP1230-8JJ works in concert with Siemens SINAMICS S120 drive units and SIMOTICS servo motors. The input module continuously feeds position, speed, and torque feedback signals into the TDC controller, which then adjusts drive output in real time to match actual load demand. This closed-loop architecture eliminates the common inefficiency of running drives at fixed speeds regardless of load — a practice that can waste 20–40% of motor energy in variable-load applications.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6DP1230-8JJ does not operate in isolation — its value is fully realized when integrated into a well-designed energy-aware automation architecture. In a steel rolling mill or aluminum processing line, for example, the module collects digital feedback from position encoders, limit switches, and process sensors, feeding this data into the SIMATIC TDC controller at cycle times that support microsecond-level control resolution.

The TDC controller processes these inputs alongside analog signals gathered by companion modules such as the 6DP1231-8JJ analog input module, then issues corrective commands to the SINAMICS S120 booksize drive units. These drives modulate motor torque and speed in real time, ensuring that the SIMOTICS M-1PH8 induction motors or 1FT7 servo motors operate precisely at the energy level the process demands — no more, no less.

For system-level energy monitoring, the architecture is typically complemented by Siemens SENTRON PAC3200 or PAC4200 power monitoring devices, which measure actual energy consumption at the drive and motor level. When this consumption data is fed back into the SIMATIC TDC or a higher-level SIMATIC S7-400 or S7-1500 PLC via PROFIBUS DP or PROFINET communication, plant engineers gain a complete picture of where energy is being used — and where it can be reduced.

HMI visualization through Siemens SIMATIC TP1500 or TP1900 Comfort Panels allows operators to monitor drive efficiency, input signal status, and energy KPIs in real time, enabling informed decisions about production scheduling and load balancing across multiple drive axes.

Power Optimization in Real Production Lines

In real production environments, the most significant energy losses occur not during peak operation but during transitions — acceleration, deceleration, idle periods, and process changeovers. The 6DP1230-8JJ directly addresses this by providing the SIMATIC TDC controller with the precise, high-speed input data needed to manage these transitions intelligently.

Consider a winding line where tension control is critical. Without accurate, low-latency input signals, the drive system must apply conservative torque margins to avoid web breaks — resulting in chronic over-torquing and excess energy consumption. With the 6DP1230-8JJ feeding real-time dancer position and tension feedback into the TDC, the SINAMICS S120 drive can apply exactly the torque required at each moment, reducing energy consumption during acceleration phases by a measurable margin while also reducing mechanical wear on the winding mandrel and bearings.

In press and stamping applications, the module enables the TDC to synchronize multiple drive axes with sub-millisecond precision, eliminating the energy waste associated with unsynchronized motion — where one axis idles at full torque while waiting for another to complete its stroke. This synchronization capability directly improves production line throughput (OEE) while reducing the energy cost per produced part.

From a maintenance perspective, the consistent, high-quality input data provided by the 6DP1230-8JJ supports predictive maintenance strategies. Abnormal signal patterns — such as irregular encoder feedback or unexpected limit switch activations — can be detected early by the TDC controller and flagged for inspection before they escalate into unplanned downtime events. This reduces both maintenance costs and the energy waste associated with emergency restarts and production recovery cycles.

Every unit is sourced from verified supply channels, undergoes outgoing shipment testing, and is backed by a 12-month warranty — giving procurement and maintenance teams confidence in both product quality and supply continuity.

Energy Optimization FAQ

Q1: How does the 6DP1230-8JJ contribute to measurable energy savings on a production line?
The module enables the SIMATIC TDC controller to receive precise, low-latency digital input signals from the process, allowing the connected SINAMICS S120 drives to adjust motor output in real time based on actual load demand. This eliminates the energy waste of fixed-speed or over-torqued drive operation, which is one of the most common sources of avoidable energy consumption in industrial motor systems.

Q2: Is the 6DP1230-8JJ compatible with existing SIMATIC TDC installations?
Yes. The 6DP1230-8JJ is designed as a native SIMATIC TDC platform module and is compatible with TDC CPU modules including the 6DP1612-8AA and 6DP1614-8AA. It integrates directly into the TDC rack system without requiring additional interface hardware, making it suitable for both new installations and expansion of existing TDC-based control systems.

Q3: Can this module replace a faulty input module in an existing TDC system without reconfiguration?
In most cases, yes. The 6DP1230-8JJ is a direct replacement for equivalent SIMATIC TDC digital input modules of the same slot type. However, we recommend verifying the firmware version of your TDC CPU and consulting the module’s hardware installation manual to confirm slot compatibility before installation. Our technical team can assist with replacement guidance.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6DP1230-8JJ unit undergoes functional testing prior to shipment to verify signal integrity, input channel operation, and communication with the TDC backplane. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are packaged in anti-static protective materials and shipped with tracking to ensure safe delivery.
