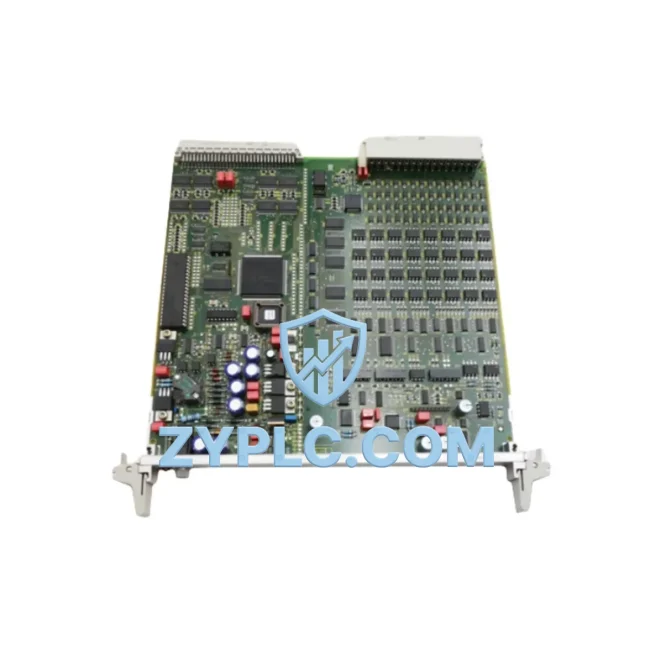

Siemens 6DP1232-8BA Analog Input Module

Siemens 6DP1232-8BA Analog Input Module: Replacement and Sourcing Information for Teleperm M Automation

The Siemens 6DP1232-8BA is a high-performance analog input module designed for the Teleperm M distributed control system — one of Siemens’ most enduring process automation platforms. In modern industrial environments where energy efficiency is no longer optional but a core operational KPI, the 6DP1232-8BA plays a critical role in acquiring precise analog signals from field instruments, enabling real-time condition monitoring, motor load analysis, and process optimization across continuous production lines.

By delivering accurate, low-latency analog data acquisition — including current (4–20 mA) and voltage signals from sensors, transmitters, and transducers — this module feeds the control loop with the granular process data needed to eliminate unplanned downtime at the source. Whether integrated into a power monitoring loop alongside a Siemens SENTRON PAC3200 power meter or coordinating with a Siemens S7-400 PLC via the Teleperm M bus interface, the 6DP1232-8BA ensures that every watt consumed is accounted for and every deviation from optimal operating conditions is detected immediately.

Product Specification Table

System Compatibility and Application

The Siemens 6DP1232-8BA does not operate in isolation — it is the sensory foundation of an industrial control architecture. In a typical Teleperm M installation, this analog input module collects process variables such as flow rates, pressure differentials, temperature gradients, and motor current feedback, then transmits this data upstream to the central processing unit for closed-loop control decisions.

When paired with a Siemens 6DP1610-8BA Teleperm M CPU module, the 6DP1232-8BA enables the controller to dynamically adjust setpoints based on real operating load data rather than fixed schedules. This is particularly valuable when coordinating with Siemens SINAMICS G120 variable frequency drives (VFDs), where motor speed is modulated in response to actual process demand — eliminating the fixed-speed energy penalty that accounts for up to 30% of unnecessary motor load in industrial plants.

For drive-level energy feedback, the 6DP1232-8BA can receive analog output signals from a Siemens SINAMICS S120 servo drive system, closing the loop between mechanical output and electrical input monitoring. Combined with a Siemens ET 200M distributed I/O station on the field level, the system achieves granular, zone-by-zone energy visibility across large production floors without requiring a complete control system overhaul.

Communication integrity is maintained through the Siemens IM 153-2 interface module, which bridges the Teleperm M backplane to PROFIBUS-DP networks, allowing the 6DP1232-8BA’s data streams to be accessed by SCADA systems and maintenance planning platforms in real time. For HMI visualization, operators can monitor energy trends and analog process values through a Siemens SIMATIC TP1500 Comfort Panel, enabling shift-level energy performance reviews without leaving the control room.

Power quality at the cabinet level is safeguarded by the Siemens SITOP PSU100S 24V power supply, which provides stable, regulated DC power to the 6DP1232-8BA and adjacent I/O modules — preventing signal drift caused by voltage fluctuations that can lead to false control actions and unnecessary actuator cycling. For applications requiring redundant power paths, the Siemens SITOP UPS1600 uninterruptible power supply ensures that analog signal acquisition continues uninterrupted during grid disturbances, protecting both process continuity and energy data integrity.

Maintenance and Replacement Notes

In continuous process industries — including chemical manufacturing, water and wastewater treatment, and power generation — the ability to detect inefficiency in real time is the difference between a profitable operation and one that bleeds energy costs silently. The Siemens 6DP1232-8BA addresses this directly by providing the analog signal resolution needed to identify micro-deviations in process variables before they escalate into energy-wasting control oscillations.

Consider a pump station scenario: without accurate analog feedback, a PID controller may over-correct flow setpoints, causing the pump motor to cycle between high and low speeds unnecessarily — a pattern that increases both operating load and mechanical wear. With the 6DP1232-8BA delivering clean, high-resolution 4–20 mA signals from flow transmitters and pressure sensors, the control loop stabilizes faster, the VFD operates in its optimal efficiency band, and motor runtime at peak load is minimized.

On assembly and discrete manufacturing lines, the module supports production rhythm optimization by monitoring analog signals from torque sensors, servo feedback encoders, and thermal sensors on drive cabinets. When integrated into a predictive maintenance framework, these signals reveal early-stage bearing degradation, winding insulation breakdown, or cooling system inefficiency — all of which, if left undetected, result in unplanned downtime and the energy cost of emergency restarts and reheating cycles.

Every unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying channel accuracy, signal linearity, and bus communication integrity. This pre-shipment validation process ensures that the 6DP1232-8BA arrives ready for immediate installation, reducing commissioning time and the associated labor energy overhead. Stock is maintained for prompt dispatch, and all units are covered by a 12-month warranty from the date of delivery.

Product Sourcing FAQ

Q1: How does the Siemens 6DP1232-8BA contribute to measurable operational stability in a production plant?
The 6DP1232-8BA improves energy efficiency by providing high-accuracy analog signal acquisition that enables tighter closed-loop control. Precise process data reduces control overshoot, minimizes unnecessary actuator movement, and allows VFDs and servo drives to operate at optimal efficiency points — directly reducing kWh consumption per unit of output.

Q2: Is the 6DP1232-8BA compatible with modern Siemens control systems beyond the Teleperm M platform?
The 6DP1232-8BA is natively designed for the Teleperm M DCS. However, via PROFIBUS-DP gateway modules and interface adapters, its analog data can be integrated into S7-300/S7-400 environments and accessed by TIA Portal-based SCADA systems. For full native compatibility with newer platforms, consult your system integrator for signal conversion options.

Q3: What is the recommended replacement or upgrade path if the 6DP1232-8BA is being phased out of a legacy system?
For plants migrating from Teleperm M to a modern DCS or PLC architecture, the analog input functionality of the 6DP1232-8BA can be replicated using Siemens ET 200SP or ET 200M analog input modules with equivalent channel counts and signal ranges. ZYPLC can advise on compatible replacement modules based on your specific channel configuration and bus topology.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All Siemens 6DP1232-8BA units supplied by ZYPLC are tested for channel functionality, signal accuracy, and bus communication before dispatch. The 12-month warranty covers hardware defects and functional failures under normal operating conditions from the date of delivery. Units that fail during the warranty period are replaced or repaired at no additional cost, subject to standard return and inspection procedures.
