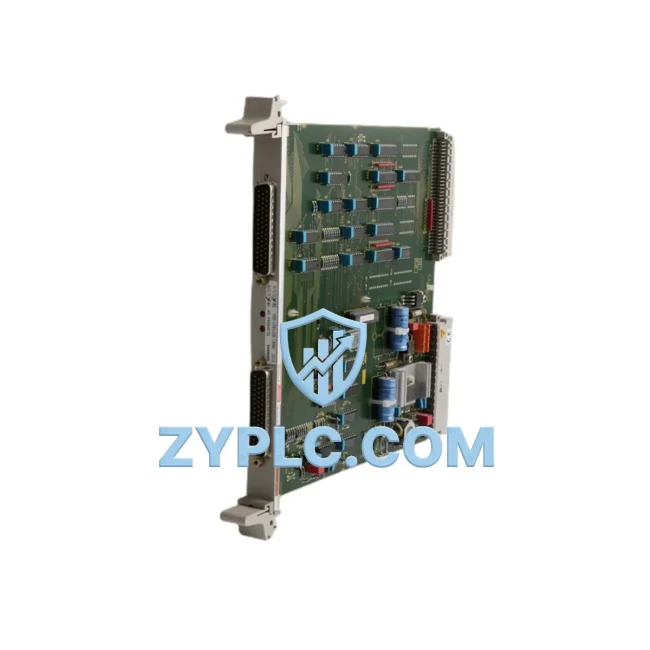

Siemens 6DP1641-8AA System-Ready Interface Module for SIMATIC TDC Architecture

Siemens 6DP1641-8AA System-Ready Interface Module for SIMATIC TDC Architecture

The Siemens 6DP1641-8AA is a high-performance interface module purpose-built for integration within the SIMATIC TDC (Technology and Drive Control) distributed control platform. Rather than functioning as a standalone component, the 6DP1641-8AA is designed to operate as a critical node within a layered automation architecture — bridging the control layer, I/O layer, and communication backbone to deliver consistent signal routing, deterministic data exchange, and long-term system reliability. For engineers specifying or maintaining SIMATIC TDC-based systems in power generation, steel production, paper mills, or heavy process industries, this module represents a proven solution for maintaining architectural coherence across complex multi-rack configurations.

In a complete SIMATIC TDC control system, the 6DP1641-8AA serves as the interface backbone between the central processing units and distributed I/O racks. It enables the CPU modules — such as the CP51M1 or CP52M0 — to communicate with remote I/O stations across the system bus, ensuring that process signals from analog input modules, digital output modules, and encoder interfaces are transmitted with minimal latency and maximum determinism. This role is indispensable in applications where control cycle times are measured in microseconds and where any communication gap can result in process instability or equipment damage.

The module integrates seamlessly into the SIMATIC TDC rack infrastructure, including the UR5225 universal rack and associated backplane assemblies. Its physical and electrical design conforms to the SIMATIC TDC system bus specification, allowing it to be installed alongside power supply modules such as the PS405 or PS407, without requiring additional signal conditioning or protocol conversion. This plug-and-play compatibility within the TDC ecosystem significantly reduces commissioning time and eliminates the risk of interface mismatches during system expansion or retrofit projects.

Architecture Specification Table

Coordinated Control System Design

The 6DP1641-8AA achieves its full value when considered within the broader SIMATIC TDC system architecture. At the control layer, the CP51M1 and CP52M0 CPU modules execute the real-time control algorithms and rely on the interface module to propagate commands and receive feedback from distributed I/O racks without introducing jitter or data loss. The interface module acts as the communication relay that maintains synchronization between the central processing units and the field-level devices, ensuring that the control loop remains closed and deterministic regardless of rack distance or I/O density.

At the I/O layer, the 6DP1641-8AA coordinates with analog input modules, digital input/output modules, and encoder interface cards to aggregate process signals and route them efficiently to the CPU. In drive-intensive applications — such as rolling mill control or winder systems — the module works in conjunction with drive interface cards and speed feedback modules to maintain tight speed and torque regulation across multiple axes. The ability to handle high-density I/O configurations without sacrificing cycle time is a defining characteristic of the SIMATIC TDC platform, and the 6DP1641-8AA is central to that capability.

From a power architecture perspective, the 6DP1641-8AA operates within racks powered by the PS405 or PS407 power supply modules, which provide regulated 24 VDC and 5 VDC rails to all installed modules via the backplane. The interface module’s low power consumption profile ensures that it does not impose additional thermal or electrical load on the power budget, making it suitable for fully populated racks in high-density control cabinets. Redundant power supply configurations — using dual PS modules with automatic switchover — are fully compatible with the 6DP1641-8AA, supporting the high-availability requirements of continuous process industries.

For system-level redundancy, the 6DP1641-8AA can be deployed in architectures that incorporate redundant CPU configurations, where a standby CP module mirrors the active controller and assumes control within milliseconds of a primary failure. The interface module’s role in this topology is to maintain consistent I/O mapping and communication state, ensuring that the switchover is transparent to the field devices and the process. This redundancy capability is particularly valued in power plant control systems, where unplanned downtime carries significant operational and financial consequences.

At the human-machine interface layer, operator stations running SIMATIC WinCC or TDC-compatible SCADA platforms receive process data that has been routed through the 6DP1641-8AA from field instruments. The module’s reliable data throughput ensures that HMI displays reflect real-time process conditions without perceptible delay, supporting accurate operator decision-making in dynamic process environments. Terminal modules and marshalling panels connected downstream of the I/O racks further extend the signal distribution network, with the 6DP1641-8AA maintaining data integrity throughout the chain.

Application in Layered Automation Systems

The Siemens 6DP1641-8AA has established a strong application record across a range of heavy industrial sectors where the SIMATIC TDC platform is the control system of choice.

In steel and metals production, the module is deployed in rolling mill automation systems where precise speed synchronization between multiple drive sections is critical. The 6DP1641-8AA enables the TDC CPU to maintain real-time communication with drive interface modules across multiple racks, supporting the microsecond-level control cycles required for strip tension and thickness regulation.

In power generation and utilities, the module is used in turbine control and generator excitation systems, where the SIMATIC TDC platform manages complex multi-variable control loops. The 6DP1641-8AA’s role in maintaining communication integrity between the control layer and the I/O layer is essential for meeting the availability and reliability standards imposed by grid operators and plant safety regulations.

In paper and pulp manufacturing, the module supports winder and unwinder control systems, coordinating tension control signals between the CPU and the drive interface cards. The ability to handle high-speed data exchange without communication errors is critical in these applications, where web breaks caused by control instability result in significant production losses.

In petrochemical and process industries, the 6DP1641-8AA is integrated into continuous process control systems where the SIMATIC TDC platform manages reactor temperature, pressure, and flow control loops. The module’s compatibility with the TDC redundancy architecture ensures that the control system meets the safety integrity requirements of these hazardous environments.

In mining and mineral processing, the module is used in conveyor drive control and crusher automation systems, where robust communication between the control layer and the field devices is required in harsh environmental conditions. The 6DP1641-8AA’s industrial-grade design ensures reliable operation in high-vibration, high-dust environments typical of mining installations.

Architecture Engineering FAQ

Q1: Is the 6DP1641-8AA compatible with all SIMATIC TDC rack configurations, and can it be used in both new installations and retrofit projects?
The 6DP1641-8AA is designed for use within the SIMATIC TDC system bus architecture and is compatible with the UR5225 universal rack and associated backplane assemblies. It can be installed in both new TDC system builds and retrofit projects where existing racks are being expanded or upgraded. For retrofit applications, it is important to verify the firmware revision of the existing CPU modules to ensure compatibility with the interface module version being installed. Our technical team can assist with compatibility verification prior to shipment.

Q2: How does the 6DP1641-8AA support system redundancy, and what is required to implement a redundant interface configuration?
The 6DP1641-8AA supports SIMATIC TDC redundancy architectures by maintaining consistent I/O mapping and communication state during CPU switchover events. To implement a redundant interface configuration, a second 6DP1641-8AA must be installed in the redundant rack, paired with a standby CP module. The TDC system software manages the synchronization between the active and standby interface modules, ensuring that switchover is transparent to the field devices. Detailed redundancy configuration guidance is available in the SIMATIC TDC system manual, and our engineering support team can provide application-specific advice.

Q3: What does the 12-Month Warranty cover, and what testing is performed on the 6DP1641-8AA before shipment?
Every 6DP1641-8AA supplied by ZYPLC is subject to a functional test procedure that verifies communication integrity, backplane interface operation, and electrical parameter compliance before shipment. The 12-Month Warranty covers defects in materials and workmanship under normal operating conditions as defined by the SIMATIC TDC system specification. Warranty claims are processed promptly, with replacement units dispatched to minimize system downtime. For installations in critical applications, we recommend maintaining a spare module on-site to ensure immediate availability in the event of a field failure.
