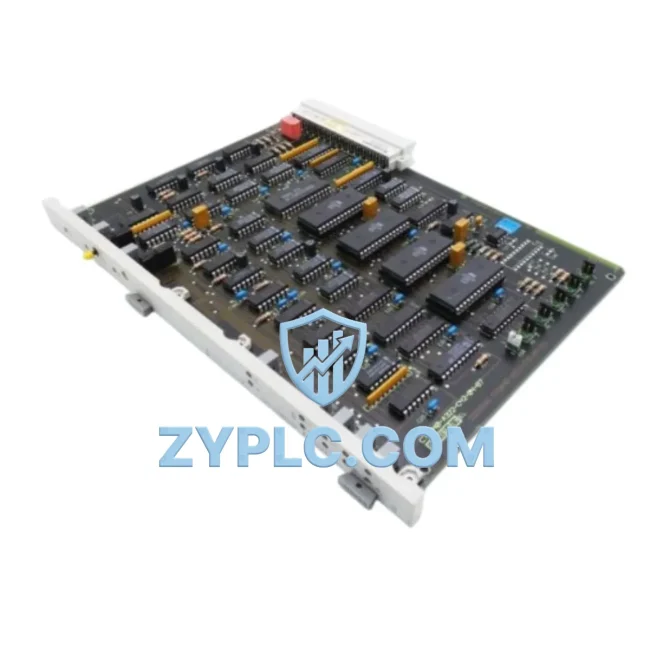

Siemens 6DS1832-8AA System-Ready EEPROM CPU for TELEPERM M Architecture

Siemens 6DS1832-8AA System-Ready EEPROM CPU for TELEPERM M Architecture: Control System Architecture and Upstream–Downstream Coordination

The Siemens 6DS1832-8AA is a non-volatile EEPROM-based CPU memory module engineered specifically for the TELEPERM M Distributed Control System (DCS) platform — one of Siemens’ most enduring process automation architectures deployed across power generation, petrochemical refining, water treatment, and metallurgical processing facilities worldwide. Within the TELEPERM M control hierarchy, the 6DS1832-8AA occupies a critical position at the control layer, serving as the persistent program and parameter storage medium for the central processing unit. Its role is not merely that of a passive storage device; it is an active architectural component whose integrity directly determines the determinism, repeatability, and fault-recovery capability of the entire control loop.

Understanding the 6DS1832-8AA requires viewing it through the lens of the complete TELEPERM M system architecture. The platform is organized across multiple functional layers: the field I/O layer, the control execution layer, the supervisory and data acquisition layer, the human-machine interface (HMI) layer, and the inter-system communication layer. The 6DS1832-8AA resides at the intersection of the control execution layer and the system initialization layer — it holds the firmware, control logic, and calibration parameters that the CPU loads at power-on and references continuously during runtime. Without a correctly programmed and electrically sound 6DS1832-8AA, the associated CPU module cannot initialize, and the downstream I/O modules, signal conditioning cards, and actuator drive circuits remain inoperative.

Architecture Specification Table

Coordinated Control System Design

The 6DS1832-8AA does not function in isolation. Its value is realized only when it is correctly seated within a coherent TELEPERM M system architecture that spans multiple hardware layers and communication domains. At the CPU layer, the 6DS1832-8AA interfaces directly with the TELEPERM M AS 235 or AS 230 central processing modules, providing the non-volatile memory substrate from which the processor loads its operating program at each power cycle. This tight coupling means that the module’s data integrity is a prerequisite for deterministic control execution.

Moving outward from the CPU layer, the TELEPERM M architecture relies on a structured backplane and rack system. The 6DS1832-8AA-equipped CPU rack connects via the internal bus to analog input modules such as the 6DS1310-8AA and digital output modules such as the 6DS1420-8AA, which interface with field transmitters, control valves, and motor starters. Signal conditioning is handled by dedicated I/O sub-modules that normalize 4–20 mA current loop signals and discrete 24 VDC inputs before they reach the CPU’s scan cycle — a cycle whose integrity depends entirely on the program stored in the 6DS1832-8AA.

At the power layer, the TELEPERM M system employs redundant 24 VDC power supply modules — typically the 6DS9200 series — to ensure that the CPU and its associated EEPROM module remain energized even during primary supply failures. This power redundancy is architecturally complementary to the non-volatile nature of the 6DS1832-8AA: even if power is lost, the EEPROM retains its program, and upon restoration, the CPU resumes operation without requiring manual re-programming.

The communication layer of the TELEPERM M architecture connects the control layer to the supervisory SCADA or DCS operator stations via the SINEC H1 industrial Ethernet network or the TELEPERM M-specific CS 275 bus. The 6DS1832-8AA-resident program governs how the CPU formats and transmits process data to these upper-layer systems, making the module’s correct programming essential for data transparency across the entire automation pyramid. Communication gateway modules such as the 6DS9600 series serve as the bridge between the TELEPERM M field bus and the plant-wide PROFIBUS or Ethernet backbone.

At the HMI layer, operator workstations running TELEPERM M visualization software — or modern SIMATIC WinCC migration environments — receive real-time process values that originate from the CPU’s scan cycle, which is anchored by the 6DS1832-8AA’s stored logic. Alarm management, trend logging, and setpoint adjustment all depend on the fidelity of the control program held in this EEPROM module. Terminal modules and marshalling panels, including 6DS9100-series terminal assemblies, provide the physical wiring interface between field cables and the I/O backplane, completing the signal chain from sensor to operator display.

For systems requiring redundant control execution, the TELEPERM M architecture supports hot-standby CPU configurations where two processor modules — each equipped with its own 6DS1832-8AA — operate in parallel, with one acting as the active controller and the other as the standby. In this configuration, the EEPROM modules in both CPUs must carry identical program versions to ensure seamless bumpless transfer upon failover. This redundancy architecture is particularly critical in power plant boiler control, refinery distillation column management, and water treatment dosing systems where process interruption carries significant safety and economic consequences.

Application in Layered Automation Systems

The 6DS1832-8AA has been deployed across a broad spectrum of heavy industrial applications where the TELEPERM M platform was selected for its proven reliability and long service life. In thermal power generation, the module supports boiler combustion control, turbine governor logic, and feedwater regulation systems where control loop continuity is non-negotiable. The non-volatile EEPROM technology ensures that tuned PID parameters and interlock logic survive planned and unplanned power interruptions without data loss.

In petrochemical and refinery environments, the 6DS1832-8AA supports distillation column control, reactor temperature management, and compressor surge protection systems. These applications demand that the CPU’s control program remain stable over multi-year operating campaigns between scheduled turnarounds. The EEPROM’s inherent data retention characteristics — independent of battery backup — make it superior to RAM-based alternatives in environments where maintenance access is infrequent and battery replacement is operationally inconvenient.

Water and wastewater treatment facilities operating TELEPERM M systems rely on the 6DS1832-8AA for dosing pump sequencing, filtration backwash control, and effluent quality monitoring loops. In these applications, the module’s role in maintaining consistent control logic across seasonal demand variations and regulatory compliance cycles is particularly valued. Mining and metallurgical processing plants — including ore crushing circuits, flotation cell control, and smelter temperature regulation — similarly depend on the TELEPERM M CPU’s EEPROM module to maintain process stability across harsh electrical environments characterized by high-frequency switching noise and ground potential variations.

Packaging and discrete manufacturing lines that were integrated with TELEPERM M systems during the 1990s and 2000s continue to operate with 6DS1832-8AA modules as part of long-term asset preservation strategies. Plant engineers responsible for these legacy systems prioritize sourcing tested, verified replacement modules with documented 12-Month Warranty coverage to minimize the risk associated with installing unverified components into safety-critical control loops.

Architecture Engineering FAQ

Q1: Is the 6DS1832-8AA compatible with all TELEPERM M CPU variants, and can it be used as a direct replacement in an existing system without reprogramming?
The 6DS1832-8AA is designed for use within the TELEPERM M AS 220, AS 230, and AS 235 processor families. As an EEPROM module, it retains whatever program was written to it at the time of manufacture or last programming session. A replacement module sourced as a spare will typically require programming with the site-specific control application before installation, unless it is supplied as a pre-programmed unit matching the original configuration. Engineers should verify the firmware version and application program checksum against the plant’s as-built documentation before commissioning. Our 12-Month Warranty covers the hardware integrity of the module, and our technical team can advise on programming compatibility based on your system’s AS number and software revision.

Q2: How does the 6DS1832-8AA support system redundancy, and what are the requirements for maintaining synchronized EEPROM content in a hot-standby CPU configuration?
In hot-standby TELEPERM M configurations, both the active and standby CPU modules must be equipped with 6DS1832-8AA modules carrying identical program versions. The TELEPERM M system does not automatically synchronize EEPROM content between redundant CPUs — program updates must be applied to both modules sequentially, following the plant’s management of change procedure. During a failover event, the standby CPU assumes control using the program stored in its own 6DS1832-8AA, making version consistency a critical maintenance discipline. We recommend maintaining at least one pre-programmed spare 6DS1832-8AA module on-site, covered under the 12-Month Warranty, to minimize mean time to repair in the event of a CPU module failure.

Q3: What long-term maintenance considerations apply to the 6DS1832-8AA, and how should plant engineers manage EEPROM module lifecycle in aging TELEPERM M installations?
EEPROM technology has a finite write cycle endurance, though in typical DCS applications where the program is written once and read continuously, this limitation is rarely a practical concern over a 20–30 year system lifecycle. The primary long-term maintenance risks for the 6DS1832-8AA are physical connector wear from repeated insertion and removal, electrostatic discharge damage during handling, and data corruption from severe electrical transients. Engineers should inspect module connectors during scheduled maintenance windows, use ESD-safe handling procedures, and verify program integrity via checksum comparison after any electrical disturbance event. Contextual Integration with the broader TELEPERM M architecture — including proper grounding of the control cabinet, surge protection on field cable entries, and UPS-backed power supply — significantly extends the reliable service life of the 6DS1832-8AA. All replacement modules supplied by ZYPLC are tested for electrical integrity and covered by a 12-Month Warranty, providing a documented quality baseline for plant maintenance records.
