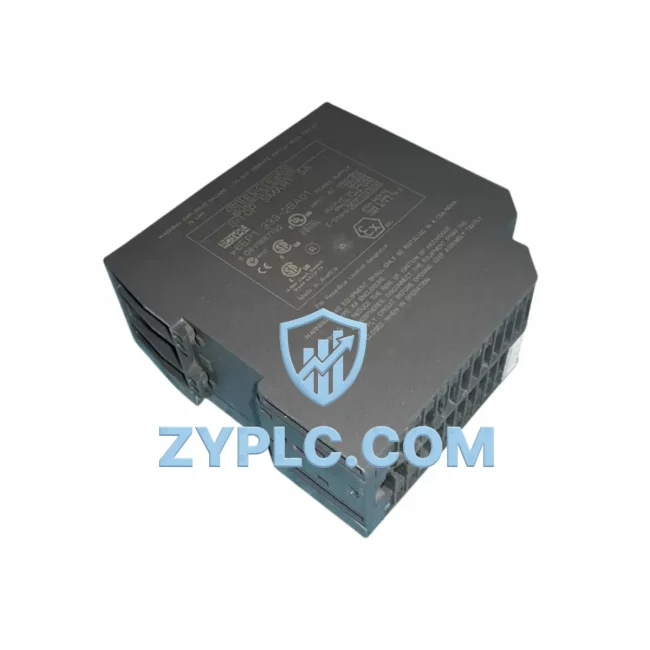

The Siemens 6EP1333-2BA01 is a 24 VDC / 5 A stabilized power supply module from the SITOP PSU100S series, engineered to serve as the foundational power layer within multi-tier industrial control architectures. Rather than functioning as a standalone component, this module is designed to integrate seamlessly across the control layer, I/O layer, network layer, and field device layer — delivering consistent, regulated DC power that underpins system-wide reliability, deterministic signal behavior, and long-term operational continuity.

In modern automation environments, power quality is not merely a utility concern — it is a system architecture decision. The 6EP1333-2BA01 addresses this by providing a wide-range AC input (85–264 VAC), enabling deployment across global grid conditions without hardware modification. Its 120 W output capacity supports distributed I/O racks, communication gateways, and HMI panels simultaneously, making it a preferred choice for compact control cabinet designs where space efficiency and power density are both critical.

Architecture Specification Table

Coordinated Control System Design

The 6EP1333-2BA01 occupies the power layer of a layered Siemens automation architecture, and its value is best understood in the context of the components it energizes and supports. In a typical S7-1500 control system, the CPU module — such as the 6ES7511-1AK02-0AB0 (CPU 1511-1 PN) — relies on stable 24 VDC supply for both logic processing and backplane communication. The SITOP PSU100S provides this supply with the low-ripple characteristics required for deterministic CPU cycle execution.

At the I/O layer, digital input modules such as the 6ES7521-1BH00-0AB0 (DI 16×24VDC HF) and digital output modules such as the 6ES7522-1BH01-0AB0 (DQ 16×24VDC/0.5A HF) draw their operating power directly from the 24 VDC bus established by the 6EP1333-2BA01. Consistent voltage regulation at this layer ensures that field signal thresholds remain within specification, reducing false triggering and improving diagnostic accuracy.

For network and communication integrity, the 6GK7243-5DX30-0XE0 (CP 1243-5 PROFIBUS communication processor) and similar gateway modules require a stable power source to maintain cyclic data exchange with field devices. Voltage fluctuations at the power layer directly translate into communication timeouts and bus errors — risks that the SITOP PSU100S series is specifically designed to eliminate through its active power factor correction and tight output regulation.

At the human-machine interface layer, panels such as the 6AV2124-0GC01-0AX0 (SIMATIC HMI KTP700 Basic) are powered from the same 24 VDC distribution rail. The 6EP1333-2BA01’s 5 A output provides sufficient headroom to supply both the HMI and associated I/O modules within a compact cabinet layout, without requiring a secondary power supply for low-power peripherals.

For system redundancy and power monitoring, the 6EP1961-2BA21 (SITOP PSE200U selectivity module) can be paired with the 6EP1333-2BA01 to enable selective load disconnection during fault conditions, protecting critical control circuits from cascading failures. Additionally, the 6EP1334-2BA20 (SITOP PSU100S 24V/10A) serves as a higher-capacity companion in the same product family for applications requiring expanded load capacity within the same cabinet architecture.

Backplane and mounting infrastructure components such as the 6ES7590-1AB60-0AA0 (S7-1500 mounting rail, 482 mm) and terminal modules like the 6ES7193-6BP00-0DA0 (BaseUnit BU15-P16+A0+2D for ET 200SP) complete the physical installation layer, ensuring that the power supply, CPU, and I/O modules are mechanically integrated within a coherent, serviceable cabinet structure.

Application in Layered Automation Systems

The 6EP1333-2BA01 is deployed across a wide range of industrial sectors where control system reliability and power quality are non-negotiable. In manufacturing and assembly lines, it powers distributed I/O stations along conveyor systems, robotic welding cells, and vision inspection stations, where consistent 24 VDC supply directly affects cycle time accuracy and reject rate management.

In power generation and electrical distribution applications, the SITOP PSU100S series is used to supply protection relay panels, bay controllers, and substation automation systems. Its wide-range AC input and ATEX Zone 2 certification make it suitable for environments where grid quality is variable and hazardous area compliance is required.

Within petrochemical and process industries, the 6EP1333-2BA01 supports continuous process control systems where unplanned downtime carries significant safety and financial consequences. Its overload and short-circuit protection mechanisms ensure that a fault in one load circuit does not propagate to the broader control system.

In water treatment and municipal infrastructure projects, the module is integrated into SCADA-connected PLC panels controlling pump stations, filtration systems, and chemical dosing equipment. The combination of DIN rail mounting, IP20 protection, and wide operating temperature range makes it suitable for both indoor control rooms and outdoor weatherproof enclosures.

For mining, metallurgy, and heavy industry applications, the 6EP1333-2BA01 is selected for its robustness under vibration, thermal cycling, and electromagnetic interference — conditions common in mill drives, crusher control panels, and smelter automation systems. Its compatibility with the broader Siemens SITOP ecosystem ensures that spare parts, replacement modules, and technical documentation are consistently available throughout the asset lifecycle.

Architecture Engineering FAQ

Q1: Is the 6EP1333-2BA01 compatible with both S7-300 and S7-1500 control architectures?
Yes. The 6EP1333-2BA01 is a universal 24 VDC power supply and is not bus-coupled to any specific PLC backplane. It provides regulated DC power to any load within its 5 A output rating, making it compatible with S7-300, S7-400, S7-1200, S7-1500, and ET 200 distributed I/O systems. System integrators commonly use it as the primary power source for mixed-generation control panels during phased migration projects.

Q2: Can this module be used in redundant power supply configurations?
Yes. The 6EP1333-2BA01 supports parallel operation for redundancy when combined with the SITOP redundancy module (e.g., 6EP1961-2BA21). In a 1+1 redundant configuration, two PSU100S units feed a common DC bus through the redundancy module, which automatically transfers load to the healthy unit in the event of a primary supply failure — without interrupting the control system. This architecture is recommended for critical process applications where power supply failure must not cause a system shutdown.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
The 12-Month Warranty covers manufacturing defects, electrical performance deviations from published specifications, and premature component failure under normal operating conditions. For maintenance engineers, this warranty provides a defined baseline for spare parts planning — ensuring that replacement units sourced through ZYPLC meet the same electrical and mechanical specifications as the original installed module. Combined with ZYPLC’s in-stock availability and pre-shipment testing protocol, the warranty supports both emergency replacement scenarios and scheduled preventive maintenance programs.
