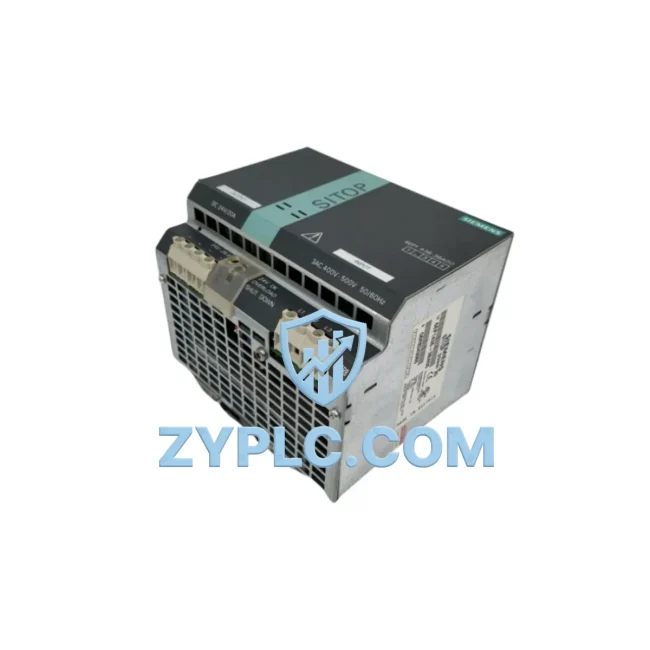

Siemens 6EP1436-3BA00 System-Ready Power Supply for SITOP Architecture

Siemens 6EP1436-3BA00 System-Ready Power Supply for SITOP Architecture: Control System Coordination and Upstream-Downstream Synergy

In modern industrial automation, the power supply layer is not a peripheral concern — it is the structural foundation upon which every other control layer depends. The Siemens 6EP1436-3BA00, part of the SITOP modular power supply family, is engineered to serve as a high-availability DC power source within layered control architectures. Whether deployed in a Siemens S7-300, S7-400, or ET 200M distributed I/O environment, this module delivers stable 24 VDC output with the reliability and diagnostic transparency that system integrators and plant engineers demand across manufacturing, power generation, petrochemical, water treatment, mining, metallurgy, and process control applications.

Unlike standalone power converters, the 6EP1436-3BA00 is designed with system-level thinking at its core. Its wide-range AC input, high output current capacity, and parallel operation capability make it a natural fit for redundant power architectures — a critical requirement in any facility where unplanned downtime carries significant operational or safety consequences. When paired with a SITOP selectivity module or a SITOP UPS module, the 6EP1436-3BA00 becomes part of a fully coordinated power distribution chain that protects downstream loads, isolates faults, and maintains control system continuity even during grid disturbances.

Architecture Specification Table

Coordinated Control System Design

The 6EP1436-3BA00 occupies the power layer of a multi-tier control architecture, but its influence extends across every layer above it. At the control layer, SIMATIC S7-300 CPUs such as the CPU 315-2 DP or CPU 317-2 PN/DP rely on stable 24 VDC rail voltage to maintain deterministic scan cycle execution. Any voltage sag or ripple at the power layer translates directly into CPU watchdog faults or communication timeouts — risks that the 6EP1436-3BA00 eliminates through its regulated output and active power factor correction.

At the I/O layer, distributed I/O stations such as the ET 200M or ET 200S — populated with digital input modules (e.g., SM 321), digital output modules (e.g., SM 322), and analog I/O modules (e.g., SM 331 / SM 332) — require clean, stable 24 VDC for both backplane logic and field-side sensor/actuator circuits. The 6EP1436-3BA00’s low output ripple and fast transient response ensure that field signals remain accurate even during load switching events caused by solenoid valves, motor contactors, or high-inrush actuators.

At the network and communication layer, PROFIBUS DP and PROFINET IO communication modules — including the CP 342-5 PROFIBUS master and CP 343-1 Ethernet module — depend on uninterrupted power to maintain real-time data exchange between the PLC and field devices. A power interruption at this layer can cause network segment dropouts, forcing full system re-initialization. Pairing the 6EP1436-3BA00 with a SITOP UPS1600 uninterruptible power supply module provides a buffered power bridge that sustains communication continuity during brief mains failures.

At the HMI layer, operator panels such as the SIMATIC TP700 Comfort or KTP900 Basic panels draw their operating power from the same 24 VDC bus. Stable power at this layer ensures that process visualization remains available to operators during critical process transitions, alarm acknowledgment sequences, and manual override operations.

At the execution layer, variable frequency drives, servo amplifiers, and relay output modules that receive switching commands from the PLC require a stable logic power supply for their control circuits. The 6EP1436-3BA00’s parallel operation capability allows a second SITOP module to be connected in a redundant configuration, ensuring that even a single power supply failure does not interrupt the execution layer’s ability to respond to control commands.

For cabinet-level power distribution, the SITOP PSE200U selectivity module can be installed downstream of the 6EP1436-3BA00 to provide individual branch protection for each load group — CPUs, I/O stations, HMI panels, and communication modules — without requiring individual fuses. This architecture simplifies fault isolation, reduces cabinet wiring complexity, and accelerates maintenance response time.

Application in Layered Automation Systems

Manufacturing and Assembly Lines: In automotive body shop or electronics assembly environments, the 6EP1436-3BA00 powers the control cabinets of robotic welding cells, conveyor drive systems, and vision inspection stations. Its high output current capacity supports the simultaneous operation of multiple I/O-intensive control nodes without voltage droop, ensuring consistent cycle times and product quality.

Power Generation and Electrical Utilities: In substation automation and generator control panels, the 6EP1436-3BA00 provides the 24 VDC logic supply for protection relay panels, RTU communication modules, and SCADA interface equipment. Its wide AC input range accommodates the voltage variations common in utility environments, and its diagnostic signaling contact enables remote fault monitoring through the plant DCS.

Petrochemical and Refinery Process Control: In hazardous area control rooms and marshalling cabinets, the 6EP1436-3BA00 supplies power to intrinsically safe barriers, HART multiplexers, and fieldbus segment couplers. Its ATEX Zone 2 certification allows installation in areas where flammable gas concentrations may be present, reducing the need for separate safe-area enclosures.

Water and Wastewater Treatment: In pump station control panels and SCADA-connected RTU cabinets, the 6EP1436-3BA00 powers the PLC, communication gateway, and HMI simultaneously. Its parallel redundancy capability is particularly valuable in unmanned remote pump stations where a power supply failure would require a field service dispatch — an expensive and time-consuming response in geographically dispersed water networks.

Mining and Metallurgy: In conveyor drive control panels, crusher control systems, and smelter process controllers, the 6EP1436-3BA00 operates reliably in high-vibration, high-dust environments. Its DIN rail mounting and compact form factor allow integration into space-constrained control enclosures typical of underground mining installations.

Architecture Engineering FAQ

Q1: Can the 6EP1436-3BA00 be used in a redundant power supply configuration with an existing SITOP module already installed in the cabinet?
Yes. The 6EP1436-3BA00 supports parallel operation for both load sharing and redundancy. When two units are connected in parallel on the same 24 VDC bus, each module shares the load proportionally. If one module fails, the other automatically assumes the full load without interruption. No additional redundancy controller is required for basic parallel redundancy, though a SITOP redundancy module can be added for enhanced fault isolation and diagnostic visibility.

Q2: Is the 6EP1436-3BA00 compatible with SIMATIC S7-400 backplane systems and ET 200M remote I/O stations on PROFIBUS DP?
Yes. The 6EP1436-3BA00 provides the standard 24 VDC supply required by S7-400 CPU modules, interface modules (IMs), and ET 200M IM 153-x interface modules. It is fully compatible with PROFIBUS DP segment architectures and can supply both the PLC rack and the PROFIBUS DP repeater or segment coupler from the same output bus. Contextual Integration with the SIMATIC platform ensures that the power supply’s diagnostic signaling contact can be wired to a digital input on the CPU rack for automated fault detection and alarm generation.

Q3: What does the 12-Month Warranty cover, and what is the recommended maintenance interval for long-term deployment?
The 12-Month Warranty covers manufacturing defects, component failures, and performance deviations from published specifications under normal operating conditions. For long-term deployment, it is recommended to inspect the module’s ventilation clearances and output voltage calibration annually. In high-ambient-temperature environments (above 45 °C), a derating check should be performed to confirm that the module’s output current does not exceed its temperature-derated capacity. Replacement units are maintained in stock to support rapid swap-out during scheduled maintenance windows, minimizing planned downtime in critical production environments.
