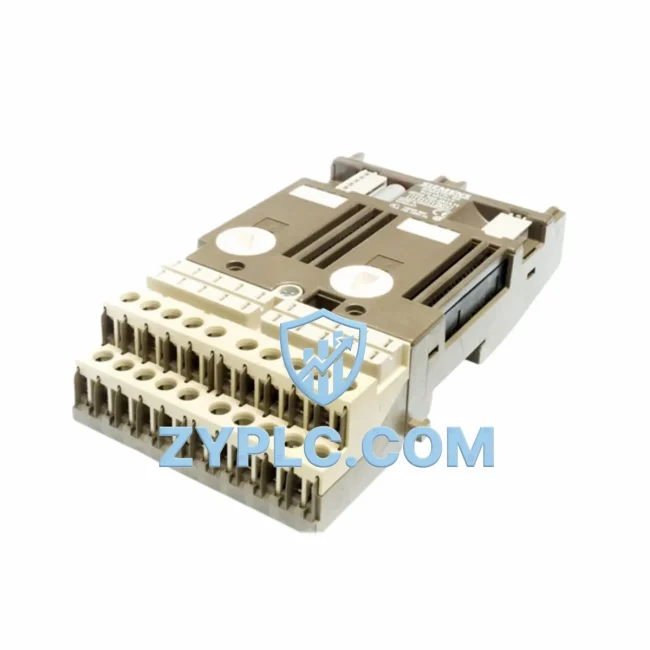

Siemens 6ES5 700-8MA11 System-Ready Bus Module for SIMATIC S5 Architecture

Siemens 6ES5 700-8MA11 System-Ready Bus Module for SIMATIC S5 Architecture: Control System Backbone and Upstream-Downstream Coordination

In any well-engineered industrial automation system, the integrity of the backplane bus is the foundation upon which all control logic, I/O communication, and network coordination depend. The Siemens 6ES5 700-8MA11 is a dedicated bus module designed for the SIMATIC S5 programmable controller family, providing the physical and electrical interconnection layer that allows CPUs, I/O modules, communication processors, and power supply units to operate as a unified, coherent control architecture. Rather than functioning as a standalone component, the 6ES5 700-8MA11 is the structural element that defines how every other module in the rack communicates, synchronizes, and shares data across the control hierarchy.

Understanding the role of this bus module requires viewing the SIMATIC S5 system not as a collection of individual cards, but as a layered automation architecture where each tier — from the field device level up through the control and supervisory layers — depends on reliable, low-latency backplane communication. The 6ES5 700-8MA11 ensures that this communication remains stable, deterministic, and expandable across the full lifecycle of the installation.

Architecture Specification Table

Coordinated Control System Design

The 6ES5 700-8MA11 does not operate in isolation. Its value is realized only when it is correctly integrated within a complete SIMATIC S5 rack assembly, where it serves as the physical medium through which every module exchanges data with the central processing unit. In a typical S5-115U or S5-135U configuration, the 6ES5 095-8MA03 central rack provides the structural housing into which the bus module is installed, establishing the slot-to-slot communication path that the CPU relies on for deterministic I/O scanning.

The CPU itself — commonly the 6ES5 948-7UB21 or 6ES5 946-3UA21 — issues cyclic scan commands across the backplane bus, reading input states from digital input modules such as the 6ES5 430-7LA12 (32-channel 24 VDC DI) and writing output commands to modules like the 6ES5 441-7LA11 (32-channel digital output). The bus module ensures that these transactions occur without signal degradation, contact resistance buildup, or timing jitter — all of which can cause spurious faults in high-cycle manufacturing environments.

For process control applications requiring analog signal handling, the 6ES5 460-7LA13 analog input module and 6ES5 470-7LA12 analog output module are commonly installed in adjacent slots, with the 6ES5 700-8MA11 providing the bus continuity that allows the CPU to address these modules at their configured slot addresses. In systems where rack expansion is required, the 6ES5 318-8MA12 interface module works in conjunction with the bus module to extend the S5 backplane across multiple racks, maintaining address coherence and scan cycle integrity across the expanded I/O space.

Communication processors such as the 6ES5 482-8MA13 — used for SINEC H1 or PROFIBUS integration — also depend on stable backplane bus access to exchange data with the CPU and upstream SCADA or DCS systems. The 6ES5 700-8MA11 ensures that these communication transactions do not interfere with the primary I/O scan cycle, supporting the deterministic behavior that process industries demand. Power distribution within the rack is managed by the 6ES5 951-7LB21 power supply unit, which feeds regulated 5 VDC and 24 VDC rails across the backplane — rails that the bus module physically routes to each installed card.

In redundant control architectures, a secondary rack equipped with an identical bus module configuration — including a standby CPU and mirrored I/O — can be maintained in hot-standby mode, with switchover logic managed at the CPU level. The physical reliability of the 6ES5 700-8MA11’s bus contacts is therefore a direct contributor to the mean time between failures (MTBF) of the entire redundant system. Replacement bus modules should always be sourced from verified suppliers with documented testing procedures and a clear 12-Month Warranty to ensure that the replacement unit meets the original electrical specification.

Application in Layered Automation Systems

The SIMATIC S5 platform, anchored by components like the 6ES5 700-8MA11, continues to serve as the control backbone in a wide range of industrial sectors where system replacement is constrained by capital expenditure cycles, regulatory approval requirements, or the complexity of re-engineering validated control logic.

In power generation and distribution facilities, S5-based control systems manage turbine sequencing, switchgear interlocking, and protection relay coordination. The bus module’s role in maintaining uninterrupted backplane communication is critical in these environments, where a single missed I/O scan can trigger protective shutdowns with significant operational consequences. The 6ES5 700-8MA11 supports the long-term operational continuity of these systems by providing a mechanically robust, electrically stable bus interface that can be replaced without requiring rack reconfiguration or CPU reprogramming.

In petrochemical and refinery applications, SIMATIC S5 systems control distillation column sequencing, pump station automation, and emergency shutdown (ESD) logic. The deterministic scan behavior enabled by a properly functioning bus module is essential for maintaining the timing relationships between analog process measurements and digital control outputs. Facilities operating under IEC 61511 functional safety requirements rely on the predictable behavior of every hardware component in the control loop, including the backplane bus.

In water and wastewater treatment plants, S5 controllers manage pump scheduling, chemical dosing, and filtration sequencing across geographically distributed stations. The bus module’s contribution to system reliability directly affects the availability of these critical infrastructure systems. Operators in these environments typically maintain a stock of spare bus modules to minimize mean time to repair (MTTR) following hardware failures.

In automotive and discrete manufacturing lines, SIMATIC S5 systems coordinate robotic welding cells, conveyor sequencing, and quality inspection stations. The high-cycle nature of these applications places sustained mechanical and electrical stress on backplane components, making the quality and warranty coverage of replacement bus modules a key procurement consideration. The 12-Month Warranty provided with each 6ES5 700-8MA11 unit reflects the confidence in component quality and supports the maintenance planning requirements of production engineering teams.

In mining and metallurgical operations, S5-based systems control crusher sequencing, conveyor load management, and smelter process automation. The harsh electrical environment — characterized by high-voltage switching transients, ground loops, and electromagnetic interference from large motor drives — demands bus modules with robust contact design and verified EMI shielding. The 6ES5 700-8MA11 meets these requirements within the SIMATIC S5 system architecture.

Architecture Engineering FAQ

Q1: Is the 6ES5 700-8MA11 compatible with all SIMATIC S5 rack configurations, and can it be installed without modifying the existing CPU or I/O module addressing?

The 6ES5 700-8MA11 is designed for use within the SIMATIC S5 rack family, including the S5-115U, S5-135U, and S5-155U systems. It is a passive backplane interconnect component and does not carry configurable addressing or firmware. Replacement of a failed bus module with a 6ES5 700-8MA11 of the same part number does not require any changes to CPU configuration, I/O module slot assignments, or STEP 5 program logic. The module is mechanically keyed to the rack slot and electrically compatible with all standard S5 bus signals. Engineers should verify the rack model and slot position before installation to ensure correct mechanical fit.

Q2: How does the 6ES5 700-8MA11 support system redundancy, and what is the recommended maintenance strategy for bus modules in high-availability installations?

In redundant SIMATIC S5 architectures, each rack — primary and standby — is equipped with its own set of bus modules. The 6ES5 700-8MA11 contributes to system availability by providing a reliable backplane path in each rack independently. The recommended maintenance strategy for high-availability installations includes maintaining at least one spare bus module per rack configuration in local inventory, performing periodic visual inspection of bus contacts for oxidation or mechanical damage, and replacing bus modules proactively at scheduled maintenance intervals rather than reactively following failure. All replacement units supplied under the 12-Month Warranty are tested for contact resistance and signal integrity prior to shipment, supporting a predictive maintenance approach.

Q3: What does the 12-Month Warranty cover for the 6ES5 700-8MA11, and how does Contextual Integration support long-term system compatibility?

The 12-Month Warranty covers manufacturing defects, contact failure, and electrical non-conformance identified during normal operating conditions within a correctly configured SIMATIC S5 rack. Units that fail within the warranty period are replaced or refunded following technical verification. Contextual Integration refers to the practice of sourcing replacement components that have been verified for compatibility within the specific system architecture in which they will be installed — including rack type, CPU model, I/O configuration, and communication processor complement. This approach ensures that replacement bus modules do not introduce compatibility issues that could affect system behavior, and it supports the long-term maintainability of SIMATIC S5 installations across their full operational lifecycle.
