Siemens 6ES5095-8MA05 System-Ready CPU for S5 Architecture

Siemens 6ES5095-8MA05 System-Ready CPU for S5 Architecture: Control System Architecture and Upstream-Downstream Coordination

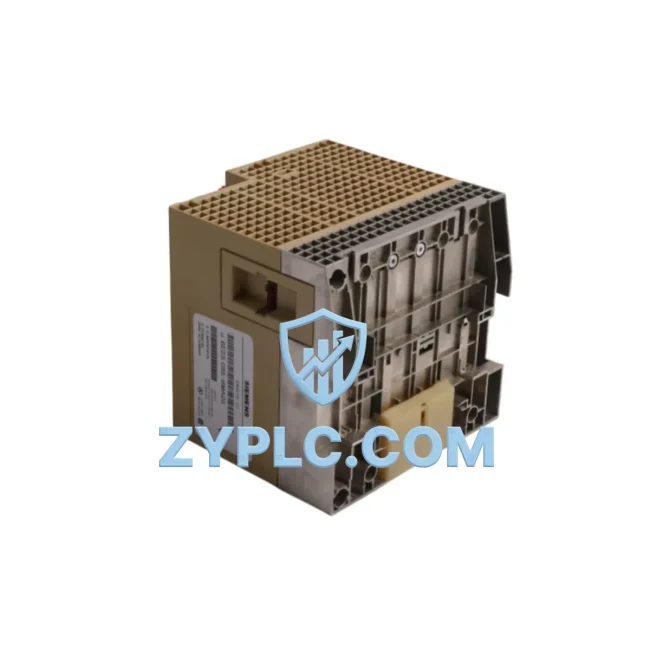

The Siemens 6ES5095-8MA05 is a compact CPU module purpose-built for the SIMATIC S5 programmable logic controller platform, one of the most enduring and widely deployed control architectures in global industrial automation. Rather than functioning as a standalone processing unit, the 6ES5095-8MA05 occupies a critical position within a layered control hierarchy — coordinating signal acquisition from the I/O layer, executing ladder logic and function block programs at the control layer, exchanging process data across the network layer, and delivering command outputs to the execution layer. Understanding this module’s role within the full system architecture is essential for engineers responsible for system integration, capacity expansion, redundancy planning, and long-term maintenance.

In a typical SIMATIC S5 installation, the 6ES5095-8MA05 CPU is mounted directly onto a central rack or expansion rack — commonly the S5-90U or S5-95U subrack — where it interfaces with digital and analog I/O modules such as the 6ES5420-8MA11 digital input module and the 6ES5470-8MA12 analog output module. These I/O modules feed real-time process signals into the CPU’s memory, where the user program processes them according to defined control logic. The CPU then issues output commands to field devices including variable frequency drives, solenoid valves, and motor starters, completing the closed-loop control cycle that defines modern process automation.

At the network and communications layer, the 6ES5095-8MA05 supports integration with SINEC L1 and SINEC H1 industrial Ethernet segments, enabling data exchange with supervisory SCADA systems, historian servers, and peer PLCs. In multi-CPU architectures, this module can operate alongside a 6ES5101-8UA23 interface module to extend the rack’s I/O capacity, or communicate with a 6ES5316-8MA12 communications processor to bridge legacy S5 networks with modern PROFIBUS DP segments. This cross-layer communication capability is fundamental to achieving the system consistency and data integrity that modern industrial operations demand.

Power supply coordination is equally important to system reliability. The 6ES5095-8MA05 draws regulated 24 VDC from a dedicated S5-compatible power supply unit — typically a 6ES5955-3LC41 or equivalent — which provides the stable voltage rail required for uninterrupted CPU operation. In high-availability installations, redundant power supply configurations are recommended, with automatic switchover ensuring that a single power supply failure does not interrupt the control cycle. This power architecture consideration is especially relevant in continuous process industries such as petrochemical refining, water treatment, and electric power generation, where unplanned downtime carries significant operational and safety consequences.

From a human-machine interface perspective, the 6ES5095-8MA05 integrates naturally with SIMATIC S5-compatible operator panels and HMI terminals. Process visualization systems connected via the MPI or serial interface can read CPU data registers, display real-time process values, and allow operators to modify setpoints without interrupting the running program. In more advanced architectures, the CPU’s data can be aggregated by a SIMATIC WinCC or STEP 7 engineering station, providing a unified view of the entire control system from a single supervisory workstation.

For system architects evaluating the 6ES5095-8MA05 in the context of capacity expansion, the module’s compatibility with the S5 expansion rack system allows additional I/O modules to be added without replacing the central CPU. This modular expansion philosophy — a hallmark of the SIMATIC S5 design — means that as production lines grow or process requirements evolve, the control architecture can scale incrementally rather than requiring a full system replacement. Expansion interface modules such as the 6ES5318-8MA12 facilitate seamless rack-to-rack communication, preserving the integrity of the control program while extending physical I/O reach.

Redundancy design is another dimension where the 6ES5095-8MA05 demonstrates its architectural value. In critical applications, a hot-standby CPU configuration can be implemented using two 6ES5095-8MA05 units operating in parallel, with a synchronization module ensuring that the standby CPU maintains an up-to-date copy of the active CPU’s memory image. Upon detection of a primary CPU fault, the standby unit assumes control within milliseconds, preventing process interruption. This redundancy architecture is particularly valued in industries such as oil and gas, mining, and metallurgy, where process continuity is directly linked to safety and revenue.

Engineering commissioning of the 6ES5095-8MA05 is performed using the SIMATIC S5 programming software environment, where technicians can upload and download user programs, monitor I/O status in real time, and perform online diagnostics without halting the control program. The module’s diagnostic LEDs provide immediate visual feedback on CPU operating status, battery condition, and communication activity, reducing the time required to identify and resolve faults during both initial commissioning and ongoing maintenance cycles.

From a long-term maintenance and supply chain perspective, ZYPLC maintains verified stock of the 6ES5095-8MA05 and compatible S5 system components, supporting customers who operate legacy SIMATIC S5 installations and require reliable access to replacement modules without extended lead times. Each unit supplied by ZYPLC is covered by a 12-Month Warranty, providing assurance of functional integrity and reducing the financial risk associated with sourcing legacy industrial components. Our technical team can assist with system compatibility verification, ensuring that replacement modules are correctly matched to the target rack, power supply, and software version.

Architecture Specification Table

Coordinated Control System Design

The 6ES5095-8MA05 achieves its full architectural potential when deployed as part of a coordinated SIMATIC S5 system. In a complete control cabinet configuration, the CPU module works in concert with the 6ES5955-3LC41 power supply unit, which delivers the regulated 24 VDC rail required for stable CPU and I/O module operation. Digital process signals are acquired through 6ES5420-8MA11 digital input modules, while analog process variables such as temperature, pressure, and flow are captured via 6ES5464-8MA11 analog input modules. Control outputs are issued through 6ES5470-8MA12 analog output modules and 6ES5440-8MA12 digital output modules, driving field actuators and variable speed drives in the execution layer.

For installations requiring expanded I/O capacity beyond the central rack, the 6ES5318-8MA12 expansion interface module connects additional S5 expansion racks to the central CPU, maintaining a unified program execution environment across multiple physical enclosures. In applications where PROFIBUS DP communication is required — for example, to interface with distributed I/O stations or third-party field devices — the 6ES5316-8MA12 communications processor provides the necessary protocol gateway functionality. At the operator interface layer, SIMATIC S5-compatible HMI terminals connected via the CPU’s serial port allow process visualization and parameter adjustment without interrupting the running control program. Together, these components form a coherent, scalable, and maintainable control architecture centered on the 6ES5095-8MA05 CPU.

Application in Layered Automation Systems

The Siemens 6ES5095-8MA05 has established a proven track record across a broad spectrum of industrial automation applications. In manufacturing and assembly line automation, the module manages sequential control of conveyor systems, robotic work cells, and quality inspection stations, coordinating multi-axis motion and I/O-intensive processes with deterministic cycle times. In electric power generation and distribution, the CPU provides reliable control of switchgear, transformer protection relays, and auxiliary systems, where the consequences of control failure are measured in terms of grid stability and safety.

In petrochemical and refinery applications, the 6ES5095-8MA05 controls reactor feed systems, distillation column operations, and safety interlock circuits, operating continuously in environments characterized by high ambient temperatures, vibration, and electromagnetic interference. Water and wastewater treatment facilities rely on the module for pump sequencing, chemical dosing control, and SCADA data acquisition, where long-term reliability and low maintenance overhead are primary selection criteria. In mining and metallurgical operations, the CPU manages ore processing conveyors, crusher control systems, and smelting furnace automation, where the physical demands on control hardware are among the most severe encountered in industrial practice. Across all these applications, the 6ES5095-8MA05’s proven architecture, broad I/O compatibility, and support for legacy SIMATIC S5 infrastructure make it a preferred choice for both new installations and system maintenance projects.

Architecture Engineering FAQ

Q1: Is the 6ES5095-8MA05 compatible with all SIMATIC S5 rack configurations, and can it be used as a direct replacement in existing S5 installations?
The 6ES5095-8MA05 is designed for use within the SIMATIC S5 central rack and expansion rack system, and is compatible with the S5-90U and S5-95U subrack families. As a replacement module, it can be installed in an existing rack without modification to the rack backplane or power supply, provided the replacement unit matches the original firmware version and memory configuration. Engineers should verify the user program backup and battery status before replacement to ensure program retention.

Q2: What communication protocols does the 6ES5095-8MA05 support, and how does it integrate with modern PROFIBUS or Industrial Ethernet networks?
The 6ES5095-8MA05 natively supports SINEC L1 peer-to-peer communication and serial interfaces for HMI and programming connections. Integration with PROFIBUS DP or Industrial Ethernet networks is achieved through dedicated communications processor modules — such as the 6ES5316-8MA12 — installed in the same rack. This architecture allows the S5 CPU to participate in modern network topologies without requiring a full platform migration, preserving the existing control program and I/O infrastructure.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance for legacy SIMATIC S5 systems?
The 12-Month Warranty provided by ZYPLC covers functional defects in the 6ES5095-8MA05 module under normal operating conditions, including CPU processing failures, memory errors, and communication interface faults. ZYPLC maintains ongoing stock of S5-compatible modules and components, enabling rapid replacement dispatch to minimize system downtime. Our technical support team can assist with compatibility verification, installation guidance, and system architecture consultation for customers managing long-term SIMATIC S5 installations.
