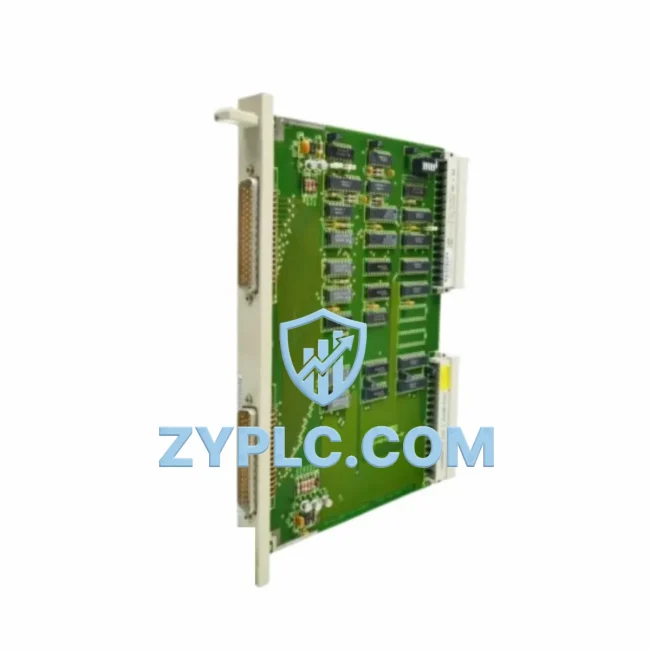

Siemens 6ES5314-3UA11 Energy-Saving Interface Module S5

Siemens 6ES5314-3UA11 Energy-Saving Interface Module for SIMATIC S5 Automation

The Siemens 6ES5314-3UA11 is a high-performance IM314 Interface Module engineered for the SIMATIC S5 programmable logic controller platform. Designed to bridge central processing units with distributed I/O racks, this module plays a critical role in reducing unnecessary bus communication overhead, tightening control loop response times, and enabling more deterministic energy consumption across multi-rack industrial automation architectures. Whether deployed in legacy retrofit projects or maintained as part of a long-running production line, the 6ES5314-3UA11 delivers the structural backbone that allows plant engineers to extract measurable efficiency gains without replacing entire control systems.

In modern manufacturing environments where energy cost per unit of output is under constant scrutiny, the ability to maintain precise, low-latency communication between the S5-115U or S5-135U CPU and its expansion racks directly impacts motor run times, actuator dwell periods, and the responsiveness of closed-loop control strategies. The 6ES5314-3UA11 supports this by maintaining stable rack-to-rack data exchange, ensuring that drive commands issued by the CPU reach frequency inverters and servo amplifiers with minimal jitter — a factor that directly influences energy draw during acceleration and deceleration phases.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES5314-3UA11 does not operate in isolation — its value is realized within a carefully integrated automation architecture where every component contributes to system-wide energy discipline. In a typical SIMATIC S5-based energy optimization setup, the IM314 works in tandem with the 6ES5316-8MA12 IM316 Interface Module (receive side) to form a matched send/receive pair, ensuring that the CPU rack and remote I/O racks exchange data with zero redundant retransmissions. This pairing is fundamental to reducing idle bus cycles that would otherwise keep output modules — and the loads they drive — in indeterminate states.

On the drive side, the S5 CPU communicates control setpoints to Siemens MICROMASTER 440 and SINAMICS G120 variable frequency drives via analog output modules such as the 6ES5470-8MA12. When the IM314 ensures that rack communication is stable and latency-free, the CPU can issue precise speed references to these drives, enabling them to operate at optimal efficiency points rather than defaulting to fixed-speed operation. The result is a measurable reduction in motor energy consumption — particularly significant in pump, fan, and conveyor applications where affinity laws apply.

For power monitoring, the architecture typically incorporates Siemens SENTRON PAC3200 power meters connected via PROFIBUS DP or Modbus RTU to the S5 system through a 6ES5524-3UA11 CP524 Communications Processor. This allows the PLC to read real-time kWh, power factor, and demand data, feeding it back into control logic that can shed non-critical loads during peak tariff windows. The IM314’s role in keeping this data pipeline reliable is often underestimated — any rack communication fault would interrupt the feedback loop and cause the system to revert to open-loop, energy-unaware operation.

Digital I/O modules such as the 6ES5420-7LA11 and 6ES5430-7LA11 handle discrete signals from motor contactors, thermal overload relays, and energy isolation switches. When these modules are housed in remote expansion racks connected via the 6ES5314-3UA11, the CPU gains the ability to implement demand-response logic — automatically de-energizing non-essential equipment during low-production periods without operator intervention. This kind of automated load management can reduce standby energy consumption by 10–25% in facilities with variable production schedules.

For human-machine interface integration, Siemens OP7 and TP270 HMI panels connected to the S5 system via the 6ES5734-3BD20 AG/AG coupler or direct MPI links allow operators to monitor energy KPIs in real time. When the IM314 maintains rack integrity, the data displayed on these panels accurately reflects the current state of all connected I/O — giving operators the situational awareness needed to make energy-conscious decisions on the floor.

Power Optimization in Real Production Lines

In automotive body welding lines where SIMATIC S5-135U systems remain in service, the 6ES5314-3UA11 is frequently the component that determines whether a multi-rack control cabinet can sustain the sub-10ms scan times required for coordinated spot-weld sequencing. When scan times are consistent, servo drives and weld timers operate on predictable duty cycles, and energy draw per weld cycle remains stable and auditable. A degraded or failed IM314 introduces scan time variability that forces drives to hold torque longer than necessary — increasing heat generation, accelerating insulation wear, and raising per-cycle energy costs.

In water treatment facilities running S5-115U systems for pump station control, the IM314 enables the CPU to implement variable-speed pump control strategies by reliably delivering analog setpoints to MICROMASTER drives in remote motor control centers. Plants that have upgraded from fixed-speed to variable-speed operation — while maintaining S5 control architecture — report energy savings of 30–50% on pumping loads. The 6ES5314-3UA11 is the communication link that makes this possible without requiring a full PLC migration.

Predictive maintenance integration is another area where the IM314 contributes to energy efficiency. By ensuring that vibration sensor data from Siemens SIPLUS condition monitoring modules reaches the CPU without communication errors, maintenance teams can schedule motor and drive servicing before efficiency-degrading faults develop. A motor running with worn bearings or misaligned couplings draws 5–15% more current than a well-maintained unit — catching these conditions early, enabled by reliable rack communication, directly reduces energy waste.

All units supplied by ZYPLC undergo functional testing prior to shipment, including bus communication verification, module identification checks, and thermal cycling. Each 6ES5314-3UA11 ships with a 12-month warranty, and our inventory is maintained to support rapid dispatch for both planned maintenance and emergency replacement scenarios. Lead times are typically 1–3 business days for in-stock units.

Energy Optimization FAQ

Q1: How does the 6ES5314-3UA11 contribute to energy savings in an S5 system?
By maintaining stable, low-latency communication between the CPU rack and expansion racks, the IM314 ensures that drive setpoints, load-shedding commands, and power monitoring data are exchanged reliably. This allows the PLC to execute energy management logic — such as variable-speed drive control and demand-response load shedding — without communication-induced delays that would otherwise cause drives to default to inefficient fixed-speed operation.

Q2: Is the 6ES5314-3UA11 compatible with my existing SIMATIC S5 configuration?
The 6ES5314-3UA11 (IM314) is compatible with SIMATIC S5-115U, S5-135U, and S5-155U systems. It must be paired with a corresponding IM316 (6ES5316-8MA12) on the receive rack. Before ordering, verify your existing IM pair configuration and rack slot assignments to ensure a direct replacement fit.

Q3: What is the recommended replacement or upgrade path if I need to modernize beyond S5?
For facilities planning a migration to SIMATIC S7-300 or S7-400, the IM314 function is replaced by IM360/IM361 interface modules. For full modernization to TIA Portal-based systems, SIMATIC S7-1500 with PROFINET I/O eliminates the need for dedicated interface modules entirely. ZYPLC can supply both legacy S5 components for ongoing maintenance and S7-series modules for phased migration projects.

Q4: What does the 12-month warranty cover, and what is the testing process?
Every 6ES5314-3UA11 supplied by ZYPLC is tested for bus communication functionality, module addressing, and thermal stability before shipment. The 12-month warranty covers component failure under normal operating conditions. Units that fail within the warranty period are replaced or refunded. Test reports are available upon request for quality-critical applications.
