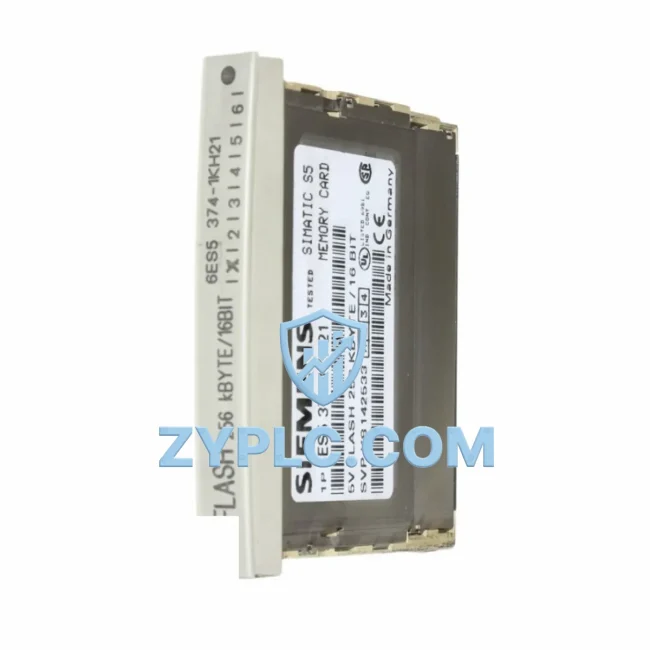

Siemens 6ES5374-1KH21 System-Ready Flash Memory for S5 Architecture

Siemens 6ES5374-1KH21 System-Ready Flash Memory for S5 Control Architecture

The Siemens 6ES5374-1KH21 is a 256KB Flash Memory Module engineered specifically for integration within the SIMATIC S5 programmable logic controller platform. In modern industrial automation environments, memory modules are not standalone components — they are foundational elements that define the reliability, expandability, and long-term maintainability of the entire control system architecture. The 6ES5374-1KH21 occupies a critical position within the S5 control hierarchy, serving as the persistent program storage medium that bridges the CPU processing layer with the I/O execution layer, ensuring that control logic remains intact across power cycles, firmware updates, and system reconfigurations.

Within a layered automation architecture, the 6ES5374-1KH21 interfaces directly with S5 CPUs such as the 6ES5095-8MA02 (CPU 095) and 6ES5100-8MA02 (CPU 100), providing non-volatile program retention that eliminates the dependency on battery-backed RAM for long-term deployments. This is particularly significant in applications where unplanned power interruptions are a routine operational risk — such as in mining, metallurgical processing, and petrochemical facilities — where the integrity of the stored control program directly determines restart reliability and process safety.

The module’s Contextual Integration capability means it is designed to function seamlessly within the broader S5 rack ecosystem, including the 6ES5700-series backplanes and 6ES5183-series interface modules. When deployed alongside communication processors such as the 6ES5734-series CP modules, the 6ES5374-1KH21 supports consistent program execution across distributed I/O configurations, ensuring that signal flow from field devices through the I/O layer to the CPU remains uninterrupted even during partial system maintenance events.

Architecture Specification Table

Coordinated Control System Design

The 6ES5374-1KH21 achieves its full architectural value when considered as part of a coordinated S5 control system rather than as an isolated component. In a typical S5-115U or S5-135U installation, the memory module works in concert with the 6ES5948-3UA11 (CPU 948) or 6ES5928-3UB21 (CPU 928) to maintain program integrity across the control layer. The CPU reads the stored user program from the flash module at startup, eliminating initialization delays associated with volatile RAM-based systems.

At the power layer, the 6ES5374-1KH21 benefits from stable rack power delivered by the 6ES5955-3LC41 or 6ES5955-3LF41 power supply units, which provide regulated 5 VDC and 24 VDC rails to the S5 backplane. Voltage stability at the rack level is essential for flash memory longevity, as voltage transients during power-up sequences can compromise memory cell integrity over extended operational periods.

For I/O layer coordination, the module supports architectures that include 6ES5430-series digital input modules and 6ES5440-series digital output modules, as well as 6ES5460-series analog input modules for process variable acquisition. The program stored in the 6ES5374-1KH21 governs all I/O scan cycles, interrupt handling, and process image updates, making its reliability directly proportional to the responsiveness of the entire field device network.

In network-connected S5 installations, the 6ES5374-1KH21 supports configurations that include 6ES5734-3BD20 CP 5430 TF communication processors for PROFIBUS-DP integration, enabling the S5 controller to participate in distributed automation architectures alongside modern S7-300 or S7-400 systems during phased migration projects. This cross-generational compatibility is a key advantage for facilities managing long-term infrastructure transitions without full system replacement.

At the human-machine interface layer, the stored program in the 6ES5374-1KH21 defines the data exchange protocols between the S5 CPU and connected HMI panels, including legacy OP series operator panels and modern SIMATIC HMI systems connected via MPI or PROFIBUS. Consistent program storage ensures that HMI tag mappings, alarm configurations, and process visualization data remain synchronized with the physical control logic at all times.

Application in Layered Automation Systems

In manufacturing and discrete production lines, the 6ES5374-1KH21 is deployed in S5 controllers managing conveyor sequencing, robotic cell coordination, and quality inspection station logic. The flash-based storage eliminates the need for periodic battery replacement cycles that are common in RAM-backed systems, reducing planned maintenance downtime and associated production losses.

In power generation and electrical distribution facilities, the module supports S5 controllers used in substation automation, transformer protection relay coordination, and load-shedding logic. The extended data retention capability of flash technology — exceeding 10 years without power — is particularly valuable in standby protection systems that may remain unpowered for extended periods between activation events.

In petrochemical and refinery process control applications, the 6ES5374-1KH21 is integrated into S5 systems managing distillation column control, heat exchanger regulation, and emergency shutdown (ESD) logic. The non-volatile nature of flash storage ensures that safety-critical control programs are immediately available upon system restart following emergency power interruptions, without requiring operator intervention to reload programs from external sources.

In water treatment and municipal infrastructure systems, the module supports S5 controllers in pump station automation, chemical dosing control, and SCADA-connected remote terminal unit (RTU) applications. The ability to retain complex ladder logic programs without battery dependency simplifies remote site maintenance, where on-site technical support may not be immediately available following a power event.

In mining and metallurgical processing environments, where vibration, temperature cycling, and electromagnetic interference are persistent operational challenges, the solid-state flash architecture of the 6ES5374-1KH21 provides superior mechanical reliability compared to rotating or battery-dependent storage alternatives. The module’s compatibility with S5 redundancy configurations further supports continuous operation requirements in ore processing and smelting applications.

Architecture Engineering FAQ

Q1: Is the 6ES5374-1KH21 compatible with all SIMATIC S5 CPU variants, and are there any architectural constraints when integrating it into existing S5 rack configurations?

The 6ES5374-1KH21 is designed for compatibility with the S5-90U, S5-95U, S5-100U, and S5-115U CPU families. It plugs directly into the designated memory slot on the CPU module and does not require additional interface adapters for standard installations. When integrating into existing rack configurations alongside 6ES5183-series interface modules or 6ES5700-series backplanes, engineers should verify that the CPU firmware version supports 256KB flash addressing, as earlier firmware revisions on some CPU variants may require an update before the full memory capacity is accessible. Our technical team can assist with compatibility verification prior to shipment under the 12-Month Warranty program.

Q2: How does the 6ES5374-1KH21 support system redundancy and what is the recommended approach for maintaining program consistency in dual-CPU S5 architectures?

In S5 redundant CPU configurations, each CPU unit requires its own dedicated 6ES5374-1KH21 module to maintain independent program copies. Program synchronization between primary and standby CPUs is managed at the CPU level through the S5 redundancy coordination mechanism, not at the memory module level. Best practice for redundant architectures is to program both modules from the same verified source image using the STEP 5 programming environment, then perform a simultaneous online comparison to confirm bit-level consistency before commissioning. This approach ensures that a CPU switchover event does not introduce program version discrepancies that could affect process continuity. All modules supplied under our 12-Month Warranty are pre-tested for read/write integrity before shipment.

Q3: What is the recommended procedure for replacing a 6ES5374-1KH21 in a live S5 system, and how does the 12-Month Warranty support long-term maintenance planning?

Module replacement in a live S5 system requires the CPU to be placed in STOP mode before the memory module is extracted, as hot-swapping flash memory modules while the CPU is in RUN mode risks program corruption and uncontrolled I/O state changes. After installing the replacement 6ES5374-1KH21, the user program should be reloaded from a verified STEP 5 backup before returning the CPU to RUN mode. For facilities with critical uptime requirements, maintaining a spare 6ES5374-1KH21 in inventory — pre-programmed with the current production program — is strongly recommended as part of a proactive spare parts strategy. Our 12-Month Warranty covers functional defects from the date of shipment, providing procurement teams with a defined warranty horizon for budget planning and maintenance scheduling purposes.
