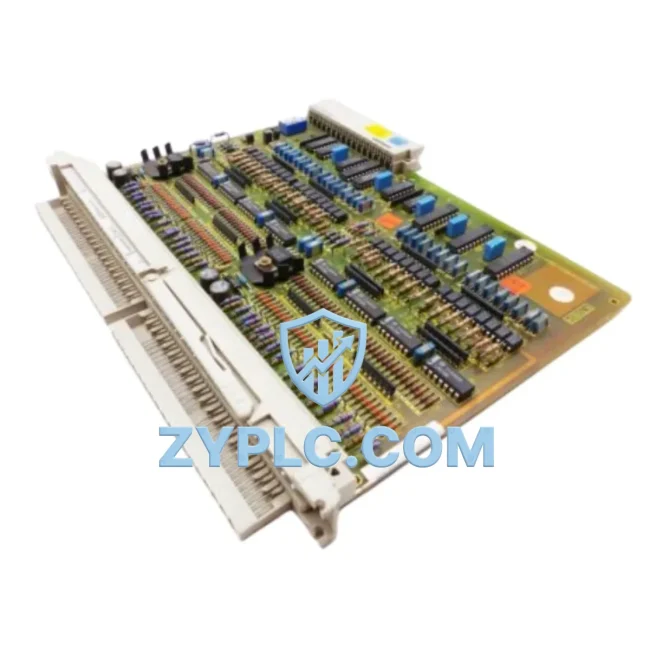

Siemens 6ES5434-4UA11 System-Ready Digital Input for SIMATIC S5 Architecture

Siemens 6ES5434-4UA11 System-Ready Digital Input for SIMATIC S5 Architecture

The Siemens 6ES5434-4UA11 is a 32-channel digital input module engineered for seamless integration within the SIMATIC S5 programmable logic controller platform. Designed to operate within the S5-115U, S5-135U, and S5-155U central controller families, this module serves as a critical signal acquisition node at the I/O layer of a layered industrial automation architecture. Its role extends beyond simple signal reading — it forms the foundation of reliable process data collection that feeds directly into the CPU’s scan cycle, enabling deterministic control response across manufacturing, energy, chemical, and infrastructure applications.

In a complete SIMATIC S5 control system, the 6ES5434-4UA11 is mounted on a central or expansion rack alongside companion modules such as the 6ES5432-4UA11 digital input module (16-channel variant), the 6ES5470-4UA12 digital output module, and the 6ES5482-4UA11 analog input module. These modules share the same S5 backplane bus, ensuring synchronized data exchange with the central processing unit — typically a 6ES5944-0UA11 or 6ES5948-0UA11 CPU module. The backplane itself, such as the 6ES5700-series rack, provides the physical and electrical backbone that ties the entire I/O subsystem together.

Signal integrity at the field level is maintained through proper terminal wiring practices and the use of compatible front connectors. The 6ES5434-4UA11 accepts 24 VDC digital signals from field devices including proximity sensors, limit switches, push buttons, and relay contacts. These signals are optically isolated before being passed to the backplane bus, protecting the CPU and other modules from electrical noise and transient surges common in industrial environments. This isolation characteristic is especially important in high-interference settings such as motor control centers, switchgear panels, and variable frequency drive (VFD) enclosures.

From a system architecture perspective, the 6ES5434-4UA11 participates in the horizontal integration of the control layer. The CPU module reads the input states during each program scan and uses this data to execute ladder logic, function block diagrams, or statement list programs stored in memory. When paired with a 6ES5095-8MA02 memory submodule or EPROM cartridge, the system can retain program data through power cycles, ensuring rapid restart capability after planned or unplanned shutdowns. This is a key requirement in continuous process industries such as petrochemical refining, water treatment, and power generation.

For applications requiring redundancy, the 6ES5434-4UA11 can be deployed in dual-rack configurations where a standby CPU — such as a second 6ES5948-0UA11 — monitors the active controller and assumes control within milliseconds of a detected fault. In such architectures, the digital input modules on both racks receive identical field signals through signal splitters or dual-wired field devices, ensuring that the standby system always has current process data. This redundancy model is widely adopted in safety-critical applications including turbine control, emergency shutdown systems, and high-availability conveyor systems.

Communication between the S5 controller and supervisory systems is typically handled through a 6ES5734-series SINEC L1 or L2 communication processor, or via a CP 5430 TF module for PROFIBUS-DP connectivity. These communication modules allow the SIMATIC S5 system to exchange data with SCADA platforms, historian servers, and higher-level MES systems, enabling full vertical integration from the field device level up to the enterprise layer. The 6ES5434-4UA11’s input data is thus not only consumed locally by the CPU but also made available to remote monitoring and analytics systems.

Installation and commissioning of the 6ES5434-4UA11 follow standard SIMATIC S5 procedures. The module is inserted into any available slot on the S5 rack and addressed through the CPU’s I/O configuration. No additional parameterization is required for basic digital input operation, which simplifies initial setup and reduces commissioning time. For system expansions, additional racks can be connected using the 6ES5700-series expansion interface, allowing the I/O count to scale without replacing the central CPU or reprogramming the control logic.

Long-term maintenance of the 6ES5434-4UA11 is straightforward due to the module’s plug-and-play design. Replacement in the field requires no special tools — the module is extracted from the rack, the front connector is transferred to the new unit, and the system resumes operation after a brief restart. Maintaining a spare inventory of critical I/O modules such as the 6ES5434-4UA11 is a best practice recommended for any facility operating legacy SIMATIC S5 systems, particularly where production continuity is paramount and downtime costs are high.

All units supplied by ZYPLC undergo functional testing prior to shipment, verifying channel-by-channel input response, optical isolation integrity, and backplane bus communication. Each module is covered by a 12-Month Warranty, providing assurance of quality and performance from the date of delivery. ZYPLC maintains stock of the 6ES5434-4UA11 and related SIMATIC S5 components to support urgent replacement needs and planned maintenance programs worldwide.

Architecture Specification Table

Coordinated Control System Design

The 6ES5434-4UA11 operates most effectively when deployed as part of a coordinated SIMATIC S5 system. A typical architecture includes the 6ES5948-0UA11 CPU 948 as the central processing unit, supported by a 6ES5955-3LC41 power supply module that delivers regulated 24 VDC and 5 VDC rails to the rack. On the output side, the 6ES5470-4UA12 digital output module drives actuators, solenoids, and relay coils based on the logic processed from the 6ES5434-4UA11’s input data. For analog process variables such as temperature, pressure, and flow, the 6ES5482-4UA11 analog input module complements the digital input layer, providing a complete signal acquisition solution within a single rack.

Network connectivity is achieved through the 6ES5734-1BD20 SINEC L2 communication processor, which links the S5 controller to plant-wide PROFIBUS networks. At the human-machine interface layer, a Siemens OP7 or OP17 operator panel provides local visualization and parameter entry, connected to the CPU via the programming port or a dedicated serial interface. For inter-rack expansion, the 6ES5700-8MA11 expansion rack accommodates additional 6ES5434-4UA11 modules, scaling the digital input capacity without architectural redesign. Terminal modules and front connectors from the 6ES5490-series complete the field wiring interface, ensuring secure and maintainable connections across the I/O layer.

Application in Layered Automation Systems

In manufacturing and assembly lines, the 6ES5434-4UA11 collects discrete signals from part-present sensors, conveyor position switches, and safety interlocks, feeding real-time status data to the S5 CPU for sequencing control. In power generation and substation automation, the module monitors breaker status, relay trip signals, and protection device outputs, providing the control layer with accurate grid state information. In petrochemical and refinery applications, it interfaces with field instruments in hazardous areas through appropriate signal conditioning barriers, capturing valve position feedback and pump run signals for process control logic.

For water and wastewater treatment plants, the 6ES5434-4UA11 monitors level switches, flow confirmation signals, and pump status across distributed pump stations, supporting both local and remote SCADA-based control. In mining and mineral processing, the module handles high-density discrete input requirements from conveyor systems, crusher interlocks, and emergency stop circuits, where reliability and signal integrity are non-negotiable. In metallurgical and steel plant applications, it operates within high-temperature, high-vibration environments, collecting process status signals from rolling mills, furnace controls, and cooling system interlocks. Across all these sectors, the 6ES5434-4UA11’s proven compatibility with the SIMATIC S5 platform ensures long-term operational continuity and simplified spare parts management.

Architecture Engineering FAQ

Q1: Is the 6ES5434-4UA11 compatible with both S5-115U and S5-135U systems, and can it be mixed with other I/O modules on the same rack?
Yes. The 6ES5434-4UA11 is fully compatible with the S5-115U, S5-135U, and S5-155U controller families. It can be freely mixed with other SIMATIC S5 I/O modules — including digital output, analog input, and analog output modules — on the same central or expansion rack. Slot assignment is configured through the CPU’s I/O address mapping, and no hardware jumpers are required for standard 24 VDC input operation.

Q2: How does the 6ES5434-4UA11 support system redundancy and what is required for a hot-standby configuration?
In a redundant SIMATIC S5 architecture, two identical racks — each containing a CPU and a set of I/O modules including the 6ES5434-4UA11 — are connected via a synchronization link. Field signals are wired to both racks simultaneously using signal splitters or dual-output field devices. The standby CPU continuously monitors the active CPU’s health and assumes control within one scan cycle upon detecting a fault. This configuration requires compatible redundancy CPUs (such as the 6ES5948-0UA11 in redundancy mode) and appropriate rack and power supply redundancy.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance for legacy SIMATIC S5 systems?
The 12-Month Warranty covers functional defects identified under normal operating conditions from the date of delivery. Each 6ES5434-4UA11 unit is tested prior to shipment to verify channel integrity and backplane communication. ZYPLC maintains ongoing stock of SIMATIC S5 modules to support both emergency replacements and planned maintenance programs. For long-term support, ZYPLC can assist with sourcing compatible modules across the S5 I/O range, helping facilities extend the operational life of their existing control infrastructure without costly platform migrations.
