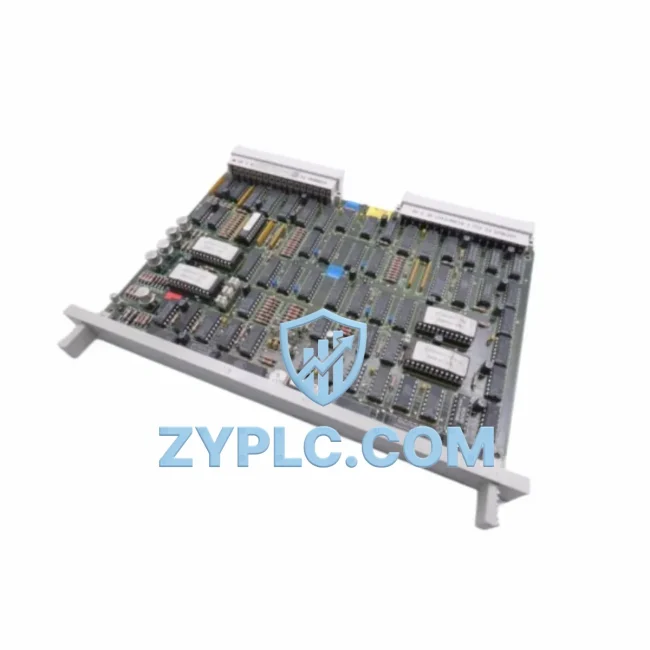

The Siemens 6ES5927-3SA12 (CPU 927) is a high-performance central processing unit engineered for deployment within the SIMATIC S5 programmable logic controller platform. Rather than functioning as a standalone component, this CPU module is designed to serve as the command nucleus of a fully integrated, multi-layer industrial control architecture. Its role spans the control layer, I/O layer, network layer, power supply layer, human-machine interface layer, and execution layer — making it a foundational element in complex automation systems across manufacturing, energy, petrochemical, water treatment, mining, metallurgy, packaging lines, and process control environments.

In a layered automation system, the 6ES5927-3SA12 occupies the control layer, where it executes user programs, manages data exchange between I/O modules, and coordinates communication with supervisory systems. Its architecture supports direct integration with the SIMATIC S5-115U, S5-135U, and S5-155U rack systems, enabling engineers to build scalable, modular control cabinets without redesigning the hardware backbone. The CPU interfaces seamlessly with digital and analog I/O modules such as the 6ES5430-4UA12 digital input module and the 6ES5470-4UA12 analog output module, ensuring precise signal acquisition and actuation across the process field.

From a network and communication perspective, the 6ES5927-3SA12 supports SINEC H1 and SINEC L2 industrial Ethernet and PROFIBUS protocols, enabling Contextual Integration with higher-level SCADA systems, distributed control nodes, and remote I/O stations. This communication capability allows the CPU to participate in peer-to-peer data exchange with other S5 CPUs or gateway modules such as the 6ES5734-3BD20 CP 5430 TF communication processor, facilitating coordinated multi-controller architectures in large-scale plant environments.

Power supply integrity is critical to CPU reliability. The 6ES5927-3SA12 is designed to operate within S5 rack systems powered by the 6ES5955-3LC41 or 6ES5955-3LF41 power supply modules, which provide regulated 24 VDC and 5 VDC rails to the backplane. Stable power delivery ensures uninterrupted program execution and protects volatile memory contents during transient grid disturbances. For applications requiring enhanced availability, the CPU supports hot-standby redundancy configurations when paired with a secondary CPU module and the appropriate redundancy coordinator, reducing unplanned downtime in critical process environments.

At the human-machine interface layer, the 6ES5927-3SA12 integrates with SIMATIC S5-compatible programming devices and operator panels via the PG/PC interface, supporting STEP 5 programming software for ladder logic, function block diagram, and statement list programming. Engineers can connect OP series operator panels or third-party HMI systems through the CP communication modules, enabling real-time process visualization and parameter adjustment without interrupting production cycles.

In the execution layer, the CPU coordinates with drive controllers, motor starters, valve actuators, and relay output modules. Its fast cycle time and deterministic program execution ensure that control commands reach field devices within the required response windows, maintaining process stability even under high I/O load conditions. The modular expansion capability of the S5 rack system allows engineers to add I/O modules, function modules such as the 6ES5308-3UA11 counter module, and intelligent modules without replacing the CPU, protecting the capital investment in the control architecture over the system’s operational lifetime.

Long-term maintainability is a defining advantage of the 6ES5927-3SA12 within established S5 installations. Spare parts availability, documented firmware behavior, and compatibility with existing STEP 5 project libraries allow maintenance teams to perform module replacements, firmware updates, and diagnostic routines without extensive retraining. All units supplied by ZYPLC are fully tested under operational conditions and covered by a 12-Month Warranty, ensuring confidence in module performance from commissioning through the warranty period.

Architecture Specification Table

Coordinated Control System Design

The 6ES5927-3SA12 achieves its full potential when deployed within a coordinated S5 system architecture. At the I/O layer, digital input modules such as the 6ES5430-4UA12 and analog input modules such as the 6ES5460-4UA13 feed process signals directly to the CPU via the S5 backplane, while analog output modules like the 6ES5470-4UA12 translate CPU commands into field-level control signals for drives and actuators. The 6ES5308-3UA11 high-speed counter module handles encoder and pulse inputs independently, offloading time-critical counting tasks from the main CPU cycle.

At the network layer, the 6ES5734-3BD20 CP 5430 TF communication processor extends the CPU’s connectivity to PROFIBUS DP networks, enabling distributed I/O expansion and integration with intelligent field devices such as variable frequency drives and smart sensors. For Ethernet-based supervisory communication, the 6ES5754-2LA0 CP 5754 provides SINEC H1 connectivity, linking the S5 controller to SCADA workstations and MES platforms. The 6ES5955-3LC41 power supply module ensures stable backplane power for all installed modules, while the 6ES5700-series terminal and interface modules provide reliable signal termination at the cabinet level. Together, these components form a coherent, maintainable control architecture with the 6ES5927-3SA12 at its core.

Application in Layered Automation Systems

The 6ES5927-3SA12 has been deployed across a wide range of industrial sectors where the SIMATIC S5 platform established its installed base. In manufacturing and assembly lines, the CPU manages sequential control of conveyor systems, robotic work cells, and quality inspection stations, coordinating I/O modules and HMI panels to maintain production throughput. In power generation and distribution facilities, the CPU’s deterministic execution and redundancy support make it suitable for substation automation and generator control panels where uninterrupted operation is mandatory.

In petrochemical and refinery applications, the 6ES5927-3SA12 controls valve sequencing, pump management, and safety interlock systems within hazardous area control rooms, interfacing with intrinsically safe I/O barriers and PROFIBUS-connected field instruments. Water and wastewater treatment plants rely on the CPU for pump station control, dosing system management, and telemetry data aggregation across geographically distributed sites. In mining and metallurgical operations, the CPU’s robust industrial design supports operation in high-vibration, high-dust environments, controlling conveyor drives, crusher systems, and smelting process controllers. Packaging and filling lines in food and beverage industries use the CPU to synchronize servo drives, filling heads, and labeling stations through coordinated I/O and communication modules, maintaining line speed and product quality standards.

Architecture Engineering FAQ

Q1: Is the 6ES5927-3SA12 compatible with existing SIMATIC S5-135U and S5-155U rack installations?
Yes. The 6ES5927-3SA12 (CPU 927) is designed for use in the SIMATIC S5-135U and S5-155U central controller units. It occupies the CPU slot in the central rack and communicates with all installed I/O, function, and communication modules via the S5 backplane bus. No rack hardware modifications are required for a direct module replacement in an existing installation, provided the power supply module meets the current draw requirements of the installed configuration.

Q2: Can the 6ES5927-3SA12 be used in a redundant CPU architecture, and what additional components are required?
The 6ES5927-3SA12 supports hot-standby redundancy configurations within the SIMATIC S5 platform. A redundant setup requires a second 6ES5927-3SA12 CPU module, a compatible redundancy coordinator module, and synchronized program memory submodules in both CPUs. The two CPUs operate in master/standby mode, with automatic switchover in the event of a CPU fault, minimizing process interruption. Engineering the redundancy configuration requires careful attention to program synchronization and I/O assignment, and ZYPLC’s technical team can provide application guidance as part of the procurement process.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance of S5 CPU modules?
All 6ES5927-3SA12 units supplied by ZYPLC are subject to functional testing under simulated operational conditions prior to dispatch. The 12-Month Warranty covers module failure under normal operating conditions, with replacement or repair support provided directly by ZYPLC. For long-term maintenance, ZYPLC maintains stock of S5-series CPU modules and compatible I/O and communication modules, enabling rapid spare parts fulfillment for installed S5 systems. Customers are encouraged to contact ZYPLC to discuss multi-unit procurement, exchange programs, and scheduled maintenance stock agreements to ensure continued system availability.
