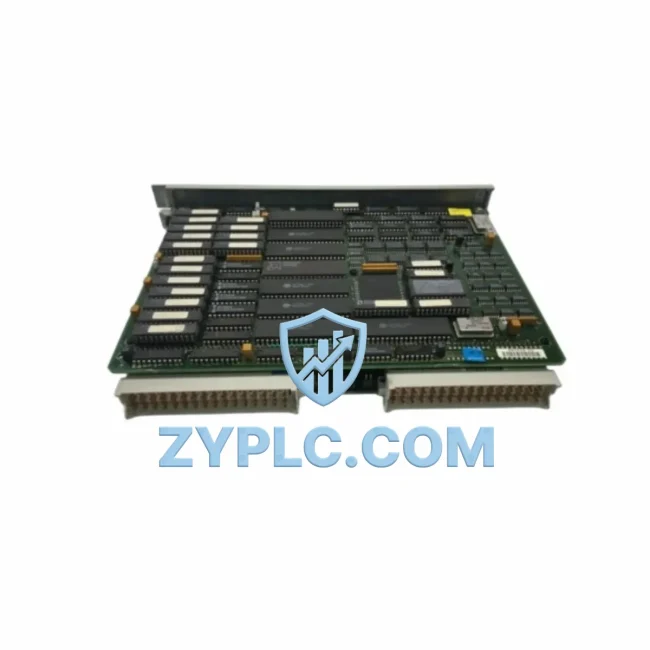

Siemens 6ES5946-3UA23 System-Ready CPU Processor for S5-900U Architecture

Siemens 6ES5946-3UA23 System-Ready CPU Processor for S5-900U Architecture: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6ES5946-3UA23 is a high-performance CPU946 central processing unit engineered specifically for the SIMATIC S5-900U programmable logic controller platform. Within a layered industrial automation architecture, this processor module occupies the critical control layer, orchestrating signal acquisition from the I/O layer, executing ladder logic and function block programs, managing communication across the network layer, and issuing command outputs to the execution layer. Its role is not simply computational — it is the architectural backbone that determines system consistency, scalability, redundancy capability, and long-term maintenance efficiency across the entire control cabinet.

Designed for demanding process environments, the 6ES5946-3UA23 integrates seamlessly into the S5-900U rack system, coordinating with upstream engineering workstations running STEP 5 programming software and downstream field devices including variable frequency drives, solenoid valve banks, and motor control centers. Its deterministic scan cycle and robust instruction set make it suitable for both discrete manufacturing control and continuous process regulation, ensuring that signal flow from sensor to actuator remains stable, traceable, and auditable throughout the system lifecycle.

Architecture Specification Table

Coordinated Control System Design

The 6ES5946-3UA23 CPU946 achieves its full architectural value only when considered within the complete S5-900U system context. At the power layer, the 6ES5948-0UA11 power supply module provides regulated 24 V DC to the central rack, ensuring that the CPU and all co-resident modules receive stable, noise-filtered power — a prerequisite for deterministic scan cycle performance. The CPU slots into the 6ES5900-0AA11 central rack (CR), which accommodates up to 18 module slots and supports both local and remote I/O expansion via the 6ES5318-8MA12 interface module.

At the I/O layer, digital input modules such as the 6ES5421-8MA11 32-channel DI module and digital output modules such as the 6ES5441-8MA11 32-channel DO module connect field sensors and actuators directly to the CPU’s I/O image table. For analog process signals — temperature, pressure, flow — the 6ES5466-8MA11 analog input module converts 4–20 mA or 0–10 V signals into digital values processed by the CPU946’s arithmetic and PID function blocks.

Network-layer integration is achieved through communication processor modules such as the 6ES5734-2BD20 CP734 SINEC L2 module, which enables the S5-900U system to participate in PROFIBUS-DP networks alongside distributed I/O stations, remote operator panels, and third-party field devices. For SINEC H1 Ethernet connectivity to SCADA systems or MES platforms, the 6ES5734-1BD20 CP734 H1 module provides the necessary TCP/IP gateway function without burdening the CPU’s main processing cycle.

At the human-machine interface layer, operator panels such as the Siemens OP7 or OP17 connect via the MPI or PROFIBUS interface, providing local process visualization and parameter adjustment without requiring a full SCADA workstation. This architecture supports both standalone machine control and integration into plant-wide DCS or SCADA hierarchies, making the 6ES5946-3UA23 a versatile anchor for both greenfield and brownfield automation projects.

For redundancy-critical applications, the CPU946 can be deployed in a hot-standby configuration using the 6ES5946-3UA23 paired with a redundancy coupler module, ensuring bumpless switchover in the event of a primary CPU fault — a design pattern common in power generation, water treatment, and petrochemical process control where unplanned downtime carries significant operational and safety consequences.

Application in Layered Automation Systems

Manufacturing & Discrete Production Lines: In automotive body-in-white welding lines and stamping press control systems, the 6ES5946-3UA23 manages multi-axis sequencing, interlocking logic, and production count tracking. Its fast binary instruction execution supports high-speed discrete I/O scanning, enabling precise coordination between robotic welding cells, conveyor indexing drives, and quality inspection stations.

Power Generation & Electrical Utilities: In thermal power plant auxiliary systems — including boiler feedwater pump control, induced draft fan regulation, and turbine lube oil system management — the CPU946 provides the deterministic control required for safe, continuous operation. Its compatibility with SINEC H1 communication allows integration with plant DCS systems for centralized monitoring and alarm management.

Petrochemical & Refinery Process Control: The 6ES5946-3UA23 is well-suited for reactor temperature and pressure control loops, distillation column management, and compressor anti-surge protection systems. Its analog I/O expansion capability, combined with PID function blocks in STEP 5, supports closed-loop process regulation across multiple control zones within a single CPU architecture.

Water & Wastewater Treatment: Municipal water treatment plants and industrial effluent systems rely on the S5-900U platform for pump station automation, chemical dosing control, and filtration cycle management. The CPU946’s robust operating temperature range and long-term spare parts availability make it a preferred choice for infrastructure projects requiring 15–20 year operational lifecycles.

Mining, Metallurgy & Heavy Industry: In ore processing plants, rolling mills, and smelting operations, the 6ES5946-3UA23 handles high-current drive coordination, conveyor belt tension control, and furnace temperature profiling. Its ability to manage large I/O point counts through expansion racks makes it scalable to the complex, distributed architectures typical of heavy industrial environments.

Architecture Engineering FAQ

Q1: Is the 6ES5946-3UA23 compatible with both the S5-900U central rack and expansion racks, and how many I/O modules can it address?
A: Yes. The CPU946 (6ES5946-3UA23) is designed for the S5-900U central rack (6ES5900-0AA11) and supports up to four expansion racks connected via interface modules (e.g., 6ES5318-8MA12 and 6ES5318-8MB12 pairs). The total addressable I/O capacity reaches 1024 digital input/output points, with additional analog channels available through dedicated analog I/O modules. This architecture supports large-scale process plants without requiring a second CPU or a separate PLC system.

Q2: Can the 6ES5946-3UA23 be integrated into a modern PROFIBUS-DP or Ethernet network alongside newer Siemens S7 systems?
A: Yes, through the use of communication processor modules. The CP734 series (e.g., 6ES5734-2BD20 for PROFIBUS-L2 and 6ES5734-1BD20 for SINEC H1 Ethernet) allows the S5-900U system to exchange data with PROFIBUS-DP master systems, S7-300/400 PLCs, and SCADA platforms via standard industrial protocols. This Contextual Integration capability enables the 6ES5946-3UA23 to serve as a subsystem controller within a hybrid automation architecture, preserving existing S5 investments while enabling phased migration to newer platforms.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance of the 6ES5946-3UA23?
A: The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. During the warranty period, defective units are repaired or replaced at no additional cost. For long-term maintenance, we maintain verified stock of the 6ES5946-3UA23 and related S5-900U components, enabling rapid replacement to minimize unplanned downtime. Our technical team provides pre-shipment functional testing, configuration documentation, and post-installation support to ensure seamless integration into your existing control architecture.
