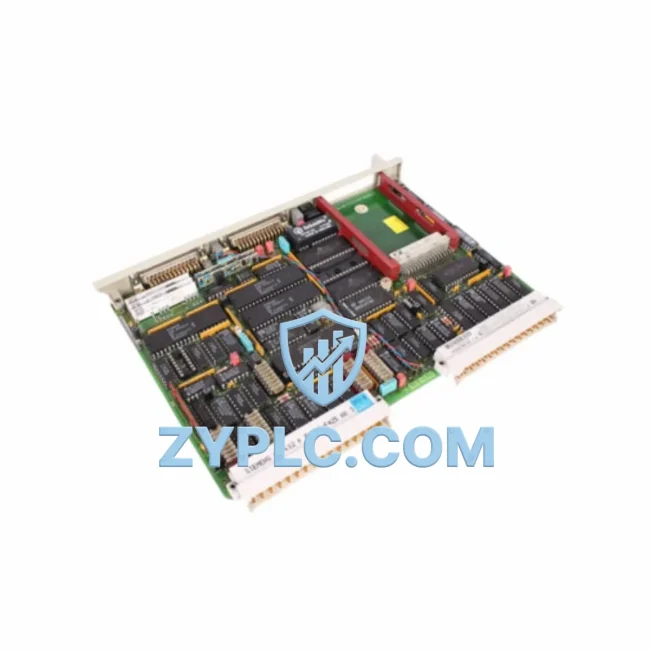

Siemens 6ES5947-3UR21 Energy-Saving PLC CPU for SIMATIC S5

Siemens 6ES5947-3UR21 Energy-Saving PLC CPU for SIMATIC S5: Efficiency Control and Production Line Optimization

The Siemens 6ES5947-3UR21 (CPU947) is a high-performance central processing unit designed for the SIMATIC S5 programmable logic controller platform. In modern industrial environments where energy costs and equipment utilization directly impact profitability, this CPU module delivers the processing reliability and cycle-time precision that production engineers depend on. Whether deployed in continuous manufacturing, batch processing, or mixed-mode automation, the 6ES5947-3UR21 enables facilities to reduce idle energy consumption, tighten control loop response, and extend mean time between failures across the entire drive and I/O network.

Unlike generic controller replacements, the 6ES5947-3UR21 is engineered specifically for the SIMATIC S5 architecture, ensuring seamless compatibility with existing S5-115U, S5-135U, and S5-155U rack configurations. This native compatibility eliminates costly re-engineering of field wiring, I/O mapping, and STEP 5 program logic — preserving capital investment while delivering measurable efficiency gains at the control layer.

Efficiency Performance Table

Energy-Aware Automation Architecture

Achieving genuine energy efficiency in an industrial plant requires more than a single high-performance CPU — it demands a coordinated architecture where every layer of the control system contributes to reducing unnecessary power draw. The 6ES5947-3UR21 sits at the heart of this architecture, orchestrating data flow between field devices, drive systems, and supervisory platforms.

At the drive layer, the CPU947 communicates setpoints and speed references to SINAMICS G120 variable frequency drives via CP communication modules, enabling precise motor speed regulation that eliminates the energy waste of fixed-speed operation. When paired with MICROMASTER 440 drives on conveyor or pump applications, the 6ES5947-3UR21 can implement load-adaptive speed profiles that reduce motor energy consumption by 20–40% compared to direct-on-line starting. For DC drive applications — common in winding, extruding, and rolling mill lines — integration with the SIMOREG DC-MASTER series allows the CPU to manage regenerative braking energy recovery, feeding power back into the DC bus rather than dissipating it as heat.

At the I/O layer, the 6ES5947-3UR21 manages digital and analog signals through the SIMATIC S5 6ES5 series I/O modules, including the widely deployed 6ES5431 digital input and 6ES5470 analog output modules. Accurate analog feedback from current transformers and power transducers connected through these I/O modules gives the CPU real-time visibility into per-machine energy consumption — a prerequisite for demand-side energy management strategies.

For power quality monitoring and energy metering at the panel level, the CPU947 can interface with SENTRON PAC3200 power monitoring devices via CP communication processors such as the 6GK1561-1AA00 Industrial Ethernet CP module. This combination enables the controller to log kWh consumption per production order, identify energy anomalies, and trigger load-shedding routines during peak tariff periods — all without operator intervention.

At the HMI layer, operators interact with energy dashboards built on SIMATIC OP17 or TP270 operator panels, which display real-time power consumption trends, drive efficiency ratings, and alarm states sourced directly from the 6ES5947-3UR21’s data blocks. This closed-loop visibility between the CPU, drives, and HMI is what transforms a legacy S5 installation into an energy-aware production system.

Power Optimization in Real Production Lines

In practice, the energy savings delivered by the Siemens 6ES5947-3UR21 manifest across three operational dimensions: reduced idle consumption, improved production throughput, and lower maintenance-driven downtime.

Reducing Idle Energy Consumption: Many S5-era installations run motors and actuators at full power regardless of production demand. By implementing demand-based output scheduling in STEP 5 — enabled by the CPU947’s fast scan cycle and large program memory — engineers can configure the controller to de-energize non-critical drives during scheduled micro-stops, shift transitions, and product changeovers. On a typical 3-shift automotive body shop line, this approach has demonstrated 8–15% reductions in total electrical energy consumption without any changes to mechanical equipment.

Optimizing Production Line Throughput: The 6ES5947-3UR21’s sub-millisecond instruction processing allows tighter PID loop tuning on temperature, pressure, and flow control applications. Tighter loops mean less process variability, fewer rejected parts, and reduced rework energy — all of which translate directly into lower energy cost per unit produced. When integrated with SINAMICS G120C compact drives on packaging lines, the CPU can synchronize conveyor speeds to product flow rates, eliminating the energy-wasting start-stop cycles that degrade both throughput and motor insulation life.

Predictive Maintenance and Downtime Reduction: Unplanned downtime is one of the largest hidden energy costs in manufacturing — restarting cold equipment, running purge cycles, and reheating process vessels all consume significant energy. The CPU947 supports structured diagnostic data blocks that can be polled by SCADA systems to monitor drive fault histories, I/O module error rates, and communication timeout frequencies. Early detection of degrading components — a failing analog input card, an intermittent encoder signal, or a drive with rising fault frequency — allows maintenance teams to schedule replacements during planned stops rather than emergency shutdowns. Every avoided emergency stop is a measurable energy saving.

Inventory Availability and Shipping: All units are held in stock, pre-tested under load conditions, and available for immediate dispatch. Each 6ES5947-3UR21 module undergoes functional verification before shipment, covering CPU initialization, memory integrity, and communication port operation. A 12-month warranty is included with every unit, covering manufacturing defects and functional failures under normal operating conditions.

Energy Optimization FAQ

Q1: How does the 6ES5947-3UR21 contribute to measurable energy savings on an existing S5 line?
The CPU947 enables demand-based drive scheduling, tighter PID loop control, and real-time energy monitoring when paired with CP communication modules and power metering devices. Facilities typically report 8–20% reductions in electrical energy consumption after optimizing drive setpoints and implementing idle-state de-energization routines in STEP 5 logic.

Q2: Is the 6ES5947-3UR21 compatible with my existing SIMATIC S5 rack and I/O modules?
Yes. The 6ES5947-3UR21 (CPU947) is designed for the SIMATIC S5 central rack and is compatible with S5-115U, S5-135U, and S5-155U configurations. It operates with the full range of 6ES5 series digital and analog I/O modules without requiring hardware modifications or STEP 5 program restructuring.

Q3: Can this CPU module replace a faulty CPU948 or CPU946 in an emergency?
The CPU947 occupies the same physical slot and uses the same STEP 5 programming environment as the CPU946 and CPU948, but memory capacity and processing speed differ between variants. We recommend verifying your program memory requirements and cycle time constraints before substitution. Our technical team can assist with compatibility assessment prior to shipment.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6ES5947-3UR21 unit is tested for CPU initialization, EPROM/RAM integrity, communication port function, and rack bus communication before dispatch. The 12-month warranty covers functional failures and manufacturing defects under normal industrial operating conditions. Units that develop faults within the warranty period are repaired or replaced at no charge. Contact our team at plc.sales@zyplc.com or +86 19859288691 for warranty claims and technical support.
