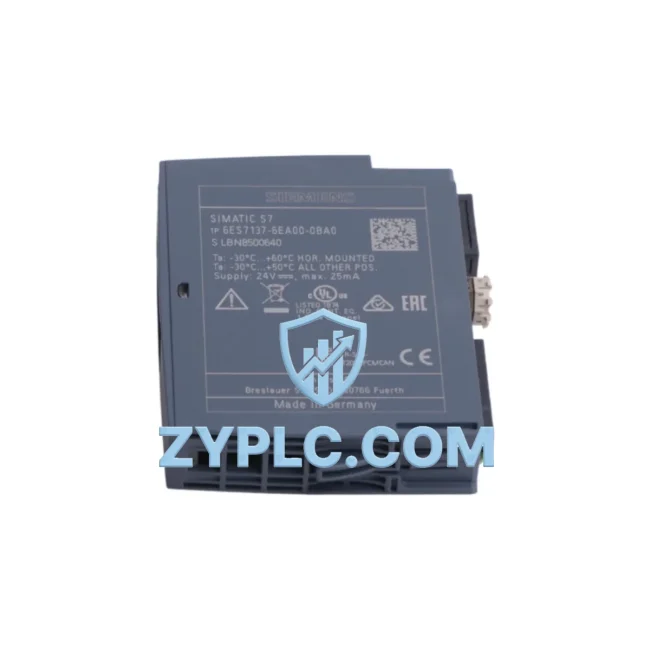

Siemens 6ES7137-6EA00-0BA0: System-Ready Communication Module for ET 200SP Control Architecture

The Siemens 6ES7137-6EA00-0BA0 is a dedicated communication module engineered for seamless integration within the ET 200SP distributed I/O platform — one of the most widely deployed modular I/O systems in modern industrial automation. Rather than functioning as a standalone component, this module is designed to operate as a critical node within a layered control architecture, enabling reliable data exchange between field-level devices and higher-level control systems such as SIMATIC S7-1500 or S7-1200 CPUs. Its role spans the boundary between the I/O layer and the network layer, making it an essential element in any system where communication consistency, deterministic response, and long-term maintainability are engineering priorities.

In a complete automation architecture, the 6ES7137-6EA00-0BA0 occupies a strategic position. At the control layer, it interfaces with SIMATIC S7-1500 CPUs — including variants such as the CPU 1515-2 PN or CPU 1516-3 PN/DP — via PROFINET, ensuring that process data from distributed I/O stations is delivered with minimal latency and high cycle-time consistency. At the I/O layer, it coordinates with standard ET 200SP I/O modules such as digital input modules (e.g., 6ES7131-6BH01-0BA0), digital output modules (e.g., 6ES7132-6BH01-0BA0), and analog input modules (e.g., 6ES7134-6GD01-0BA1), all mounted on a shared BaseUnit backplane. This tight integration eliminates the need for additional gateway hardware in most standard configurations, reducing both cabinet footprint and potential failure points.

From a network architecture perspective, the module supports PROFINET IO communication, enabling it to participate in ring topologies with Media Redundancy Protocol (MRP) support when paired with appropriate infrastructure switches. This is particularly valuable in applications where network continuity is non-negotiable — such as power distribution substations, continuous process lines, or safety-instrumented systems. The module’s communication stack is fully compatible with TIA Portal V15 and later, allowing engineers to configure, parameterize, and diagnose the device within the same engineering environment used for the CPU, HMI panels (e.g., SIMATIC TP700 Comfort or KTP900 Basic), and drive systems.

At the power layer, the 6ES7137-6EA00-0BA0 draws its operating voltage from the ET 200SP system bus, supplied through a dedicated power module such as the 6ES7138-6AA01-0BA0 load group supply. This design ensures that communication functionality remains isolated from field-side power fluctuations, supporting stable operation even in environments with variable load conditions. For applications requiring redundant power supply architectures, the module can be deployed alongside redundant power feed configurations to maintain uptime during single-point power failures.

In terms of system scalability, the 6ES7137-6EA00-0BA0 supports the ET 200SP’s modular expansion philosophy. A single ET 200SP station can accommodate up to 64 I/O modules per head station, and the communication module enables the station to be addressed as an independent PROFINET IO device — allowing engineers to distribute I/O across multiple physical locations while maintaining centralized control logic. This architecture is particularly effective in large-scale manufacturing plants, water treatment facilities, and mining operations where field devices are geographically dispersed but must be managed from a unified SCADA or DCS platform.

For maintenance engineers, the module provides integrated diagnostic capabilities accessible via TIA Portal’s online monitoring tools. Fault states, communication interruptions, and module health indicators are reported in real time, enabling rapid fault isolation without requiring physical inspection of the cabinet. This reduces mean time to repair (MTTR) and supports predictive maintenance strategies in facilities operating under continuous production schedules.

All units supplied by ZYPLC undergo functional verification prior to dispatch and are covered by a 12-Month Warranty, ensuring that system integrators and end users can deploy the module with confidence in both performance and supply chain reliability.

Architecture Specification Table

Coordinated Control System Design

The 6ES7137-6EA00-0BA0 achieves its full value when deployed as part of a coordinated system rather than in isolation. In a typical SIMATIC-based architecture, the module serves as the communication head for an ET 200SP station that may include a combination of the following components: digital input modules such as the 6ES7131-6BH01-0BA0 for 16-channel 24 V DC signal acquisition; digital output modules such as the 6ES7132-6BH01-0BA0 for relay or transistor-driven actuator control; and analog input modules such as the 6ES7134-6GD01-0BA1 for 4–20 mA process signal conditioning. These modules share a common BaseUnit backplane, with the communication module managing all upstream data aggregation and transmission.

At the control layer, the station communicates with a SIMATIC S7-1500 CPU 1515-2 PN or CPU 1516F-3 PN/DP (for safety-integrated applications), which handles the PLC logic, process interlocks, and communication scheduling. For applications requiring human-machine interaction at the field level, a SIMATIC KTP900 Basic Panel or TP1200 Comfort Panel can be integrated into the same PROFINET segment, providing operators with real-time process visualization and alarm management without additional network infrastructure.

Power distribution within the cabinet is managed through a dedicated 6ES7138-6AA01-0BA0 ET 200SP power module, which supplies the system bus voltage and supports load group segmentation for field-side isolation. For applications with stringent uptime requirements, a redundant 24 V DC power supply — such as the SITOP PSU8200 series — can be integrated upstream to ensure continuous operation during mains disturbances. Communication infrastructure between the ET 200SP station and the S7-1500 CPU is typically routed through an SCALANCE X208 managed switch, which supports MRP ring topology and VLAN segmentation for network security compliance.

Application in Layered Automation Systems

The 6ES7137-6EA00-0BA0 is deployed across a broad range of industrial sectors where distributed I/O architecture and reliable PROFINET communication are engineering requirements. In manufacturing and assembly automation, the module enables precise coordination between robotic work cells, conveyor systems, and quality inspection stations by providing deterministic I/O response times within the ET 200SP station. In power generation and distribution facilities, it supports substation automation by connecting field-level protection relays, circuit breaker status signals, and transformer monitoring inputs to the central SCADA system via PROFINET, with MRP redundancy ensuring communication continuity during network maintenance windows.

In petrochemical and refinery applications, the module is deployed in Ex-zone-adjacent control panels where the ET 200SP system’s modular design allows engineers to configure zone-specific I/O expansions without redesigning the entire control architecture. For water and wastewater treatment plants, the module’s diagnostic transparency supports remote monitoring of pump stations and dosing systems, reducing the need for on-site maintenance visits. In mining and metallurgical operations, where environmental conditions are demanding and equipment reliability is critical, the module’s robust operating temperature range and IP20 protection (within sealed enclosures) make it suitable for deployment in motor control centers and conveyor drive panels. Packaging and filling lines benefit from the module’s fast cycle-time support, enabling synchronized control of servo drives, vision systems, and reject mechanisms within a single PROFINET IO domain.

Architecture Engineering FAQ

Q1: Is the 6ES7137-6EA00-0BA0 compatible with both S7-1500 and S7-1200 CPU platforms, and are there any configuration constraints?
The 6ES7137-6EA00-0BA0 is fully compatible with SIMATIC S7-1500 and S7-1200 CPUs when configured as a PROFINET IO device within TIA Portal. For S7-1200 applications, engineers should verify the maximum number of IO devices supported by the specific CPU variant, as lower-tier S7-1200 models may have restrictions on the number of simultaneously active PROFINET IO connections. Configuration is performed via the hardware catalog in TIA Portal V15 or later, where the module’s GSD file is pre-installed. No additional licensing is required for standard PROFINET RT communication.

Q2: Can this module be used in a redundant PROFINET ring topology, and what infrastructure is required?
Yes. The 6ES7137-6EA00-0BA0 supports Media Redundancy Protocol (MRP) as a ring node when deployed with MRP-capable network infrastructure such as the SCALANCE X208 or X212-2 managed switches. The S7-1500 CPU must be configured as the MRP manager, and all ring nodes — including this communication module — must be set as MRP clients within TIA Portal’s network configuration. Ring reconfiguration time is typically under 200 ms, meeting the requirements of most non-safety-critical continuous process applications. For faster reconfiguration, PROFINET IRT with MRPD (Media Redundancy for Planned Duplication) should be evaluated.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for this module?
The 12-Month Warranty provided by ZYPLC covers functional defects identified under normal operating conditions, including communication failures, hardware faults, and firmware-related issues attributable to the module itself. Warranty claims are processed through ZYPLC’s technical support team, reachable at [email protected] or +86 19859288691. For long-term maintenance planning, ZYPLC maintains stock of the 6ES7137-6EA00-0BA0 and compatible ET 200SP components to support spare parts programs for facilities operating under multi-year maintenance contracts. Engineers are encouraged to contact ZYPLC for bulk availability and lead time confirmation prior to project commissioning.
