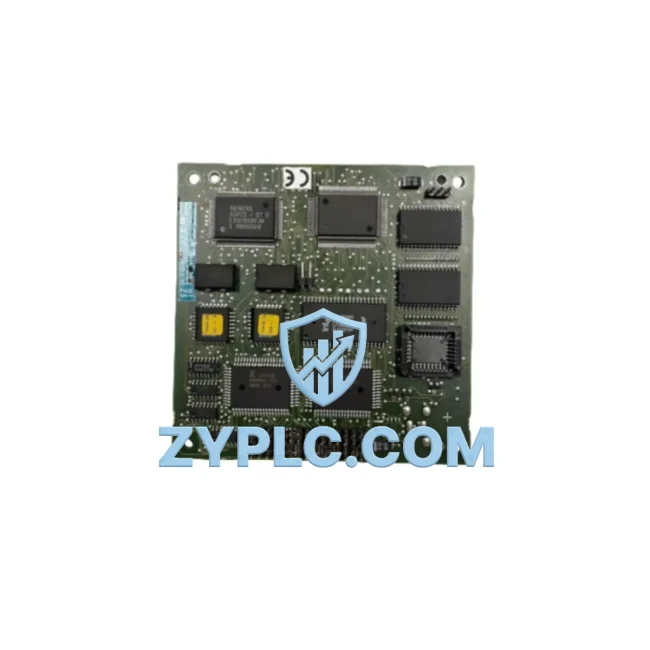

Siemens 6ES7180-0AA00-0XA0 System-Ready Interface Module for ET 200M

Siemens 6ES7180-0AA00-0XA0 System-Ready Interface Module for ET 200M Architecture

In distributed automation architectures, the interface module is not a peripheral accessory — it is the structural backbone that determines how reliably a remote I/O station communicates with the central controller. The Siemens 6ES7180-0AA00-0XA0 is the IM 153-1 Interface Module designed specifically for the ET 200M distributed I/O system, enabling seamless contextual integration between field-level signal acquisition and the S7-300 or S7-400 control platform via PROFIBUS DP. Understanding this module’s role requires examining the full control system architecture in which it operates: from the CPU layer down through the I/O layer, across the network layer, and into the power and execution layers that sustain continuous industrial processes.

The 6ES7180-0AA00-0XA0 connects the ET 200M station to the PROFIBUS DP network as a DP slave, allowing the host CPU — such as a Siemens CPU 315-2 DP (6ES7315-2AH14-0AB0) or CPU 317-2 DP (6ES7317-2AK14-0AB0) — to cyclically exchange process data with distributed I/O modules installed on the same rack. This architecture eliminates the need for long signal cable runs from field devices back to a central cabinet, reducing wiring costs, improving signal integrity, and enabling modular expansion of the control system without redesigning the central panel.

Within the ET 200M station, the 6ES7180-0AA00-0XA0 interfaces directly with the rack backplane, coordinating data flow between the PROFIBUS DP network and the installed signal modules. These may include digital input modules such as the SM 321 (6ES7321-1BH02-0AA0), digital output modules such as the SM 322 (6ES7322-1BH01-0AA0), analog input modules such as the SM 331 (6ES7331-7KF02-0AB0), and analog output modules such as the SM 332 (6ES7332-5HF00-0AB0). Each of these modules communicates through the backplane bus managed by the interface module, which handles address mapping, diagnostic reporting, and cyclic data transfer to the PROFIBUS master.

Architecture Specification Table

Coordinated Control System Design

A complete ET 200M station built around the 6ES7180-0AA00-0XA0 requires careful coordination across multiple system layers. At the power layer, the PS 307 5A power supply module (6ES7307-1EA01-0AA0) provides the 24 V DC rail voltage required by both the interface module and the installed signal modules. Stable power delivery is critical: voltage fluctuations at the rack level can cause the interface module to report diagnostic faults to the PROFIBUS master, triggering unnecessary process interruptions.

At the network layer, the PROFIBUS DP segment connecting the 6ES7180-0AA00-0XA0 to the CPU must be properly terminated and shielded. In installations where multiple ET 200M stations share a single PROFIBUS segment, the CP 342-5 communications processor (6GK7342-5DA02-0XE0) may be used at the CPU rack to manage PROFIBUS master functionality independently of the CPU’s integrated DP port, freeing CPU processing capacity for control logic execution. For larger architectures requiring PROFIBUS-to-PROFINET gateway functionality, the IE/PB Link PN IO (6GK1411-5AB00) enables integration of legacy PROFIBUS segments into modern PROFINET-based control systems without replacing existing field devices.

At the I/O layer, the modular design of the ET 200M station allows engineers to mix digital and analog signal modules on the same rack. The IM 153-1 interface module supports up to eight S7-300 compatible signal modules, enabling a single ET 200M station to handle a broad range of field signals — from discrete valve and motor control outputs to 4–20 mA process variable inputs from pressure transmitters, flow meters, and temperature sensors. For applications requiring intrinsically safe signal conditioning, Ex-rated signal modules can be installed in the same rack, with the interface module transparently managing their data exchange over PROFIBUS.

At the HMI layer, operator stations running Siemens WinCC or WinCC flexible communicate with the S7-300 CPU via MPI or PROFINET, accessing process data that originates from field devices connected through the ET 200M station. The 6ES7180-0AA00-0XA0 ensures that this data path remains consistent and low-latency, supporting HMI update cycles that reflect real-time process conditions. For panel-mounted HMI applications, the Siemens TP700 Comfort (6AV2124-0GC01-0AX0) provides a robust operator interface that integrates directly with the S7-300 control platform.

Redundancy considerations are also relevant in high-availability applications. While the standard 6ES7180-0AA00-0XA0 does not support Y-Link redundancy natively, it can be deployed alongside redundant PROFIBUS segments using the Y-Link module (6ES7197-1LB00-0XA0) in architectures where partial redundancy is acceptable. For full redundant ET 200M configurations, the IM 153-2 (6ES7153-2BA02-0XB0) is the appropriate interface module, and understanding the distinction between these two variants is essential during system design to avoid costly retrofits during commissioning.

Application in Layered Automation Systems

The Siemens 6ES7180-0AA00-0XA0 is deployed across a wide range of industrial sectors where distributed I/O architecture is preferred over centralized wiring. In manufacturing automation, ET 200M stations equipped with this interface module are installed at machine cells along production lines, collecting signals from proximity sensors, servo drive status outputs, and pneumatic valve feedback contacts. The PROFIBUS DP connection to the central S7-300 or S7-400 CPU enables coordinated multi-axis sequencing with deterministic cycle times.

In power generation and electrical substation automation, the ET 200M station provides a cost-effective means of distributing I/O across large switchgear panels. The 6ES7180-0AA00-0XA0 connects protection relay status signals, circuit breaker position feedbacks, and transformer tap changer controls to the SCADA-integrated PLC, supporting IEC 61850-compatible architectures when combined with appropriate protocol converters.

In petrochemical and refinery applications, the ET 200M station is installed in field junction boxes or local control panels, collecting signals from pressure safety valves, level transmitters, and flow control loops. The interface module’s diagnostic capability allows maintenance engineers to identify faulty signal modules remotely via the PROFIBUS diagnostic interface, reducing the need for physical inspection in hazardous areas.

Water treatment and wastewater facilities use ET 200M stations to distribute I/O across pump stations, filtration banks, and chemical dosing systems. The 6ES7180-0AA00-0XA0 supports long PROFIBUS cable runs — up to 1,200 meters at 93.75 kbit/s — making it suitable for geographically distributed installations where fiber optic PROFIBUS repeaters extend the network further.

In mining and metallurgical applications, the robustness of the ET 200M platform and the diagnostic transparency provided by the 6ES7180-0AA00-0XA0 are valued for conveyor control, crusher monitoring, and smelter process automation. The module’s wide operating temperature range and vibration tolerance support installation in harsh industrial environments where standard office-grade electronics would fail prematurely.

Architecture Engineering FAQ

Q1: Is the 6ES7180-0AA00-0XA0 compatible with both S7-300 and S7-400 CPUs as the PROFIBUS DP master?
Yes. The 6ES7180-0AA00-0XA0 operates as a PROFIBUS DP slave and is compatible with any PROFIBUS DP master, including S7-300 CPUs with integrated DP ports (e.g., CPU 315-2 DP, CPU 317-2 DP), S7-400 CPUs with DP interfaces, and third-party PROFIBUS masters that conform to the EN 50170 standard. The GSD file for the IM 153-1 must be imported into the engineering tool (STEP 7 or TIA Portal with legacy support) to configure the station correctly.

Q2: How many signal modules can be installed in an ET 200M station using this interface module, and are there address space limitations?
The 6ES7180-0AA00-0XA0 supports up to 8 S7-300 signal modules per ET 200M station. The total I/O data exchanged over PROFIBUS is limited by the DP slave’s input/output data length, which must be configured within the PROFIBUS master’s address space. In STEP 7 HW Config, the system automatically calculates the required DP data length based on the installed modules. Engineers should verify that the total data length does not exceed the master CPU’s DP slave address space limits, particularly in systems with many ET 200M stations on a single PROFIBUS segment.

Q3: What does the 12-Month Warranty cover, and how is long-term spare parts availability managed for this module?
All units supplied are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, each 6ES7180-0AA00-0XA0 is functionally tested to verify PROFIBUS communication, backplane bus integrity, and diagnostic reporting. For long-term maintenance planning, we recommend holding at least one spare interface module per PROFIBUS segment in critical applications, as the ET 200M station will go offline if the interface module fails and no hot-standby redundancy is configured. Our inventory is maintained to support ongoing spare parts requirements for installed base systems, and replacement units are available with short lead times to minimize unplanned downtime.

—
