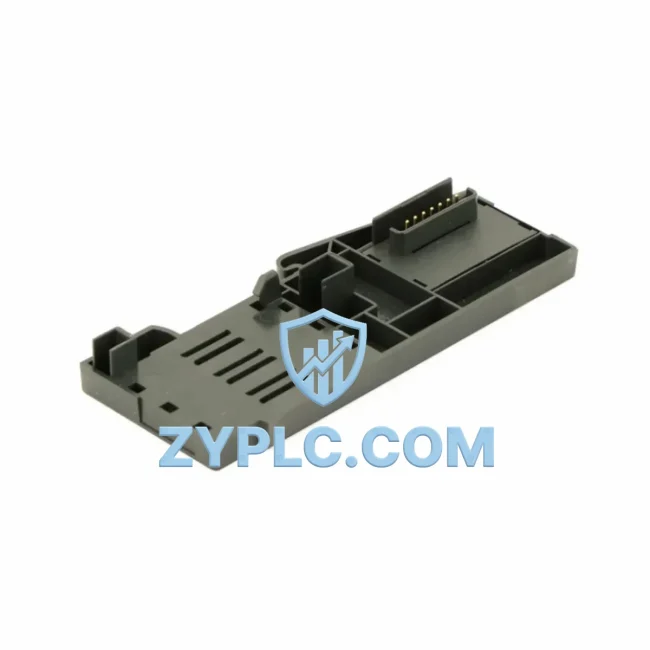

Siemens 6ES7193-4JA00-0AA0 System-Ready Termination Module for ET 200S Architecture

Siemens 6ES7193-4JA00-0AA0 System-Ready Termination Module for ET 200S Architecture

The Siemens 6ES7193-4JA00-0AA0 is a precision-engineered termination module designed to serve as a critical endpoint component within the ET 200S distributed I/O architecture. Rather than functioning as a standalone accessory, this module plays a structurally essential role in defining the physical and electrical boundary of each ET 200S station. In modern industrial automation environments — spanning manufacturing, power distribution, petrochemical processing, water treatment, mining, metallurgy, and packaging lines — the integrity of the I/O station boundary directly determines the reliability of the entire control loop. The 6ES7193-4JA00-0AA0 ensures that every ET 200S station terminates correctly, preventing signal reflection, bus errors, and unintended electrical continuity that could compromise system-wide performance.

Within a layered automation architecture, the ET 200S station sits at the I/O layer, receiving commands from the control layer — typically a Siemens S7-300 or S7-400 CPU such as the CPU 315-2 DP or CPU 414-3 PN/DP — and translating those commands into field-level signals that drive actuators, sensors, and process instruments. The 6ES7193-4JA00-0AA0 termination module works in direct coordination with the IM 151-1 interface module, which manages PROFIBUS DP communication between the ET 200S station and the central controller. Without a properly installed termination module, the IM 151-1 cannot establish a stable bus segment, and the entire distributed station risks communication dropout under electrical noise or load variation.

At the power layer, the ET 200S station relies on PM-E power modules — such as the PM-E DC24V or PM-E DC24V/AC24..230V — to supply segmented voltage rails across the I/O modules. The 6ES7193-4JA00-0AA0 termination module closes the mechanical and electrical circuit of the terminal block assembly, ensuring that power distribution across digital input modules (e.g., 2DI DC24V HF), digital output modules (e.g., 2DO DC24V/0.5A), and analog I/O modules remains stable and isolated from adjacent segments. This segmentation is fundamental to achieving zone-based fault isolation, a key requirement in safety-instrumented and process-critical applications.

From a network layer perspective, the ET 200S station communicates over PROFIBUS DP at speeds up to 12 Mbit/s. The termination module contributes to bus impedance matching at the physical layer, reducing signal degradation across long cable runs in large-scale installations. In facilities where multiple ET 200S stations are daisy-chained along a PROFIBUS segment — alongside other field devices such as Siemens SINAMICS G120 drives, SITOP power supplies, or third-party PROFIBUS slaves — proper termination at each station endpoint is non-negotiable for maintaining deterministic communication cycles.

At the human-machine interface layer, operators monitoring the system through a Siemens SIMATIC HMI panel — such as the TP700 Comfort or KTP900 Basic — depend on accurate, real-time I/O data flowing from the ET 200S stations. Any bus instability caused by improper termination will manifest as sporadic tag dropouts, false alarms, or delayed process visualization, directly impacting operator decision-making and plant safety. The 6ES7193-4JA00-0AA0 eliminates this risk by providing a mechanically secure, electrically correct station termination that remains stable across the full operating temperature range of the ET 200S system.

For engineering teams responsible for cabinet design and system commissioning, the 6ES7193-4JA00-0AA0 simplifies the build process. It snaps directly onto the ET 200S rail assembly without tools, aligns with the standard 35 mm DIN rail mounting used across Siemens SIMATIC field devices, and requires no additional wiring or configuration in STEP 7 or TIA Portal. This plug-and-play characteristic reduces commissioning time and eliminates a common source of wiring errors in distributed I/O panels. During long-term maintenance cycles, the module can be replaced without disturbing adjacent I/O modules, supporting hot-swap-compatible maintenance strategies in facilities that cannot afford unplanned downtime.

Inventory availability and supply chain continuity are critical considerations for plant engineers managing multi-year automation projects. ZYPLC maintains stock of the 6ES7193-4JA00-0AA0 to support both new system builds and ongoing maintenance programs. Every unit is covered by a 12-Month Warranty, ensuring that procurement teams can plan with confidence. Whether you are expanding an existing ET 200S installation, replacing end-of-life termination modules, or building a new distributed control cabinet, the 6ES7193-4JA00-0AA0 provides the system-ready Contextual Integration that modern industrial architectures demand.

Architecture Specification Table

Coordinated Control System Design

The 6ES7193-4JA00-0AA0 termination module is most effective when specified as part of a complete ET 200S station build. A typical coordinated station includes the IM 151-1 Standard interface module for PROFIBUS DP connectivity, one or more PM-E DC24V power modules for segmented power distribution, and a combination of 2DI DC24V HF digital input modules and 2DO DC24V/0.5A digital output modules for field signal acquisition and actuation. Analog process values are handled by 2AI U HF analog input modules or 2AO U HF analog output modules, depending on the process variable being monitored or controlled.

At the control layer, the ET 200S station connects to a Siemens S7-300 CPU 315-2 DP or a CPU 317-2 PN/DP via PROFIBUS DP, with the CPU residing in a centralized S7-300 rack equipped with a PS 307 5A power supply module. In larger installations requiring high-availability control, the ET 200S station may be integrated into a redundant architecture using the IM 151-7 CPU variant, which supports standalone CPU operation at the field level. Communication gateways such as the IE/PB Link PN IO enable seamless protocol bridging between PROFIBUS DP field segments and PROFINET-based supervisory networks, extending the reach of the ET 200S architecture into modern Ethernet-based plant topologies.

Application in Layered Automation Systems

In automotive manufacturing and discrete production lines, ET 200S stations terminated with the 6ES7193-4JA00-0AA0 are deployed in conveyor control panels, robotic cell junction boxes, and press line I/O cabinets, where compact form factor and reliable bus termination are essential for high-cycle-rate operations. In power generation and electrical substation environments, the module supports distributed monitoring of switchgear status, transformer protection relays, and breaker position feedback, where signal integrity across long PROFIBUS cable runs is critical. In petrochemical and refinery applications, ET 200S stations are installed in Ex-zone-adjacent control rooms, with the termination module ensuring that each station boundary is electrically defined to prevent ground loops that could trigger false process alarms. In water and wastewater treatment facilities, the module supports pump station I/O panels where multiple ET 200S stations monitor flow, pressure, and level transmitters across geographically distributed pump houses. In mining and metallurgical operations, the 6ES7193-4JA00-0AA0 is used in conveyor drive control panels and ore processing I/O stations, where vibration resistance and reliable bus termination are required for continuous 24/7 operation.

Architecture Engineering FAQ

Q1: Is the 6ES7193-4JA00-0AA0 compatible with all ET 200S interface modules, and does it require configuration in TIA Portal or STEP 7?
The 6ES7193-4JA00-0AA0 is mechanically and electrically compatible with all standard ET 200S interface modules, including the IM 151-1 Standard, IM 151-1 FO, and IM 151-7 CPU variants. It requires no software configuration in either STEP 7 or TIA Portal — it is a purely mechanical and electrical termination component that is recognized automatically by the ET 200S station assembly. Simply snap it onto the rail at the rightmost position of the station to complete the bus segment.

Q2: Can the 6ES7193-4JA00-0AA0 be replaced during live system operation without shutting down the entire ET 200S station?
Replacement of the termination module requires the ET 200S station to be powered down, as removing the module disrupts the mechanical integrity of the terminal block assembly. However, because the module is located at the physical end of the station, its replacement does not require disturbing any I/O modules or field wiring. In planned maintenance windows, the module can be swapped in under five minutes, minimizing station downtime. All units supplied by ZYPLC are covered by a 12-Month Warranty, supporting long-term maintenance planning.

Q3: What is the recommended approach for integrating ET 200S stations terminated with the 6ES7193-4JA00-0AA0 into a mixed PROFIBUS/PROFINET architecture?
In mixed-protocol architectures, the ET 200S PROFIBUS segment should be designed with the IE/PB Link PN IO gateway, which bridges the PROFIBUS DP segment — including all ET 200S stations — to the PROFINET IO controller network. Each ET 200S station must be correctly terminated at both ends of the PROFIBUS segment: the first station uses the integrated termination resistors on the PROFIBUS connector, while the last station uses the 6ES7193-4JA00-0AA0 to close the station assembly. This dual-termination approach ensures impedance matching across the full cable length, maintaining deterministic cycle times even in electrically noisy industrial environments.
