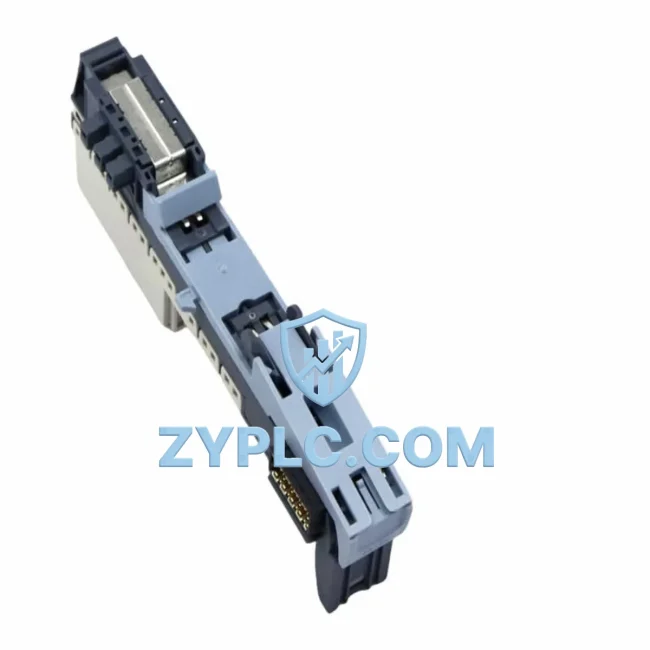

Siemens 6ES7193-6BP00-0DA1 System-Ready BaseUnit for ET 200SP Architecture

Siemens 6ES7193-6BP00-0DA1 System-Ready BaseUnit for ET 200SP Architecture

The Siemens 6ES7193-6BP00-0DA1 is a BU15-P16+A0+2D BaseUnit designed for the SIMATIC ET 200SP distributed I/O system. Within a layered automation architecture, this BaseUnit serves as the physical and electrical foundation upon which I/O modules, communication interfaces, and terminal assemblies are mounted and interconnected. It is not simply a passive carrier — it actively participates in the signal routing, potential distribution, and module-to-module communication that define the reliability and scalability of a modern control system.

In distributed automation environments, the ET 200SP station is typically deployed at the field level, positioned between the central controller and the physical process. The 6ES7193-6BP00-0DA1 BaseUnit accepts a wide range of I/O modules — digital input, digital output, analog input, and analog output — and provides the backplane connectivity that allows each module to communicate with the ET 200SP interface module above it. This architecture eliminates the need for separate terminal blocks and wiring harnesses, reducing cabinet footprint and simplifying commissioning significantly.

From a system architecture perspective, the BU15-P16+A0+2D variant supports 16 potential connections on the P-side, with additional auxiliary and diagnostic contacts. This makes it well suited for applications where signal density is high and cabinet space is constrained — common in packaging lines, water treatment stations, and process control panels in the petrochemical and pharmaceutical industries.

Architecture Specification Table

Coordinated Control System Design

The 6ES7193-6BP00-0DA1 BaseUnit operates within a tightly coordinated system architecture. At the control layer, a SIMATIC S7-1500 CPU — such as the CPU 1516-3 PN/DP — acts as the central processing unit, executing the control program and managing all downstream I/O communication. The S7-1500 connects to the ET 200SP station via a PROFINET interface module, typically the 6ES7155-6AU01-0BN0 IM 155-6 PN ST, which serves as the head module of the ET 200SP station and coordinates all BaseUnit-mounted I/O modules on the backplane bus.

Mounted onto the 6ES7193-6BP00-0DA1 BaseUnit, digital input modules such as the 6ES7131-6BF01-0AA0 DI 8x24VDC ST collect field signals from proximity sensors, limit switches, and process transmitters. Digital output modules like the 6ES7132-6BF01-0AA0 DQ 8x24VDC/0.5A ST drive actuators, solenoid valves, and relay coils. For analog process variables — temperature, pressure, flow — analog input modules such as the 6ES7134-6GD01-0BA1 AI 4xU/I/RTD/TC ST are mounted on adjacent BaseUnits within the same ET 200SP station, sharing the same backplane bus and PROFINET connection.

Power distribution within the ET 200SP station is managed by a SIMATIC PM 190W 120/230VAC power supply at the cabinet level, while the ET 200SP station itself draws its 24 VDC supply through a dedicated power module. The 6ES7193-6BP00-0DA1 BaseUnit’s P-side terminal configuration ensures that the 24 VDC supply is correctly distributed to the mounted I/O module without additional wiring. For applications requiring potential group separation — for example, isolating sensor supply from actuator supply — a 6ES7193-6PA00-0AA0 PowerBU is inserted at the appropriate position in the station to create a new potential group.

At the HMI layer, a SIMATIC HMI TP1200 Comfort Panel provides the operator interface, connected to the S7-1500 CPU via PROFINET. The HMI displays real-time I/O status, alarm states, and diagnostic information sourced directly from the ET 200SP station — including module-level diagnostics that the 6ES7193-6BP00-0DA1‘s diagnostic contacts make available. This end-to-end diagnostic transparency, from field device to operator screen, is one of the key advantages of the integrated ET 200SP architecture.

Application in Layered Automation Systems

The 6ES7193-6BP00-0DA1 BaseUnit finds application across a broad range of industrial sectors where distributed I/O is preferred over centralized wiring. In manufacturing and assembly lines, ET 200SP stations equipped with this BaseUnit are mounted in local junction boxes close to the process, reducing cable runs and improving signal integrity. In water and wastewater treatment plants, the wide operating temperature range and robust backplane design support reliable operation in outdoor or semi-outdoor enclosures. In power distribution and energy management applications, the diagnostic contacts of the BU15-P16+A0+2D variant enable predictive maintenance workflows — the control system can detect a module fault and alert maintenance personnel before a process interruption occurs.

In petrochemical and process industries, the ET 200SP architecture — built on the 6ES7193-6BP00-0DA1 BaseUnit — supports the high channel density and redundancy requirements typical of continuous process control. The ability to mix digital and analog I/O modules within a single station, all sharing a single PROFINET connection to the S7-1500 CPU, simplifies network topology and reduces the number of managed switches required in the field network. For packaging and material handling applications, the compact 15 mm width of the BaseUnit allows high-density I/O stations to be built within standard 400 mm wide control cabinets, maximizing the number of I/O points per cabinet unit.

Architecture Engineering FAQ

Q1: Is the 6ES7193-6BP00-0DA1 compatible with all ET 200SP I/O modules?
The BU15-P16+A0+2D BaseUnit is compatible with the standard range of ET 200SP I/O modules that require a 15 mm BaseUnit, including digital input, digital output, and analog modules from the ST, HF, and HS performance classes. Compatibility is confirmed via TIA Portal hardware configuration, which validates module-BaseUnit pairing during project engineering. Always verify the specific I/O module’s datasheet to confirm the required BaseUnit type before ordering.

Q2: Can this BaseUnit be used in a redundant ET 200SP architecture?
The ET 200SP system supports redundant configurations when used with compatible interface modules and S7-1500R/H CPUs. The 6ES7193-6BP00-0DA1 BaseUnit itself is a standard component and is used in both standard and redundant station configurations. In a redundant setup, the station is connected to two PROFINET rings, and the interface module manages the redundancy switchover transparently. The BaseUnit’s role in signal distribution and module mounting remains unchanged in redundant architectures.

Q3: What does the 12-Month Warranty cover, and how is the product tested before shipment?
Every 6ES7193-6BP00-0DA1 unit supplied by ZYPLC carries a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification to confirm backplane bus integrity, terminal continuity, and module locking mechanism operation. Units are packaged in anti-static protective packaging and shipped via DHL or FedEx with full tracking. For warranty claims or technical support, contact our team at [email protected] or +86 19859288691.

—
