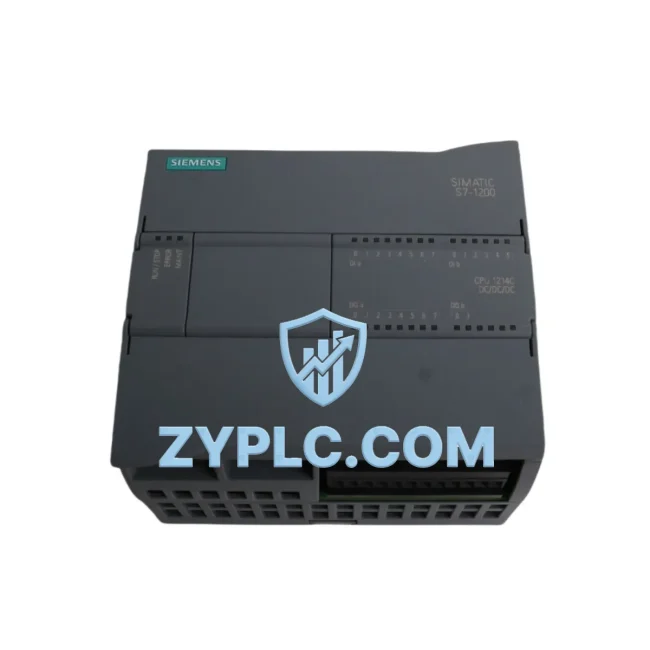

Siemens 6ES7214-1AG40-0XB0 Energy-Saving PLC CPU for S7-1200

Siemens 6ES7214-1AG40-0XB0 Energy-Saving PLC CPU for S7-1200 Automation

The Siemens 6ES7214-1AG40-0XB0 is a high-performance CPU 1214C DC/DC/DC module from the S7-1200 series, engineered to deliver precise, energy-aware control across demanding industrial environments. With 14 digital inputs, 10 digital outputs, and 2 analog inputs integrated on-board, this compact controller eliminates the need for redundant I/O expansion in standard machine configurations — directly reducing panel footprint and idle power draw. Designed for manufacturers seeking to tighten production cycles, lower energy overhead, and extend equipment service life, the 6ES7214-1AG40-0XB0 serves as the intelligent core of a lean automation architecture.

Every unit supplied by ZYPLC undergoes full functional testing and 12-month warranty coverage, ensuring that your production line receives a verified, field-ready controller — not a shelf-aged substitute.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a well-structured energy-efficient production cell, the 6ES7214-1AG40-0XB0 functions as the decision-making hub that coordinates every downstream component. Its PROFINET interface enables real-time communication with Siemens ET 200SP distributed I/O stations, allowing the CPU to dynamically adjust output signals based on live process feedback — eliminating the fixed-cycle polling that wastes both time and power in legacy systems.

For drive-level energy control, the CPU pairs naturally with the Siemens SINAMICS G120 variable frequency drive series. By issuing speed-reference commands over PROFINET or USS protocol, the 6ES7214-1AG40-0XB0 enables the G120 to run motors at precisely the load-matched speed required — rather than at full rated speed with mechanical throttling. This alone can reduce motor energy consumption by 20–40% in pump, fan, and conveyor applications. The SINAMICS G120C compact drive variant is particularly well-suited for space-constrained panels where the S7-1200 CPU is already installed.

On the servo axis side, integration with the Siemens SINAMICS S120 drive system via the S7-1200 Motion Control library enables position-accurate, energy-optimized axis movement. The CPU’s onboard pulse outputs also support direct connection to third-party servo drives using step/direction signals, making the 6ES7214-1AG40-0XB0 a versatile motion controller without requiring additional hardware.

Power quality and energy metering are handled upstream by devices such as the Siemens SENTRON PAC3200 power monitoring unit, which feeds consumption data back to the S7-1200 via Modbus RTU. This closed-loop energy feedback allows the PLC program to implement demand-response logic — automatically shedding non-critical loads during peak consumption windows and logging energy KPIs for shift-level reporting.

For human-machine interaction and real-time energy dashboards, the 6ES7214-1AG40-0XB0 integrates seamlessly with the Siemens KTP700 Basic HMI panel via PROFINET. Operators can monitor live power draw, cycle counts, and alarm states from a single screen — reducing the diagnostic time that typically results in extended unplanned downtime. Where remote monitoring is required, the Siemens SCALANCE X005 industrial Ethernet switch provides the network backbone to connect the CPU, HMI, drives, and cloud gateway within a single managed topology.

Signal-level energy awareness is extended through Siemens SM 1231 analog input modules, which can be added to the S7-1200 base system to capture 4–20 mA signals from current transformers, pressure transducers, or flow meters — giving the CPU the raw data it needs to calculate real-time efficiency ratios and trigger corrective actions before energy waste compounds into production loss.

Power Optimization in Real Production Lines

In a typical packaging line running three-shift operations, unoptimized motor control accounts for 30–45% of total facility energy consumption. The 6ES7214-1AG40-0XB0, when deployed as the line controller, addresses this at the source. By implementing speed-ramping profiles in the PLC program — accelerating conveyors gradually rather than at full torque — inrush current peaks are reduced, extending both motor and drive service life while lowering peak demand charges on the utility bill.

The CPU’s high-speed counter inputs (up to 100 kHz) allow direct connection to encoder feedback from conveyor drives, enabling the PLC to detect belt slip, mechanical drag, or bearing wear through deviation from expected speed profiles. This predictive maintenance capability means maintenance teams can schedule interventions during planned downtime windows rather than reacting to catastrophic failures — a shift that typically reduces unplanned downtime by 60–70% in facilities that implement it systematically.

In injection molding and press applications, the 6ES7214-1AG40-0XB0 manages hydraulic pump enable/disable logic based on machine cycle state. Rather than running the hydraulic power unit continuously, the PLC cuts pump drive output during mold-open and part-ejection phases — phases that require zero hydraulic pressure. Over a 16-hour production shift, this idle-state power gating can recover 8–12% of total machine energy consumption with zero impact on cycle time.

For multi-axis assembly stations, the S7-1200 CPU coordinates axis sequencing to prevent simultaneous peak-load events across multiple servo drives. By staggering acceleration ramps across axes by 50–100 ms, the aggregate current draw is smoothed, reducing transformer loading and avoiding nuisance tripping of upstream circuit protection — a common source of unplanned stops in high-density automation cells.

All units shipped by ZYPLC are tested under load conditions prior to dispatch, with functional verification of I/O response, communication integrity, and program execution timing. Stock is maintained for rapid fulfillment, and the 12-month warranty covers both component failure and early-life defects identified during commissioning.

Energy Optimization FAQ

Q1: How much energy can the 6ES7214-1AG40-0XB0 help save in a motor-driven application?
When paired with a compatible variable frequency drive such as the SINAMICS G120, the S7-1200 CPU can implement speed-reference control that reduces motor energy consumption by 20–40% compared to fixed-speed operation. Actual savings depend on load profile, duty cycle, and the baseline control method being replaced.

Q2: Is the 6ES7214-1AG40-0XB0 compatible with existing S7-1200 expansion modules and signal boards?
Yes. The CPU 1214C is fully compatible with the S7-1200 signal module range, including SM 1221 digital input, SM 1222 digital output, SM 1231 analog input, and SM 1232 analog output modules. Signal boards (SB) can also be inserted directly into the CPU for additional I/O without expanding the rail footprint.

Q3: What is the recommended replacement or upgrade path from an older S7-1200 CPU?
The 6ES7214-1AG40-0XB0 (firmware V4.x) is the current-generation replacement for earlier CPU 1214C variants such as the 6ES7214-1AG31-0XB0. Programs developed in TIA Portal for earlier firmware versions are generally compatible with minor adaptation. ZYPLC recommends verifying firmware compatibility in TIA Portal before migration.

Q4: What does the 12-month warranty cover, and how is the testing process conducted?
Every 6ES7214-1AG40-0XB0 unit supplied by ZYPLC is tested for I/O functionality, PROFINET communication, program execution, and power supply integrity before shipment. The 12-month warranty covers hardware defects and early-life failures. In the event of a warranty claim, ZYPLC provides replacement or repair support with documented test records available upon request.
