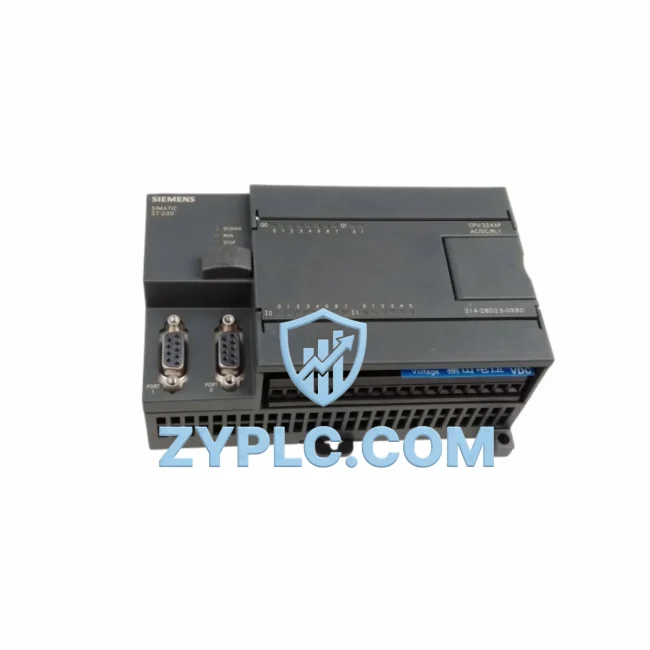

Siemens 6ES7214-2BD23-0XB0 Energy-Saving PLC CPU S7-200

Siemens 6ES7214-2BD23-0XB0 Energy-Saving PLC CPU S7-200: Precision Efficiency Control for Optimized Production Lines

The Siemens 6ES7214-2BD23-0XB0 is a high-performance CPU 224XP module from the S7-200 series, engineered to deliver precise, energy-aware control across demanding industrial automation environments. As factories face mounting pressure to reduce operational energy costs while maintaining throughput, this compact PLC CPU stands out as a cornerstone of efficient machine control architecture. Whether deployed in packaging lines, conveyor systems, pump stations, or HVAC control panels, the 6ES7214-2BD23-0XB0 enables engineers to implement lean, responsive automation logic that directly translates into measurable energy savings and improved equipment utilization rates.

Unlike generic controllers, the S7-200 CPU 224XP integrates two analog I/O channels onboard, allowing direct connection to current transducers, pressure sensors, and flow meters without additional expansion modules. This native analog capability makes it particularly effective in closed-loop energy monitoring applications, where real-time feedback from field instruments drives adaptive control decisions — reducing motor run time, eliminating idle-state energy draw, and tightening process cycle times.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a well-designed energy-optimized automation cell, the 6ES7214-2BD23-0XB0 typically serves as the central execution engine, coordinating inputs from field devices and issuing precise output commands to drive systems. On the input side, it interfaces seamlessly with the Siemens EM 231 analog input expansion module, extending the number of measurable process variables — such as motor current draw, tank pressure, or ambient temperature — without burdening the CPU’s onboard resources. This expanded sensing capability is critical for energy baselining and anomaly detection.

On the drive side, the CPU 224XP communicates via its RS-485 Freeport protocol with Siemens MICROMASTER 440 and SINAMICS G120 variable frequency drives (VFDs), enabling speed-reference commands that match motor output precisely to load demand. Rather than running motors at fixed speed regardless of process requirements, the PLC dynamically adjusts drive setpoints based on real-time sensor feedback — a strategy that routinely delivers 20–40% reductions in motor energy consumption in pump and fan applications.

For human-machine interaction and energy dashboard visualization, the 6ES7214-2BD23-0XB0 pairs naturally with the Siemens SMART LINE HMI panels (such as the KTP700 Basic) via PPI communication, allowing operators to monitor live energy metrics, set efficiency thresholds, and acknowledge alarms without leaving the production floor. Alongside the HMI, the Siemens PAC3200 power monitoring device can be integrated into the same control cabinet to provide three-phase power quality data — voltage, current, power factor, and harmonic distortion — feeding back into the PLC’s decision logic through the analog input chain.

Digital I/O expansion is handled by the Siemens EM 223 digital I/O module, which extends the CPU’s output capacity to control additional contactors, solenoid valves, and signal lamps across multi-zone production cells. For distributed I/O architectures where field devices are located far from the control cabinet, the Siemens EM 277 PROFIBUS-DP module bridges the S7-200 into a PROFIBUS network, enabling communication with remote I/O stations, intelligent motor starters, and energy meters on the plant floor.

Power supply integrity — often overlooked in energy optimization discussions — is maintained by the Siemens SITOP PSU100S 24V DC power supply, which provides stable, regulated DC power to the CPU and I/O modules even during mains voltage fluctuations, preventing spurious resets that would otherwise interrupt production cycles and waste accumulated process energy.

Power Optimization in Real Production Lines

Consider a bottling plant where conveyors, filling stations, and capping machines must operate in synchronized bursts rather than continuous motion. Deploying the Siemens 6ES7214-2BD23-0XB0 as the line controller allows engineers to implement time-based and sensor-triggered start/stop logic that eliminates the energy waste of running empty conveyors. By reading upstream photoelectric sensors and downstream level switches, the CPU calculates the optimal motor run window for each production segment — reducing total motor-on time by up to 30% compared to relay-based control schemes.

In pump station applications, the PLC’s analog output channel sends a 0–10V speed reference directly to a connected VFD, maintaining system pressure within a tight band without the energy penalty of throttling valves. This pressure-based closed-loop control, executed entirely within the 6ES7214-2BD23-0XB0’s program memory, eliminates the need for external PID controllers and reduces the number of components that could introduce failure points — directly lowering both energy consumption and maintenance costs.

Predictive maintenance is another dimension where this CPU delivers energy ROI. By monitoring motor current signatures through the onboard analog inputs and comparing them against learned baseline profiles stored in data memory, the PLC can flag early signs of bearing wear, coupling misalignment, or impeller fouling — conditions that cause motors to draw excess current long before mechanical failure occurs. Early intervention based on these signals prevents the energy waste of degraded equipment and avoids the far greater cost of unplanned downtime.

All units supplied by ZYPLC are sourced from verified industrial channels, subjected to full functional testing under load conditions, and shipped with a 12-month warranty. Inventory is maintained in-stock for immediate dispatch, supporting urgent MRO (maintenance, repair, and operations) requirements where production continuity cannot wait for long lead times.

Energy Optimization FAQ

Q1: How does the 6ES7214-2BD23-0XB0 contribute to measurable energy savings on a production line?
The CPU 224XP enables closed-loop control strategies — such as demand-based motor speed adjustment via VFD communication and sensor-triggered start/stop sequencing — that directly reduce motor run time and eliminate idle-state energy consumption. In pump, fan, and conveyor applications, energy reductions of 20–40% are commonly achieved compared to fixed-speed, relay-controlled alternatives.

Q2: Is the 6ES7214-2BD23-0XB0 compatible with current Siemens drive and HMI systems?
Yes. The CPU communicates via RS-485 using PPI, MPI, and Freeport protocols, making it compatible with MICROMASTER 440, SINAMICS G120 drives, and SMART LINE HMI panels. For PROFIBUS-based architectures, the EM 277 expansion module extends connectivity to the broader Siemens drive and I/O ecosystem.

Q3: Can this module replace a faulty S7-200 CPU in an existing installation without reprogramming?
In most cases, yes. The 6ES7214-2BD23-0XB0 is a direct form-fit-function replacement for other CPU 224XP variants within the S7-200 family. The existing program can be downloaded from a backup or re-uploaded via STEP 7-Micro/WIN. ZYPLC recommends verifying firmware version compatibility and I/O wiring before commissioning.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6ES7214-2BD23-0XB0 unit shipped by ZYPLC undergoes a full functional test including digital I/O verification, analog channel calibration, communication port handshake testing, and power-cycle stability checks. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail post-delivery testing within the warranty period are replaced or refunded promptly.
