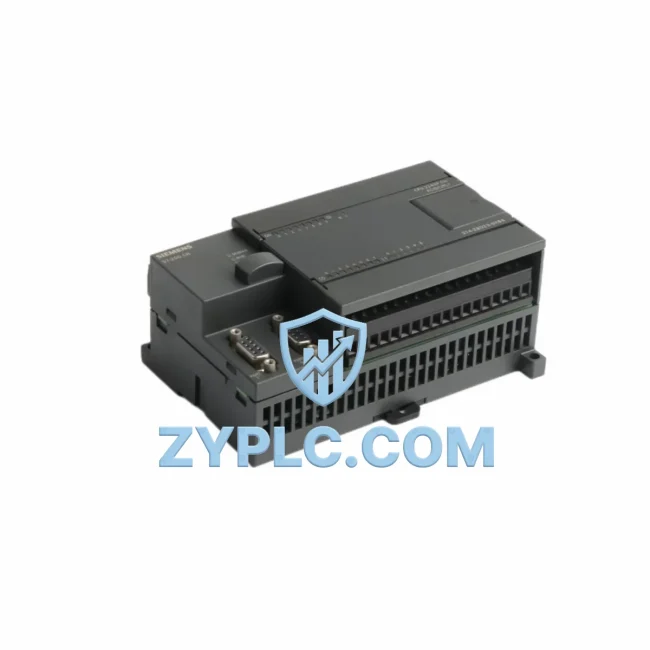

Siemens 6ES7214-2BD23-0XB8 Energy-Saving PLC CPU for S7-200 Automation
The Siemens 6ES7214-2BD23-0XB8 is a high-performance CPU 224XP module from the S7-200 series, engineered to deliver precise, energy-aware control across demanding industrial environments. Designed for manufacturers seeking to reduce operational energy costs without sacrificing throughput, this compact PLC CPU integrates seamlessly into motor control panels, conveyor systems, packaging lines, and process automation cells. With its onboard analog I/O, high-speed pulse outputs, and efficient instruction execution, the 6ES7214-2BD23-0XB8 enables factories to tighten production cycle times, minimize idle-state power draw, and extend equipment service intervals — all within a single, field-proven controller platform.
At ZYPLC, every unit of the 6ES7214-2BD23-0XB8 is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a 12-month warranty. Whether you are replacing a failed controller on an active production line or building out a new energy-optimized automation cell, our in-stock inventory ensures rapid fulfillment with zero compromise on quality.
Efficiency Performance Table
| Parameter |
Specification |
| Model / SKU |
6ES7214-2BD23-0XB8 (CPU 224XP) |
| Series |
Siemens SIMATIC S7-200 |
| Supply Voltage |
24 VDC |
| Power Consumption |
≤ 9 W (typical operating load) |
| Digital I/O |
14 DI / 10 DO (relay + transistor) |
| Analog I/O (onboard) |
2 AI / 1 AO |
| High-Speed Counters |
6 × up to 200 kHz |
| Pulse Outputs |
2 × up to 100 kHz (PTO/PWM) |
| Program Memory |
12 KB |
| Data Memory |
8 KB |
| Communication Ports |
2 × RS-485 (PPI / MPI / Freeport) |
| Compatible Systems |
SIMATIC S7-200, STEP 7-Micro/WIN, EM expansion modules |
| Operating Temperature |
0 °C to +55 °C |
| Protection Rating |
IP20 |
| Origin |
Germany |
| Energy Efficiency Value |
Low standby draw; PWM output enables variable-speed motor control to cut energy waste by up to 30% vs. fixed-speed alternatives |
| Warranty |
12-Month Warranty (ZYPLC) |
Energy-Aware Automation Architecture
The 6ES7214-2BD23-0XB8 is most effective when deployed as the central decision-making node within a layered energy-aware automation architecture. In a typical configuration, the CPU 224XP communicates upstream with a Siemens TP700 Comfort HMI panel via PPI protocol, giving operators real-time visibility into cycle counts, fault states, and energy consumption trends without requiring a dedicated SCADA server. Downstream, the CPU’s two high-speed pulse outputs connect directly to Siemens SINAMICS V20 variable frequency drives, enabling closed-loop speed regulation on conveyor motors and pump systems — a configuration that routinely delivers measurable reductions in kWh consumption per production shift.
For applications requiring expanded I/O density, the 6ES7214-2BD23-0XB8 supports up to seven EM expansion modules. Commonly paired units include the EM 231 analog input module for thermocouple and 4–20 mA sensor integration, the EM 232 analog output module for proportional valve control, and the EM 277 PROFIBUS-DP module for integration into plant-wide PROFIBUS networks alongside Siemens ET 200S distributed I/O stations. This modular expandability allows engineers to scale energy monitoring and control granularity without replacing the core CPU.
Power quality at the panel level is managed upstream of the 6ES7214-2BD23-0XB8 using Siemens SITOP PSU100S 24 VDC power supplies, which provide stable, low-ripple DC power that protects the CPU’s internal logic from voltage transients common in motor-heavy environments. For facilities running mixed automation platforms, the CPU’s Freeport communication mode enables custom serial protocols, allowing the S7-200 to exchange energy and status data with third-party power meters, barcode readers, and weighing systems without additional gateways.
Power Optimization in Real Production Lines
In food and beverage packaging lines, the 6ES7214-2BD23-0XB8 has been deployed to orchestrate multi-axis conveyor sequencing, where its PWM pulse outputs regulate SINAMICS V20 drive speed in direct proportion to upstream product flow — eliminating the energy waste of running conveyors at full speed during low-throughput periods. By synchronizing motor ramp-up and ramp-down profiles with upstream sensor signals wired through the CPU’s 14 digital inputs, line operators have reported reductions in peak demand charges and extended motor bearing life due to smoother acceleration curves.
In water treatment and HVAC applications, the CPU 224XP’s onboard analog input channels read 4–20 mA signals from pressure transmitters and flow meters, feeding real-time process values into PID control loops executed within the CPU’s 12 KB program memory. The resulting closed-loop pump control eliminates the chronic over-pressurization common in fixed-speed pump installations, directly reducing energy consumption and pipe wear. Maintenance teams benefit from the CPU’s integrated diagnostic buffer, which logs fault events with timestamps — enabling predictive maintenance scheduling that reduces unplanned downtime and the energy spikes associated with emergency restarts.
For discrete manufacturing cells, the 6ES7214-2BD23-0XB8’s high-speed counter inputs capture encoder feedback from servo positioning systems, enabling the CPU to monitor actual cycle times against programmed targets and flag deviations before they cascade into scrap or rework — both of which represent hidden energy costs. Combined with the EM 277 PROFIBUS-DP module, production efficiency data can be forwarded to plant MES systems for OEE tracking and energy-per-unit reporting, closing the loop between automation control and energy management strategy.
Energy Optimization FAQ
Q1: How does the 6ES7214-2BD23-0XB8 contribute to measurable energy savings on a production line?
The CPU 224XP’s PWM and PTO pulse outputs enable direct speed control of variable frequency drives such as the SINAMICS V20, allowing motor speed to be matched precisely to process demand rather than running at fixed full speed. This alone can reduce motor energy consumption by 20–40% in variable-load applications such as conveyors, fans, and pumps. Additionally, the CPU’s PID instruction set supports closed-loop process control that eliminates energy-wasting overshoot in heating, pressure, and flow applications.
Q2: Is the 6ES7214-2BD23-0XB8 compatible with existing S7-200 expansion modules and programming tools?
Yes. The 6ES7214-2BD23-0XB8 is fully compatible with the SIMATIC S7-200 EM expansion module family and is programmed using STEP 7-Micro/WIN software. It supports all standard S7-200 instruction sets, including PID, high-speed counter, and interrupt routines, making it a direct replacement for earlier CPU 224XP variants without requiring program rewrites in most applications.
Q3: What is the recommended replacement or upgrade path if the 6ES7214-2BD23-0XB8 is discontinued in my region?
For new installations, Siemens recommends migrating to the SIMATIC S7-1200 platform, with the CPU 1214C DC/DC/DC being the closest functional equivalent in terms of I/O count and communication capability. However, for facilities with existing S7-200 infrastructure, sourcing a tested 6ES7214-2BD23-0XB8 replacement unit from ZYPLC is the most cost-effective path, as it avoids the engineering time and validation costs associated with a full platform migration.
Q4: What testing and warranty coverage does ZYPLC provide for the 6ES7214-2BD23-0XB8?
Every 6ES7214-2BD23-0XB8 unit shipped by ZYPLC undergoes a full functional test covering digital I/O operation, analog channel accuracy, communication port integrity, and high-speed counter response before dispatch. Units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our technical team is available to support installation, commissioning, and fault diagnosis throughout the warranty period.
