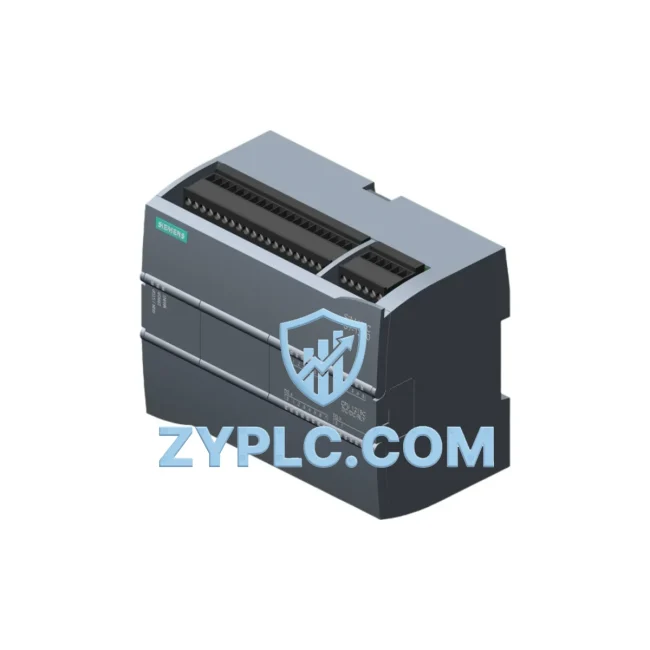

Siemens 6ES7215-1HG40-0XB0 Energy-Saving PLC CPU S7-1200

Siemens 6ES7215-1HG40-0XB0 Energy-Saving PLC CPU S7-1200: Precision Energy Control for Optimized Production Lines

The Siemens 6ES7215-1HG40-0XB0 is a high-performance CPU 1215C DC/DC/DC module within the SIMATIC S7-1200 series, engineered to deliver precise, energy-aware automation control across demanding industrial environments. With its compact form factor, integrated I/O, and advanced communication capabilities, this CPU module serves as the intelligent core of energy-optimized production systems — enabling factories to reduce idle power consumption, sharpen motor control response, and maximize equipment utilization rates without sacrificing throughput or reliability.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully integrated energy-aware automation architecture, the 6ES7215-1HG40-0XB0 functions as the decision-making hub that coordinates energy flows across the entire production cell. When paired with a SIMATIC ET 200SP distributed I/O station, the CPU can extend its digital and analog signal reach across large plant floors without adding significant wiring overhead or power draw — each remote I/O node only activates when its associated process segment is running, directly reducing standby energy losses.

For drive-level energy control, the CPU communicates via PROFINET with the SINAMICS G120 variable frequency drive series. By issuing precise speed reference commands based on real-time load feedback, the 6ES7215-1HG40-0XB0 enables the G120 to operate motors at their optimal efficiency point rather than at fixed rated speed — a strategy that can reduce motor energy consumption by 20–40% in variable-torque applications such as pumps, fans, and conveyors. The SINAMICS G120C compact drive variant is particularly well-suited for space-constrained panel installations where this CPU is deployed.

Power quality and energy metering are handled upstream by devices such as the SENTRON PAC3200 power monitoring unit, which feeds real-time kWh, power factor, and harmonic distortion data back to the S7-1200 via Modbus TCP. The CPU’s onboard analog inputs can also directly sample 4–20 mA signals from current transformers or energy transducers, allowing the controller to implement demand-response logic — automatically shedding non-critical loads when peak demand thresholds are approached.

For servo-driven axes requiring high-precision positioning with minimal energy waste, the 6ES7215-1HG40-0XB0 integrates with SINAMICS S210 servo drive and SIMOTICS S-1FK2 servo motor combinations via the PROFINET IRT protocol. This tight synchronization eliminates unnecessary holding torque during dwell periods, reducing heat generation and extending motor insulation life — both of which contribute to lower long-term energy and maintenance costs.

HMI visualization is typically provided by a SIMATIC KTP700 Basic Panel or KTP900 Basic Panel connected via PROFINET, giving operators real-time visibility into energy consumption trends, cycle times, and alarm states. When operators can see energy data at the machine level, they are empowered to make immediate adjustments — reducing the gap between theoretical and actual energy efficiency.

Communication expansion is available through the SIMATIC CM 1241 RS-485 communication module, enabling the CPU to interface with legacy Modbus RTU devices such as older energy meters, motor protection relays, and third-party drives — preserving existing infrastructure investments while bringing them under centralized energy management control.

Power Optimization in Real Production Lines

On a typical packaging or assembly line, the 6ES7215-1HG40-0XB0 delivers measurable energy savings through three primary mechanisms: cycle-synchronized motor control, intelligent standby management, and predictive load balancing.

Cycle-synchronized motor control means that conveyor drives, pneumatic actuators, and indexing motors are only energized during their active phase of the production cycle. The CPU’s high-speed counter inputs and interrupt-driven program execution allow it to respond to encoder feedback and proximity sensor signals within microseconds — ensuring that motors are accelerated and decelerated precisely in sync with product flow, eliminating the energy waste associated with motors running at full speed between product arrivals.

Intelligent standby management is implemented through the CPU’s scheduled task blocks, which monitor line throughput rates and automatically issue speed-reduction commands to connected drives during low-demand periods such as shift changes, material replenishment stops, or planned micro-stoppages. Rather than keeping all drives at rated speed during these intervals, the system transitions to a low-power standby state that can be exited within one scan cycle when production resumes — minimizing both energy consumption and mechanical wear.

Predictive load balancing leverages the CPU’s data logging capability to record energy consumption patterns over time. By analyzing historical load profiles stored in the S7-1200’s retentive memory or uploaded to a SCADA system via PROFINET, maintenance engineers can identify equipment that is drawing more power than its baseline — an early indicator of bearing wear, misalignment, or contamination. Addressing these issues proactively reduces both unplanned downtime and the energy penalty associated with degraded mechanical efficiency.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including I/O verification, communication port validation, and power consumption measurement. In-stock inventory ensures fast dispatch, and every 6ES7215-1HG40-0XB0 is covered by a 12-month warranty — giving procurement and maintenance teams confidence in both supply continuity and long-term operational reliability.

Energy Optimization FAQ

Q1: How much energy can the 6ES7215-1HG40-0XB0 help save in a typical motor control application?
A: When used to implement variable-speed control via a connected SINAMICS G120 drive, the system can reduce motor energy consumption by 20–40% in variable-torque applications compared to fixed-speed operation. Actual savings depend on load profile, duty cycle, and baseline motor efficiency.

Q2: Is the 6ES7215-1HG40-0XB0 compatible with existing S7-1200 expansion modules and signal boards?
A: Yes. The CPU 1215C is fully compatible with the standard S7-1200 signal board (SB) slot and all SM 1221/1222/1223/1231/1232 expansion modules, allowing you to scale I/O capacity without replacing the CPU or rewiring existing installations.

Q3: What is the recommended replacement or upgrade path from an older S7-1200 CPU?
A: The 6ES7215-1HG40-0XB0 (firmware V4.x) is the current-generation replacement for earlier CPU 1215C variants. Programs developed in TIA Portal for V3.x CPUs are generally compatible with minor adaptation. ZYPLC can advise on firmware compatibility and provide tested units matched to your existing project version.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
A: Every unit is tested for power-up integrity, I/O functionality, PROFINET communication, and onboard analog channel accuracy before dispatch. The 12-month warranty covers hardware defects under normal operating conditions. Units that fail during the warranty period are replaced or repaired at no additional cost, with priority handling to minimize production downtime.
