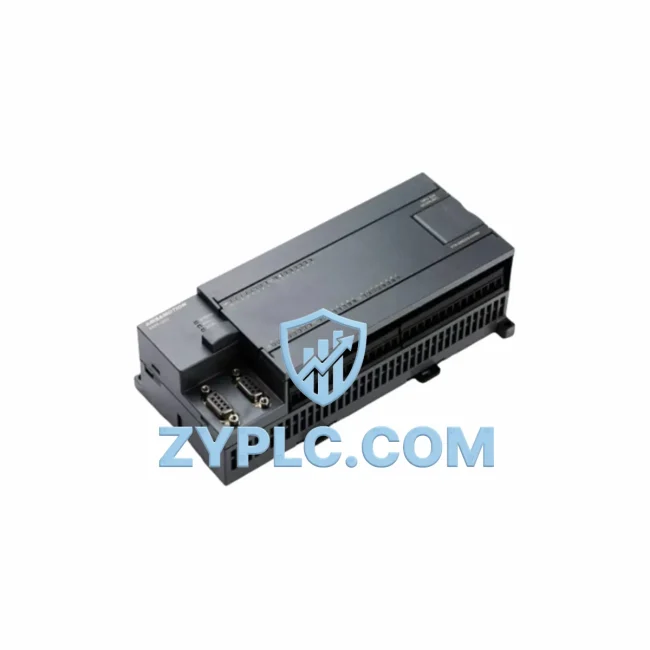

Siemens 6ES7216-2AD23-0XB8 System-Ready CPU Module for S7-200 Architecture

Siemens 6ES7216-2AD23-0XB8 System-Ready CPU Module for S7-200 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6ES7216-2AD23-0XB8 — commercially designated as the SIMATIC S7-200 CPU 226 — is a high-density compact programmable logic controller designed to serve as the central processing and coordination node within layered industrial automation architectures. With 24 digital inputs and 16 digital outputs integrated into a single compact housing, this CPU module eliminates the need for additional base I/O expansion in small-to-medium control applications, while simultaneously providing the communication backbone and program execution capacity required for complex, multi-layer system designs.

In modern industrial control environments, no component operates in isolation. The 6ES7216-2AD23-0XB8 is engineered to function as the architectural anchor of an S7-200 control platform, coordinating signal flow between field-level sensors and actuators, managing I/O expansion modules, communicating with supervisory SCADA or HMI systems, and interfacing with network gateways — all within a unified, deterministic control loop. Understanding this CPU’s role requires examining how it interacts with every layer of the automation hierarchy.

Architecture Specification Table

Coordinated Control System Design

The 6ES7216-2AD23-0XB8 is most effectively deployed as the master controller in a distributed I/O and communication architecture. Its dual RS-485 ports allow simultaneous PPI network communication on Port 0 — connecting to programming devices, HMI panels such as the Siemens TD 400C text display or TP 177 touch panel — while Port 1 operates in Freeport mode to interface with third-party serial devices, barcode readers, or variable frequency drives.

For applications requiring expanded I/O capacity, the CPU 226 supports up to seven expansion modules connected via the integrated I/O bus. Typical system configurations include the 6ES7223-1BL22-0XA8 (16DI/16DO digital expansion module) for additional discrete signal handling, the 6ES7231-0HC22-0XA8 (8-channel analog input module) for process variable acquisition, and the 6ES7232-0HB22-0XA8 (2-channel analog output module) for proportional control of valves or drives. These expansion modules connect directly to the CPU’s right-side expansion port, forming a tightly integrated I/O tier without additional communication overhead.

At the network layer, the 6ES7972-0BB12-0XA0 PC/MPI adapter or the 6ES7901-3DB30-0XA0 USB-PPI multi-master cable enables direct programming and diagnostics from a STEP 7 Micro/WIN engineering workstation. For Ethernet connectivity and integration into higher-level SCADA systems, the 6GK7 343-1EX30-0XE0 CP 343-1 communications processor or equivalent Modbus TCP gateway can be deployed alongside the S7-200 platform to bridge the RS-485 PPI network to industrial Ethernet infrastructure.

Power architecture is equally critical to system reliability. The 6ES7216-2AD23-0XB8 operates on 24 VDC, typically supplied by a dedicated SITOP PSU100S or equivalent 24 VDC DIN-rail power supply rated at 5A or 10A depending on the total I/O load. Proper power segmentation — separating CPU supply from field device supply — ensures that transient loads from solenoids, contactors, or motor starters do not introduce voltage dips that could cause CPU resets or data corruption.

For relay output applications or mixed AC/DC field wiring, the 6ES7216-2BD23-0XB8 relay output variant of the CPU 226 provides an alternative output stage, while the 6ES7214-1BD23-0XB8 CPU 224 serves as a cost-optimized alternative for smaller I/O counts within the same S7-200 programming environment. Both variants share identical instruction sets, memory structures, and expansion bus compatibility, enabling modular system scaling without re-engineering the control program.

Application in Layered Automation Systems

The 6ES7216-2AD23-0XB8 is deployed across a broad spectrum of industrial sectors where compact, reliable, and cost-effective PLC control is required. In manufacturing and assembly lines, the CPU 226 manages conveyor sequencing, part detection via inductive proximity sensors, pneumatic actuator control, and production counting — all within a single compact controller that fits standard 35mm DIN rail enclosures.

In water and wastewater treatment facilities, the CPU 226 controls pump station sequencing, level monitoring via analog input modules, chemical dosing pump control, and alarm relay outputs — often communicating upstream to a SCADA system via Modbus RTU over the RS-485 Freeport interface. The built-in real-time clock enables time-based pump rotation schedules and maintenance interval logging without external timekeeping hardware.

In power distribution and electrical substation applications, the CPU 226 provides protection relay logic, breaker status monitoring, and interlock sequencing. Its 24 VDC transistor outputs are compatible with standard protection relay input circuits, and the high-speed counter inputs can be used for energy pulse counting from kWh meters.

In petrochemical and process industries, the CPU 226 handles batch sequencing, valve control, and process variable monitoring in conjunction with analog I/O expansion modules. The deterministic scan cycle and watchdog timer ensure that process interlocks remain active even under abnormal program conditions.

In packaging and material handling systems, the high-speed pulse outputs enable stepper motor or servo drive positioning via open-loop pulse-direction control, while the high-speed counter inputs provide encoder feedback for position verification. This capability, combined with the CPU’s 16 KB program memory, supports complex motion sequences without requiring a dedicated motion controller.

Architecture Engineering FAQ

Q1: Is the 6ES7216-2AD23-0XB8 compatible with existing S7-200 expansion modules and programming software?
Yes. The 6ES7216-2AD23-0XB8 is fully compatible with the complete range of S7-200 digital and analog expansion modules, including the 6ES7221, 6ES7222, 6ES7223, 6ES7231, and 6ES7232 series. Programming is performed using Siemens STEP 7 Micro/WIN V4.0 SP9 or later, which supports all instruction sets, PID control blocks, and communication libraries available for the S7-200 platform. Existing programs developed for other CPU 226 variants can be transferred directly without modification, provided the I/O addressing and memory allocation remain consistent.

Q2: How does the dual RS-485 port architecture support multi-device communication in a single control cabinet?
The two independent RS-485 ports on the 6ES7216-2AD23-0XB8 allow simultaneous operation of two separate communication networks. Port 0 typically operates in PPI master mode, enabling connection to HMI panels, additional S7-200 CPUs in a multi-master network, or a programming workstation via the 6ES7901-3DB30-0XA0 USB-PPI cable. Port 1 can be configured in Freeport mode for custom serial protocols, Modbus RTU master/slave communication, or ASCII data exchange with third-party devices such as barcode scanners, weighing terminals, or variable frequency drives. This dual-port architecture eliminates the need for external communication splitters and reduces wiring complexity within the control cabinet.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC ensure product quality before dispatch?
Every 6ES7216-2AD23-0XB8 unit supplied by ZYPLC is covered by a 12-Month Warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-stage inspection process including visual examination for physical damage, power-on functional testing to verify CPU operation and I/O response, communication port verification, and firmware version confirmation. Units that do not meet operational specifications are quarantined and not dispatched. In the event of a warranty claim, ZYPLC provides replacement or repair support with documented RMA procedures. Contextual Integration support is available to assist engineers with system configuration, expansion module compatibility verification, and communication parameter setup during the commissioning phase.
