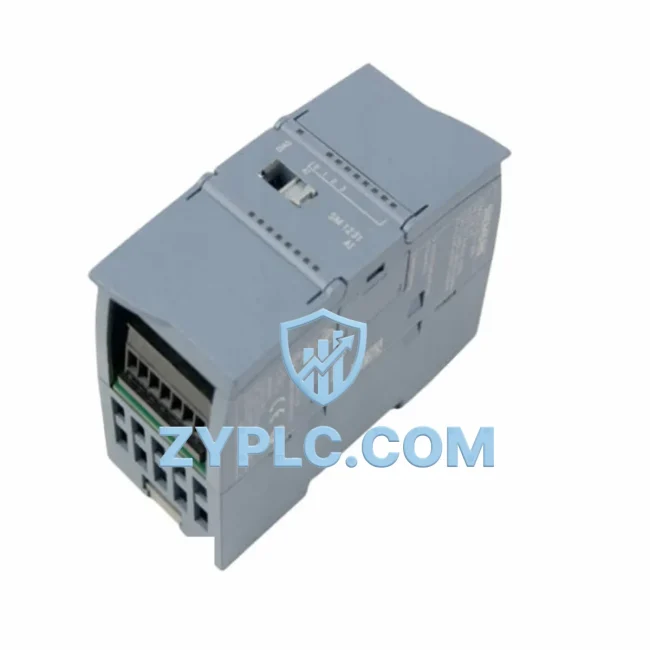

Siemens 6ES7231-4HD32-0XB0 Energy-Saving Analog Input Module

Siemens 6ES7231-4HD32-0XB0 Energy-Saving Analog Input Module for S7-1200 Automation

The Siemens 6ES7231-4HD32-0XB0 is a high-precision analog input module engineered for the SIMATIC S7-1200 controller platform, delivering four channels of 13-bit resolution signal acquisition that forms the sensory backbone of energy-aware industrial automation. In modern manufacturing environments where every kilowatt-hour counts, accurate and low-latency analog data capture is not merely a convenience — it is the foundation upon which efficient motor control, drive regulation, and predictive maintenance strategies are built. This module enables plant engineers to move beyond reactive energy management and toward a data-driven operational model that continuously optimises equipment utilisation and reduces idle-state power consumption.

At ZYPLC, every 6ES7231-4HD32-0XB0 unit is sourced from verified supply channels, subjected to outgoing shipment testing, and backed by a 12-month warranty, ensuring that your production line receives a component that performs to Siemens factory specification from day one.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES7231-4HD32-0XB0 does not operate in isolation — its true value emerges when integrated into a coherent automation architecture designed around energy visibility and control responsiveness. In a typical S7-1200-based energy optimisation system, the module sits at the data acquisition layer, feeding real-time process values — current draw, pressure, temperature, flow rate — into the CPU for closed-loop decision-making.

The SIMATIC S7-1200 CPU 1214C DC/DC/DC serves as the central processing unit, executing the PID and energy management logic that acts on the analog signals captured by the 6ES7231-4HD32-0XB0. Paired with the SM 1222 digital output module, the CPU can issue precise switching commands to contactors and soft starters based on the analog feedback received, eliminating unnecessary full-load starts that spike energy consumption and accelerate motor wear.

On the drive side, the SINAMICS G120C variable frequency drive receives speed reference signals derived from the analog input data, allowing the system to modulate motor speed in direct proportion to actual process demand rather than running at fixed rated speed. This alone can reduce motor energy consumption by 20–50% in pump and fan applications where affinity laws apply. The SINAMICS G120C communicates with the S7-1200 via PROFINET, and the 6ES7231-4HD32-0XB0 provides the physical-layer sensor data that informs every speed adjustment decision.

For power quality monitoring, the SENTRON PAC3200 power monitoring device can be integrated into the same control network, providing harmonic analysis, power factor readings, and demand peak data that complement the process-level signals from the analog input module. When the PAC3200 detects a power factor deviation, the S7-1200 can respond by adjusting drive output or activating reactive power compensation, a closed-loop energy correction cycle made possible by the precision of the 6ES7231-4HD32-0XB0 inputs.

The SM 1231 thermocouple input module can be deployed alongside the 6ES7231-4HD32-0XB0 to extend thermal monitoring across motor housings, drive cabinets, and transformer enclosures. Elevated temperature readings trigger predictive maintenance alerts before thermal stress causes insulation failure or bearing seizure, reducing unplanned downtime that carries both production and energy cost penalties. The SIMATIC HMI KTP700 Basic panel provides operators with a real-time dashboard of all analog values, drive states, and energy KPIs, enabling informed manual intervention when automated responses are insufficient.

Communication across the system is unified through PROFINET IO, with the CM 1241 RS485 communication module providing legacy serial connectivity for older energy meters or third-party drives that do not yet support Ethernet-based protocols. This ensures that the energy optimisation architecture can incorporate existing plant assets without requiring wholesale equipment replacement, protecting capital investment while extending the productive life of installed machinery.

The LOGO! 8 smart relay can be deployed in auxiliary circuits — lighting control, compressed air management, cooling system scheduling — where its simple logic handles on/off energy loads that do not require the full processing power of the S7-1200, freeing the main CPU to focus on high-priority drive and process control tasks. Together, these components form a layered energy management system in which the 6ES7231-4HD32-0XB0 provides the foundational measurement accuracy that makes every optimisation decision reliable.

Power Optimisation in Real Production Lines

In a bottling plant running three-phase induction motors on conveyor and filling lines, unregulated motor starts and fixed-speed operation account for a disproportionate share of total facility energy consumption. Deploying the 6ES7231-4HD32-0XB0 to monitor line pressure and flow rate in real time allows the S7-1200 to command the SINAMICS G120C to ramp motor speed smoothly from zero, eliminating inrush current spikes that can reach six to eight times rated current and cause voltage sag across the distribution board. Over a production shift, this translates directly into lower peak demand charges and reduced stress on upstream switchgear.

In a CNC machining cell, the analog input module captures spindle load current as a 4–20 mA signal from a current transducer. When the S7-1200 detects that spindle load has dropped below a threshold — indicating a tool break or workpiece absence — it can halt the axis drive immediately rather than continuing to consume power on an unproductive cut. This kind of real-time load monitoring, enabled by the 625 µs per-channel conversion speed of the 6ES7231-4HD32-0XB0, prevents both energy waste and potential workpiece damage.

In HVAC and building automation applications, the module reads temperature and humidity sensor outputs to feed a PID loop that modulates chiller compressor speed via a variable frequency drive. Rather than cycling the compressor on and off at full power — a pattern that wastes energy and shortens compressor life — the system maintains setpoint with continuous, proportional speed adjustment. Facilities that have implemented this approach report energy savings of 15–30% on cooling loads, with compressor service intervals extended by 40% due to reduced mechanical stress.

Predictive maintenance is another area where the 6ES7231-4HD32-0XB0 delivers measurable operational value. By trending vibration sensor outputs over time, the S7-1200 can identify the gradual increase in bearing vibration amplitude that precedes failure, scheduling maintenance during planned downtime rather than responding to an unplanned breakdown. Each avoided emergency stop eliminates not only the direct repair cost but also the energy cost of restarting a cold production line — a figure that can reach several hundred kilowatt-hours in energy-intensive processes such as extrusion or injection moulding.

All units supplied by ZYPLC are tested prior to shipment against Siemens factory acceptance criteria, with channel-by-channel calibration verification ensuring that the analog accuracy specified in the datasheet is confirmed in the unit you receive. Stock is maintained for immediate dispatch, and the 12-month warranty covers all manufacturing defects, giving procurement teams the confidence to specify the 6ES7231-4HD32-0XB0 as a standard component in new installations and replacement programmes alike.

Energy Optimisation FAQ

Q1: How much energy can I realistically save by integrating the 6ES7231-4HD32-0XB0 into my drive control system?
Energy savings depend on the application, but in variable-torque loads such as pumps and fans, closed-loop speed control informed by accurate analog feedback typically reduces motor energy consumption by 20–50% compared to fixed-speed operation. In constant-torque applications such as conveyors, the primary benefit is elimination of inrush current spikes and reduction of idle-speed losses, which typically yields 10–20% savings on motor-related energy costs.

Q2: Is the 6ES7231-4HD32-0XB0 compatible with my existing S7-1200 CPU and TIA Portal project?
Yes. The module is fully compatible with all S7-1200 CPU variants (1211C through 1217C) and is supported in TIA Portal V14 and all subsequent versions. It installs directly onto the S7-1200 signal board rail without additional hardware adapters, and its hardware configuration is available in the TIA Portal hardware catalogue for drag-and-drop integration into existing projects.

Q3: Can this module replace an older Siemens analog input module in an existing installation?
The 6ES7231-4HD32-0XB0 is the current production variant of the S7-1200 4-channel analog input module and is the recommended replacement for earlier SM 1231 variants with equivalent channel counts. Before substitution, verify the signal range configuration (voltage vs. current) matches your existing wiring, and update the hardware configuration in TIA Portal to reflect the new module order number. No changes to the application programme logic are required if the channel addressing remains consistent.

Q4: What does the 12-month warranty from ZYPLC cover, and what is the process if a fault is identified after installation?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions as defined in the Siemens product datasheet. If a fault is identified post-installation, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with your order reference and a description of the fault. ZYPLC will arrange return logistics and dispatch a replacement unit from stock, minimising production downtime. Warranty claims resulting from incorrect wiring, overvoltage events, or operation outside the specified environmental range are assessed on a case-by-case basis.
