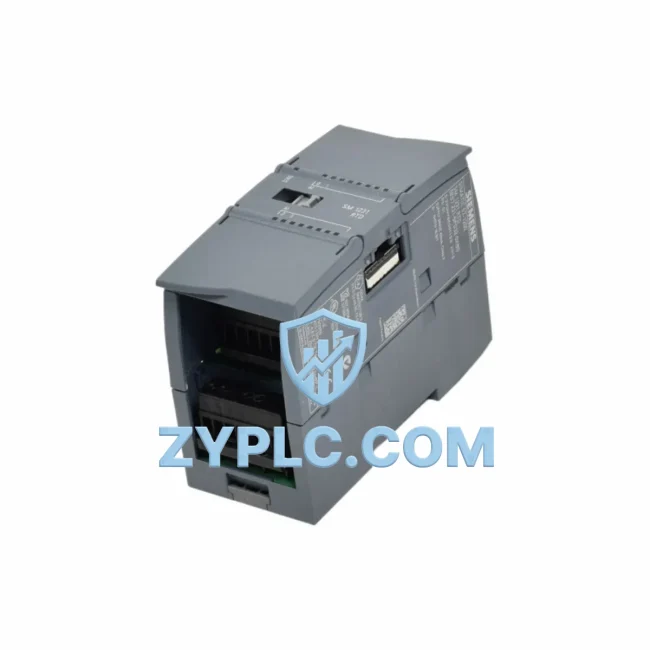

Siemens 6ES7231-5PD32-0XB0 System-Ready RTD Input for S7-1200 Architecture

Siemens 6ES7231-5PD32-0XB0 System-Ready RTD Input for S7-1200 Architecture

The Siemens 6ES7231-5PD32-0XB0 is a high-precision SM 1231 RTD analog input module engineered for seamless integration within the SIMATIC S7-1200 control system architecture. Designed to operate as a critical node in the signal acquisition layer, this module captures resistance temperature detector (RTD) signals from field sensors and delivers calibrated process values directly to the CPU for real-time closed-loop control. Its role within a layered automation system extends far beyond simple signal conversion — it serves as the thermal intelligence backbone of the entire control hierarchy, enabling accurate temperature monitoring, process regulation, and predictive maintenance across demanding industrial environments.

Within a complete S7-1200 system architecture, the 6ES7231-5PD32-0XB0 connects directly to the CPU 1214C or CPU 1215C via the internal I/O bus on the signal board rail, eliminating the need for external signal conditioners. The module supports up to 4 RTD input channels, compatible with Pt100, Pt200, Pt500, Pt1000, Ni100, and Ni1000 sensor types, providing engineering teams with the flexibility to standardize across diverse thermal measurement applications without changing hardware platforms. This Contextual Integration capability ensures that the module adapts to the process context rather than forcing process redesign around hardware constraints.

Architecture Specification Table

Coordinated Control System Design

The 6ES7231-5PD32-0XB0 achieves its full architectural value when deployed as part of a coordinated SIMATIC S7-1200 system. At the control layer, the CPU 1214C DC/DC/DC or CPU 1215C DC/DC/RLY serves as the central processing unit, executing the PLC program and managing all I/O communication cycles. The RTD module connects directly to the CPU’s right-side expansion bus, ensuring deterministic scan-cycle data exchange without additional communication overhead.

Power integrity is maintained through the PM 1207 24V DC Power Supply, which provides stable 24 V DC to both the CPU and expansion modules including the 6ES7231-5PD32-0XB0. In redundancy-sensitive applications, dual power supply configurations with automatic switchover protect against single-point power failures that could disrupt temperature monitoring loops.

For systems requiring additional discrete I/O alongside RTD measurement, the SM 1222 Digital Output Module and SM 1221 Digital Input Module can be co-mounted on the same DIN rail segment, sharing the CPU’s I/O bus. This modular expansion approach allows engineers to build compact control panels that handle both thermal process data and discrete actuator control within a single CPU domain.

Network connectivity is handled at the CPU level via the integrated PROFINET port, enabling the S7-1200 system — including all attached SM modules — to communicate with SIMATIC HMI KTP700 Basic or KTP900 Basic panels for operator visualization of temperature trends, alarm thresholds, and process setpoints. The HMI layer reads RTD process values mapped from the 6ES7231-5PD32-0XB0 input image area, providing real-time thermal dashboards without additional data conversion steps.

In applications requiring analog output control based on RTD feedback — such as PID temperature regulation of heating elements or cooling circuits — the SM 1232 Analog Output Module (6ES7232-4HB32-0XB0) pairs naturally with the RTD input module, forming a closed-loop thermal control subsystem within the same S7-1200 rack. Signal flow from sensor → 6ES7231-5PD32-0XB0 → CPU PID block → SM 1232 → actuator represents a complete, self-contained control loop with no external signal processing hardware required.

For installations requiring communication with field devices over serial protocols, the CM 1241 RS485 Communication Module can be added to the S7-1200 system to interface with Modbus RTU-based drives, meters, or remote I/O stations, while the RTD module continues to handle local thermal measurement independently. This layered communication architecture ensures that temperature data acquisition remains unaffected by serial bus load or polling cycles.

Terminal wiring integrity is maintained using Siemens front connector assemblies compatible with the SM 1231 form factor, ensuring secure field wiring connections that withstand vibration and thermal cycling in industrial cabinet environments. Proper cable shielding and grounding at the terminal level directly impacts the measurement accuracy of the 6ES7231-5PD32-0XB0, making terminal module selection a critical architectural decision.

Application in Layered Automation Systems

Manufacturing & Process Control: In automotive body shop paint ovens and curing lines, the 6ES7231-5PD32-0XB0 monitors zone temperatures across multiple heating sections, feeding data to the S7-1200 CPU for PID-controlled burner management. Consistent temperature profiles across all zones directly impact coating adhesion quality and production throughput.

Power Generation & Utilities: In small-scale power plant auxiliary systems — including cooling water circuits, transformer thermal monitoring, and generator bearing temperature supervision — the RTD module provides the precise, isolated temperature measurements required for protective relay coordination and equipment longevity programs.

Petrochemical & Oil/Gas: Heat exchanger outlet temperature monitoring in refinery pre-heat trains relies on accurate RTD signal acquisition. The 6ES7231-5PD32-0XB0 supports Pt100 sensors across the full process temperature range, enabling the S7-1200 to execute feed-forward temperature compensation algorithms that optimize energy consumption and product yield.

Water & Wastewater Treatment: Sludge digester temperature control in anaerobic treatment systems requires continuous, reliable RTD monitoring to maintain optimal bacterial activity ranges. The module’s 16-bit resolution and 0.1°C accuracy ensure that temperature deviations are detected and corrected before they impact biogas production efficiency.

Mining & Metallurgy: Conveyor belt motor bearing temperature monitoring and furnace zone control in smelting operations benefit from the module’s robust isolation and wide sensor compatibility. Integration with the S7-1200 CPU allows temperature alarms to trigger automatic load shedding or equipment shutdown sequences, protecting high-value assets from thermal damage.

Packaging Lines: Heat-seal jaw temperature control in form-fill-seal packaging machines demands fast, accurate RTD feedback to maintain seal integrity across varying film materials and line speeds. The 6ES7231-5PD32-0XB0’s deterministic I/O bus communication ensures that temperature data is available to the CPU PID block within every scan cycle, enabling tight temperature control at high production rates.

Architecture Engineering FAQ

Q1: Can the 6ES7231-5PD32-0XB0 be used with all S7-1200 CPU variants, and how many modules can be connected per CPU?
The SM 1231 RTD module is compatible with all S7-1200 CPU models (CPU 1211C through CPU 1217C). The number of expansion modules per CPU depends on the CPU variant: CPU 1211C supports up to 3 signal modules, while CPU 1212C supports up to 5, and CPU 1214C / 1215C / 1217C support up to 8 signal modules on the right-side expansion bus. Each module occupies one slot and communicates via the internal I/O bus without requiring additional configuration beyond standard TIA Portal hardware configuration.

Q2: How does the 6ES7231-5PD32-0XB0 support system redundancy and long-term maintenance in critical applications?
While the S7-1200 platform does not natively support CPU-level redundancy (unlike the S7-400H), system-level redundancy for the RTD measurement layer can be achieved by deploying parallel measurement paths using two 6ES7231-5PD32-0XB0 modules connected to separate CPUs in a hot-standby architecture managed by higher-level SCADA logic. For long-term maintenance, the module’s plug-in front connector design allows field wiring to remain in place during module replacement, minimizing downtime. ZYPLC’s 12-Month Warranty covers the module against manufacturing defects, and our in-stock inventory program ensures rapid replacement availability to support planned maintenance schedules.

Q3: What engineering steps are required to commission the 6ES7231-5PD32-0XB0 in TIA Portal, and what are common installation pitfalls?
Commissioning requires adding the SM 1231 RTD module to the S7-1200 hardware configuration in TIA Portal V13 SP1 or later, selecting the correct sensor type and temperature unit per channel, and verifying the module’s I/O address assignment in the process image. Common pitfalls include incorrect sensor type selection (e.g., configuring Pt100 when Ni100 sensors are installed), improper cable shielding leading to measurement noise, and failure to enable channel-level diagnostics that provide wire-break and out-of-range fault detection. ZYPLC’s technical support team provides pre-sales configuration guidance and post-delivery commissioning assistance as part of the 12-Month Warranty service commitment.
