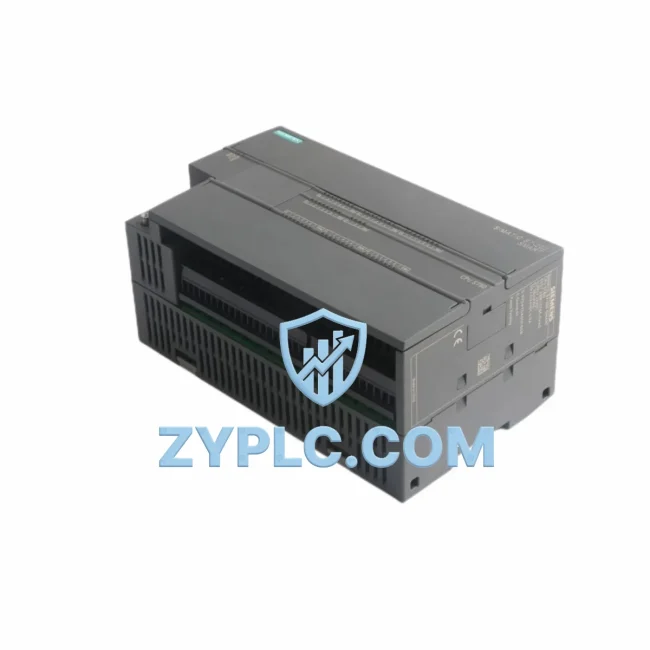

Siemens 6ES7288-1ST60-0AA0 Energy-Saving CPU S7-200 SMART

Siemens 6ES7288-1ST60-0AA0 Energy-Saving CPU Module for S7-200 SMART Automation

The Siemens 6ES7288-1ST60-0AA0 is a high-performance CPU module from the S7-200 SMART series, engineered to deliver precise, energy-aware control across demanding industrial environments. As manufacturing facilities face increasing pressure to reduce energy consumption and improve overall equipment effectiveness (OEE), this CPU module serves as the intelligent core of a lean, responsive automation architecture. By executing control logic with minimal cycle overhead and supporting efficient communication protocols, the 6ES7288-1ST60-0AA0 enables production lines to operate at optimized throughput while eliminating unnecessary power draw from idle or redundant processes.

Unlike conventional PLCs that maintain fixed power states regardless of load, the S7-200 SMART platform — anchored by this CPU — supports dynamic task scheduling and interrupt-driven execution. This means the controller responds precisely when needed, reducing processor idle consumption and freeing system resources for real-time energy monitoring tasks. When integrated with Siemens SMART LINE HMI panels such as the SMART 700 IE V3, operators gain live visibility into energy consumption per production zone, enabling data-driven decisions that directly reduce utility costs.

In motor-driven applications, the 6ES7288-1ST60-0AA0 pairs seamlessly with Siemens SINAMICS V20 variable frequency drives to implement closed-loop speed regulation. Rather than running motors at fixed full speed, the CPU issues precise frequency commands via Modbus RTU, allowing the drive to match motor output to actual load demand. This alone can reduce motor energy consumption by 20–50% in pump, fan, and conveyor applications. The CPU’s high-speed pulse output channels also support direct control of SINAMICS V90 servo drives for positioning tasks, ensuring that servo axes accelerate and decelerate on optimized motion profiles that minimize reactive power and mechanical stress.

The 6ES7288-1ST60-0AA0 supports up to 60 I/O points onboard and can be expanded with 6ES7288-2DT08-0AA0 digital expansion modules and 6ES7288-3AE04-0AA0 analog input modules for process variable acquisition. These analog inputs are critical for energy monitoring — connecting to current transformers, power transducers, or pressure sensors allows the CPU to calculate real-time power factor, load ratio, and consumption trends without requiring a separate energy meter gateway. When combined with the 6ES7288-5BA01-0AA0 signal board for additional high-speed I/O, the system gains the resolution needed for precise energy event capture during machine start-up and shutdown cycles.

Communication efficiency is another dimension of energy optimization. The 6ES7288-1ST60-0AA0 features a built-in Ethernet port supporting the S7 communication protocol and Modbus TCP, enabling direct integration with SCADA systems, MES platforms, and cloud-based energy management dashboards. This eliminates the need for additional communication gateways, reducing both hardware cost and standby power consumption in the control cabinet. For legacy field devices, the CPU’s RS485 port supports Modbus RTU, allowing connection to Siemens PAC3200 power monitoring devices and third-party energy analyzers without protocol converters.

On the production line, the 6ES7288-1ST60-0AA0 contributes directly to takt time optimization. Its fast scan cycle — as low as 0.08 ms per 1K instructions — ensures that control responses are executed within the timing windows required for high-speed assembly, packaging, and material handling operations. Tight cycle control reduces buffer accumulation between stations, which in turn lowers the energy wasted by conveyor systems running empty or at partial load. When integrated with Siemens KTP700 Basic HMI panels, line supervisors can monitor station cycle times and energy consumption simultaneously, identifying bottlenecks that cause both throughput loss and energy waste.

Predictive maintenance is increasingly recognized as a key lever for energy efficiency. The 6ES7288-1ST60-0AA0 supports data logging to SD card, enabling trend recording of motor current draw, cycle counts, and process temperatures over time. Gradual increases in motor current — often the first sign of bearing wear or mechanical misalignment — can be detected early, allowing maintenance teams to intervene before a failure causes unplanned downtime and the associated energy spike of emergency restarts. This capability, combined with the CPU’s alarm management functions, supports a condition-based maintenance strategy that keeps equipment running at its designed efficiency point.

Every unit of the 6ES7288-1ST60-0AA0 supplied by ZYPLC is sourced from verified supply channels, undergoes pre-shipment functional testing including I/O verification, communication port checks, and program load/run validation, and is backed by a 12-month warranty. Stock is maintained for immediate dispatch, supporting both urgent replacement needs and planned system builds.

Efficiency Performance Table

Energy-Aware Automation Architecture

A complete energy-optimized automation cell built around the 6ES7288-1ST60-0AA0 typically integrates multiple coordinated components. At the drive layer, the SINAMICS V20 inverter handles variable-speed motor control for pumps and fans, while the SINAMICS V90 servo system manages precision positioning axes. The CPU communicates with both via Modbus RTU over RS485, issuing speed setpoints and reading back actual current and torque values for energy accounting.

At the sensing layer, 6ES7288-3AE04-0AA0 analog expansion modules connect to current transformers and pressure transducers, feeding real-time process data into the CPU’s energy calculation routines. Digital expansion via 6ES7288-2DT08-0AA0 modules extends the I/O count for multi-station lines without adding a second CPU, keeping the control architecture lean and power-efficient. The 6ES7288-5BA01-0AA0 signal board adds high-speed counter inputs for encoder-based position feedback, enabling the CPU to calculate actual mechanical work performed per cycle — a key metric for energy-per-unit-produced KPIs.

At the monitoring layer, the Siemens PAC3200 power monitoring device connects via Modbus RTU to provide three-phase power quality data including power factor, harmonic distortion, and peak demand. This data is polled by the CPU and forwarded via Ethernet to the SCADA system, where it is correlated with production counts to generate energy intensity reports. The SMART 700 IE V3 HMI panel displays real-time energy dashboards at the machine level, giving operators immediate feedback on consumption trends without requiring access to the central SCADA workstation.

For multi-axis motion applications, the SINAMICS G120 modular drive system can be integrated via PROFINET using a CP communication module, enabling centralized drive management and energy recovery through the DC bus link — a feature particularly valuable in applications with frequent braking cycles such as hoists, winders, and high-inertia conveyors.

Power Optimization in Real Production Lines

In a typical packaging line scenario, the 6ES7288-1ST60-0AA0 manages the sequencing of infeed conveyors, filling stations, sealing units, and outfeed sorters. Without intelligent control, each of these subsystems runs continuously at full speed regardless of upstream product flow. With the S7-200 SMART CPU implementing demand-based speed control via SINAMICS V20 drives, conveyor speeds are modulated in real time based on product presence signals from photoelectric sensors. During line stoppages or changeovers, the CPU automatically ramps drives to standby speed, reducing motor energy consumption by up to 40% during non-productive intervals.

In pump and HVAC applications, the CPU executes PID control loops that maintain process variables — pressure, flow, temperature — at setpoint with minimal overshoot. Eliminating the pressure overshoot that occurs with on/off pump control not only saves energy but also reduces pipe stress and valve wear, extending maintenance intervals. The CPU’s built-in PID function blocks, combined with analog feedback from pressure transmitters connected to the 6ES7288-3AE04-0AA0 expansion module, deliver stable closed-loop control without requiring additional process controllers.

Unplanned downtime is one of the largest hidden energy costs in manufacturing — the energy consumed during emergency restarts, scrap processing, and recovery sequences can dwarf the savings from efficiency improvements elsewhere. The 6ES7288-1ST60-0AA0’s data logging capability enables trend-based predictive maintenance: by recording motor current signatures over weeks and months, maintenance teams can identify developing faults before they cause failures. This keeps equipment operating within its designed efficiency envelope and eliminates the energy penalty of reactive maintenance cycles.

For multi-shift operations, the CPU’s real-time clock enables time-based energy management schedules — automatically reducing setpoints, disabling non-critical loads, and logging shift-level energy consumption for cost allocation. Combined with the reporting capabilities of connected SCADA systems, this gives energy managers the granular data needed to identify and eliminate waste at the machine level.

Energy Optimization FAQ

Q1: How much energy can the 6ES7288-1ST60-0AA0 help save in a motor-driven application?
When paired with a SINAMICS V20 variable frequency drive and implementing demand-based speed control, motor energy savings of 20–50% are achievable in pump, fan, and conveyor applications compared to fixed-speed operation. Actual savings depend on load profile and duty cycle.

Q2: Is the 6ES7288-1ST60-0AA0 compatible with third-party drives and energy meters?
Yes. The CPU’s RS485 port supports Modbus RTU, which is the standard protocol for most third-party VFDs, servo drives, and power monitoring devices. Modbus TCP over Ethernet extends compatibility to networked devices. No additional protocol converters are required for standard Modbus-compatible equipment.

Q3: Can this CPU replace an older S7-200 CPU in an existing installation?
The S7-200 SMART series is the designated successor to the legacy S7-200 platform. While direct program migration requires adaptation using STEP 7 Micro/WIN SMART software, the hardware form factor and I/O wiring are compatible with most existing panel layouts. ZYPLC can advise on migration compatibility for specific legacy CPU models.

Q4: What does the 12-month warranty cover, and what is the testing process?
Every 6ES7288-1ST60-0AA0 unit supplied by ZYPLC undergoes pre-shipment testing including power-on verification, I/O channel functional checks, Ethernet and RS485 communication port validation, and program load/run testing. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. Units are dispatched with test records available on request.
